AUDISON Prima Line - 6X9" 2-Way 4 Ohm Component Speaker - Pair (Apk 690)

AUDISON Prima Line - 6X9" 2-Way 4 Ohm Component Speaker - Pair (Apk 690)

$469.99

AUDISON Prima Line - 6X9" 2-Way 4 Ohm Component Speaker - Pair (Apk 690)

$469.99
0 watching this item.

AUDISON Prima Line - 6X9" 2-Way 4 Ohm Component Speaker - Pair (Apk 690)

$469.99

SKU: APK690

Available for enquiry only. For assistance, click Request Callback above or call us at 1300 856 888.
Product Details

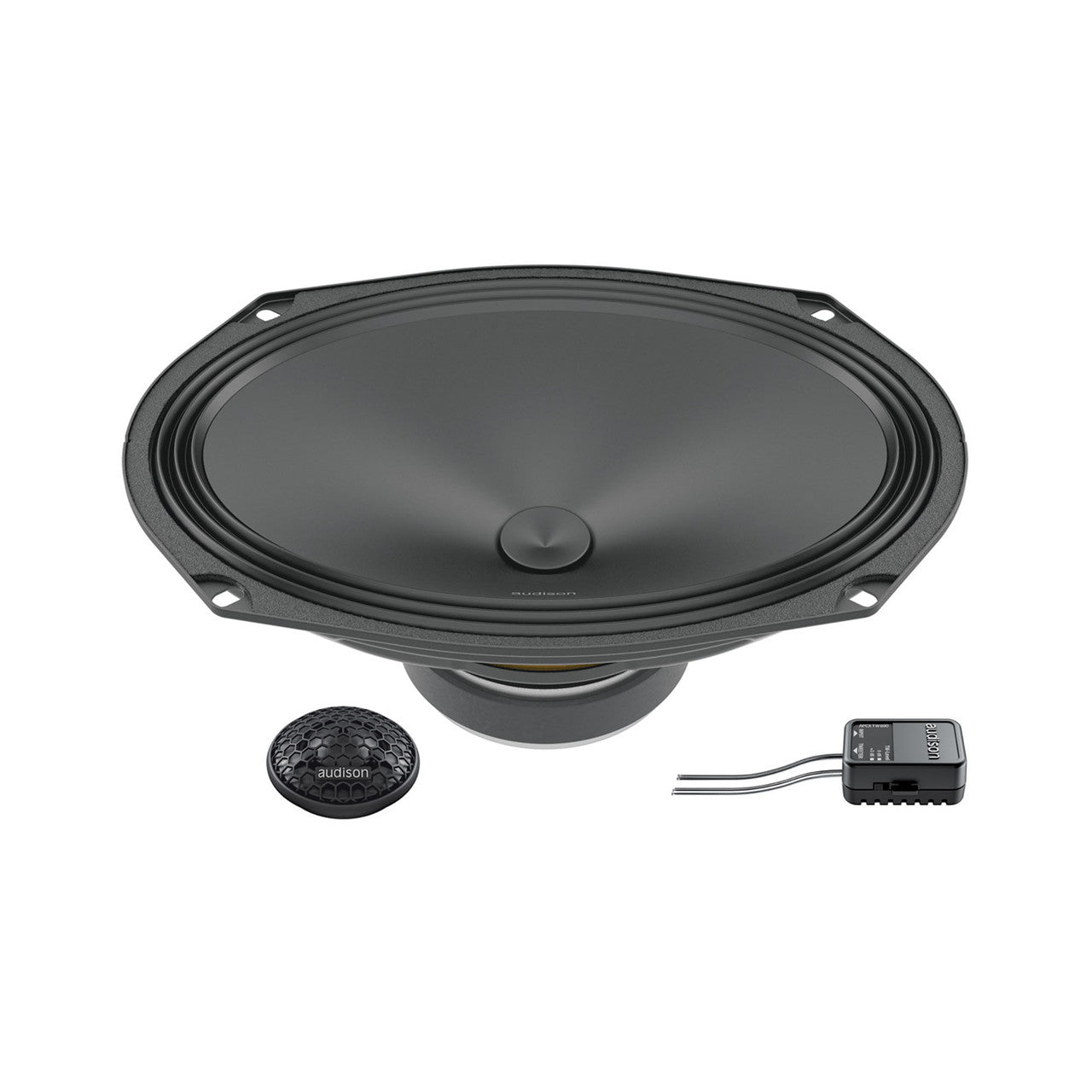

APK 690 - KIT 2Way AP 1+AP 690+XOVER

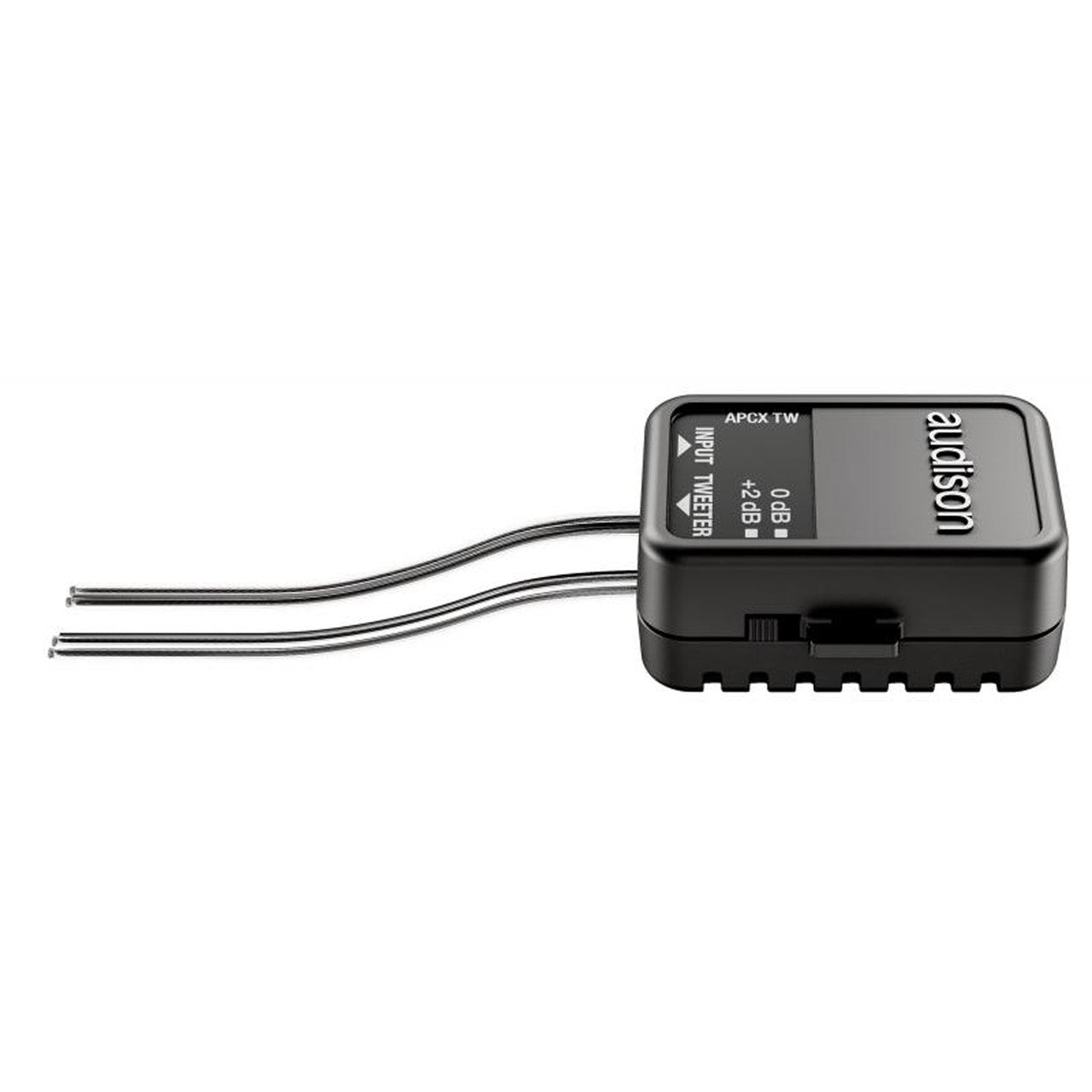

APK 690 systems are ideal for car models with doors equipped to house elliptical speakers, featuring 6×9 in. woofers and AP 1 tweeter with dedicated crossovers APCX TW 690. The crossovers are ultra-compact to facilitate their installation, and include an attenuation of the tweeter output level for outstanding fine-tuning.The R&D team optimized the electro-acoustic parameters of the new woofers for installation in the car door, respecting all the characteristics of the Prima speakers, such as the compact size of the basket to facilitate installation. The mechanical cut-off of the woofer cone-dust cap system ensures they can be used without a filter, maximizing efficiency to be easily driven by any type of amplifier. The large voice coil ensures high power handling and impeccable control even in the most aggressive dynamic transients. The double Faston connectors with direct link to the tweeter speed up the speakers connection, always ensuring a perfect contact.

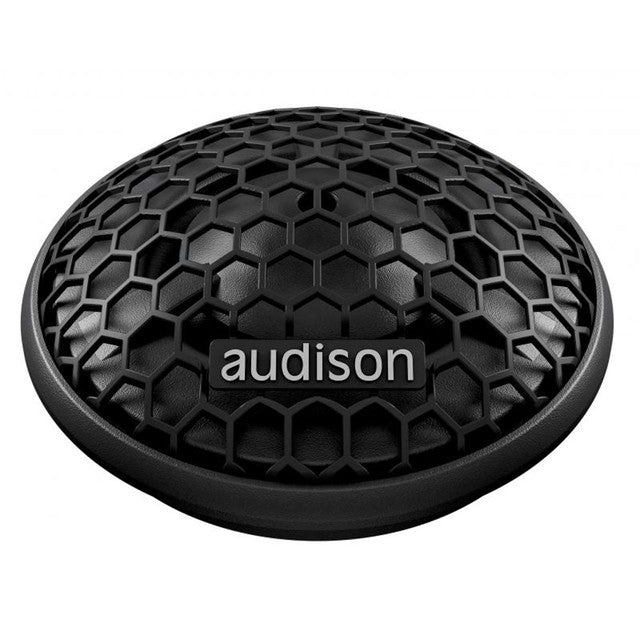

Tweeter -
• 26 mm diameter diaphragm combined with a wide-roll surround provides maximum efficiency and reduced resonance frequency.
• Acoustic lens designed to compensate for the in-car frequency response in the 10kHz - 13kHz bandwidth caused by critical OEM placements.

Woofer -
• 25 mm pure copper voice coil, for high power handling and outstanding low frequency control.
• Water-repellent treated paper cone, featuring a profile developed with FEM (Finite Element Method) simulation technology and optimized with the Klippel R&D Scan Vibrometer.
• Reduced mounting depth, providing ease of installation in OEM placements.
• “Triple Wave” surround profile for maximum excursion linearity.
• Compact basket, protected by abrasion-resistant and scratchproof coating, the motor affixed with damping epoxy adhesive.
• High current fast-on terminal with double contact on positive and negative poles for high flexibility and quick connection.

Attribute Details
Brand Audison
Condition NEW
Type Component
Fitment Size 6x9 Component Set with 1in Tweeter
Power Handling (RMS / Continuous) 100W
Power Handling (Peak) 300W
RMS Wattage Per Speaker 250
Impedance 4 Ohms
Frequency Response 40 – 20k Hz
Sensitivity 95 dB/SPL
Manufacturer SKU 69051090
UPC 8018823129695
ASIN B07V7FRS4P
Bundle No
Shipping Free 2-Day Shipping
Weight 6.39 lbs
