VSS Semi-Flexible Solar Panels for Canopy Doors (2x 1510mm x 500mm) 2x 140-Watt

VSS Semi-Flexible Solar Panels for Canopy Doors (2x 1510mm x 500mm) 2x 140-Watt

$895.00

VSS Semi-Flexible Solar Panels for Canopy Doors (2x 1510mm x 500mm) 2x 140-Watt

$895.00

VSS Semi-Flexible Solar Panels for Canopy Doors (2x 1510mm x 500mm) 2x 140-Watt

$895.00

SKU: VS-280-CD, VS-DC-2P

$19 Flat Rate Shipping — Fast dispatch with 5–10 business days
Questions? Call 1300 856 888 to check availability or get expert help.
NEED PROFESSIONAL INSTALLATION?
  • Available at our Brookvale workshop
  • Expert 4WD technicians
  • LEARN MORE

SAFE CHECKOUT

Afterpay Google Pay Mastercard Paypal American Express Visa JCB Shop
Product Details
  • 2x 140W 12V ETFE black flexible solar panel mounted on a Fiberglass backing plate, for RVs, campers, boats, roof top tent, cabin...etc.
  • Cutting edge technology protects the solar cells, tougher, lighter and more durable.
  • Modular system allows adding a number of panels together, solar array with higher stability with reliability and higher power output.
  • Made of latest technology PERC 9BB solar cells with 23.5% high efficiency.
  • PERC 9BB cell technology, uniquely designed 9 busbar solar cells deliver ultra-high power in a small footprint.
  • And more durable than other mono solar cells. Reduce the risks of the cells’ crack and the damage of busbars.

Approximate Installation Time - 2 Hours

Installation Difficulty - Easy

FAQs

Specifications
Electrical Information:
Model: VS-130FX2
Peak power: 130W
Solar cell efficiency: 25.8%
Maximum power voltage: 19.14V
Maximum power current: 6.7A
Open circuit voltage: 22.89V
Short circuit current: 7.37A
Power allowance range: +/-3%
Maximum system voltage: 500V
Values at standard test conditions: Air Mass - AM1.5, Irradiance - 1000W/m2, Cell Temperature - 25°C
Material Information:
Laminated for weather resistance

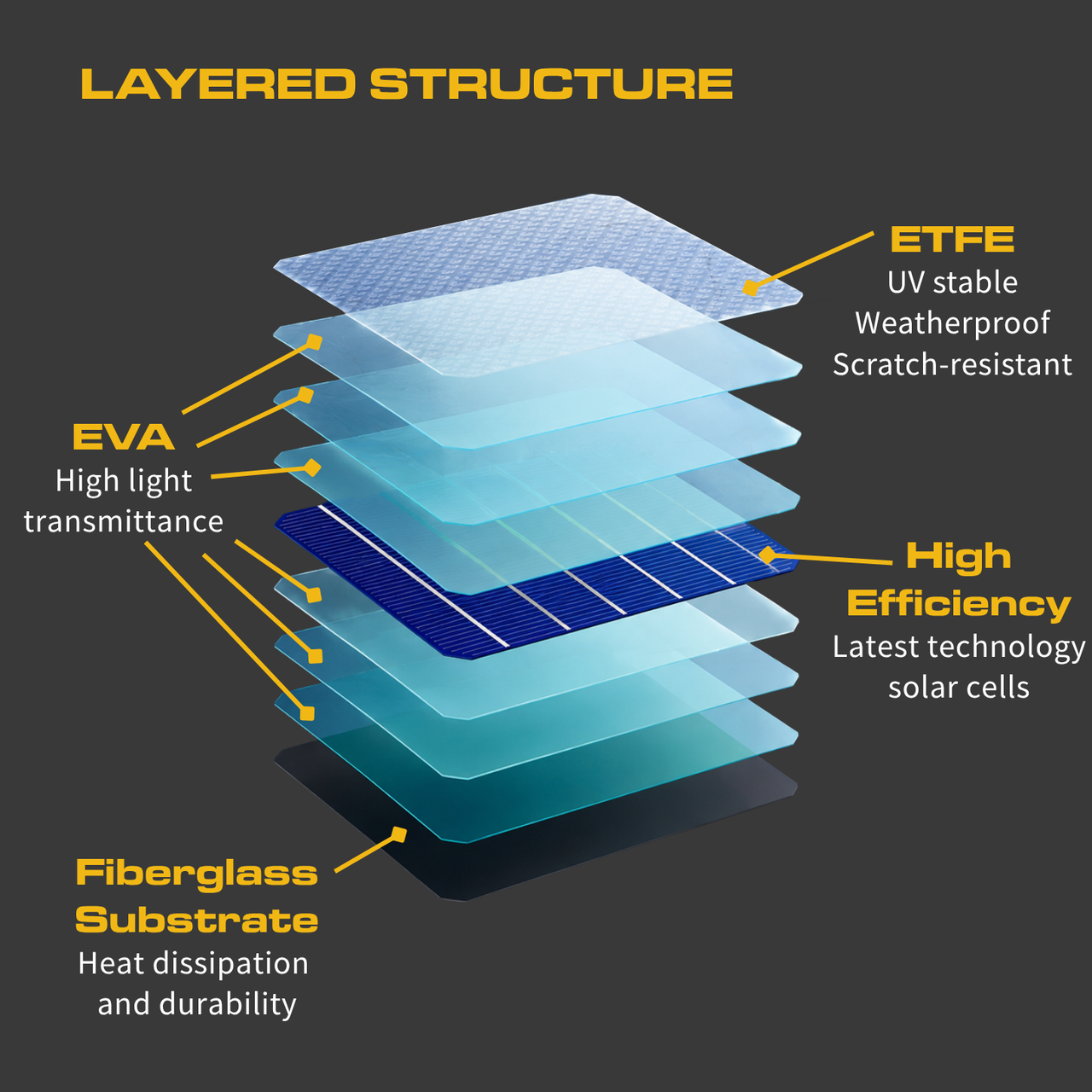

Laminated with fiberglass + ETFE + Silicon cell + EVA + Tedlar
Solar cells: PERC 9BB Monocrystalline
Dimensions: 1090x590x2.5mm
Net Weight: 2.2kgs
Back sheet: Black Fiberglass
J-Box: IP 68 rated with 90cm/3ft cables

Features

Specifications
Electrical Information:
Each Panel:
Peak power: 140W
Solar cell efficiency: 23.5%
Maximum power voltage: 22.4V
Maximum power current: 6.25A
Open circuit voltage: 26.43V
Short circuit current: 6.87A
Power allowance range: +/-3%
Maximum system voltage: 500V
Values at standard test conditions: Air Mass - AM1.5, Irradiance - 1000W/m2, Cell Temperature - 25°C
Material Information:
Laminated for weather resistance
Laminated with fiberglass + ETFE + Silicon cell + EVA + Tedlar
Solar cells: PERC 9BB Monocrystalline
Dimensions: 1510x500x2.5mm
Net Weight: 2.6kgs
Back sheet: Black Fiberglass
J-Box: IP 68 rated with 90cm/3ft cables
