VSS Semi-Flexible Solar Panel, Modular (535mm x 585mm) 50-Watt

VSS Semi-Flexible Solar Panel, Modular (535mm x 585mm) 50-Watt

$180.00

VSS Semi-Flexible Solar Panel, Modular (535mm x 585mm) 50-Watt

$180.00

VSS Semi-Flexible Solar Panel, Modular (535mm x 585mm) 50-Watt

$180.00

SKU: VS-50FX2-9BB

$19 Flat Rate Shipping — Fast dispatch with 5–10 business days
Questions? Call 1300 856 888 to check availability or get expert help.
NEED PROFESSIONAL INSTALLATION?
  • Available at our Brookvale workshop
  • Expert 4WD technicians
  • LEARN MORE

SAFE CHECKOUT

Afterpay Google Pay Mastercard Paypal American Express Visa JCB Shop
Product Details
  • 50W 12V ETFE black flexible solar panel mounted on a Fiberglass backing plate, for RVs, campers, boats, roof top tent, cabin...etc.
  • Cutting edge technology protects the solar cells, tougher, lighter and more durable.

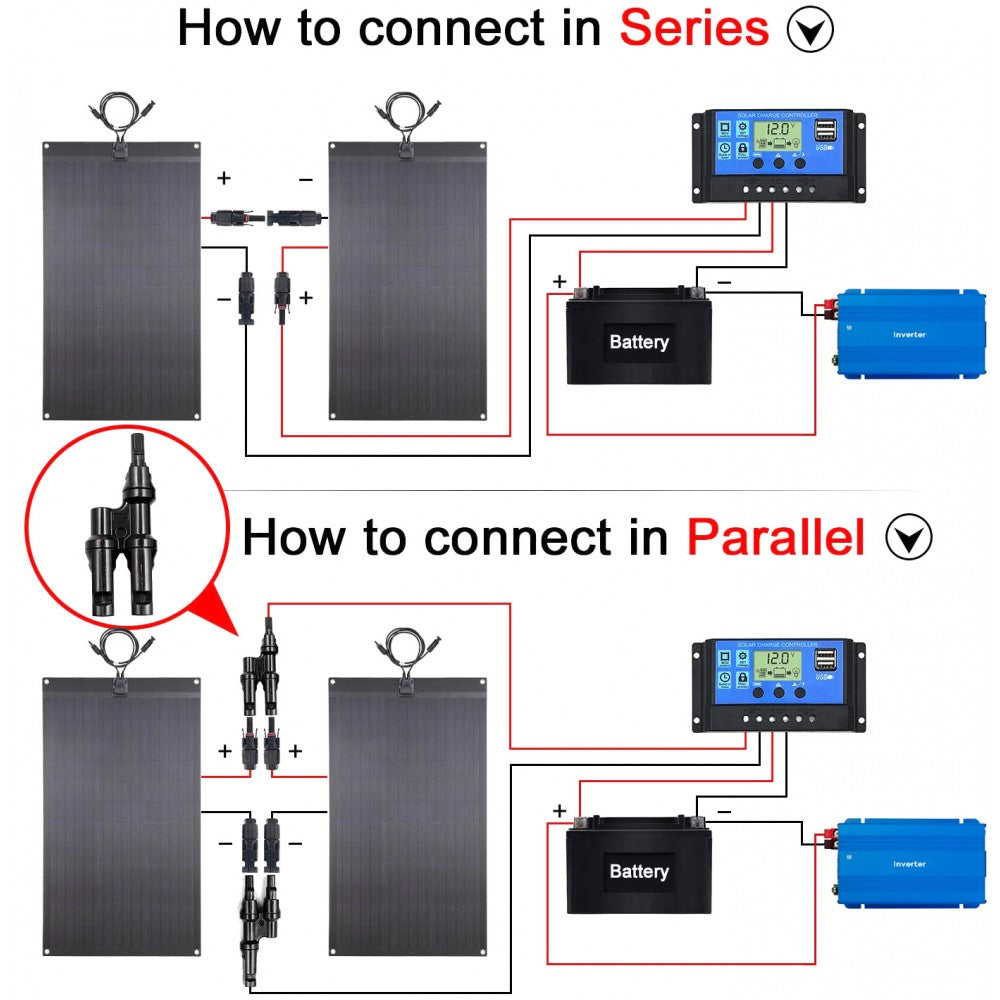

  • Modular system allows adding a number of panels together, solar array with higher stability with reliability and higher power output.
  • Made of latest technology PERC 9BB solar cells with 23.5% high efficiency.
  • PERC 9BB cell technology, uniquely designed 9 busbar solar cells deliver ultra-high power in a small footprint.
  • And more durable than other mono solar cells. Reduce the risks of the cells’ crack and the damage of busbars.

Features

Specifications
Electrical Information:
Model: VSF-50-F
Peak power: 50W
Solar cell efficiency: 23.5%
Maximum power voltage: 18V
Maximum power current: 2.78A
Open circuit voltage: 21.24V
Short circuit current: 3.06A
Power allowance range: +/-3%
Maximum system voltage: 500V
Values at standard test conditions: Air Mass - AM1.5, Irradiance - 1000W/m2, Cell Temperature - 25°C
Material Information:
Laminated for weather resistance

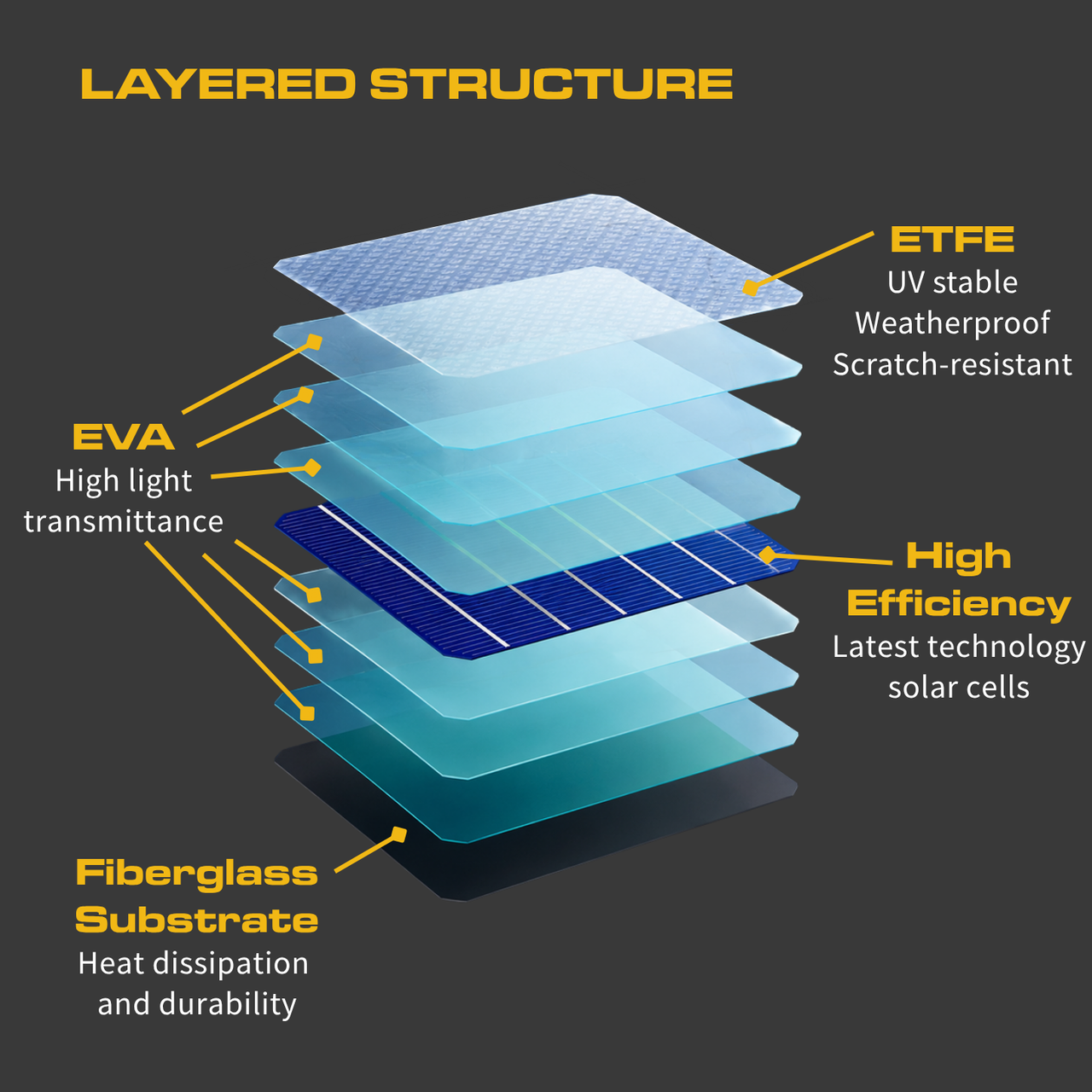

Laminated with fiberglass + ETFE + Silicon cell + EVA + Tedlar
Solar cells: PERC 9BB Monocrystalline

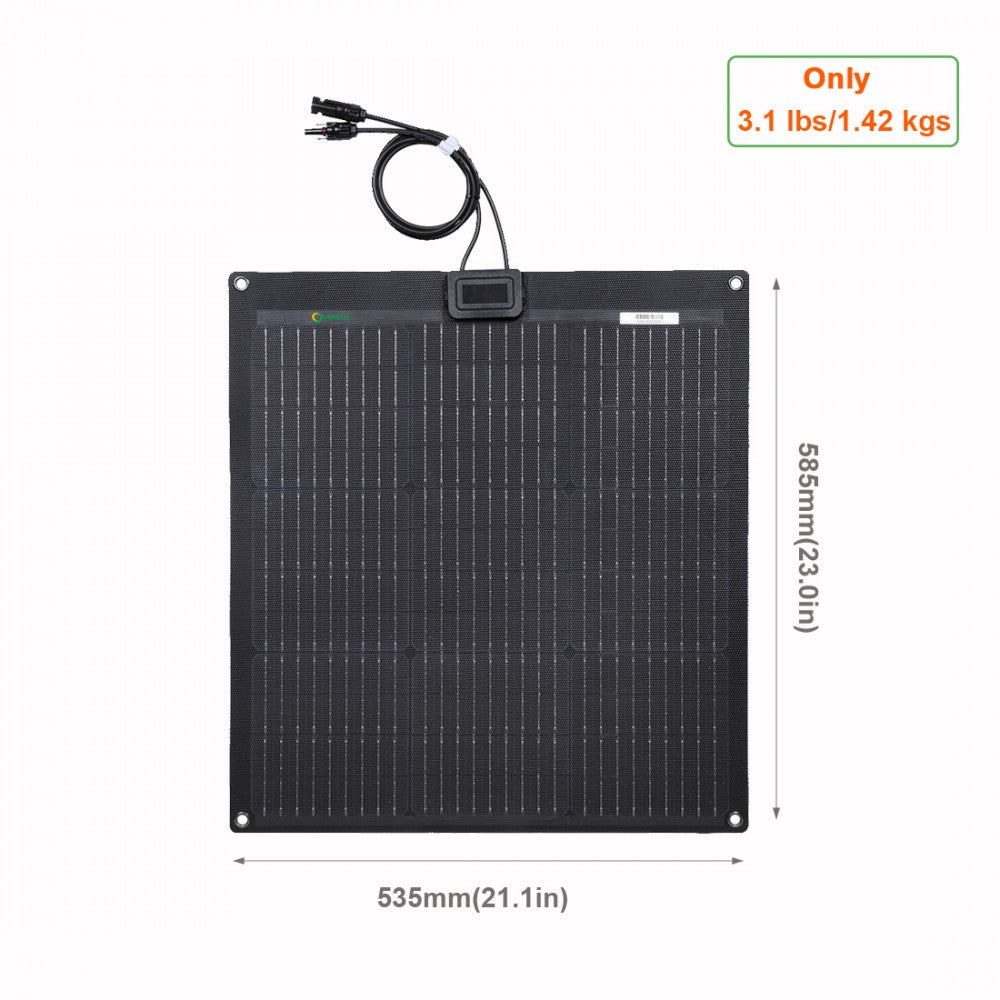

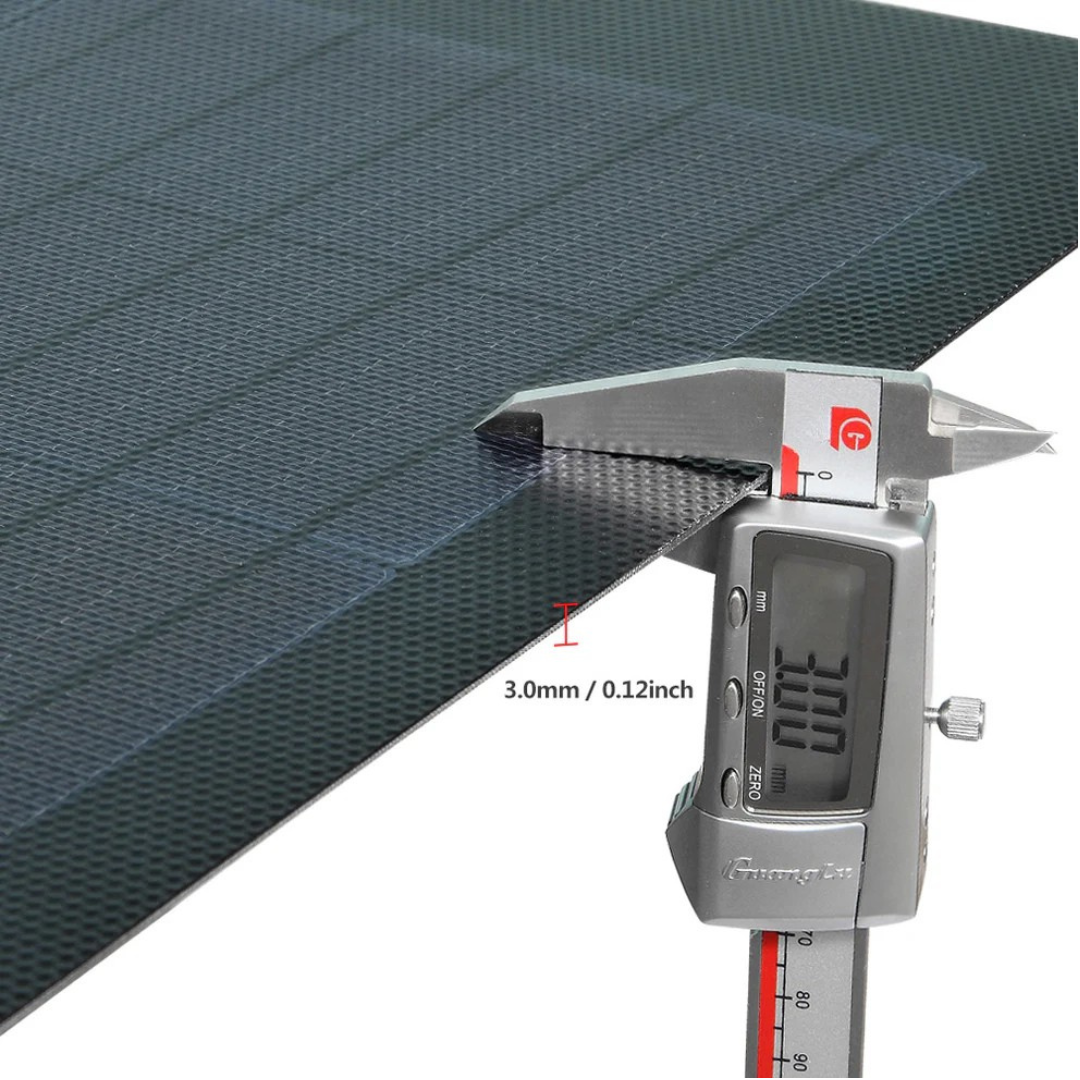

Dimensions: 540x 585 x 2.5mm / 21.26 x 23.03x 0.1 inches
Net Weight: 1.4kg /3.09lbs
Back sheet: Black Fiberglass
J-Box: IP 68 rated with 90cm/3ft cables
