Product Details

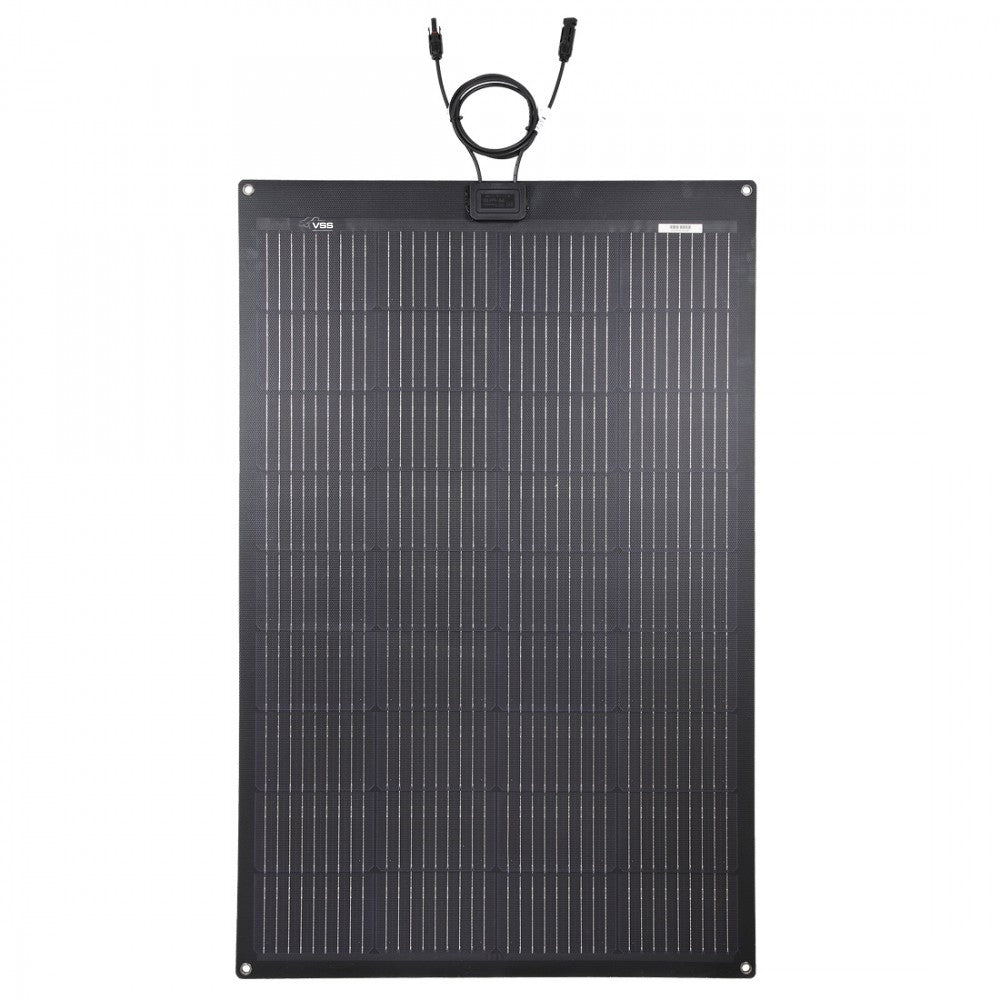

  • 120W 12V ETFE black flexible solar panel mounted on a Fiberglass backing plate, for RVs, campers, boats, roof top tent, cabin...etc.
  • Cutting edge technology protects the solar cells, tougher, lighter and more durable.
  • Modular system allows adding a number of panels together, solar array with higher stability with reliability and higher power output.
  • Made of latest technology PERC 9BB solar cells with 23.5% high efficiency.
  • PERC 9BB cell technology, uniquely designed 9 busbar solar cells deliver ultra-high power in a small footprint.
  • And more durable than other mono solar cells. Reduce the risks of the cells’ crack and the damage of busbars.

Features

Specifications
Electrical Information:
Model: VSF-120
Peak power: 120W
Solar cell efficiency: 23.5%
Maximum power voltage: 20V
Maximum power current: 6A
Open circuit voltage: 23.6V
Short circuit current: 6.6A
Power allowance range: +/-3%
Maximum system voltage: 500V
Values at standard test conditions: Air Mass - AM1.5, Irradiance - 1000W/m2, Cell Temperature - 25°C
Material Information:
Laminated for weather resistance

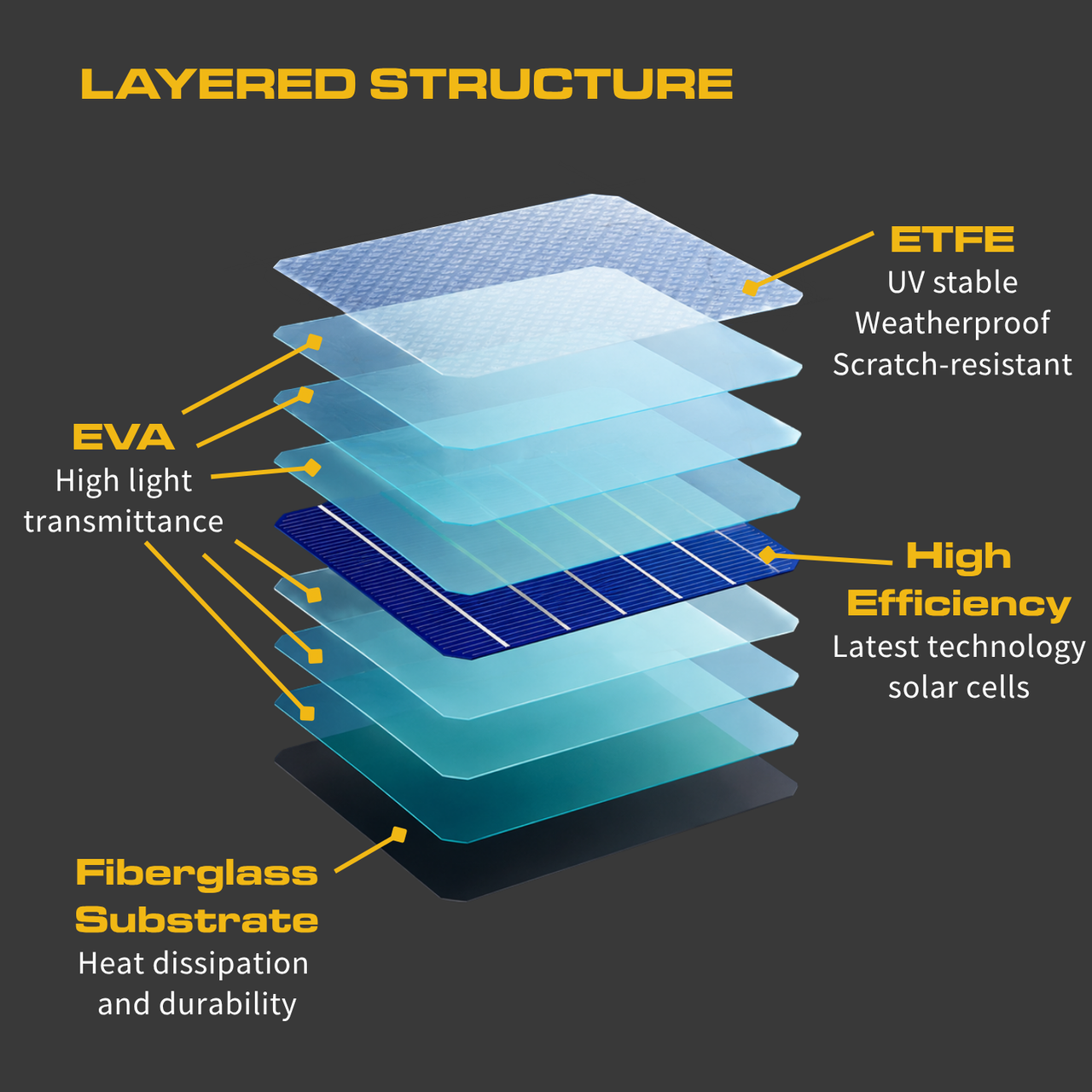

Laminated with fiberglass + ETFE + Silicon cell + EVA + Tedlar
Solar cells: PERC 9BB Monocrystalline

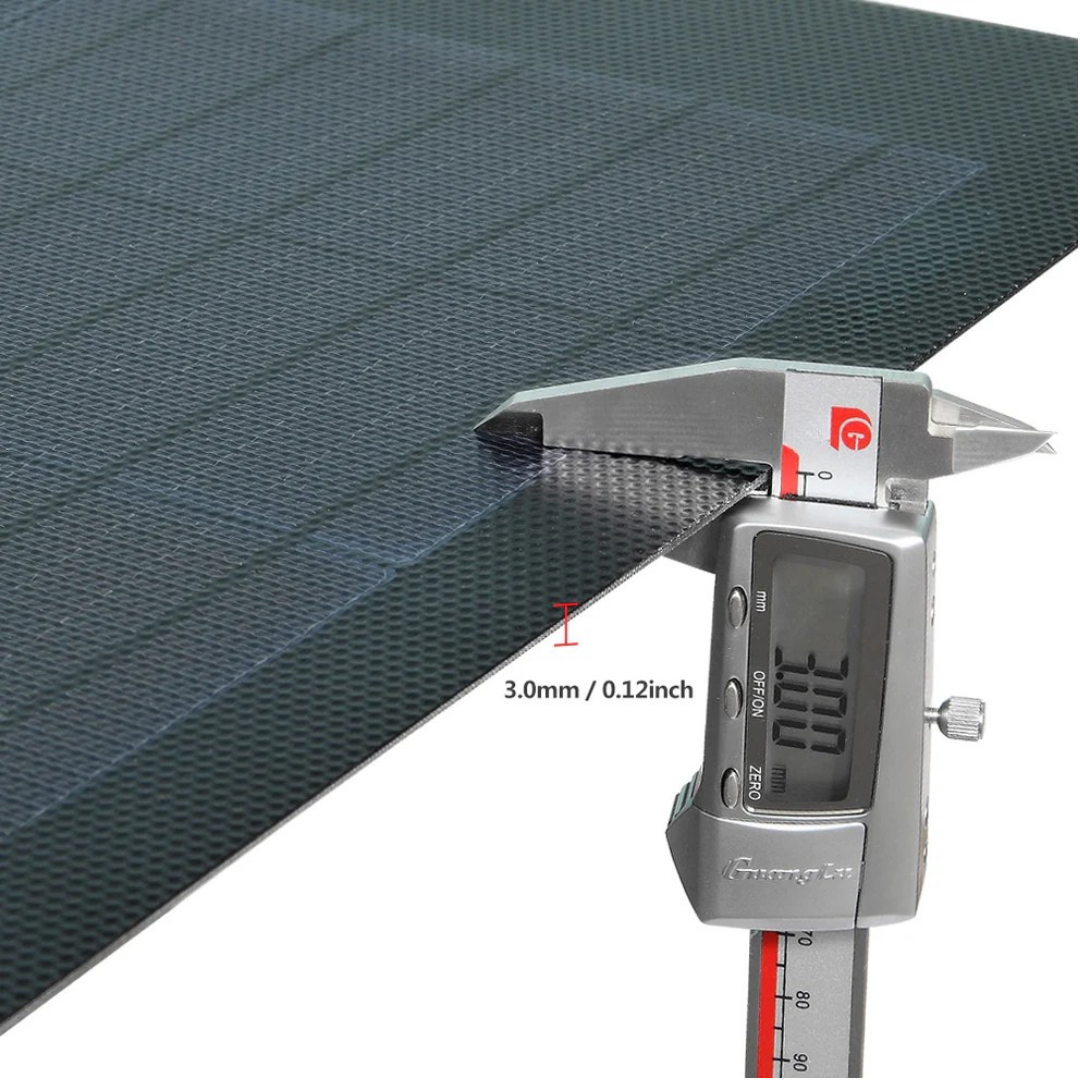

Dimensions: 915 x 770 x 2.5mm
Net Weight: 3kg

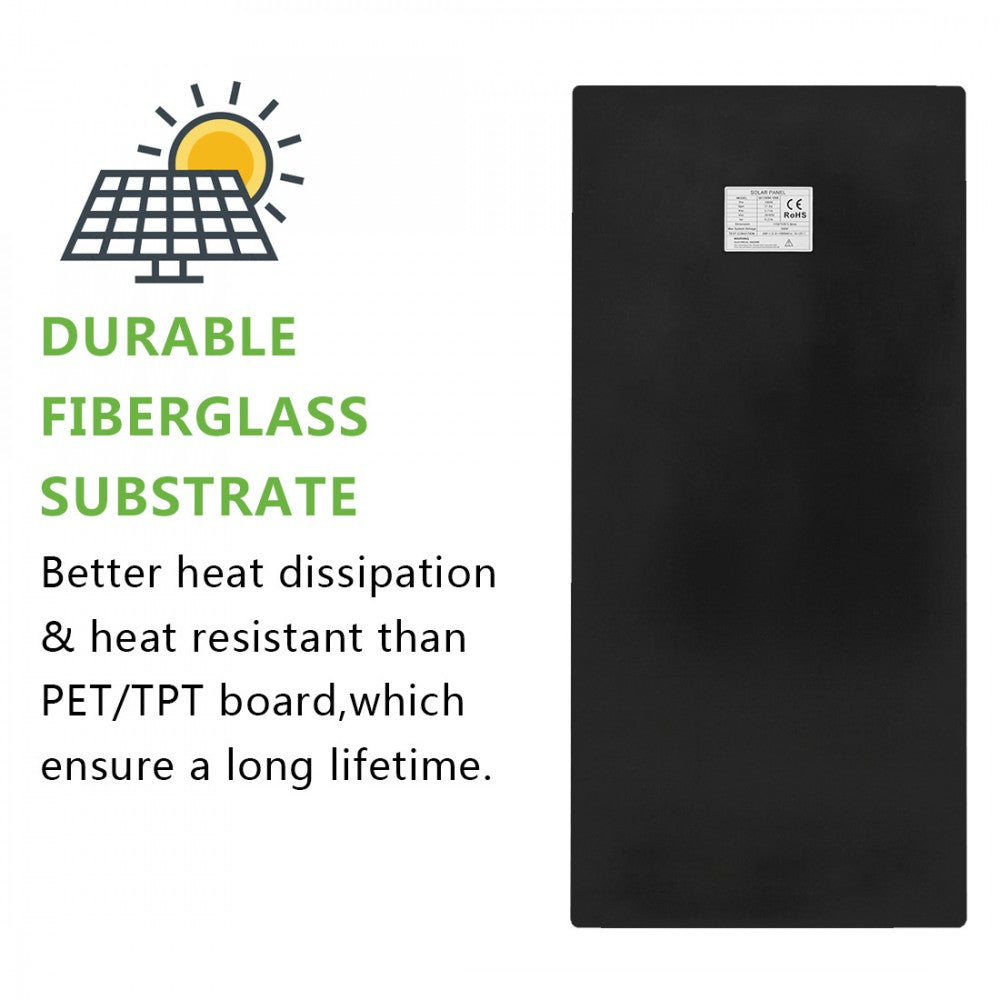

Back sheet: Black Fiberglass
J-Box: IP 68 rated
Package Includes - 1 x 100W ETFE solar panel & 2 x 1m/3ft cables with standard connectors
