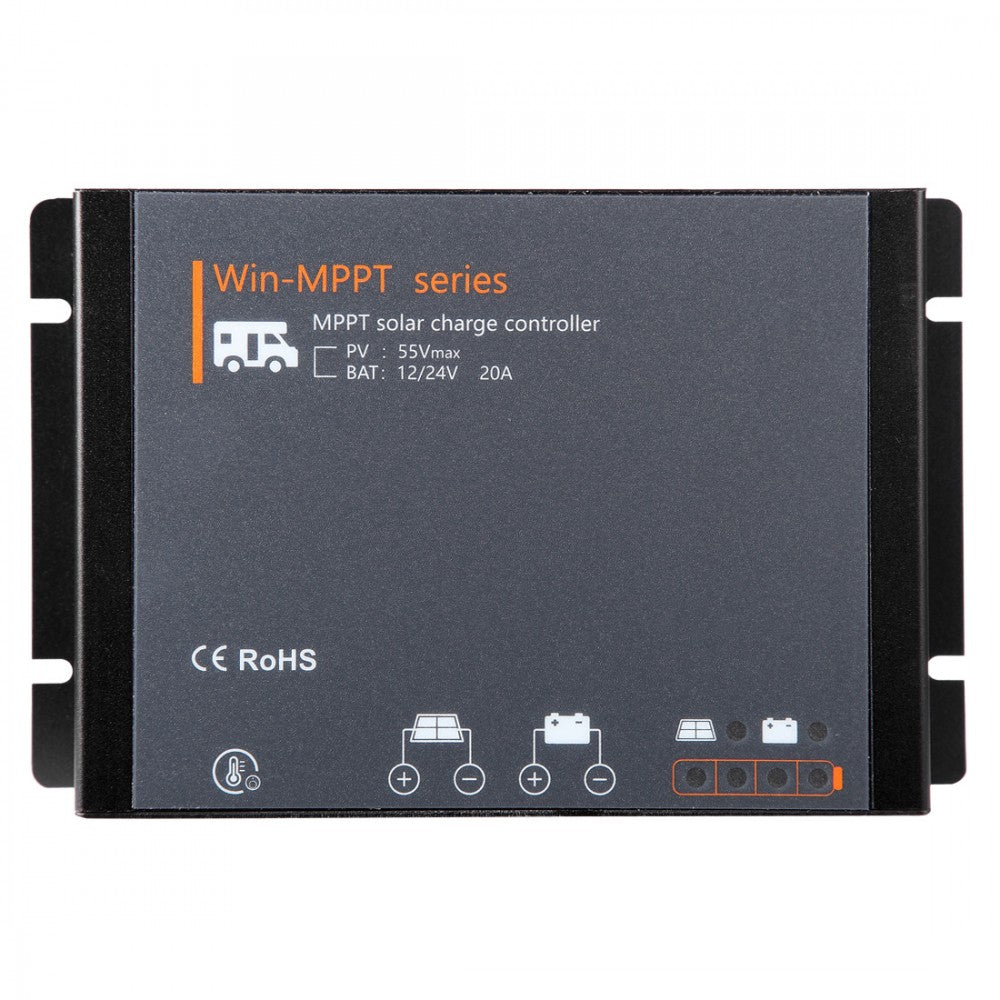

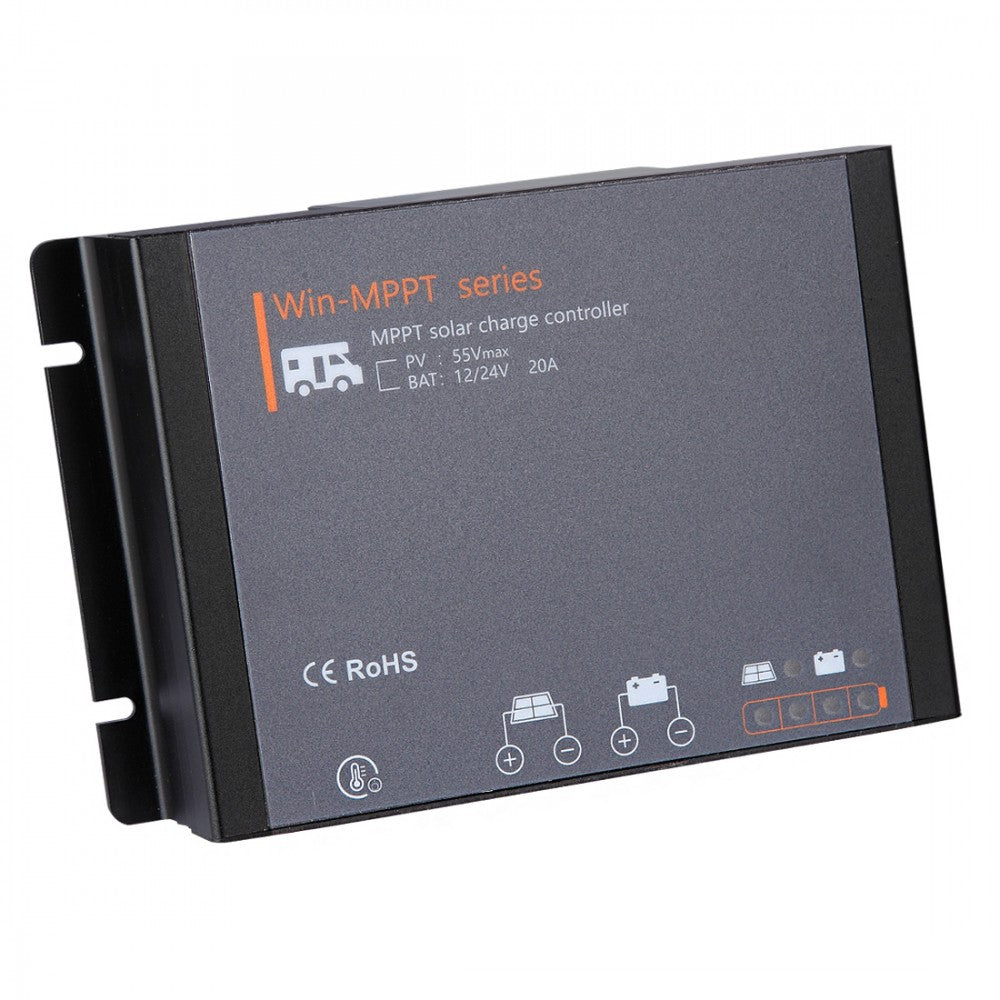

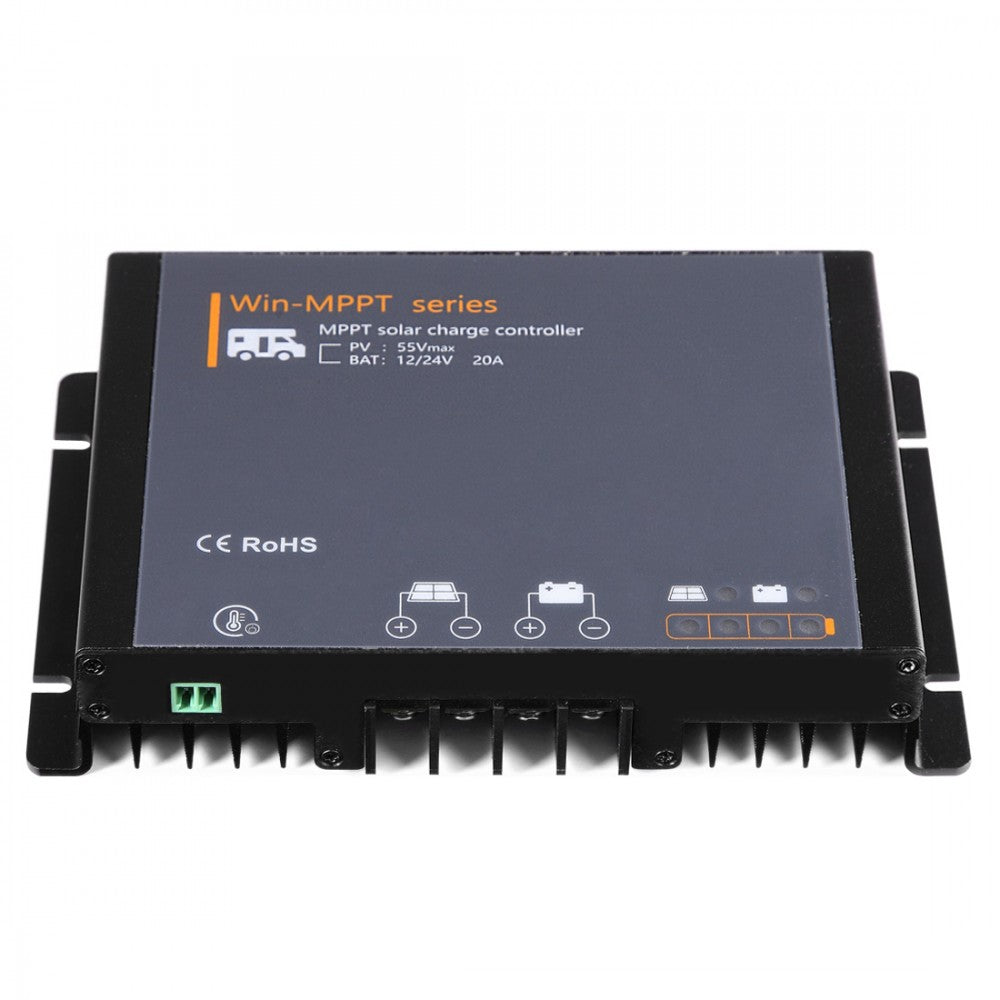

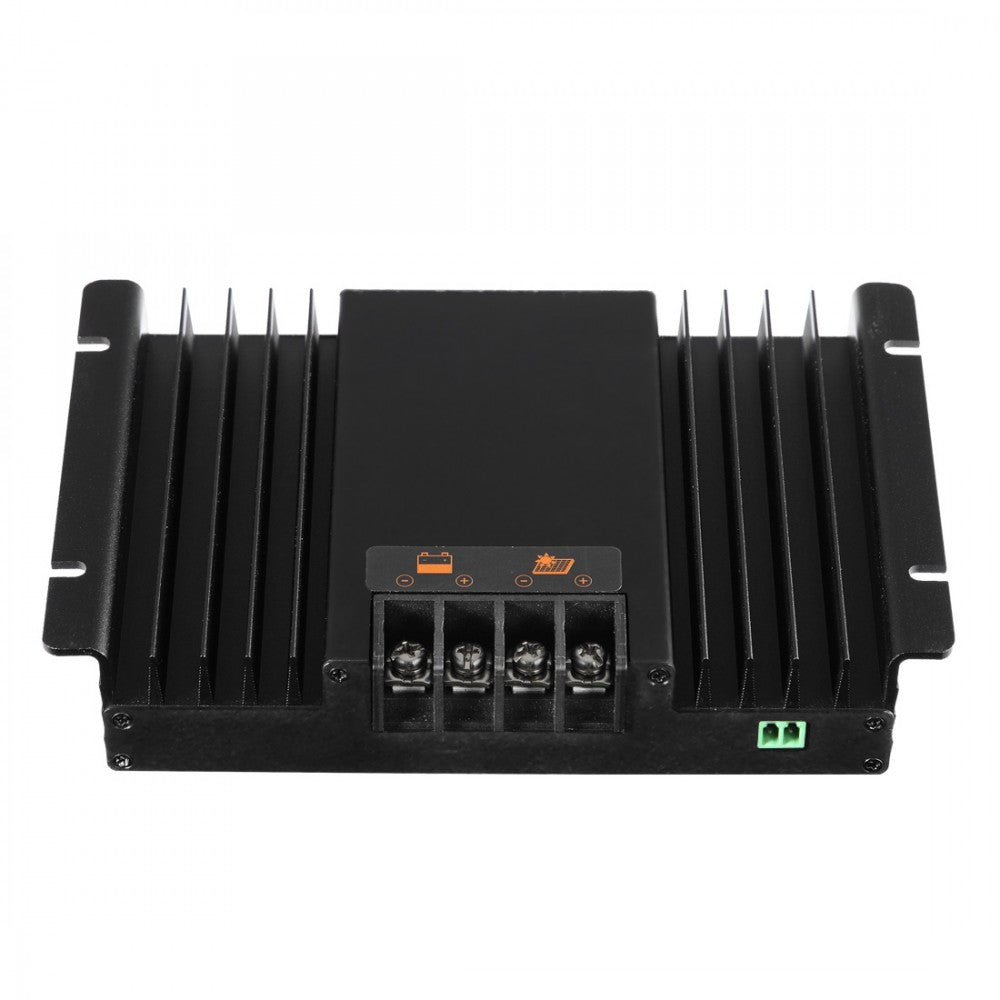

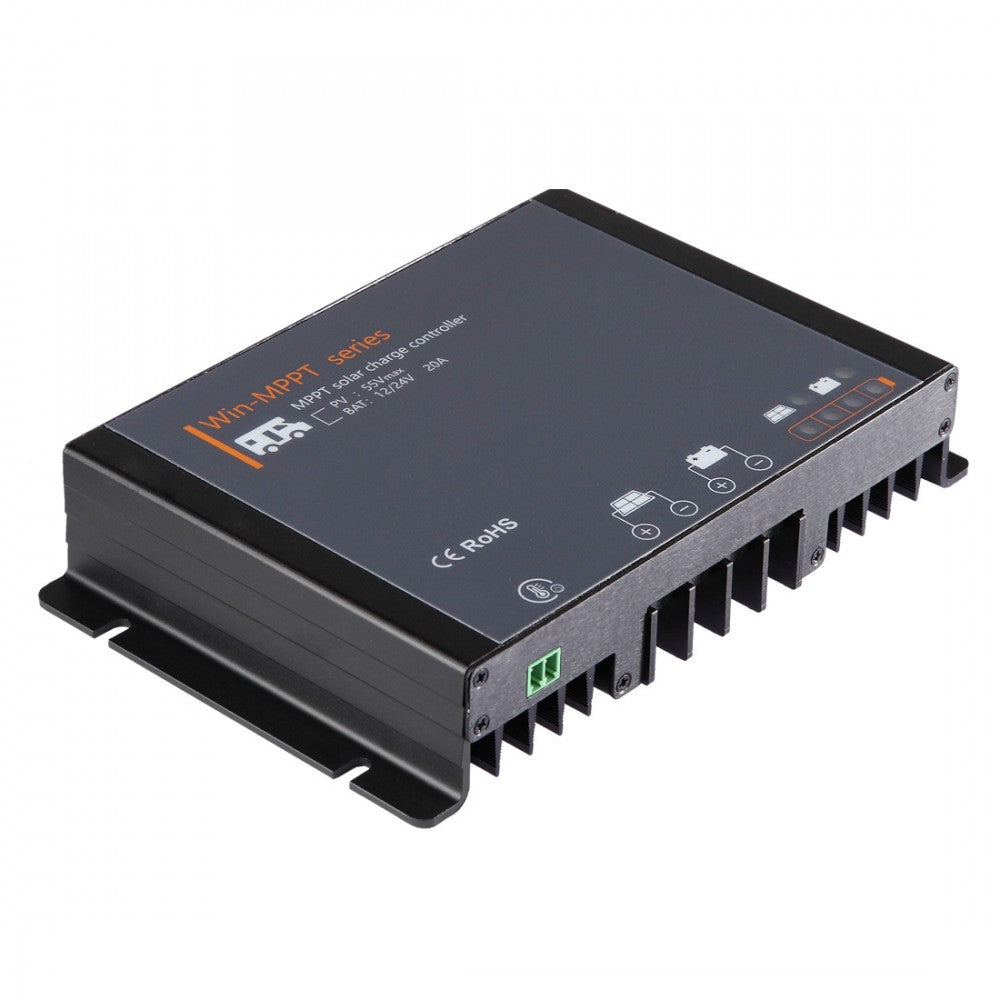

VSS 20A - Waterproof MPPT Solar Controller

VSS 20A - Waterproof MPPT Solar Controller

$160.00

VSS 20A - Waterproof MPPT Solar Controller

$160.00

VSS 20A - Waterproof MPPT Solar Controller

$160.00

SKU: WIN-500-KIT

$19 Flat Rate Shipping — Fast dispatch with 5–10 business days
Questions? Call 1300 856 888 to check availability or get expert help.
NEED PROFESSIONAL INSTALLATION?
  • Available at our Brookvale workshop
  • Expert 4WD technicians
  • LEARN MORE

SAFE CHECKOUT

Afterpay Google Pay Mastercard Paypal American Express Visa JCB Shop
Product Details

Waterproof 20A 12V/24V MPPT Solar Panel Regulator Charge Controller LCD Display. Charge for AGM, Liquid, GEL and Lithium Battery

Waterproof: Suitable for indoor or outdoor use
Battery Types: Gel, AGM, Liquid, Lithium (default: Gel)
Bluetooth: Support mobile phone APP, wireless monitoring.

Features

Model: Win500 System Voltage: 12V/24V Max Charging Power: 500W Max volt on Bat. Terminal: 35V Max volt on PV Terminal: 55V Temp. Compensation: -4.17mV/K per cell (Boost, Equalization), -3.33mV/K per cell (Float) Communication: Bluetooth Grounding: Common Negative Environmental Parameter: Working temperature: -20 to +55 C Storage temperature: -25 to +80 C Ambient Humidity: 0-100% RH Enclosure: IP54 Mechanical Parameter: Dimensions: 164x106x32mm Weight: 700g Maximum Terminals Wire Size: 10AWG(4mm²)
