JL Audio TWK-88 System Tuning DSP controlled by TüN software, 8-channel Analog & Digital Inputs / 8-ch. Analog Outputs

JL Audio TWK-88 System Tuning DSP controlled by TüN software, 8-channel Analog & Digital Inputs / 8-ch. Analog Outputs

$999.00

Brand: JL Audio
Availability: In Stock
SKU: TWK-88

The TwK™ 88 is a state-of-the-art digital signal processor engineered to deliver world-class system tuning capabilities in an easy-to-use format. Equipped with an advanced 24-bit DSP processor, the TwK™ 88 includes flexible input/output options, 80 total bands of equalization and powerful mixing tools. The included DRC-200 Digital Remote Controller offers dual level controls, toggles up to six presets, and has...

Description

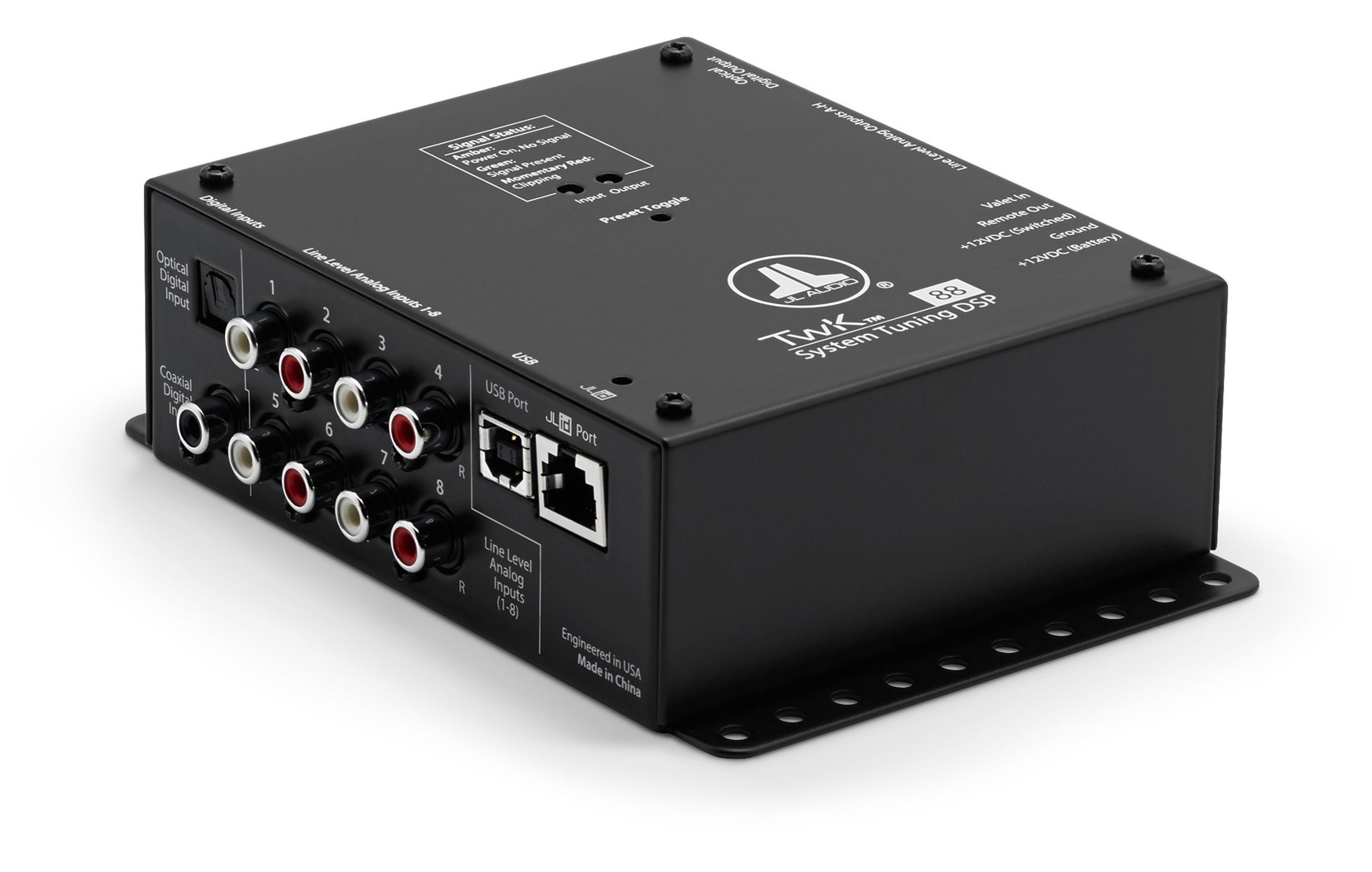

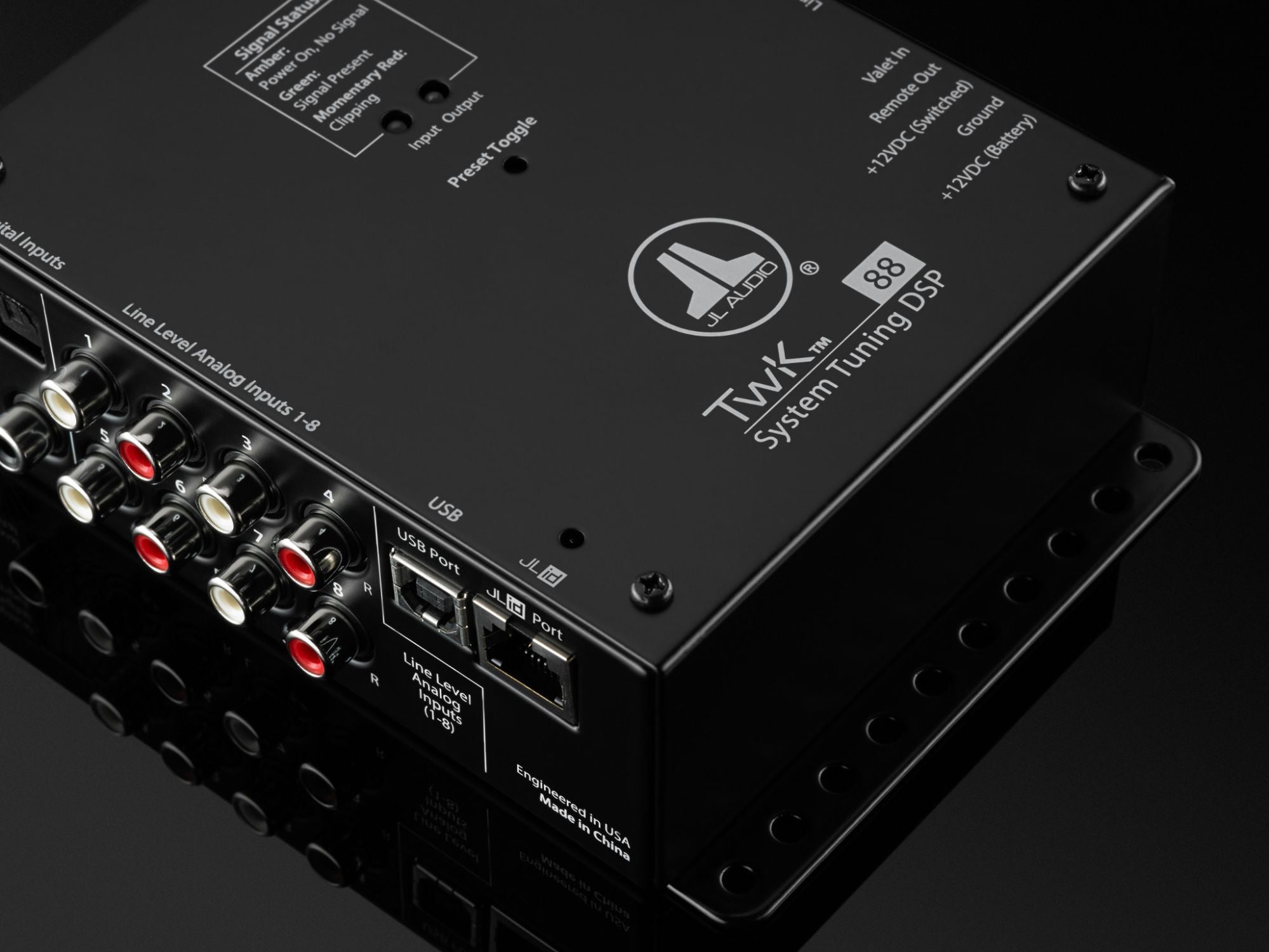

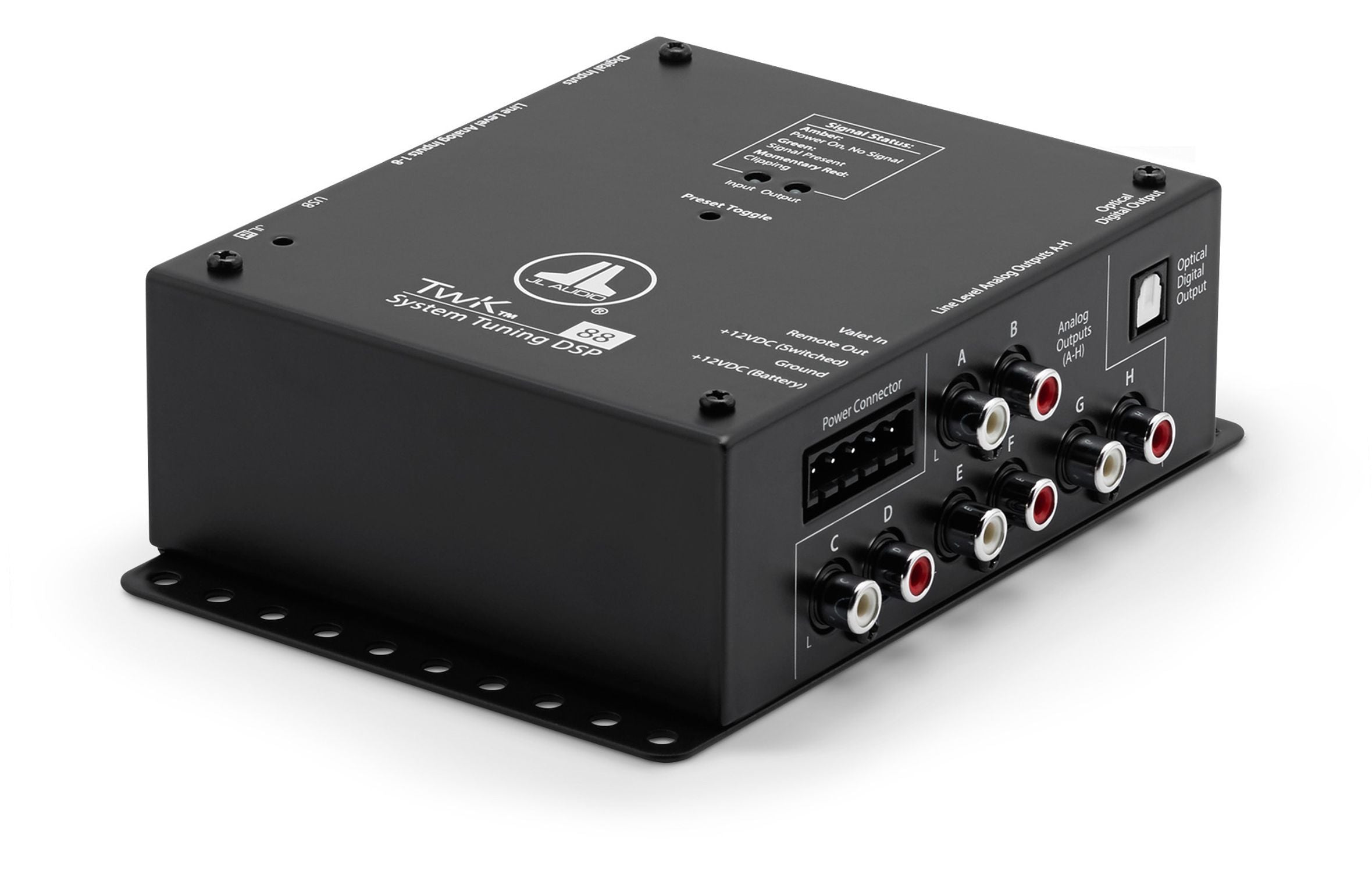

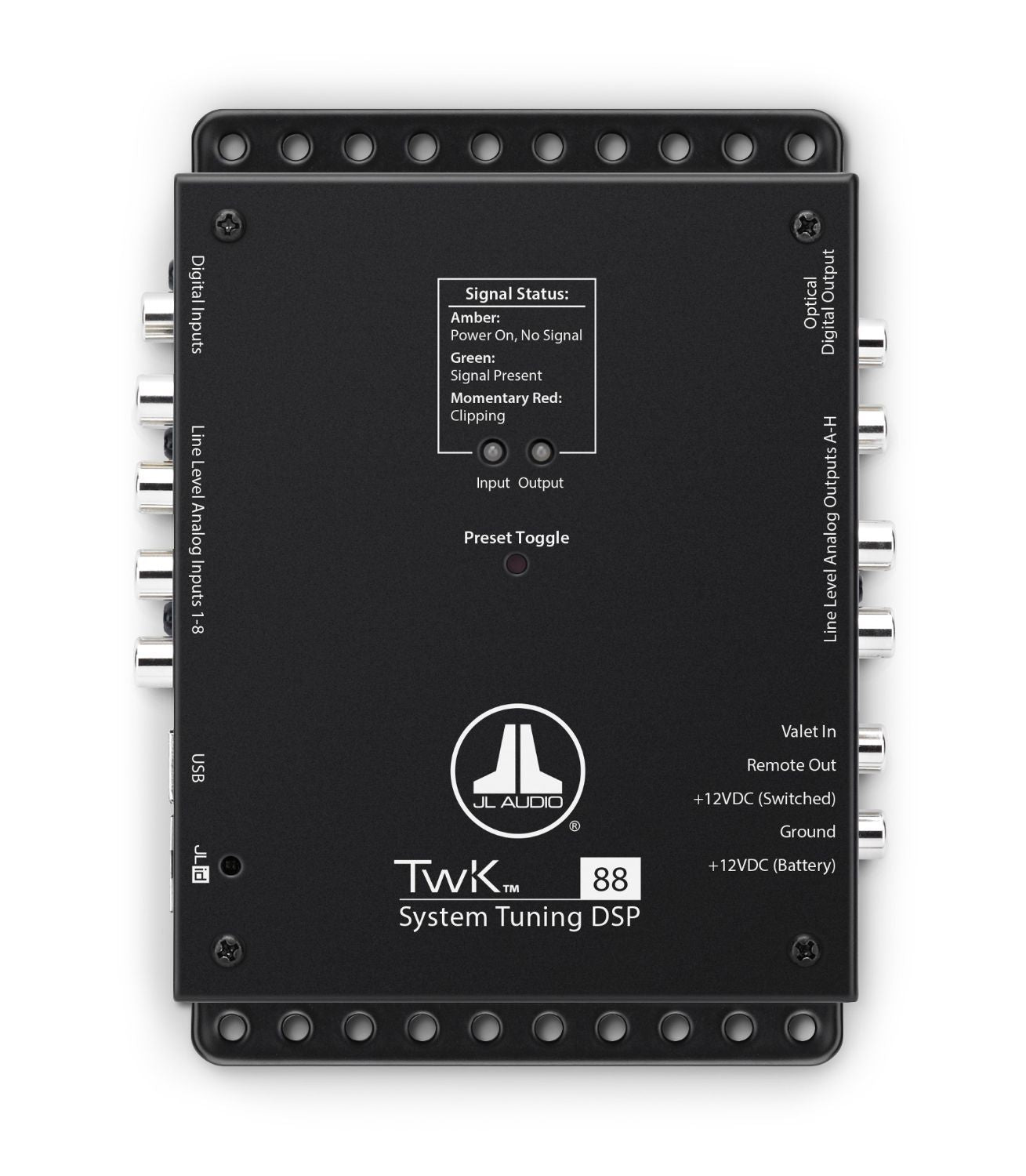

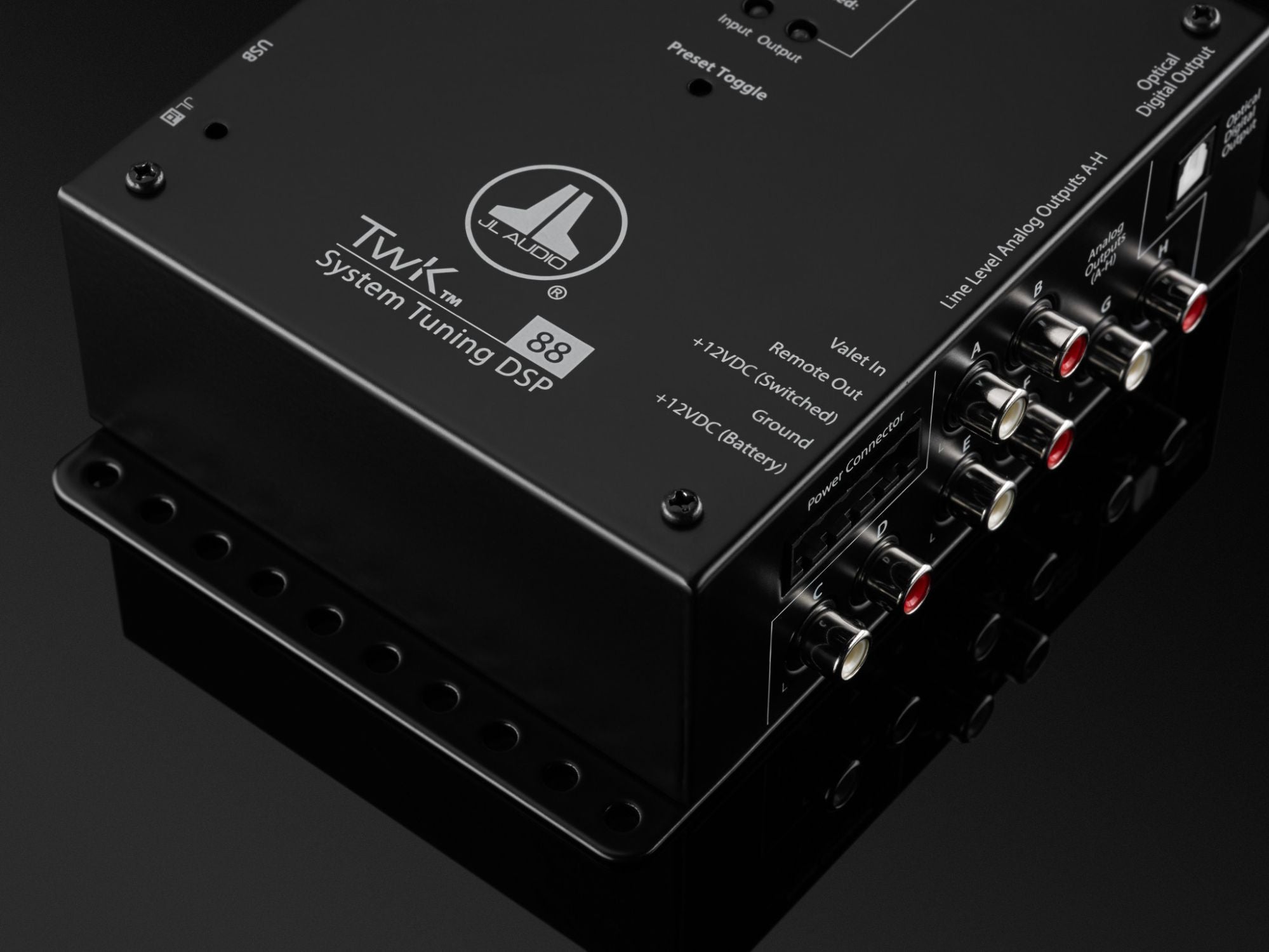

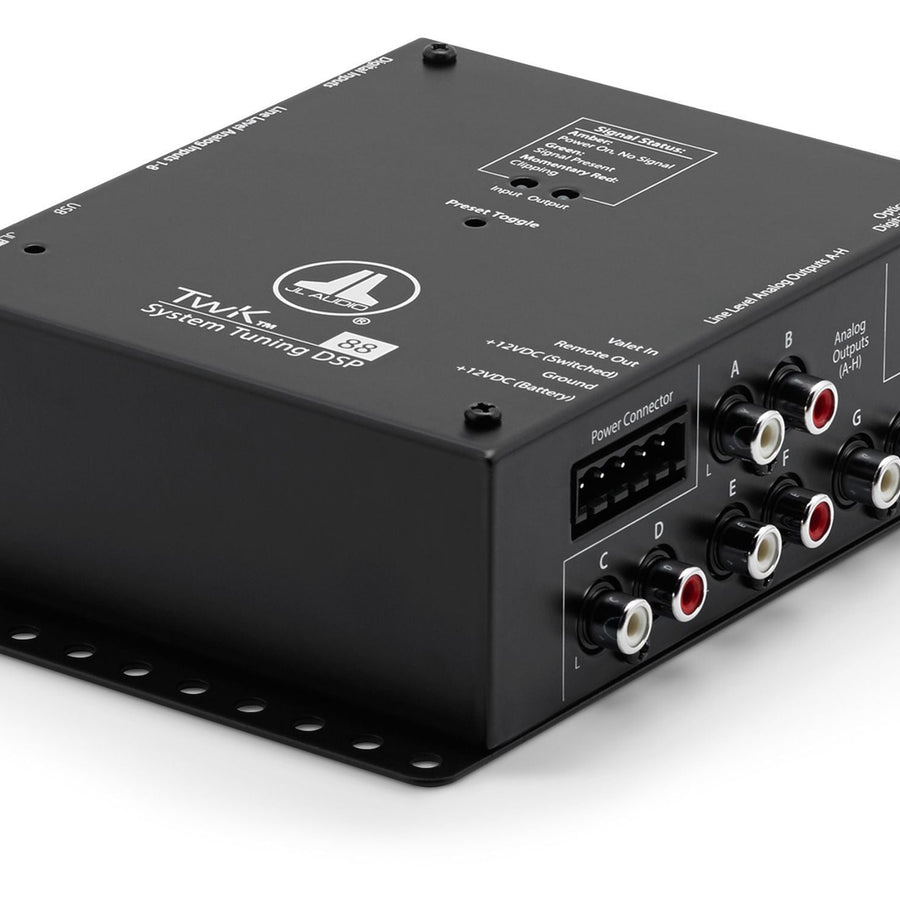

The TwK™ 88 is a state-of-the-art digital signal processor engineered to deliver world-class system tuning capabilities in an easy-to-use format.

Equipped with an advanced 24-bit DSP processor, the TwK™ 88 includes flexible input/output options, 80 total bands of equalization and powerful mixing tools.

The included DRC-200 Digital Remote Controller offers dual level controls, toggles up to six presets, and has an LED indicator.

Control the TwK™ 88’s entire feature set by connecting it to your PC via USB, using the companion TüN™ Software interface.

FEATURES:

Flexible input design with 8 differential-balanced, line-level analog inputs (RCA), accepting line-level signals up to 7.1V (RMS)
Separate optical (Toslink) and coaxial digital inputs for connection to digital S/PDIF sources
Flexible input mixer allows input channels to be combined with full control over each input’s level and polarity
8 banks of 10-band graphic or parametric equalizers with configurable EQ assignment
Powerful crossover section with fully variable, high-pass and low-pass filters, crossover slopes are selectable from 6 dB/octave to 48 dB/octave (in 6 dB/octave increments)
Configurable polarity and delay settings, with separate entries for speaker distance plus offset control; fully linkable with other channels, in any combination, for adjustment
Precise output level controls, adjustable in 0.5 or 0.1 dB increments, fully linkable with other channels, in any combination

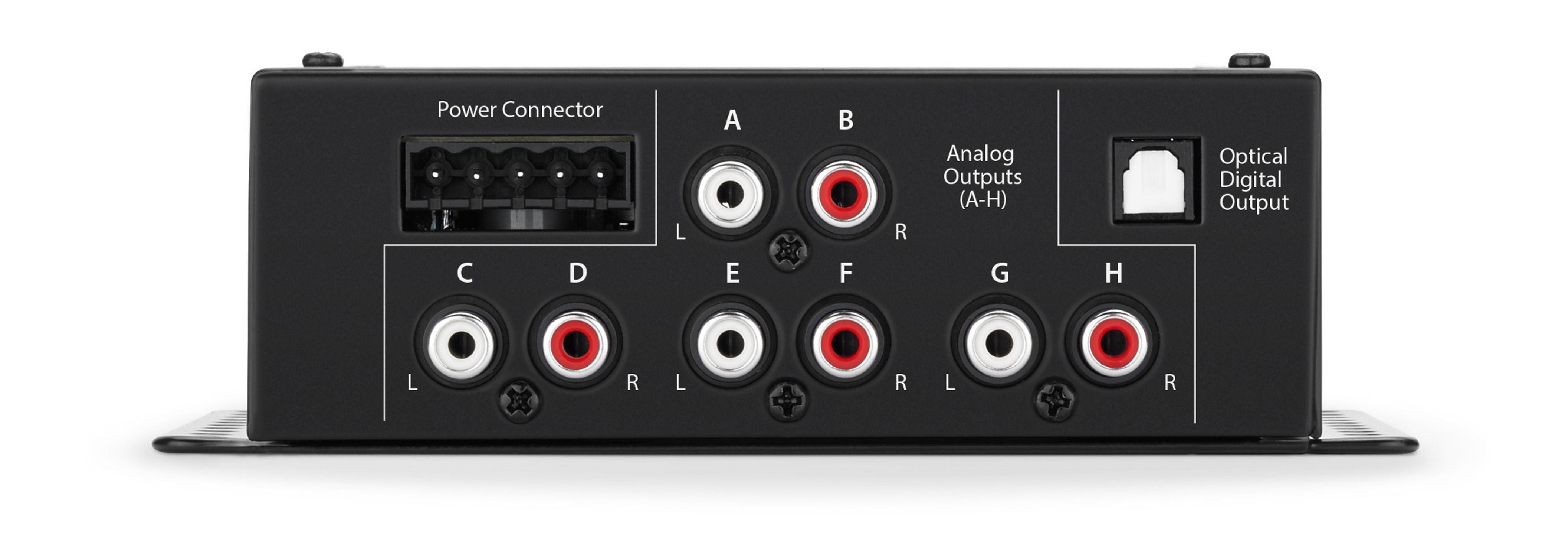

8 analog, line-level RCA output jacks (4V RMS)
Optical (Toslink) output jack provides a pass-through digital audio (S/PDIF) signal from any pair of input channels, with no signal processing applied
Remote turn-on output (+12VDC) for activating aftermarket audio equipment
JLid™ Port allows connection of the included DRC-200 Digital Remote Controller to add dual configurable level controls, preset selection and LED status reporting from the driver's seat

SPECIFICATIONS:

Power Supply Type: Regulated DC-DC SMPS
Input Operating Voltage: 10 - 16 VDC
Standby Current Draw: <1.5 mA
Operating Current Draw: 0.7 A
Recommended Fuse Value: 1 A
Input Channels: 8
Input Type: Line-level, Differential-Balanced
Input Voltage Range: 250 mV - 7.1 V RMS
Minimum Input Voltage: 10 mV RMS
Input Level Setting: 11 discrete selections from 250 mV - 7.1V RMS
Output Channels: 8
Analog Output: Unbalanced, stereo RCA jacks
Digital Output: Optical (Toslink) output (S/PDIF)
Output Impedance: 450 Ω
Latency Analog - Analog: 5.425 mS
Latency Analog - Optical: 5.470 mS
Latency Optical - Optical: 4.860 mS
Latency Optical - Analog: 4.805 mS
S/N Ratio: 98 dB (A-Weighted, referred to 4V RMS Output)
THD+N @ Rated Output: 0.02% (20 Hz - 20 kHz)
Audio Resolution: 24 bit / 48 kHz
Number of EQ Bands: 10 x 8 Channels
Remote Level Control: Included (DRC-200)
Remote Level Functions: Master Volume Control + Trim; Master Volume Control + Fader; Zone Control, LED Status Reporting
