TJM U-Bolt W/Flange Nuts Type B Od12 W63 L180 For Nissan Navara - 775T028

TJM U-Bolt W/Flange Nuts Type B Od12 W63 L180 For Nissan Navara - 775T028

$19.00

TJM U-Bolt W/Flange Nuts Type B Od12 W63 L180 For Nissan Navara - 775T028

$19.00
0 watching this item.

SKU: 775T028

$19.00

TJM U-Bolt W/Flange Nuts Type B Od12 W63 L180 For Nissan Navara - 775T028

TJM products are currently available for enquiry only.

For assistance, click Request Callback above or call us at 1300 856 888.

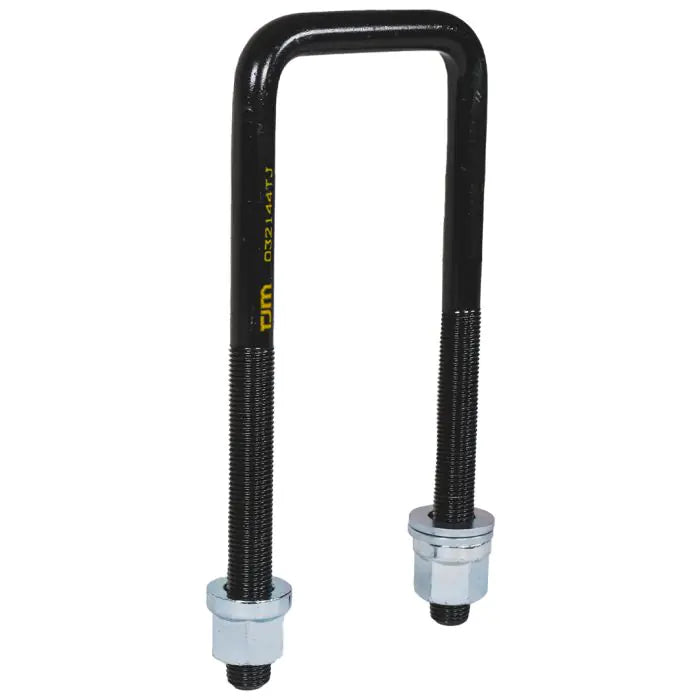

When new springs are installed on your vehicle, reusing the existing U-bolts could create a potentially dangerous situation. This U-bolt, Type B is 12 x 63 x 180mm and should be used when upgrading to TJM leaf springs. If the original U-bolt is reused the pitch of the thread may be stretched, which can cause the U-bolt nut to loosen, thereby causing the spring pack to become loose. We highly recommend replacing U-bolts when new springs are installed. TJM XGS U-bolts are matched in length to our XGS leaf spring range to accommodate the increased spring stack height.



Size: Square Top - Material OD 12mm - Inside Width 63mm - Inside Length 180mm
Package Weight: 0.40 kg



  •  NISSAN NAVARA D22 04/97-08/01
  •  NISSAN NAVARA D22 09/01-09/09 Japan Built
  •  NISSAN NAVARA D22 10/09-03/15 Thai Built
