Product Details

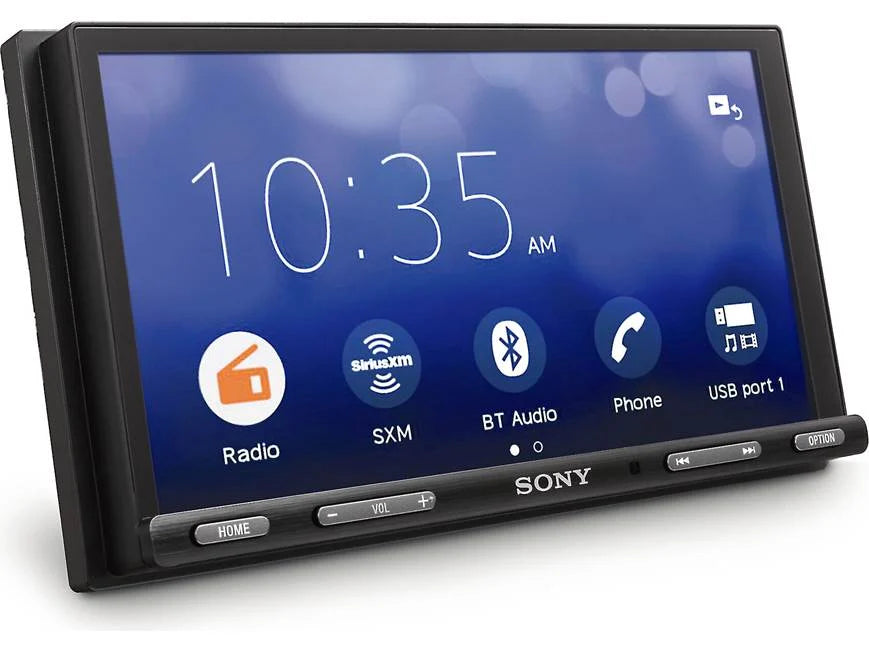

The Sony XAV-AX5500 is a premium 6.95″ double-DIN multimedia receiver featuring a capacitive touchscreen, Apple CarPlay, Android Auto, Bluetooth streaming, and powerful 5-volt preouts for enhanced system performance.


Specification / Feature
General Receiver Type: Digital multimedia (no CD)
Screen Size: 6.95"
Screen Type: Swipeable Capacitive Touchscreen w/ Gesture Control
Resolution: 800 RGB x 480 (1,152,000 pixels)
Mounting Size: Double-DIN chassis
RMS Power (CTA-2006): 20W x 4 @ 4Ω, 20Hz–20kHz, 1% THD-N
Peak Power: 55W x 4 (220W total)
Preamp Voltage: 5V
EQ Bands: 10-band graphic EQ (R&B, Rock, Pop, Dance, Hip-Hop, Electronica, Jazz, Soul, Country, Custom)

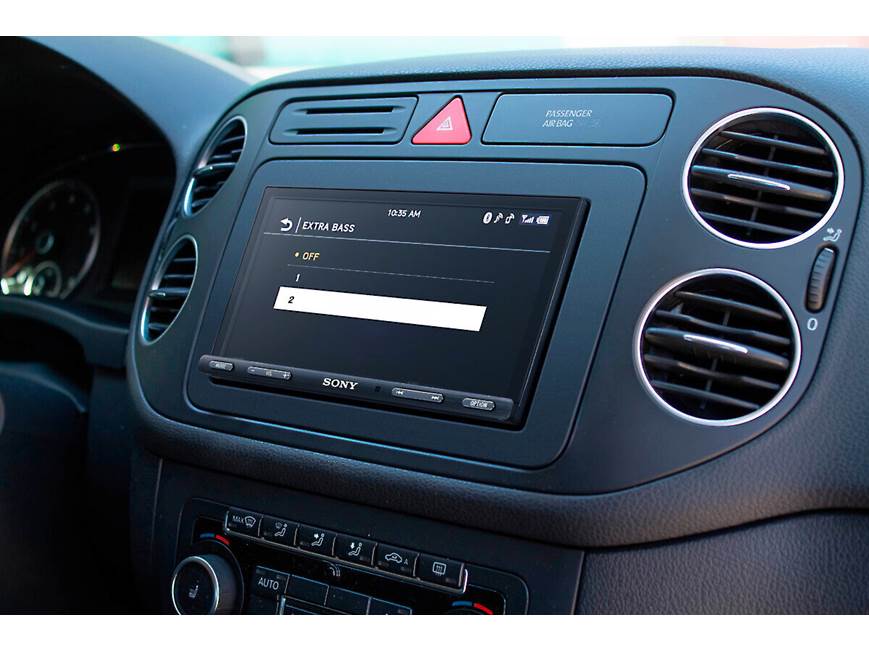

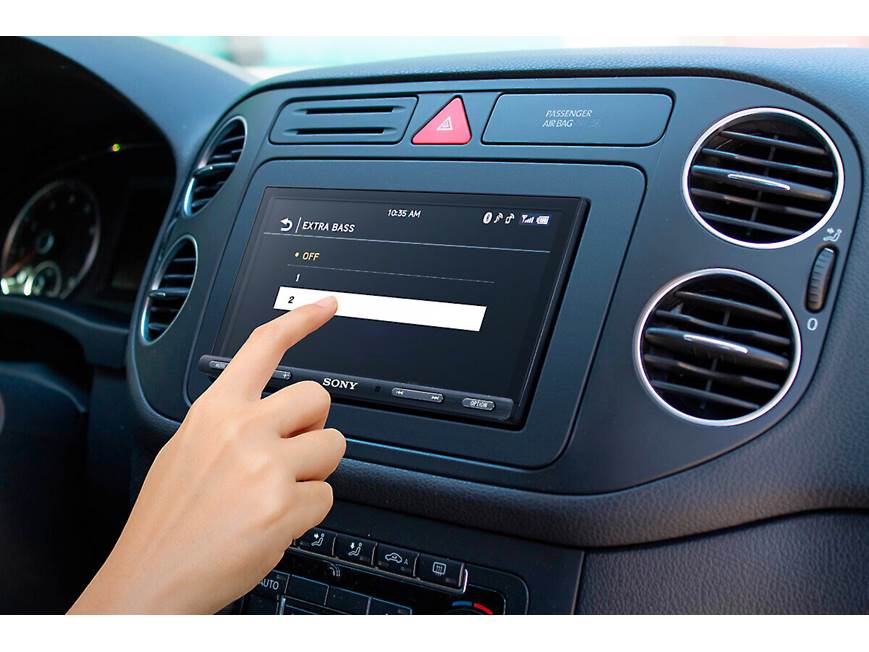

ExtraBass: Yes
Dynamic Stage Organizer (DSO): Yes
Key Button Color: White
CTA-2006 Compliant: Yes

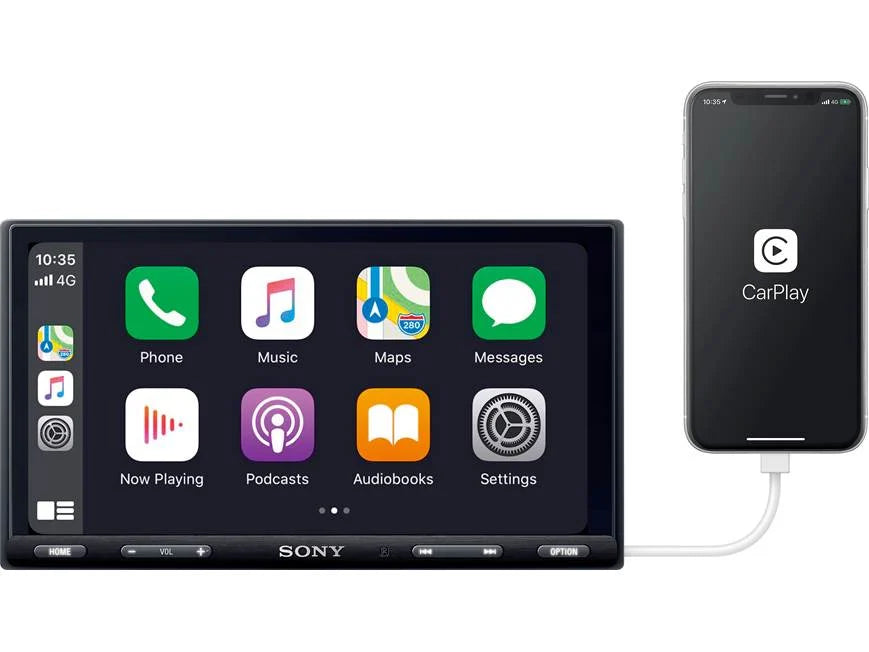

Smartphone Integration Apple CarPlay (Wired): iPhone 5+ (iOS 7.1+), rear USB1 port, Siri voice control, Maps, Music, Messages, Third-party apps (Spotify, Pandora, Tidal, Audible, etc.), Apple HomeKit support

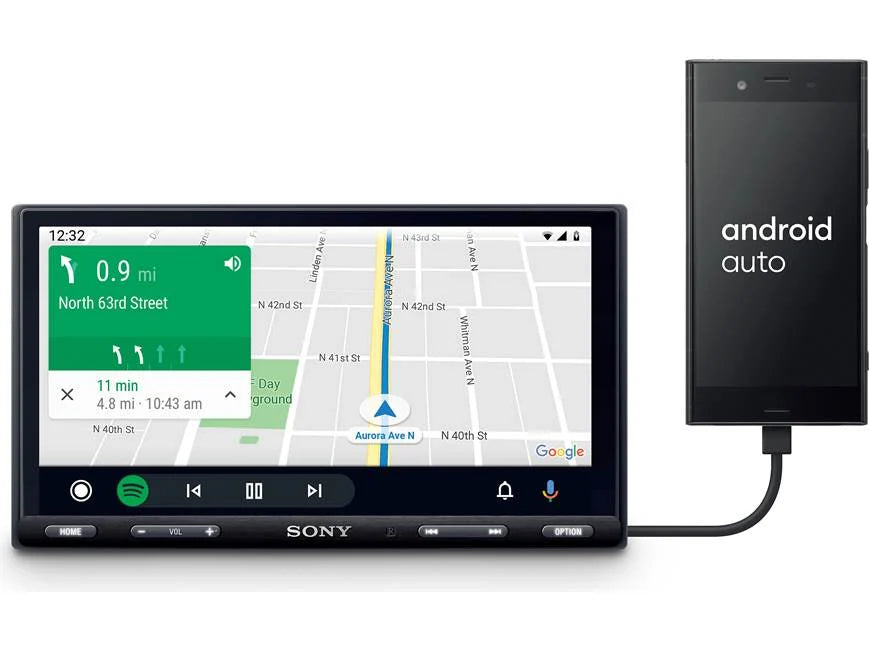

Android Auto (Wired): Android 5.0+ (USB1 rear port), Bluetooth pairing required, Google Maps & Waze, Google Assistant, SMS & Calls, Music streaming via YouTube Music and other apps
Google Assistant: Voice commands via external mic; call, message, directions, music control

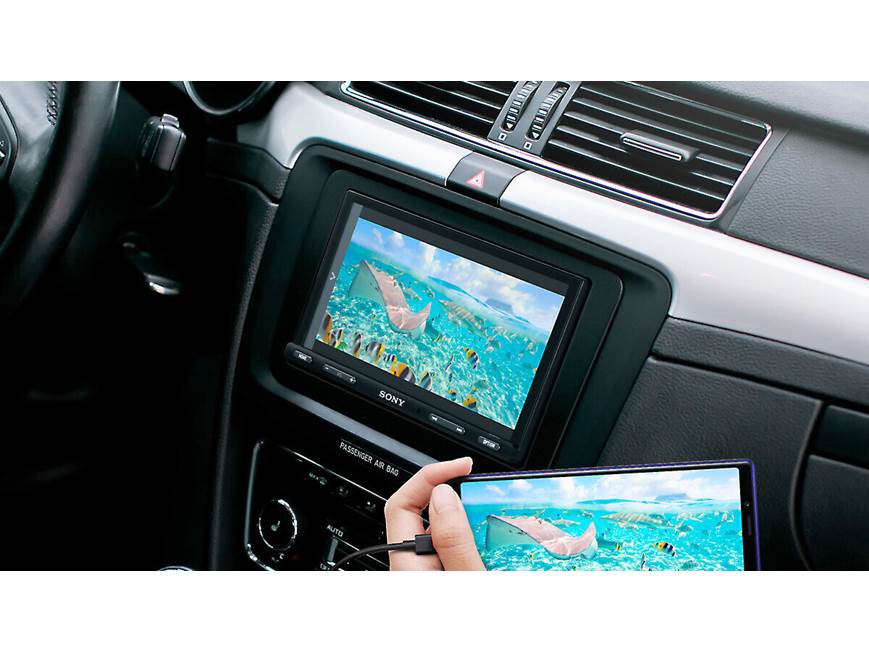

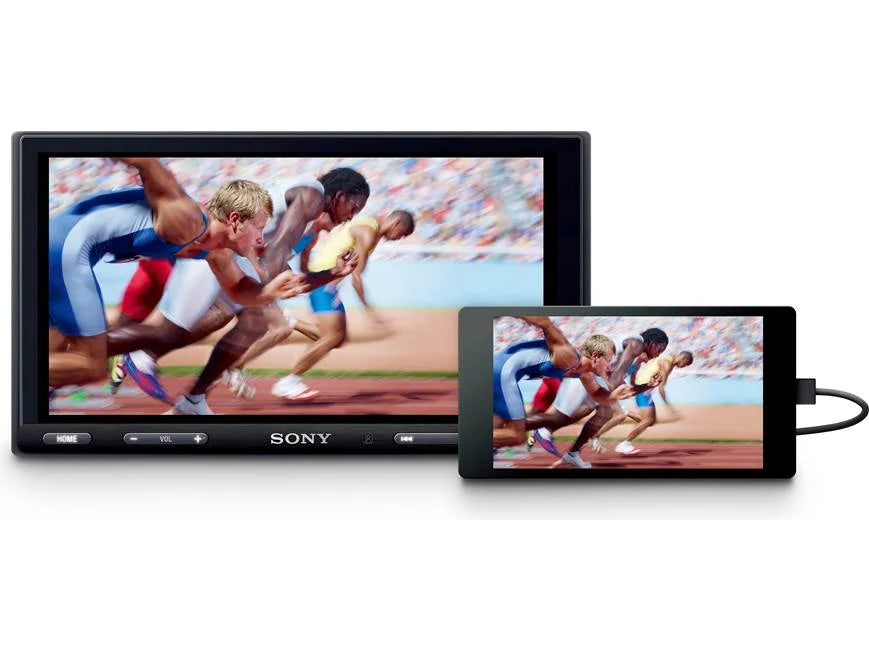

WebLink: iOS 12+/Android 6.0+, access YouTube, Yelp, Zomato, device media libraries; parking brake required for video playback
Siri Control: Yes
iPhone Compatibility: iPhone 5+
Android Control: Yes
Audio & DSP Preamp Outputs: 5-channel (Front/Rear/Mono Sub)
Subwoofer Output: Yes, independent volume and phase control
Low/High-Pass Filters: Front & rear speakers (50–120Hz selectable), subwoofer (50–120Hz)
Dynamic Reality Amp 2: 47% less internal resistance for clean power output
Beep Tone: Optional audible feedback
Bluetooth Version: 3.0
Profiles: HFP 1.6, PBAP 1.1, A2DP 1.3, AVRCP 1.3, SSP
Hands-Free Calls: External mic with adjustable gain, store up to 1,000 contacts, call history, redial
Wireless Audio Streaming: SBC & AAC, song/artist info display (AVRCP 1.4 compatible)

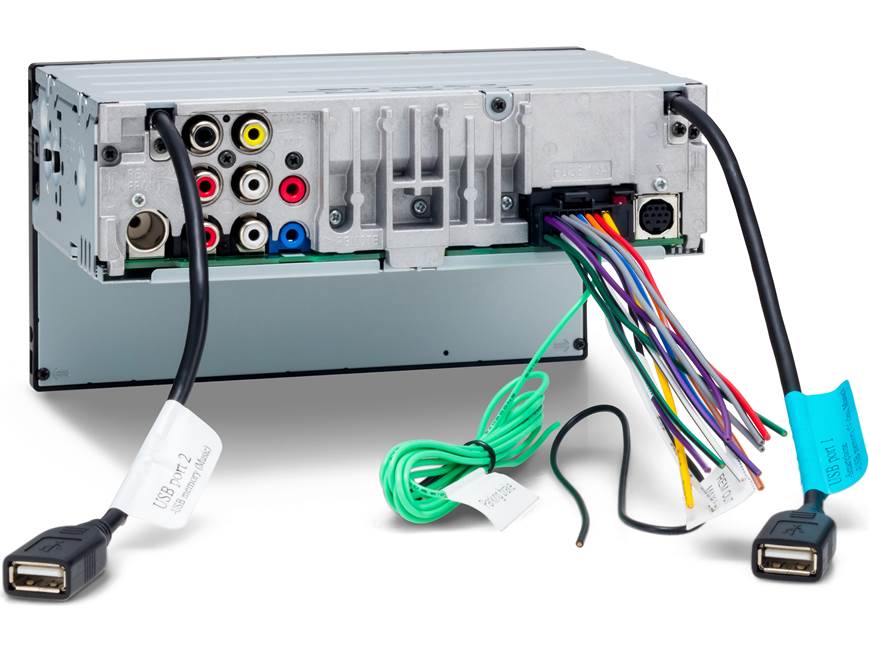

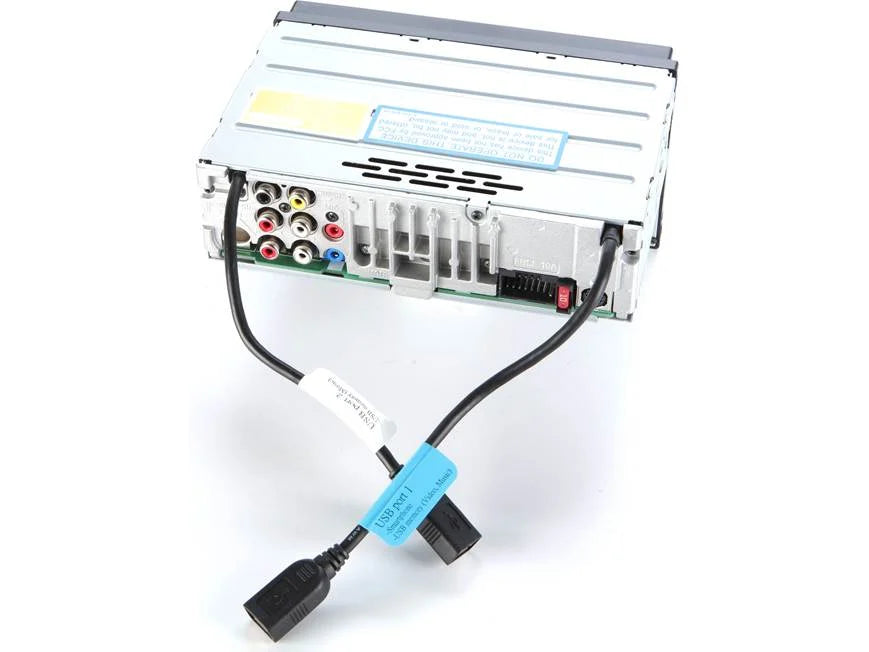

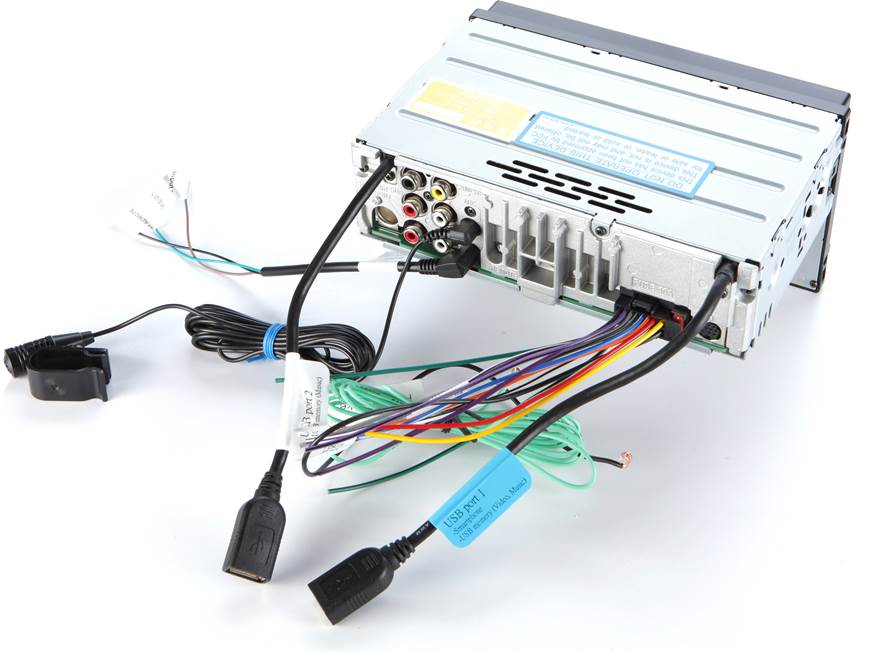

USB & Media Playback USB Ports: 2 rear (USB1-Smartphone: 1.5A, USB2-USB Memory: 0.5A)
File Support: MP3, WMA, AAC, FLAC, WAV
Video Playback: USB1 only (MPEG-4, WMV, MKV, Xvid), requires parking brake
MTP/MSC: Supports USB MSC & MTP devices (audio & video playback)
Max Folders/Files: USB1: unlimited folders / 20,000 files; USB2: 255 folders / 65,280 files
USB Extension: 52" cable included; follow USB length & compatibility guidelines
Radio AM/FM w/ RDS: Digital Clarity Tuner, 5 memory bands, 6 presets per band
BTM (Best Tuning Memory): Selects stations with strongest signal
SiriusXM Ready: Compatible with 220SXV300 tuner (sold separately)
Touchscreen & Remote Wallpaper Options: 5 colours + USB JPEG
Picture EQ: Dynamic, Standard, Theater, Custom (parking brake required)
Aspect Ratio: Normal, Zoom, Full, Captions
Dimmer: Auto / On, adjustable -5 to +5
Front-Panel Buttons: Volume, Source, Sound settings, Voice control
Remote Control: IR wireless (RM-X170) + steering wheel control adapter compatibility

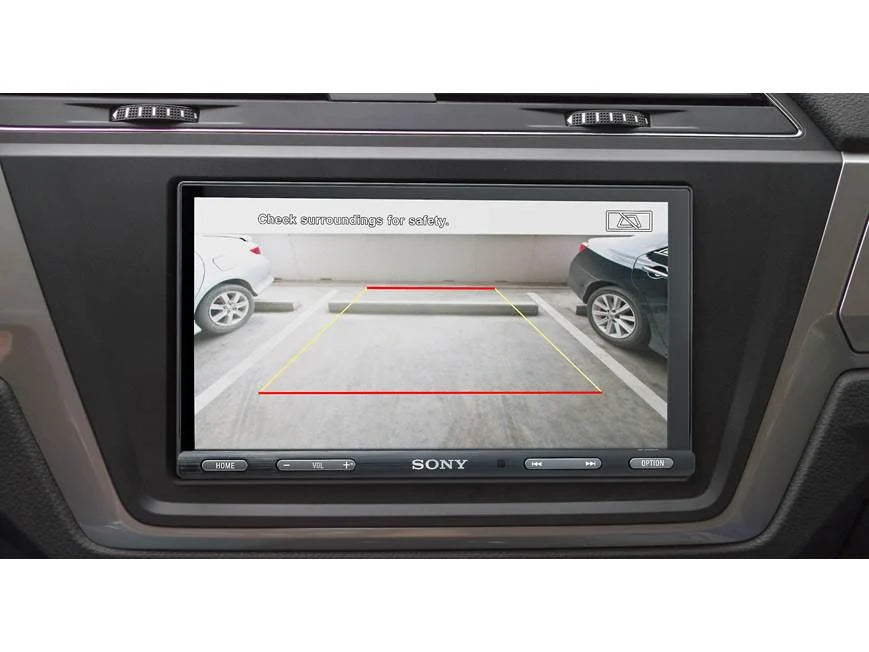

Camera Integration Rearview Camera Input: Composite video input, parking guide lines, auto/manual selection
Auto-Switching: Shifts to reverse automatically; approx. 1.1 sec
Installation & Info Parking Brake Connection: Required for video/settings access
Wireless Remote: Included
Dimensions (Chassis) Depth: 5.065"
Width: 7.015"
Height: 3.945"
Warranty & Returns Parts & Labour: 3 Years
Returns: 60 Days
Package Contents Digital media receiver w/ 6.95" touchscreen, wiring harness, remote control (RM-X170) with CR2025 battery, microphone w/ bracket, 52" USB extension, 2-sided tape, M5x9mm screws, operating instructions, warranty sheet
