SONY 10.1'' (25.7Cm) Digital Media Receiver With Hdmi-XAVAX8500

SONY 10.1'' (25.7Cm) Digital Media Receiver With Hdmi-XAVAX8500

$1,499.00

SONY 10.1'' (25.7Cm) Digital Media Receiver With Hdmi-XAVAX8500

$1,499.00

SONY 10.1'' (25.7Cm) Digital Media Receiver With Hdmi-XAVAX8500

$1,499.00

SKU: XAVAX8500

Order today and get it delivered in 5–10 business days!
Questions? Call 1300 856 888 to check availability or get expert help.
NEED PROFESSIONAL INSTALLATION?
  • ✔ Available at our Brookvale workshop
  • ✔ Expert 4WD technicians
LEARN MORE

SAFE CHECKOUT

Afterpay Google Pay Mastercard Paypal American Express Visa JCB Shop
Product Details

Sony XAV-AX8500

Premium 10.1″ floating capacitive touchscreen multimedia receiver with Apple CarPlay, Android Auto, HDMI input, advanced vehicle integration, and a flexible single-DIN source unit.


Sony XAV-AX8500 – Key Specifications
Color Black
Screen Size 10.1″
Touchscreen Capacitive LCD, 1280×720 HD, anti-glare, optically bonded
Chassis Size Single DIN
Channels 5
Max Power Output 55W x 4 (220W total)
Backlight LCD
CD/DVD Player No
Built-in GPS No
Memory Card Slot No
HD Radio No
EQ Presets 18 FM / 12 AM
Apple CarPlay Yes (wired/wireless via 5GHz WiFi)
Android Auto Yes (wired/wireless, Android 10+ with WiFi for wireless)
Bluetooth 5.0 Yes – hands-free calling & music streaming
Profiles HFP 1.7.1, PBAP 1.1, A2DP 1.3.1, AVRCP 1.6.1
USB Input USB-C (rear, 3A charging, supports MSC playback)
AUX Input Yes
A/V Input Yes

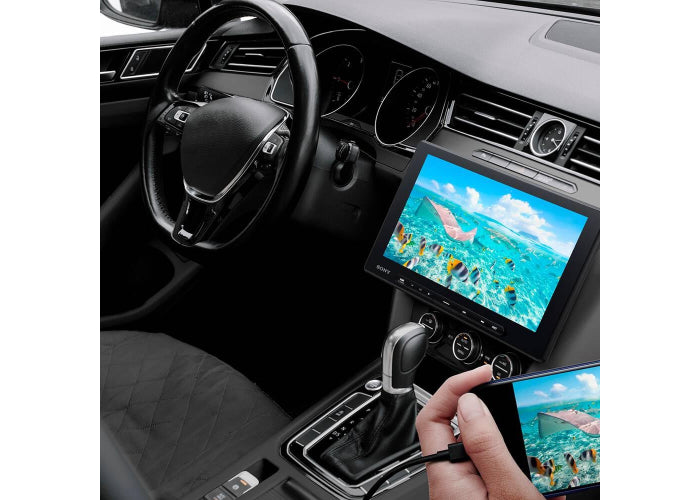

HDMI Input Micro-HDMI rear input (video/audio playback, no control)
Steering Wheel Control Compatible Yes (adapter sold separately)
Wireless Audio Apps Spotify, Apple Music, Pandora, Tidal, YouTube Music, etc.
Back-Up Camera Input Yes
Second Camera Input Yes
Auto-Switching Yes (reverse gear triggers rear camera)
Parking Guidelines Customizable color-coded lines
iDatalink Maestro Compatible Yes (for OEM integration & vehicle data display)
Monitor Size 10.565″ W x 6.575″ H x 1.4375″ D
Installation Adjustments Tilt (5–35°), Depth ±0.375″, Height ±1.1875″, Lateral ±1″
Post-install Tilt/Swivel ±15°
Display Settings Apps area: 5 icons | Wallpapers: 4 presets + 2 custom JPEGs | Brightness: Dimmer Auto/On, levels 1–4, can turn backlight off
Control Buttons Power, Home, Volume, Previous/Next, Voice Recognition | Optional RM-X400 IR remote
Amplifier Dynamic Reality Amp 2 – 20W RMS x4, 55W peak x4
Preouts 5V / 6-ch (front, rear, subwoofer)
Subwoofer Control Mono/stereo, volume -10 to +10, phase normal/reverse
Crossovers Low-pass & high-pass filters, slopes -12/-24/-36/-48 dB
EQ 14-band graphic EQ + presets (R&B, Rock, Pop, Dance, Hip-Hop, EDM, Jazz, Soul, Country, Custom 1/2)
Time Alignment 4 presets + manual custom adjustment (0.1 in / 1 cm increments)
AM/FM Digital clarity tuner, RDS, 5 memory bands, BTM
SiriusXM Ready Compatible with 220SXV300 tuner (sold separately)
Package Contents Single-DIN source unit (10A fuse)
10.1″ touchscreen monitor
Wiring harness w/ parking brake wire
Camera/preout harness
SWC adapter (3-wire to 3.5mm)
USB-C extension cable (59″)
GPS antenna + mounting plate
Microphone w/ visor bracket (12′ cable)
Surface bracket, screws (various sizes), 2 plastic covers, 2 wire-ties
Operating instructions & warranty
Key Notes Quick Start-Up: <8 sec to safety caution display
Video Lockout: Parking brake connection required for video
USB-C Port: No MTP/AOA 2.0; supports MSC playback only
Optional Integration: iDatalink Maestro RR/RR2 for OEM display & functions
