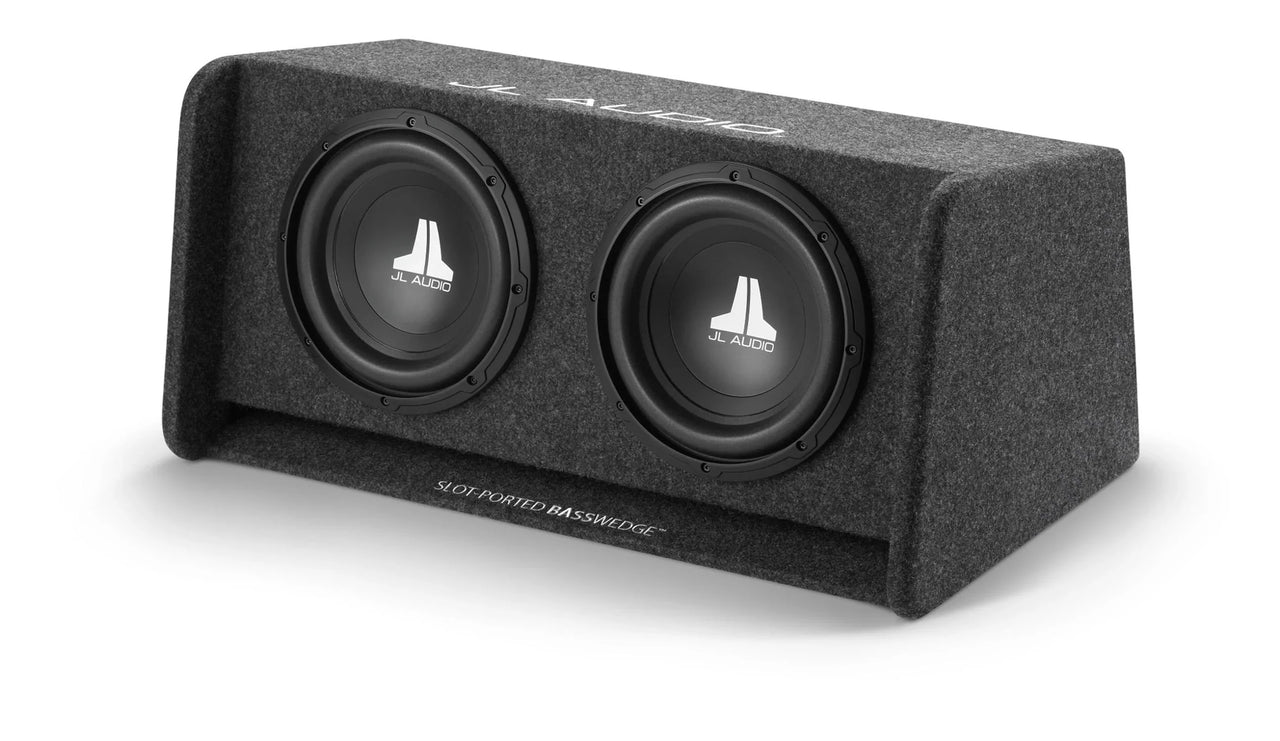

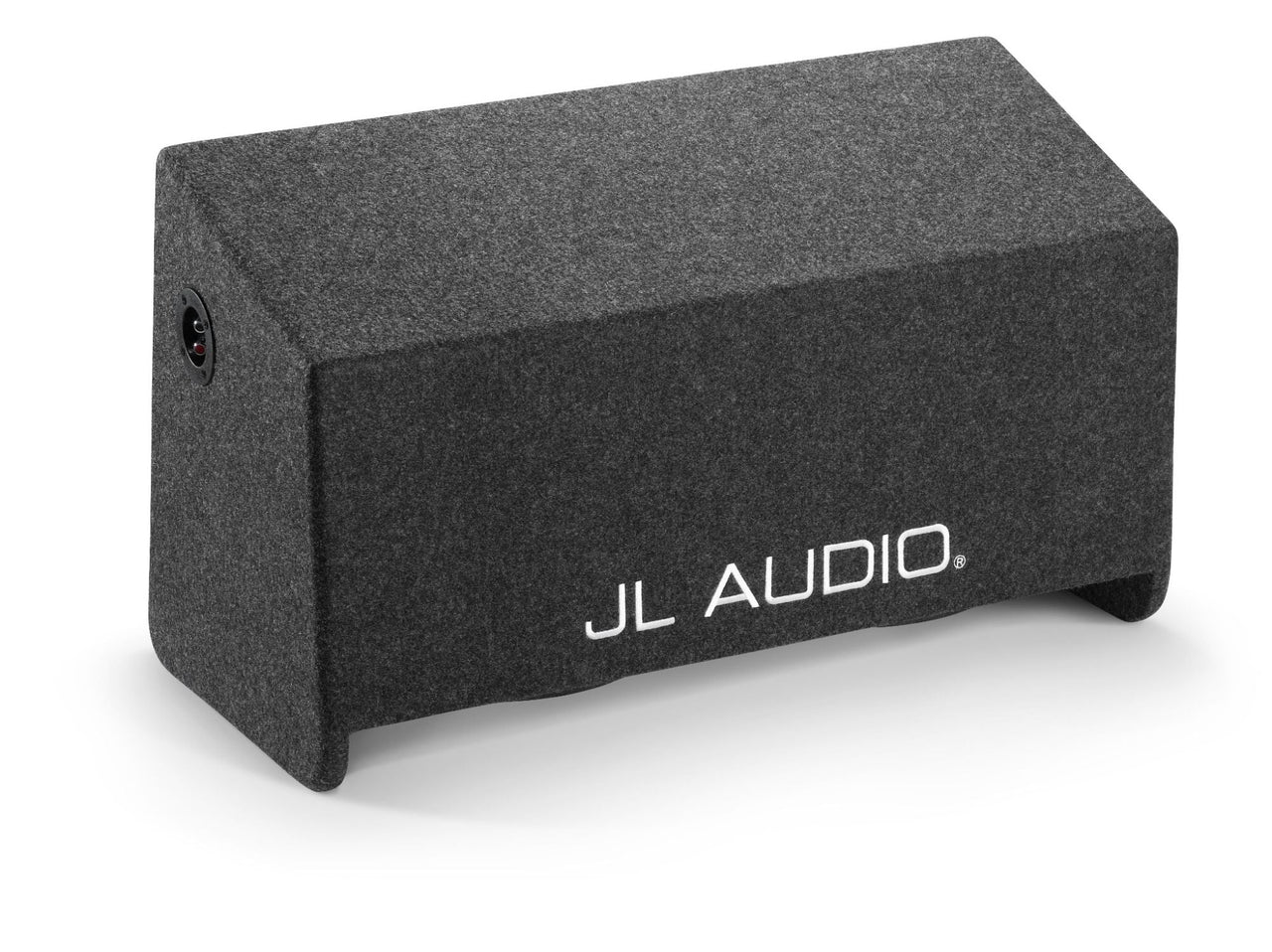

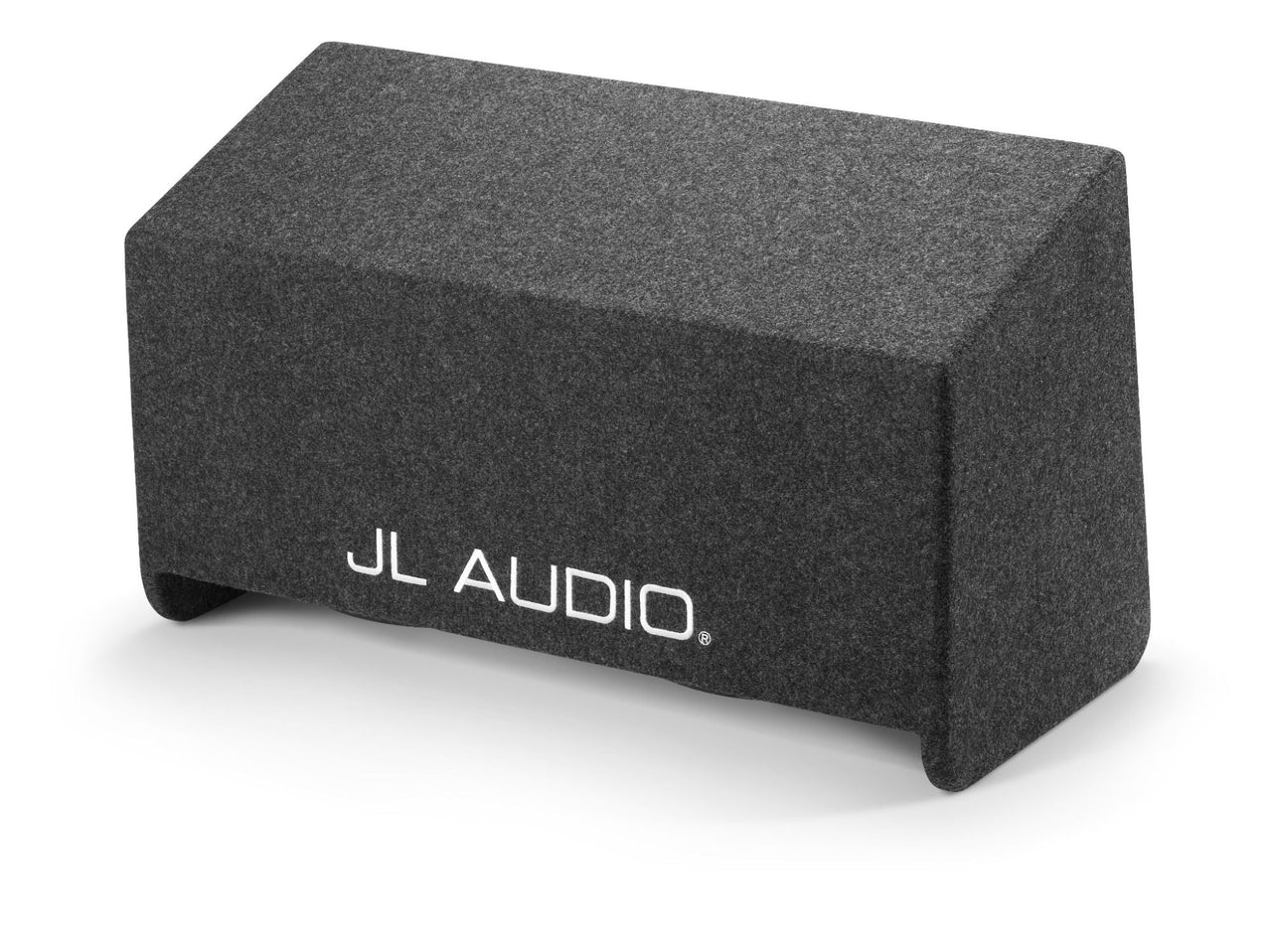

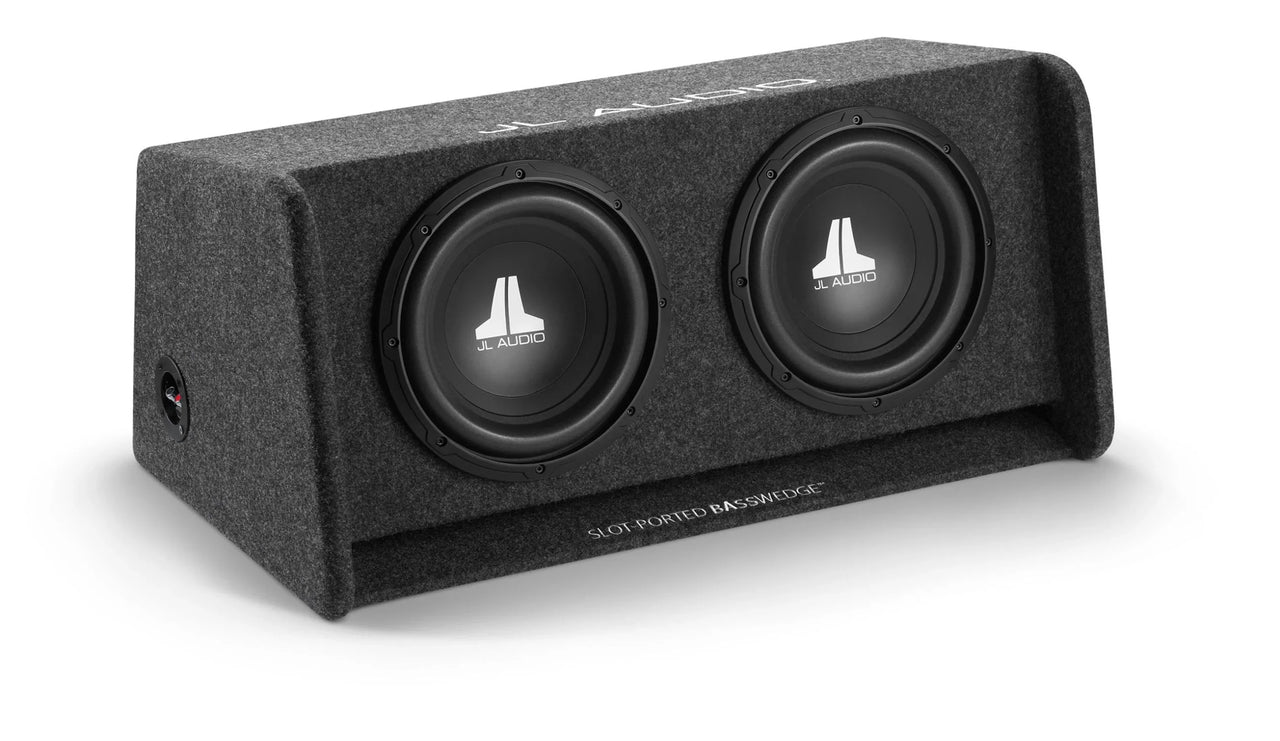

JL Audio Cp210-W0V3 Dual 10W0V3 Basswedge, Ported, 2 Ω

$529.00

Brand: JL Audio
Availability: 5 In Stock
SKU: CP210-W0v3

JL AUDIO CP210-W0V3 DUAL 10W0V3 BASSWEDGE, PORTED, 2 Ω Product highlights •Dual 10" 10W0v3-4 Loaded Ported Enclosure • 1200W Peak • 600W RMS • Top-Quality MDF Construction • Durable Dark Gray Carpet Finish • Five-Way Binding Post Connectors • Embroidered JL Audio Logo Subwoofer Features Dual 10" W0v3 Series Subwoofer...

Description

Description

JL AUDIO CP210-W0V3 DUAL 10W0V3 BASSWEDGE, PORTED, 2 Ω

Product highlights

•Dual 10" 10W0v3-4 Loaded Ported Enclosure

• 1200W Peak

• 600W RMS

• Top-Quality MDF Construction

• Durable Dark Gray Carpet Finish

• Five-Way Binding Post Connectors

• Embroidered JL Audio Logo

Subwoofer Features

Dual 10" W0v3 Series Subwoofer
Manufacturer preloaded with a JL Audio 10W0v3-4 10" Subwoofer, JL Audio's best-selling subwoofer!
Power Handling:RMS: 600 watts
Recommended Power Range: 150 - 600 watts
Impedance: 2-Ohm
Mineral-filled, polypropylene cone woofer for excellent durability
Large roll surround for generous amounts of excursion
Elevated frame cooling brings air directly to the voice coil
Designed for compact sealed enclosures or medium-sized ported enclosures
Large excursion for louder bass and less distortion
DMA Optimized motor system reduces distortion and tight, clean bass
Lead wire woven into spider for added strength
Metallic silver frame finish
2.0" High temperature voice coil
Free Air Resonance (Fs): 32.09 Hz
Sensitivity: 84.07 dB
Xmax: 11.4 mm
Reference Efficiency (no): 0.1500%
Frequency response: ~26 ~ 250 Hz
Black Steel-Mesh Grille Insert Available: JL Audio SGRU-10
Matching Amplifier:
JL Audio XD600/1v2
JL Audio JX500/1D
Authorized Internet Dealer
2 Year Manufacturer's Warranty

Enclosure Features:

10" Slot Ported MDF Subwoofer Enclosure
Loaded with two 10W0v3 10" subwoofers
Designed for forward, rear or down-firing installation
Top-quality MDF construction
Durable dark gray carpet finish
Five-Way binding post connectors
Embroidered JL Audio logo
Embroidered "Slot-Ported BassWedge" logo on port mouth
2 Ohm final impedance
Dimensions: 17-1/2"TD x 14"BD x 29-5/8"W x 13-7/8"H

JL Model Comparison From entry level woofers to competition grade, JL has them all. Let us find which one works for you.
Model	RMS Power	Cone Material	Surround Material	Sensitivity (dB)	Frequency Response	Xmax (mm	Terminals	Made In America
W7 Series	500-1500 Watts	Polypropylene	Foam Overroll	82.7 - 86.3	15-250 Hz	19-32	Push Terminals	Yes
W6 Series	600 Watts	Polypropylene	Rubber	82.7 - 85.4	20-200 Hz	19	Push Terminals	Yes
W3 Series	150-600 Watts	Polypropylene	Rubber	80.5-87.90	20-250 Hz	8.89-15.5	Push Terminals	Yes
W1 Series	150-300 Watts	Polypropylene	Rubber	83.9-86.1	22-200	8-11	Push Terminals
W0 Series	300-500 Watts	Polypropylene	Foam	84-88.20	20-250 Hz	11.4-12.7	Push Terminals
WX Series	200 Watts	Polypropylene	Foam	86-87.17	22-250 Hz	10	Spade Terminals
