10th Anniversary Edition - W7 13.5-inch Subwoofer (1500 W, Dual 1.5 Ω voice coils) Words like "extreme," "reference" and "ultimate" get thrown around quite a bit in the Subwoofer world, but rare is the product that can honestly lay claim to them. The 13W7AE does. Taking the W7 design formula to its highest level, the 13W7AE offers a staggering linear...

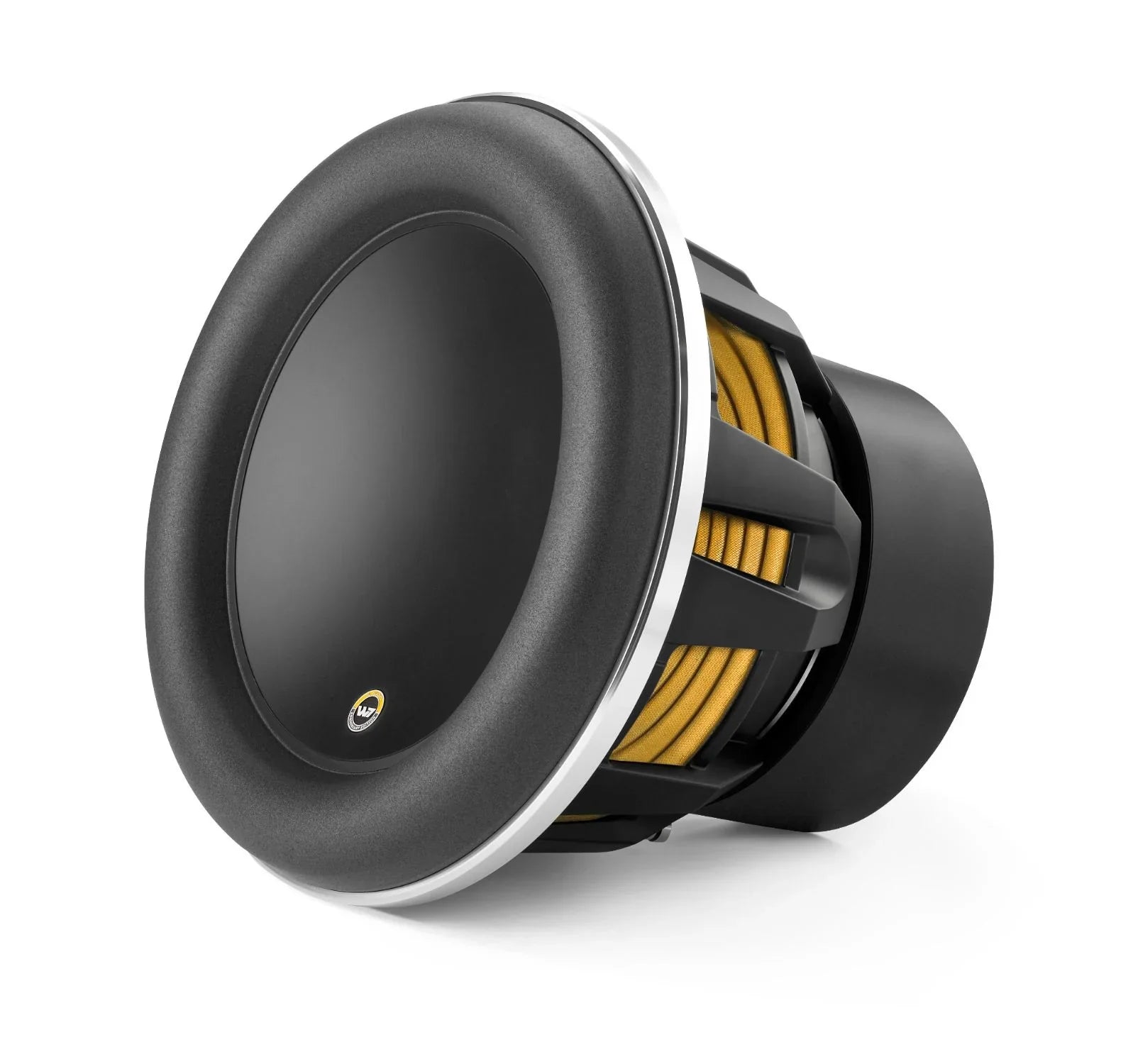

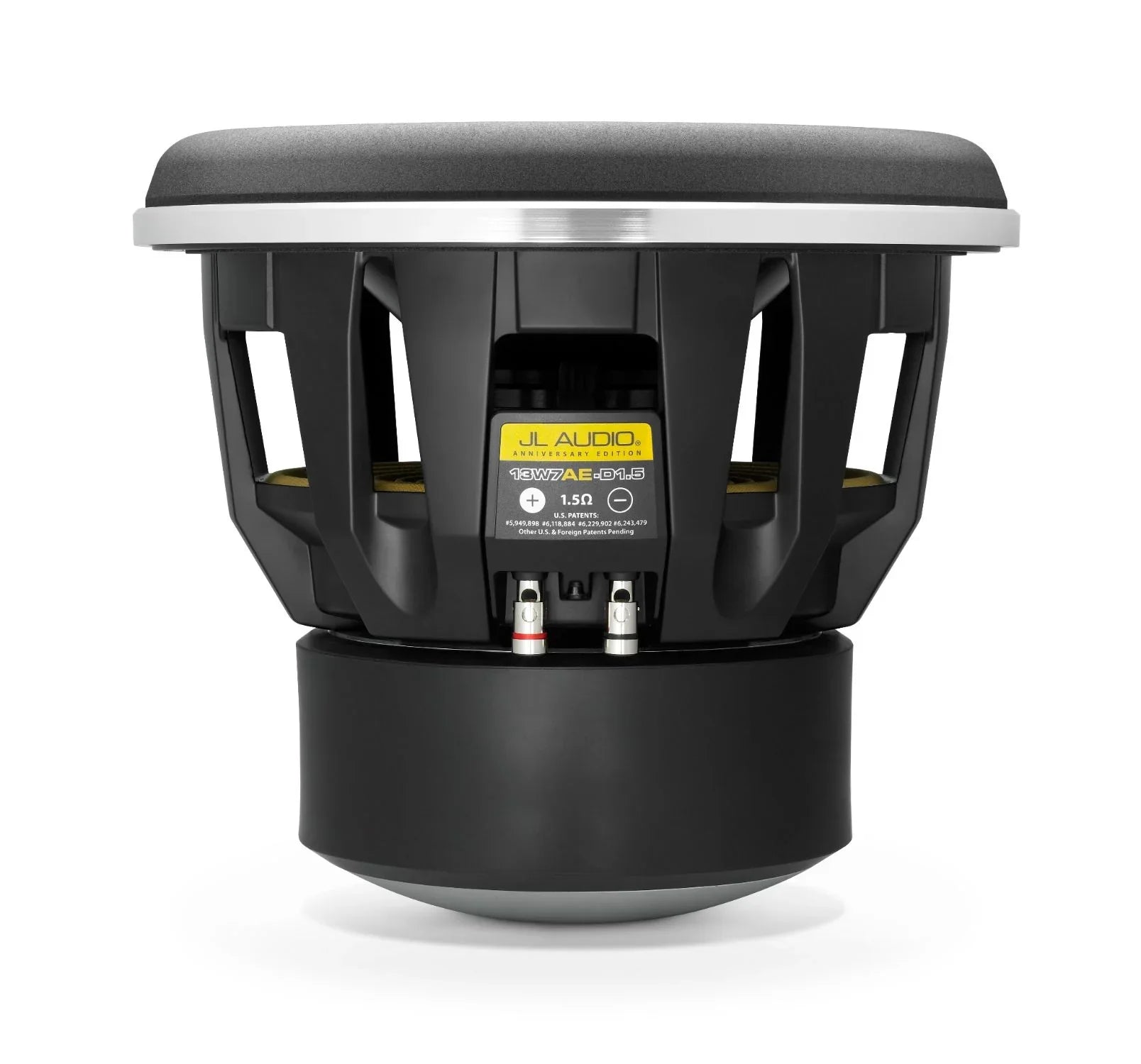

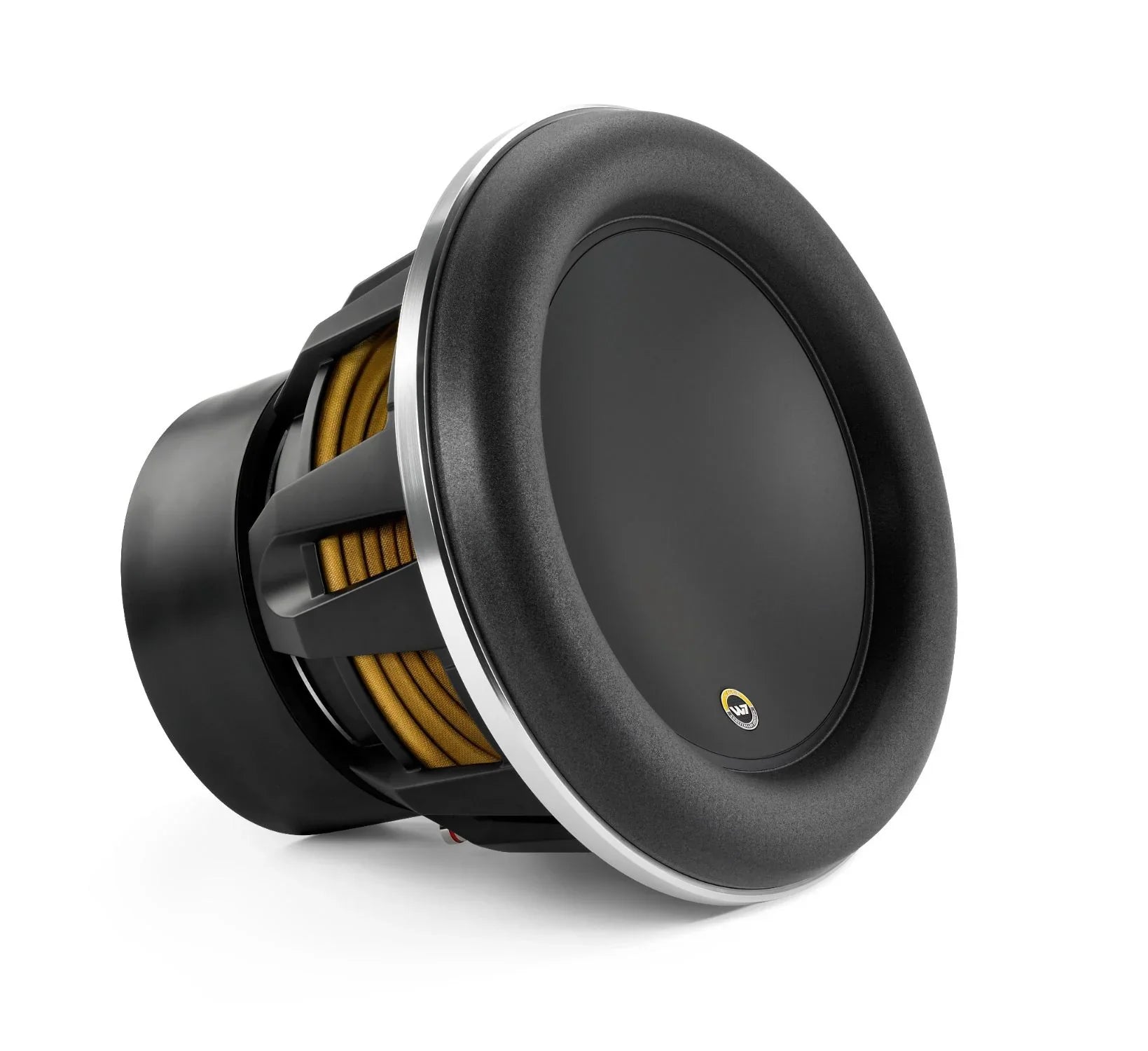

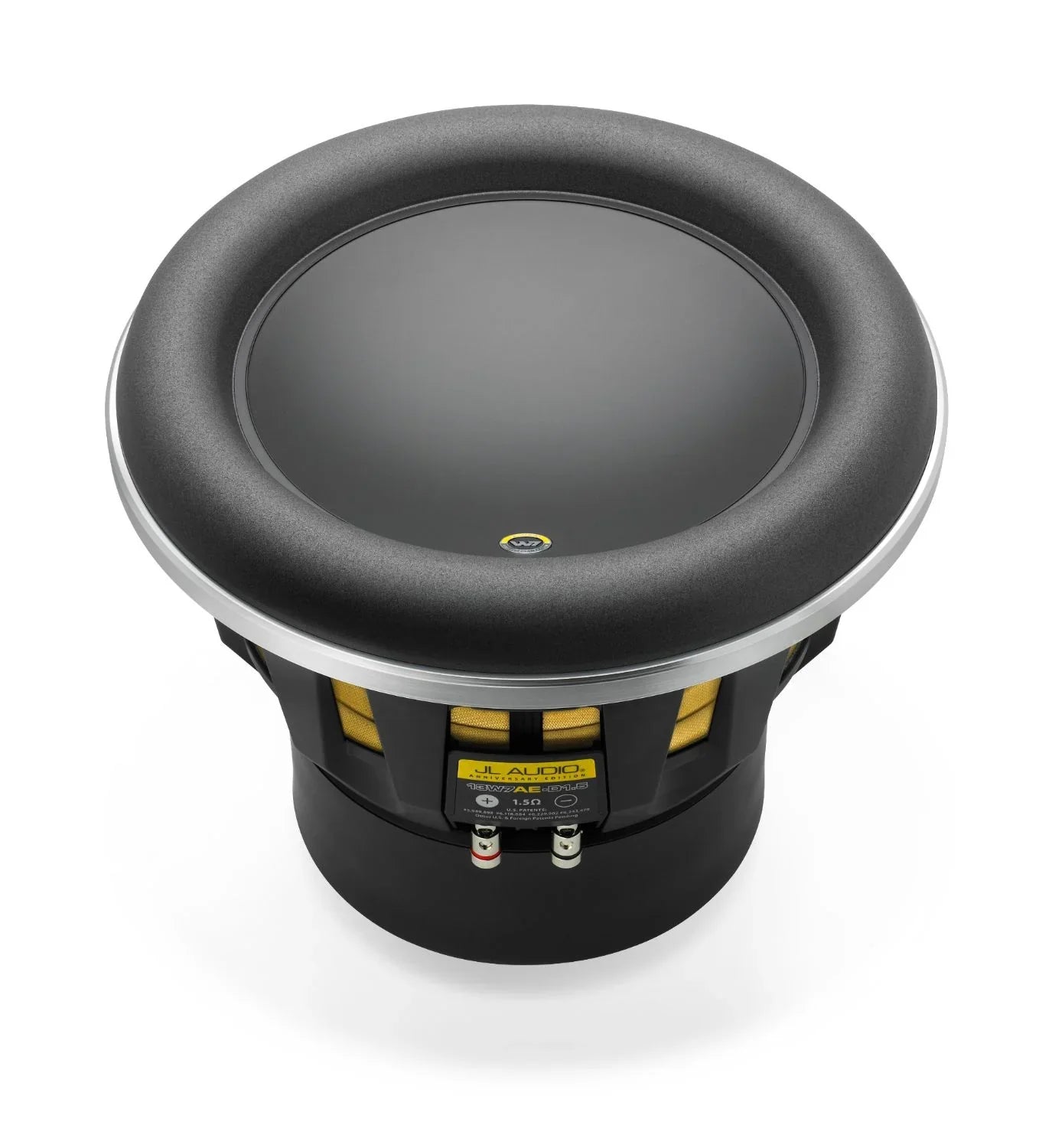

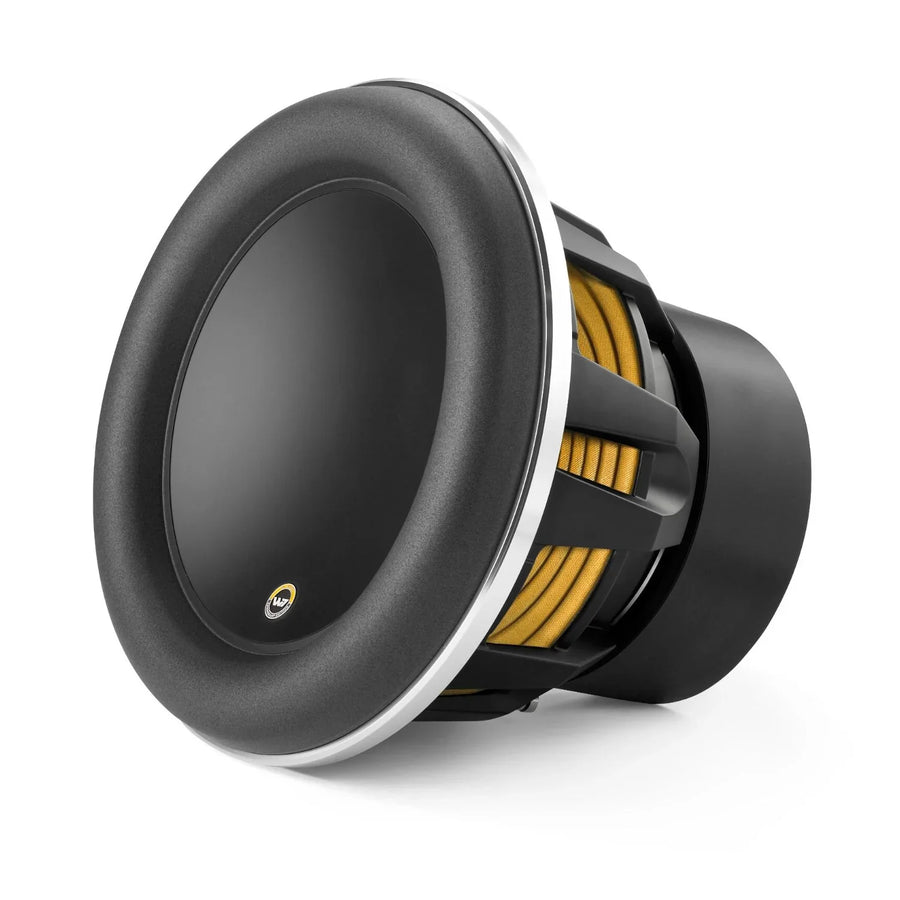

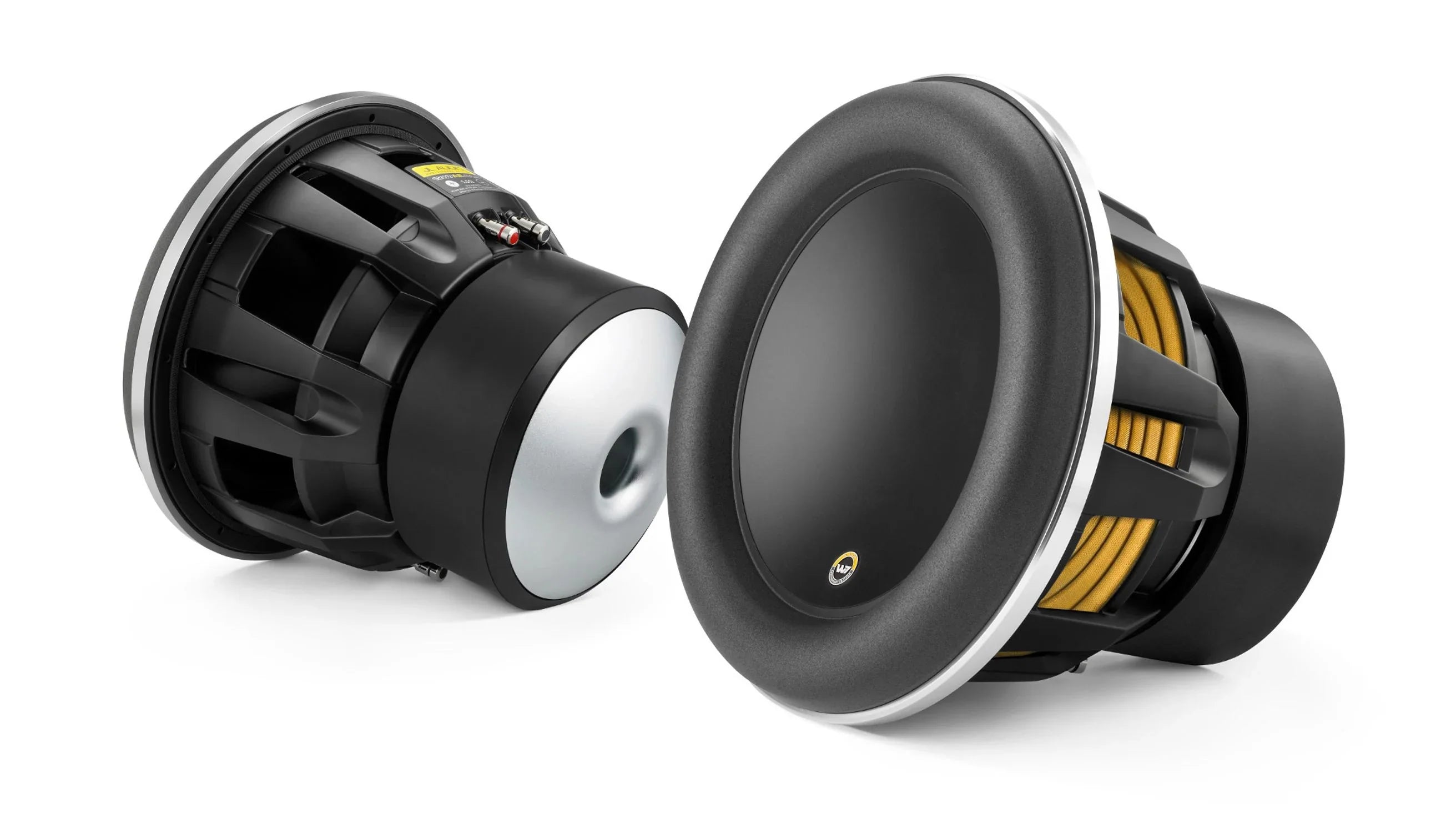

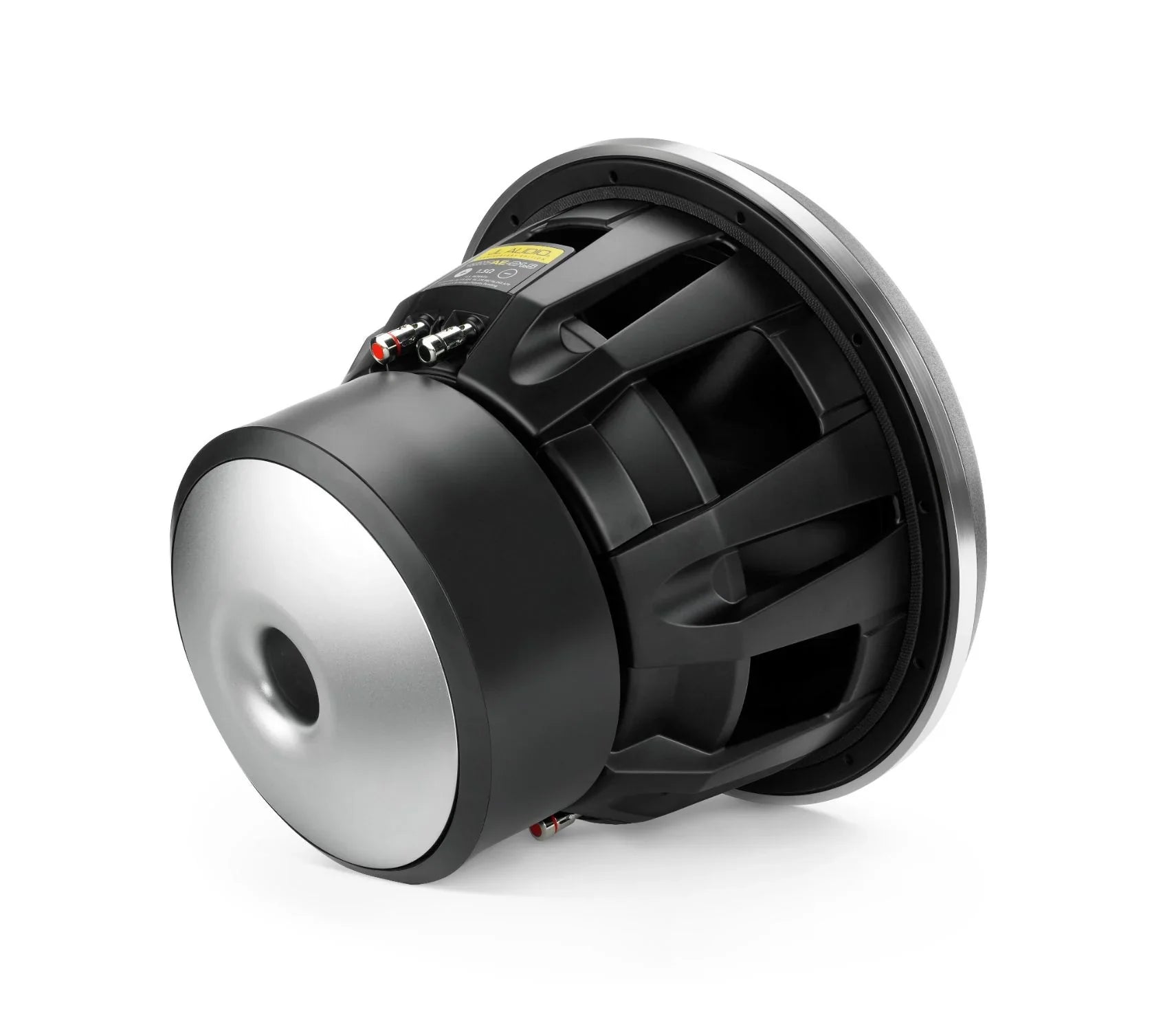

10th Anniversary Edition - W7 13.5-inch Subwoofer (1500 W, Dual 1.5 Ω voice coils)
Words like "extreme," "reference" and "ultimate" get thrown around quite a bit in the Subwoofer world, but rare is the product that can honestly lay claim to them. The 13W7AE does.
Taking the W7 design formula to its highest level, the 13W7AE offers a staggering linear excursion envelope that exceeds 1.25 inches (32 mm) one-way, along with a suspension capable of over 4-inches of peak-to-peak excursion. Combine that with a piston diameter that is 28% larger than the 12W7AE's, and you have a serious high-performance driver for the most demanding applications. With a 13W7AE, limits simply vanish and amazing sub-bass happens... on all fronts, at any level.
Our most potent Subwoofer is best used with amplifier power in the 500W - 1500W range and is optimized to operate in a 1.875 cu. ft. (53.1 l) sealed enclosure, or a 2.375 cu. ft. (67.3 l) ported enclosure. Detailed enclosure recommendations can be found in the "Specifications" tab.

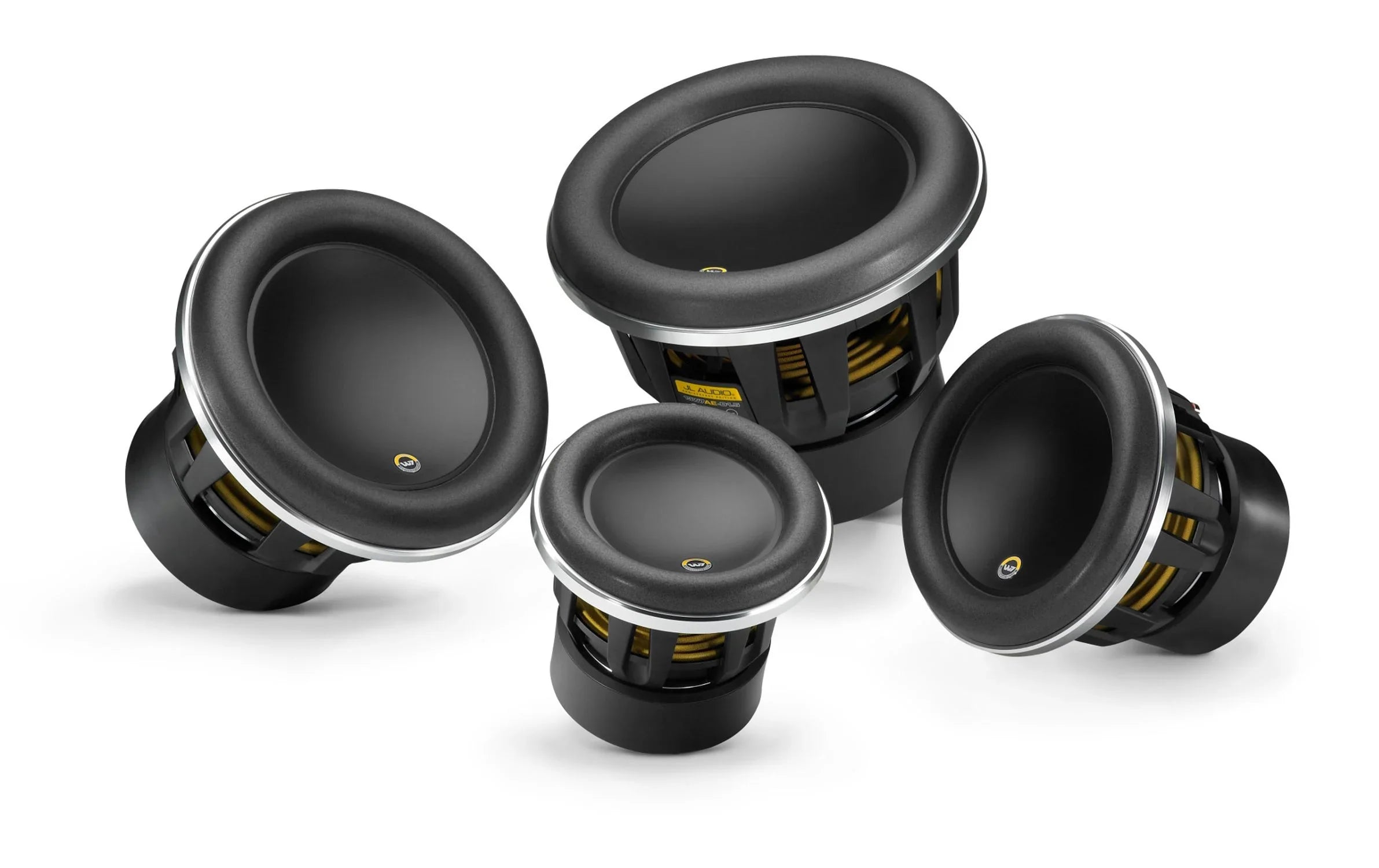

W7AE (Anniversary Edition) Subwoofers celebrate the 10th Anniversary of the launch of the W7 subwoofers. Functionally, they are identical to the original W7's, but they are distinguished by the following cosmetic differences:
| Continuous Power Handling (RMS) | 1500 W |
| Recommended Amplifier Power (RMS) | 500 - 1500 W |
| Nominal Impedance (Znom) | Dual 1.5 Ω |
| Nominal Diameter | 13.5 in / 345 mm |
| Overall Diameter (A) | 14 in / 356 mm |
| Mounting Hole Diameter (B) | 11.9 in / 302 mm |
| Bolt Hole Circle Diameter (C) | 12.7 in / 323 mm |
| Motor Outer Diameter (D) | 8.38 in / 213 mm |
| Mounting Depth (E) | 10.5 in / 267 mm |
| Driver Displacement | 0.21 cu ft / 5.9 L |
| Net Weight | 52 lb / 23.6 kg |
| Free Air Resonance (Fs) | 23.5 Hz |
| Electrical “Q” (Qes) | 0.476 |
| Mechanical “Q” (Qms) | 7.517 |
| Total Speaker “Q” (Qts) | 0.448 |
| Equivalent Compliance (Vas) | 3.68 cu ft / 104.3 L |
| One-Way Linear Excursion (Xmax)* | 1.25 in / 32 mm |
| Reference Efficiency (no) | 0.27% |
| Efficiency (1 W / 1 m)** | 86.3 dB SPL |
| Effective Piston Area (Sd) | 107.35 sq in / 0.0693 sq m |
| DC Resistance (Re)*** | 2.41 Ω |
|
* Xmax specifications are derived via one-way voice coil overhang method with no correction factors applied. |
|
| Wall Thickness | 0.75 in / 19 mm |
| Front Baffle Thickness | 1.0 in / 25 mm |
| Volume (net int.) | 1.875 cu ft / 53.1 L |
| External Width (W) | 16 in / 407 mm |
| External Height (H) | 16 in / 407 mm |
| External Depth (D) | 18.875 in / 479 mm |
| F3 | 37.4 Hz |
| Fc | 40.5 Hz |
| Qtc | 0.77 |
|

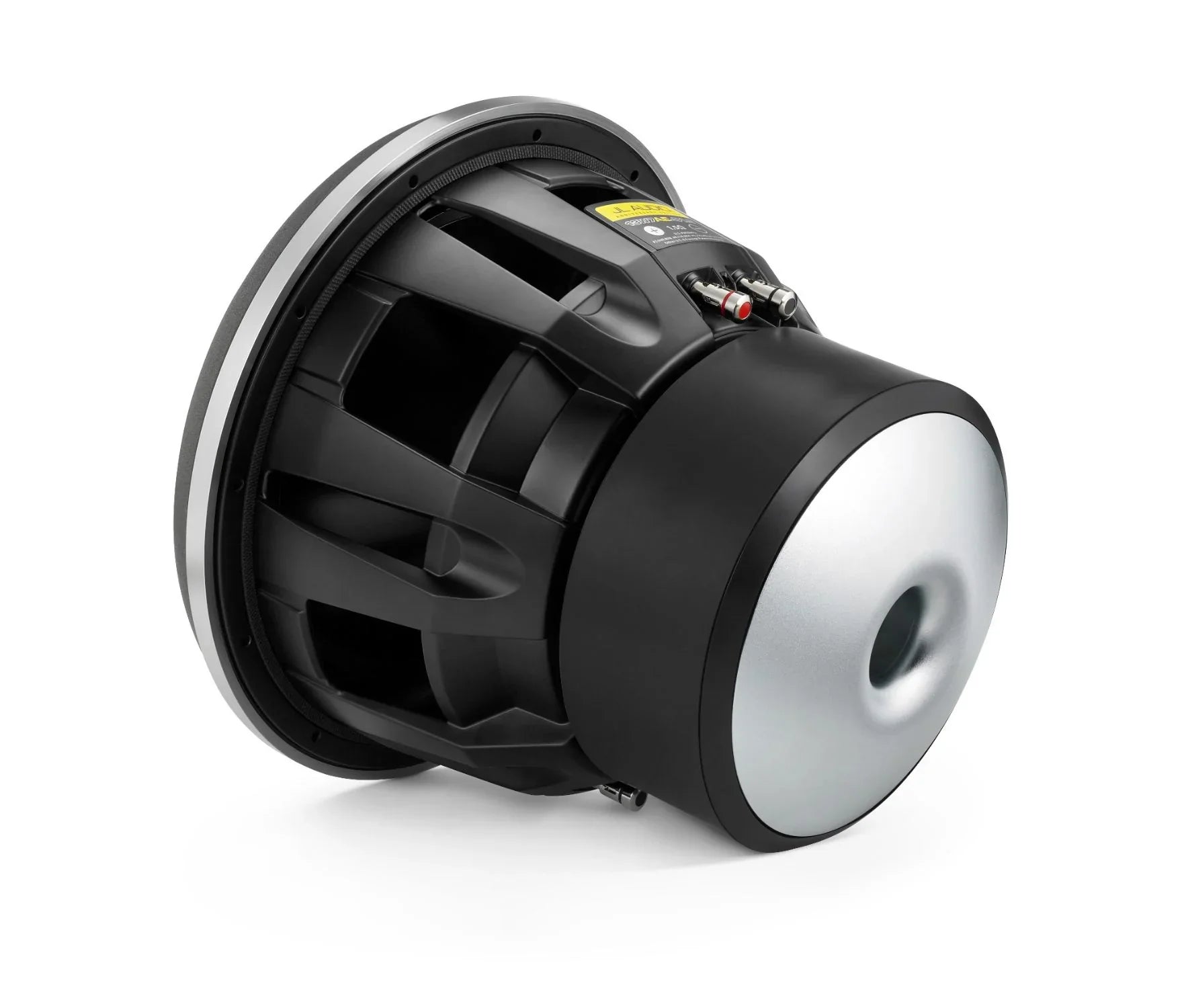

Enclosure Notes * The W7’s employ a pole vent to remove heat and pressure from the inside of the speaker. This vent is located at the rear of the speaker. A minimum distance of 0.75 in (19 mm) is required between the back of the speaker and any wall of the enclosure to allow proper operation of the pole vent. The dimensions given for the enclosure examples above take all applicable displacements into consideration Safety Notice |
|
| Wall Thickness | 0.75 in / 19 mm |
| Front Baffle Thickness | 1.0 in / 25 mm |
| Volume (net int.) | 2.375 cu ft / 67.3 L |
| External Width (W) | 25.875 in / 657 mm |
| External Height (H) | 16 in / 406 mm |
| External Depth (D) | 17.25 in / 438 mm |
| Internal Slot Port Width (SW) | 2.25 in / 57 mm |
| Internal Slot Port Height (SH) | 14.5 in / 368 mm |
| Internal Slot Port Length (SL) | 26.25 in / 667 mm |
| Port Extension Length (EL) | 7.875 in / 200 mm |
| Tuning Frequency (Fb) | 34.6 Hz |
| F3 | 30.3 Hz |
|
Enclosure Notes * The W7’s employ a pole vent to remove heat and pressure from the inside of the speaker.This vent is located at the rear of the speaker. A minimum distance of 0.75 in (19 mm) is required between the back of the speaker and any wall of the enclosure to allow proper operation of the pole vent. The dimensions given for the enclosure examples above take all applicable displacements into consideration Safety Notice |
|
