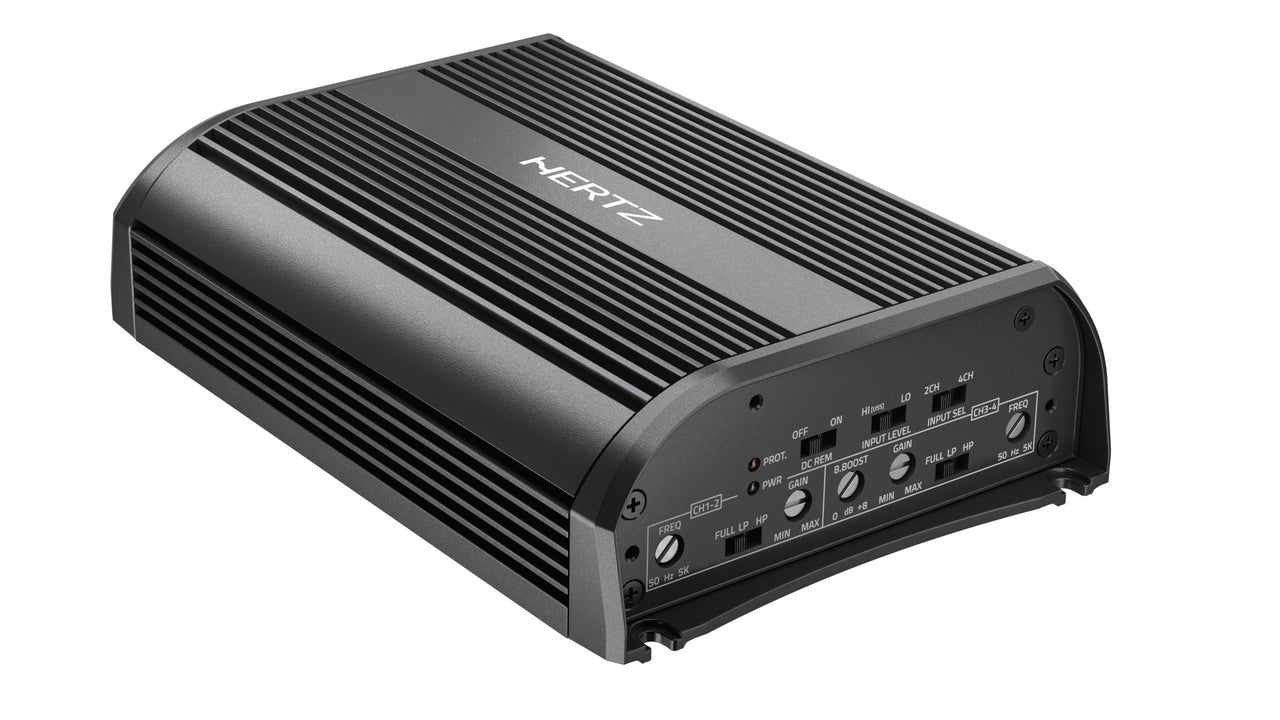

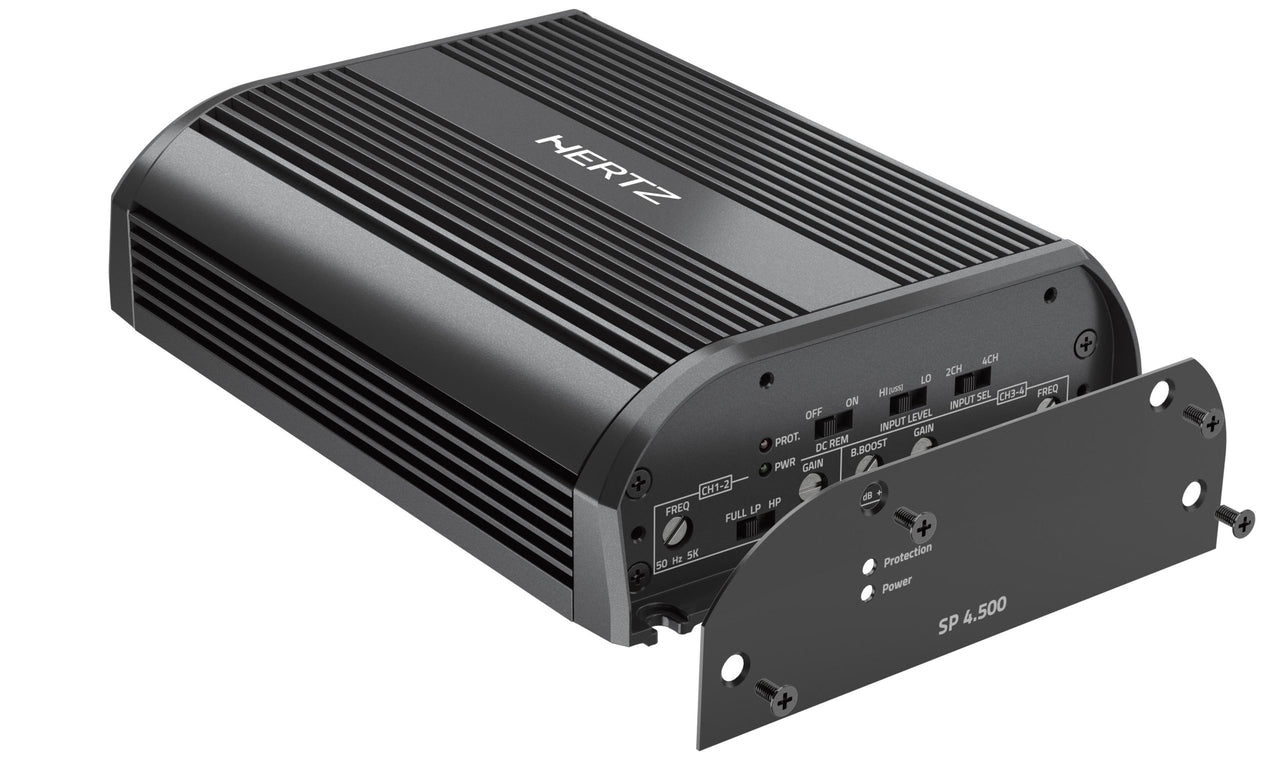

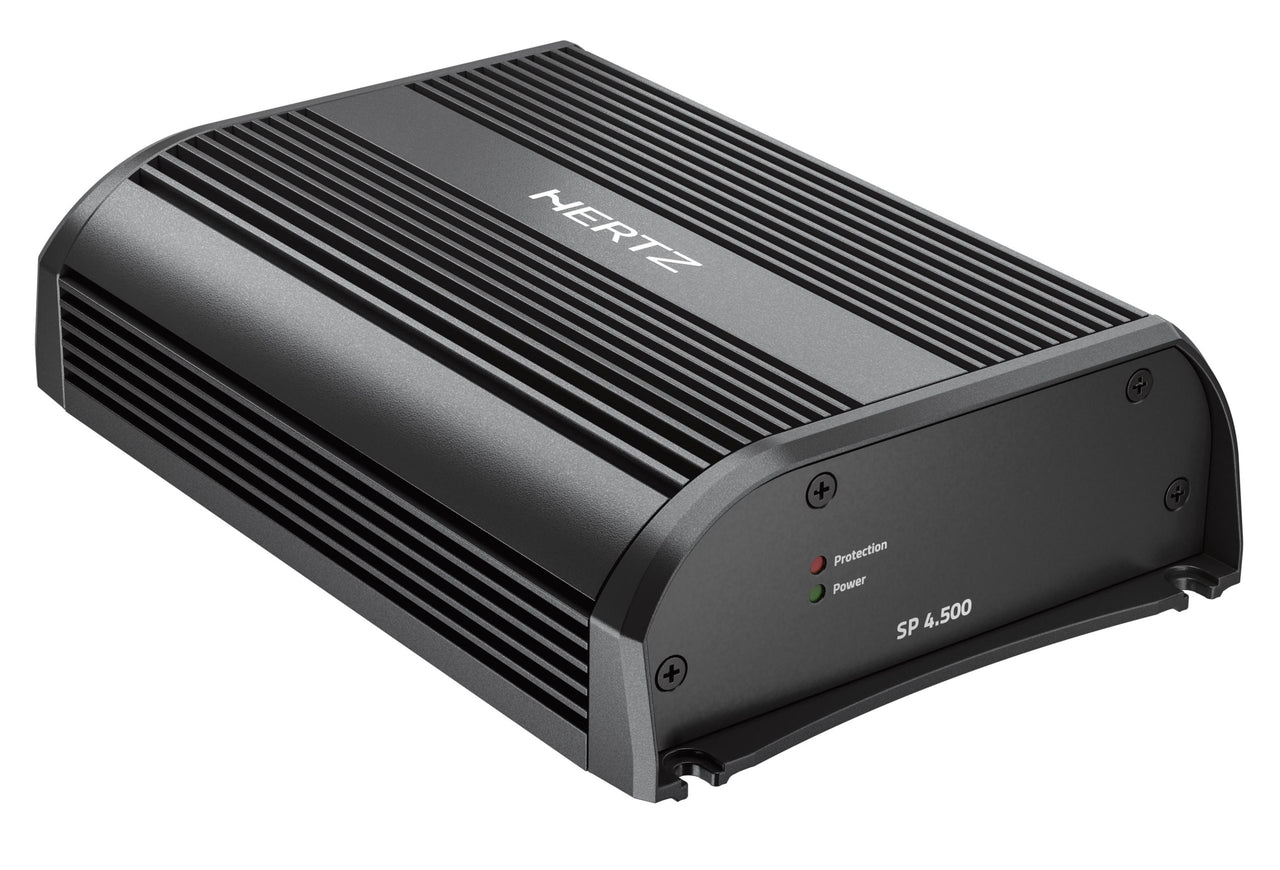

HERTZ Spl Show 600W 4 Channel Amplifier (Sp 4.500)

HERTZ Spl Show 600W 4 Channel Amplifier (Sp 4.500)

$799.99

HERTZ Spl Show 600W 4 Channel Amplifier (Sp 4.500)

$799.99

HERTZ Spl Show 600W 4 Channel Amplifier (Sp 4.500)

$799.99

SKU: SP4.500

$19 flat rate shipping. Delivered in 5 to 10 business days.
Please note: a $10 shipping surcharge applies to Western Australia orders.
Questions? Call 1300 856 888 to check availability or get expert help.
NEED PROFESSIONAL INSTALLATION?
  • Available at our Brookvale workshop
  • Expert 4WD technicians
Ask us for the fitting price and time
BOOK FITTING
SAFE CHECKOUT
Afterpay Google Pay Mastercard PayPal American Express Visa JCB Shop

SP 4.500 features Hertz ADC (Advanced D-Class) output stage, reaching up to 87% efficiency and delivering an impressive power rating of 90 x 4 (4Ω) W RMS or 300 W x 2 (4Ω) W RMS when bridged, with an ultra-compact size of 192.7 (7.58) x 130 (5.1) mm (in.) x 49 (1.9). Being ultra-compact with impressive power, SP 4.500 is the ideal choice for Motorcycle applications and for under-seat in sports cars and behind-seat installations in trucks.



Channels 4 - 3 - 2
Nominal power supply voltage 11 ÷ 15 VDC
Pulse Operating voltage 6 ÷ 16 VDC
Idling current 0.9 A
Idling current when off 0.03 mA
Consumption @ 14.4 VDC, MIN load impedance (Max Musical Power) 27 A
Remote IN 6 ÷ 15 VDC (9 mA)
DC-REM - Remote Turn on by SPK DC from OUTPUT BTL speakers 3.5 ÷ 7 VDC
Distortion - THD @ 1 kHz, 4Ω, 70% Rated Power <0.02%
Damping factor @ 1 kHz, 4Ω, 2 VRMS >150
Bandwidth @ -3 dB 10 Hz ÷ 35 kHz
S/N ratio (A weighted @ 1 V Input) 100 dBA
Pre-In sensitivity 0.6 ÷ 6 VRMS
Speaker-In sensitivity 2.2 ÷ 22 VRMS
Minimum load impedance:
@ 4Ch 2Ω
@ 3Ch 2Ω + 2Ω + 4Ω
@ 2Ch 4Ω
IP Rating IP55
Operating Temperature Range 0°C (32°F) to 55°C (131°F)
Max size (mm/inch) 192.7 x 130 x 49 / 7.58 x 4.18 x 1.9
Weight (kg/lbs) 2.15 / 4.74
Adjustable Crossovers yes

Output Nominal Power (RMS) @ 14.4 VDC, THD 1%:
4 Ch: 90 W x 4 (4Ω)
4 Ch: 150 W x 4 (2Ω)
3 Ch: 80 W x 2 (4Ω) + 330 W x 1 (4Ω)
3 Ch: 145 W x 2 (2Ω) + 300 W x 1 (4Ω)
2 Ch: 300 W x 2 (4Ω)
Total Power 600 W

INPUTS: Pre IN / Speaker IN
Ch 1-2
Full Yes
Hi-pass 50 ÷ 5k Hz @ 12 dB/Oct.
Lo-pass: 50 ÷ 5k Hz @ 12 dB/Oct.
Ch 3-4
Full Yes
Hi-pass 50 ÷ 5k Hz @ 12 dB/Oct.
Lo-pass 50 ÷ 5k Hz @ 12 dB/Oct.
Bass Boost 45Hz (adjustable) OUT 3 - 4 (0 ÷ 8) dB [LP = ON only]

SP 4.500
mm in
A 185.7 7.31
B 192.7 7.58
C 107 4.21
D 130 5.12
E 49 1.93
