Product Details

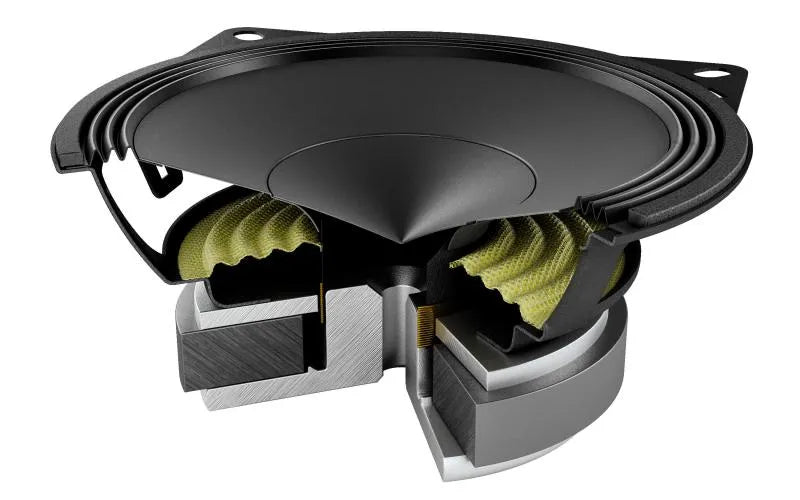

AP 5 features a 32 mm pure copper voice coil, for high power handling and outstanding low-frequency control. All the woofers don't employ any filter, to maximize efficiency: the dome profile has been optimized with Klippel Scan Vibrometer to obtain a calibrated mechanical low-pass cut-off frequency. The surround features the exclusive shallow Triple Wave profile, for maximum excursion linearity.

Technical Specs

Nominal diameter 130 mm (5 in)
Impedance 4 Ohm
Power Handling - Peak 150 W
Power Handling - Continuous 50 W
Sensitivity 93 dB
Frequency Response 70 ÷ 5k Hz
Voice Coil Ø 32 mm
Magnet size D x d x h 85 x 40 x 13 mm
Xmax 2 mm (0.08 in)

Electric-acoustic Specs

Re 3.1 Ohm
Fs 90 Hz
Le 0.25 mH
Vas 4 l (0.141 ft)
Mms 9 g (0.317 oz)
Cms 0.34 mm/N
BL 4.6 T•m
Qts 0.68
Qes 0,74
Qms 8

General

Weight 0.65 kg

Dimensions

AP 5
Dimension A 130 mm (5.12 in)
Dimension A3 150 mm
Dimension B 119 mm (4.69 in)
Dimension C 51.5 mm (2.03 in)
Dimension D 48.5 mm (1.91 in)
