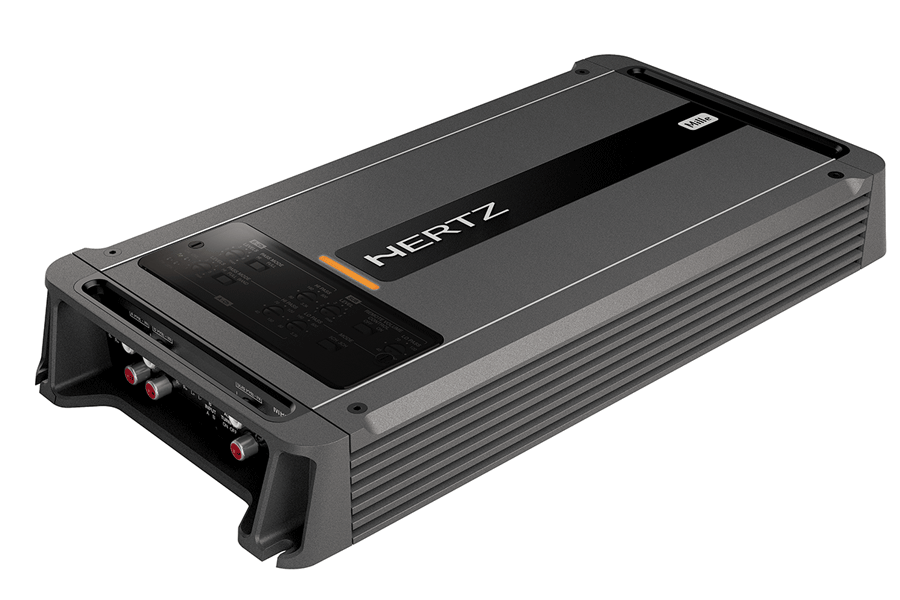

HERTZ Mille 950W 5 Channel Amplifier (Ml Power 5)

HERTZ Mille 950W 5 Channel Amplifier (Ml Power 5)

$1,154.99

HERTZ Mille 950W 5 Channel Amplifier (Ml Power 5)

$1,154.99
0 watching this item.

HERTZ Mille 950W 5 Channel Amplifier (Ml Power 5)

$1,154.99

SKU: MLPOWER5

Available for enquiry only. For assistance, click Request Callback above or call us at 1300 856 888.
Product Details
Mille power amplifiers are born to fully enhance the outstanding performance of the Mille speakers. The new ADC (ADVANCED D-CLASS TECHNOLOGY) ensures pure listening pleasure while keeping a compact size with unmatched power efficiency. The heat sink, engineered with double technology, extrusion and aluminium die-castingenables the Mille Power amplifiers to work constantly at full power without ever overheating, further maximizing thermal efficiency.  The ultra-versatile Hertzaudio car amplifier ML Power 5 (100 W x 4 + 550 W 2 Ω) provides the ability to drive a Mille system including the subwoofer. The HRC BM (Hertz Remote Control Bass Management), low frequencies level remote control, is optional.
Channels 5 - 3
Power supply voltage: 11÷15 VDC
Idling current: 3 A
Idling current when off: 0.04 mA
Consumption @ 2Ω, 14.4 VDC
(Max Musical Power)
50 A
Distorsion - THD (100 Hz @ 4Ω): 0.08 %
Bandwidth A & B Ch (-3 dB): 5 ÷ 50k Hz
Bandwidth C Ch (-3 dB): 5 ÷ 500 Hz
S/N Ratio A & B Ch (A weighted @ 1 V) 100 dB
S/N Ratio C Ch (A weighted @ 1 V): 106 dB
Damping factor A & B Ch (100 Hz @ 4Ω): 50
Damping factor C Ch (100 Hz @ 4Ω): 90
Pre-In sensitivity: 0.2 ÷ 5 V RMS
Pre-In impedance: 15 kΩ
Speaker-In sensitivity: 0.8 ÷ 20 V RMS
Speaker-In impedance: 470 Ω
Load impedance:
5 Ch
3 Ch
4 x 2Ω + 1 x 2Ω
2 x 4Ω + 1 x 2Ω
Remote In: 4 ÷ 15 VDC - 1 mA
ART™: Automatic Remote Turn-On/Off with Speaker-In
Fuse: 2 x 40 A
Max size (mm/inches): 170 x 349 x 46.70 / 6.69 x 13.74 x 1.84
Weight (kg/lb):
Adjustable Crossovers yes

CEA 2006-A RATINGS
RMS Power (4 Ω, ≤ 1 % THD+N, 14.4 V): 60 W x 4 Ch + 310 W x 1 Ch
S/N Ratio (ref. 1 W output): 60 W Channel: 80 dBA
310 W Channel: 84 dBA
OUTPUT POWER (RMS) @ 14.4 VDC, THD 1%:
5 Ch
5 Ch
3 Ch
3 Ch
70 W x 4 + 380 W x 1 (4Ω)
100 W x 4 + 550 W x 1 (2Ω)
200 W x 2 (4Ω) + 380 W x 1 (4Ω)
200 W x 2 (4Ω) + 550 W x 1 (2Ω)
Total Power 950 W
INPUTS / FILTERS
Inputs: Pre IN / Speaker IN
A Ch filters: Full / Hi-Pass / Band-Pass 40 ÷ 150 Hz (HI) 80 ÷ 3.3k Hz (LO) @ 12 dB/Oct.
B Ch filters: Full / Hi-Pass 80 ÷ 3.3k Hz @ 12 dB/Oct.
C Ch filters: Lo-Pass 50 ÷ 500 Hz @ 24 dB/Oct.
Remote SUB volume: (-50 ÷ 6) dB

ML Power 5
mm in
A 349 13.74
B 332 13.07
C 170 6.69
D 148 5.83
E 46,7 1.84
