HERTZ Marine 800W 2 Channel Amplifier (Hcp 2Mx)

HERTZ Marine 800W 2 Channel Amplifier (Hcp 2Mx)

$649.99

HERTZ Marine 800W 2 Channel Amplifier (Hcp 2Mx)

$649.99
0 watching this item.

HERTZ Marine 800W 2 Channel Amplifier (Hcp 2Mx)

$649.99

SKU: HCP2MX

Available for enquiry only. For assistance, click Request Callback above or call us at 1300 856 888.
Product Details

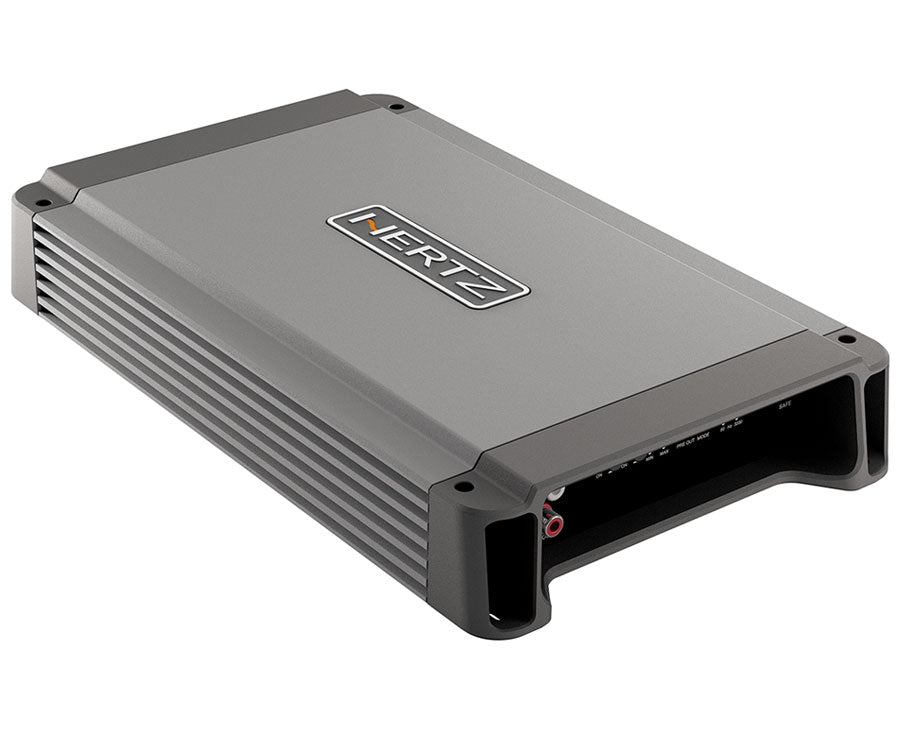

HCP 2 MX  marine amplifier feature a compact design ready to face the open water environment, providing tons of clean power. The HCP M heat sink has been crafted from extruded aluminium, a material unmatched for lightness, robustness and heat dissipation. To keep size to a minimum, the power transistors are placed between the PCB and the top side of the heat sink where heat is gathered. Built up heat is then directed to the special dissipation “wings” along the side of the amplifier. Both Pre-In and Speaker-In inputs feature a special balanced circuitry, ensuring high rejection against electro-magnetic interferences for noise-free results. The HCP M amplifiers crossover section ensure extreme flexibility: fully adjustable Lo-pass, Hi-pass filters with 12 dB/Oct. and 24 dB/Oct. slopes according to the amplifier model; Bass Boost is also available to enhance low frequencies. More specifically HCP 2 MX features Hi-Pass pre-amplified outputs, providing the ability to create a Band-Pass on the front woofer.

General Specs

Channels 2 - 1
POWER SUPPLY
Power supply voltage / fuse: 11 ÷ 15 VDC / 2 x 20 A
ldling current (power ON/OFF): 0.6 A / 0.4 mA
Consumption@ 1Ω, 14.4 VDC (Max Musical Power): 20 A
Remote In: 7 ÷ 15 VDC - 1 mA
ART: Automatic Remote Turn-OniOff with Speaker-ln
AMPLIFIER STAGE
Distorsion - TliD (100Hz @ 4Ω): 0.03%
Bandwidth: 10 ÷ 65 kHz
S/N Ratlo (A welghted @ 1 V): 105 dB
Damping factor (100Hz @ 4Ω) 300
Pre-ln sensitivity: 0.2 ÷ 5 VRMS
Speaker-ln sensitivity: 0.8 ÷ 20 VRMS
Load impedance (MIN)
@2Ch:
@1Ch:

2 Ω
4 Ω
Max size (mm/in): 315 x 190 x 50 / 12.40 x 7.48 x 1.97
Weight (kg/lb): 2.57 / 5.66
Adjustable Crossovers yes

Output Power

OUTPUT POWER (RMS) @ 14.4 VDC, THD 1%
2Ch 100 W x 2 (4Ω)
2Ch 160 W x 2 (2Ω)
1Ch 320 W x 1 (4Ω)
OUTPUT POWER (RMS) @ 14.4 VDC, THD 10%
2Ch 120 W x 2 (4Ω)
2Ch 200 W x 2 (2Ω)
1Ch 400 W x 1 (4Ω)
CEA 2006-A RATINGS
RMS Power (4 Ω, ≤ 1 % THD+N,14.4 V): 100 W x 2 Ch
S/N Ratio (ref. 1 W output) 83 dBA
Total Power 800 W

INPUTS / FILTERS

lnputs: PRE IN/ SPEAKER IN
Pre-out FULL Yes
Hi-Pass: 50 ÷ 3200 Hz @ 12 dB/Oct
Lo-Pass 50 ÷ 3200 Hz @ 12 dB/Oct
Filters FULL Yes
Hi-Pass: 50 ÷ 3200 Hz @ 12 dB/Oct
Lo-Pass 50 ÷ 3200 Hz @ 12 dB/Oct
Mono (On/Off) Yes
Boost 50 Hz (select) (0 / 3 / 6) dB

Physical Specs

HCP 2MX
mm in
A 315 12.40
B 291 11.45
C 190 7.48
D 166 6.53
E 50 1.97
