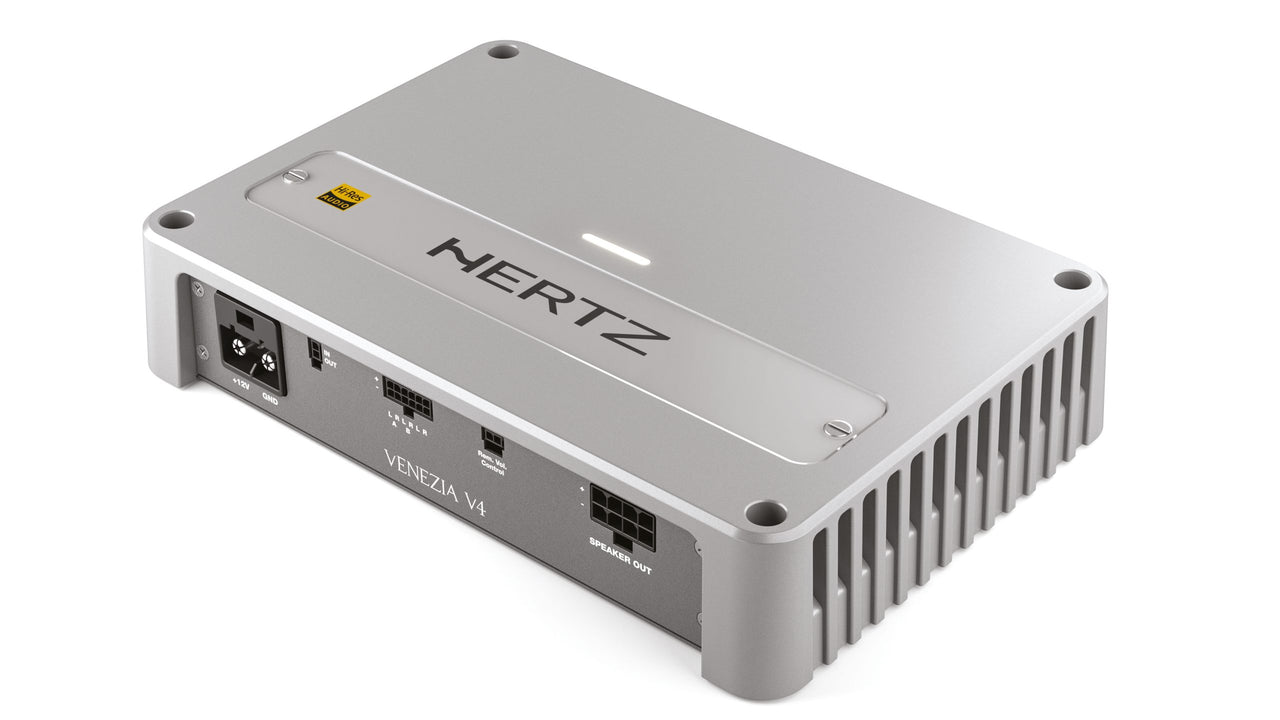

HERTZ Marine 1160W 4 Channel Amplifier (Venezia V4)

HERTZ Marine 1160W 4 Channel Amplifier (Venezia V4)

$1,364.99

HERTZ Marine 1160W 4 Channel Amplifier (Venezia V4)

$1,364.99
0 watching this item.

HERTZ Marine 1160W 4 Channel Amplifier (Venezia V4)

$1,364.99

SKU: HMV4

Available for enquiry only. For assistance, click Request Callback above or call us at 1300 856 888.
Product Details
Venezia V4 is the most-powerful four-channel Hertz marine amplifier ever, featuring 160 W x 4 (4Ω) and 580 W x 2 (4Ω)! Hertz Advanced Class D technology maximizes efficiency and power while minimizing heat and electromagnetic radiation - enhancing sound quality that reaches new highs with Hi-Res certification! High-powered channels with bridging capability deliver the output levels needed in the marine environment. Venezia V4 is engineered and tested for marine applications (UV, salt-fog, vibrations, high/low temperature, thermal shock) and has obtained the IPX2 certification. The Safe-Lock Input, Output, and Power connections streamline installation and enhance durability in the field. The fanless convection cooling system is integrated into the cast heat-sink chassis. The balanced fully-differential input circuitry rejects electromagnetic noise and interference. The powerful and flexible preamp filter options are far beyond most mobile amplifier capabilities. Last but not least, Venezia V4 is fully protected by short-circuit, overload, and thermal protections - with auto-resetting.




Channels 4 - 3 - 2
POWER SUPPLY
Power supply voltage 9 ÷ 16 VDC
ldling current (power ON/OFF): 1.6A / 0.04 mA
Consumption@ 1Ω, 14.4 VDC (Max Musical Power): 48 A
Remote In: 7 ÷ 15 VDC - 1 mA
AMPLIFIER STAGE
Distorsion - THD (100Hz @ 4Ω): <0,06%
Bandwidth: 10 ÷ 42 kHz
S/N Ratlo (A welghted @ 1 V): 102 dBA
Damping factor (100Hz @ 4Ω) 130
Pre-ln sensitivity: 0.2 ÷ 5 VRMS
Pre-ln impedance: 10kΩ
Load impedance (MIN)
@4Ch:
@3Ch:
@2Ch:

2 Ω
2 Ω + 2 Ω + 4 Ω
4 Ω
Adjustable Crossovers yes

OUTPUT POWER (RMS) @ 14.4 VDC, THD 1%
4Ch 160 W x 4 (4Ω)
4Ch 290 W x 4 (2Ω)
3Ch 160 W x 2 (4Ω) + 580 W x 1 (4Ω)
3Ch 290 W x 2 (2Ω) + 580 W x 1 (4Ω)
2Ch 580 W x 2 (4Ω)
Total Power 1160 W

lnputs: PRE IN
Pre Out Full range
A Ch:
A Ch. MONO (on/off): Yes
By-pass: Yes (Full)
Hi-Pass : 50 ÷ 4k Hz @ 12dB/Oct
Lo-Pass: 50 ÷ 4k Hz @ 12dB/Oct
B Ch: Yes
B Ch. MONO (on/off): Yes
By-pass: Yes (Full)
Hi-Pass: 50 ÷ 4k Hz @ 12dB/Oct
Lo-Pass: 50 ÷ 4k Hz 12@ dB/Oct
Bass boost 50 Hz (adjust): (0 ÷ 12) dB

VENEZIA V4
mm in
A 270 10.63
B 240 9.45
C 185 7.28
D 155 6.10
E 54 2.12
Weight kg lb
2.66 5.77
