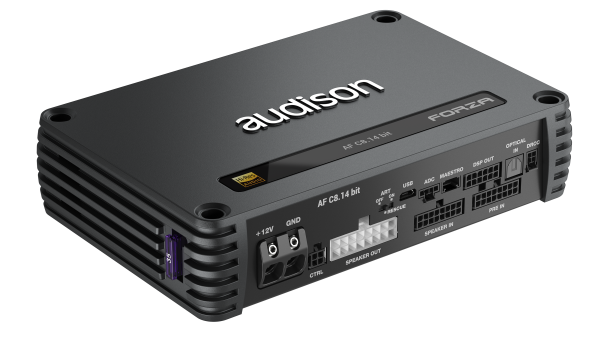

AUDISON Forza Line - 8 Channel 1120W D-Class Amplifier With 14 Channel Dsp (Af C8.14 Bit)

AUDISON Forza Line - 8 Channel 1120W D-Class Amplifier With 14 Channel Dsp (Af C8.14 Bit)

$1,729.99

AUDISON Forza Line - 8 Channel 1120W D-Class Amplifier With 14 Channel Dsp (Af C8.14 Bit)

$1,729.99
0 watching this item.

AUDISON Forza Line - 8 Channel 1120W D-Class Amplifier With 14 Channel Dsp (Af C8.14 Bit)

$1,729.99

SKU: AFC8.14B

Available for enquiry only. For assistance, click Request Callback above or call us at 1300 856 888.
Product Details

AF C8.14 bit boasts eight high-fidelity amplified channels 65W x 8 @4Ω*, 100W x 8 @2Ω*, with the audiophile sound of the latest generation Audison D-Class technology. Higher switching frequencies, steeper filtering, and higher-tolerance components deliver sound above and beyond the expectation of Class D – in an amazingly compact package! This is combined with native DSP working at 24 bit/96 kHz, extending the audio band up to 40 kHz and earning the coveted High-Resolution certification. Bridging channel pairs results in 200W x 4 @4Ω*, guaranteeing flexible and powerful performance. Support for the Audison B-CON’s Absolute Volume function guarantees maximum bit depth, even with wireless connections!*Output Continuous Power (RMS) @14.4 VDC, 1% THD, all channels driven.

Features

  • Improved audio performance and power thanks to the latest-generation ADT (Audison D-Class) technology
  • Exceptional power-to-volume ratio up to 0.68 W RMS/cm³, achieving 82% efficiency
  • Next-generation bit Drive software platform
  • Hi-Res Audio compatibility, with an extended frequency response up to 40 kHz, enabled by DSP operation at 24-bit / 96 kHz
  • Maximum versatility with bridging capability on each pair of power outputs
  • Up to 14 output channels (8 amplified + 6 optional pre-outs), DSP-controlled to expand the system with additional amplifiers

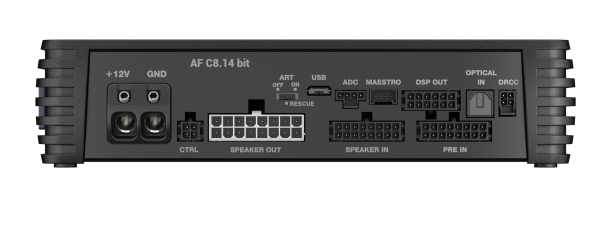

  • 8 high- / low-level inputs, plus optical Toslink digital input, ensuring full integration with complex OEM systems
  • Expansion card slot supporting 4 additional analog inputs or 1 digital input
  • Electrical signal analysis on each input channel for proper system integration and correction
  • Acoustic analysis via USB microphone, displaying the response graph directly in the equalizer for precise tuning and superior sound quality
  • Advanced signal routing options, allowing technicians to go beyond predefined system layouts in the Configuration Wizard
