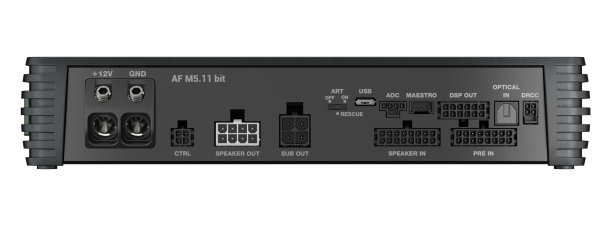

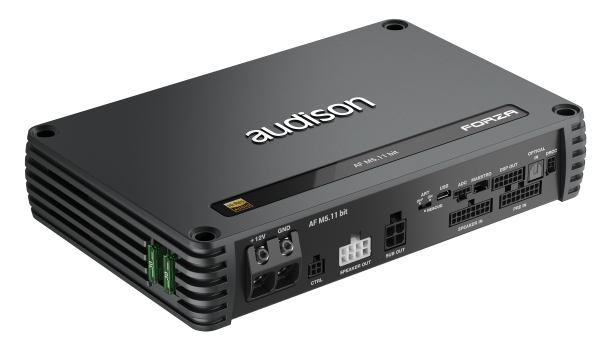

AUDISON Forza Line - 5 Channel 1200W D-Class Amplifier With Dsp (Af M5.11 Bit)

AUDISON Forza Line - 5 Channel 1200W D-Class Amplifier With Dsp (Af M5.11 Bit)

$2,415.00

AUDISON Forza Line - 5 Channel 1200W D-Class Amplifier With Dsp (Af M5.11 Bit)

$2,415.00
0 watching this item.

AUDISON Forza Line - 5 Channel 1200W D-Class Amplifier With Dsp (Af M5.11 Bit)

$2,415.00

SKU: AFM511B

Available for enquiry only. For assistance, click Request Callback above or call us at 1300 856 888.
Product Details

AF M5.11 bit boasts five high-fidelity amplified channels 100W x 4 + 400W @4Ω*, 150WP x 4 + 600W @2Ω* with the audiophile sound of the latest generation Audison D-Class technology. Higher switching frequencies, steeper filtering, and higher-tolerance components deliver sound above and beyond the expectation of Class D – in an amazingly compact package! This is combined with native DSP working at 24 bit/96 kHz, extending the audio band up to 40 kHz and earning the coveted High-Resolution certification. Bridging channel pairs results in 200W x 2 + 400W @4Ω*, guaranteeing flexible and powerful performance. Support for the Audison B-CON’s Absolute Volume function guarantees maximum bit depth, even with wireless connections! Output Continuous Power (RMS) @14.4 VDC, 1% THD, all channels driven.

Features

  • Improved audio performance and power thanks to the latest-generation ADT (Audison D-Class) technology
  • Outstanding power-to-volume ratio up to 0.68 W RMS/cm³, achieving 82% efficiency
  • Next-generation bit Drive software platform
  • Hi-Res Audio compatibility, with an extended frequency response up to 40 kHz, enabled by DSP operation at 24-bit / 96 kHz
  • Maximum versatility with bridging capability on each pair of power outputs
  • Up to 11 output channels (5 amplified + 6 optional pre-outs), DSP-controlled to expand the system with additional amplifiers
  • 8 high- / low-level inputs, plus optical Toslink digital input, ensuring full integration with complex OEM systems
  • Expansion card slot for an additional 4 analog inputs or 1 digital input
  • Electrical signal analysis on each input channel for proper integration and correction
  • Acoustic analysis via USB microphone, displaying the response graph directly in the equalizer for accurate tuning
  • Advanced signal routing options, allowing technicians to exceed predefined system layouts in the Configuration Wizard
