AUDISON Forza Line - 12 Channel 1080W D-Class Amplifier With Dsp (Af M12.14)

AUDISON Forza Line - 12 Channel 1080W D-Class Amplifier With Dsp (Af M12.14)

$2,834.99

AUDISON Forza Line - 12 Channel 1080W D-Class Amplifier With Dsp (Af M12.14)

$2,834.99
0 watching this item.

AUDISON Forza Line - 12 Channel 1080W D-Class Amplifier With Dsp (Af M12.14)

$2,834.99

SKU: AFM12.14

Available for enquiry only. For assistance, click Request Callback above or call us at 1300 856 888.
Product Details

The AF M12.14 bit features twelve high-fidelity amplified channels, delivering
60 W × 12 @ 4Ω* or 90 W × 12 @ 2Ω*, powered by the latest-generation Audison D-Class (ADT) technology. Higher switching frequencies, steeper filtering, and high-tolerance components provide sound quality that exceeds traditional Class D expectations—all within an ultra-compact design.

Native DSP operation at 24-bit / 96 kHz extends the audio bandwidth up to 40 kHz, earning High-Resolution Audio certification. Bridging channel pairs delivers 180 W × 6 @ 4Ω*, ensuring flexible system configuration and powerful performance.

Support for the Audison B-CON Absolute Volume function guarantees maximum bit depth even when using wireless audio sources.

* Continuous RMS output power measured at 14.4 VDC, 1% THD, all channels driven.

Features

  • Improved audio performance and power thanks to the latest-generation ADT (Audison D-Class) technology
  • Exceptional power-to-volume ratio up to 0.68 W RMS/cm³, achieving 82% efficiency
  • Next-generation bit Drive software platform
  • Hi-Res Audio compatibility, with an extended frequency response up to 40 kHz, enabled by DSP operation at 24-bit / 96 kHz
  • Maximum versatility with bridging capability on each pair of power outputs

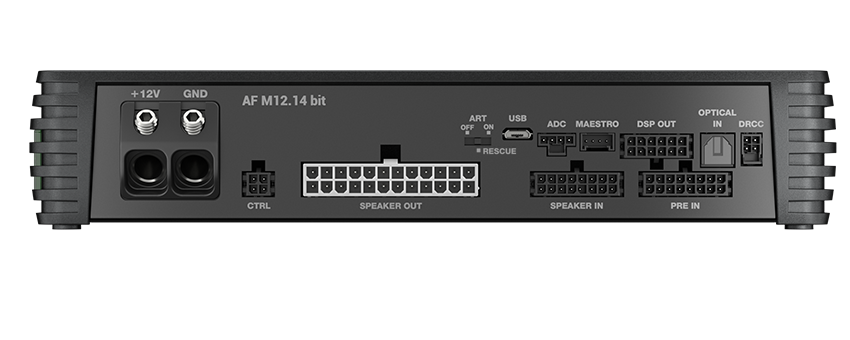

  • Up to 14 output channels (12 amplified + 2 native pre-outs), DSP-controlled for system expansion
  • 8 high- / low-level inputs, plus optical Toslink digital input, for seamless integration with complex OEM systems
  • Expansion card slot supporting 4 additional analog inputs or 1 digital input
  • Electrical signal analysis on each input channel for accurate system integration and correction
  • Acoustic analysis via USB microphone, displaying the response curve directly in the equalizer for precise tuning
  • Advanced signal routing options, allowing technicians to go beyond predefined system layouts in the Configuration Wizard
