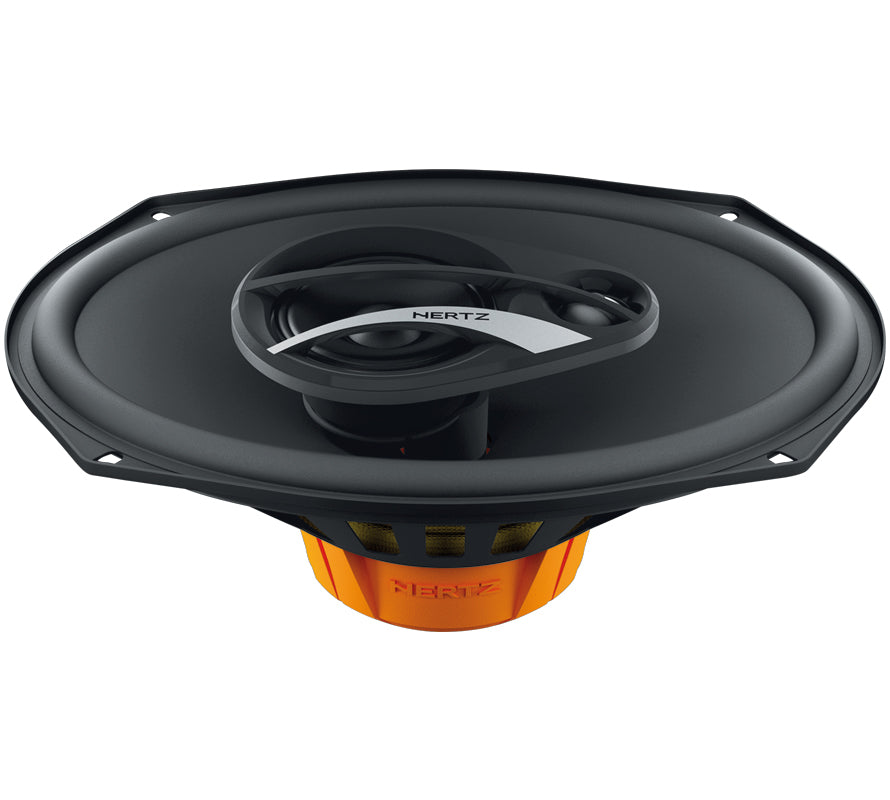

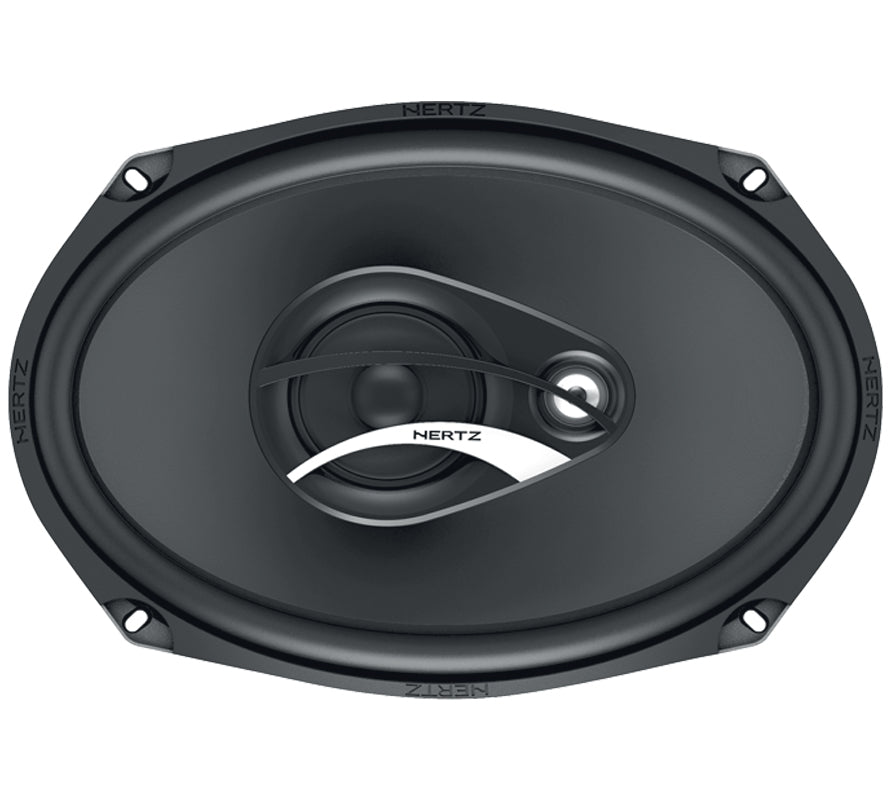

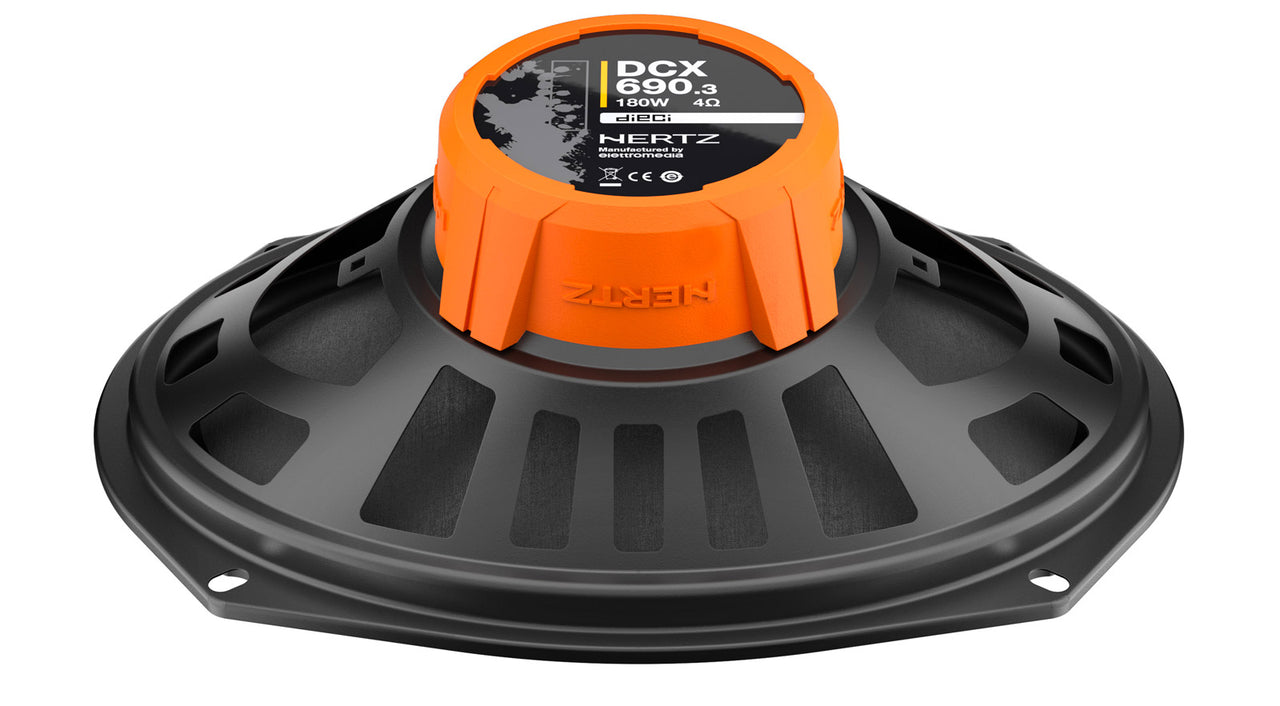

HERTZ Dieci 6X9" 3-Way Coaxial Speaker - Pair (Dcx 690.3)

HERTZ Dieci 6X9" 3-Way Coaxial Speaker - Pair (Dcx 690.3)

$174.99

HERTZ Dieci 6X9" 3-Way Coaxial Speaker - Pair (Dcx 690.3)

$174.99
0 watching this item.

HERTZ Dieci 6X9" 3-Way Coaxial Speaker - Pair (Dcx 690.3)

$174.99

SKU: DCX690.3

Available for enquiry only. For assistance, click Request Callback above or call us at 1300 856 888.
Product Details
Hertz DCX 690.3 Dieci series car audio coaxials use an oversized magnetic group, TPU (Thermoplastic polyurethane) surround, a 60 mm diameter midrange, and a PEI dome tweeter. The result is linearity, wide dispersion, and extra-ordinary efficiency not found in traditional coax components. An involving, emotional sound, even at high SPL levels. An authentic 3-way coax capable of reproducing a wide frequency spectrum.
Component Three way coaxial
Size mm (in.) (6 x 9)
Power Handling - Continuous W 90
Power Handling - Peak W 180
Impedance Ohm 4
Depth mm (in.) 98 (3.9)
Woofer Voice Coil Ø mm (in.) 25 (1.0)
Frequency Response Hz 45 ÷ 21k
Woofer Magnet size D x d x h mm (in.) 80 x 40 x 15 (3.1 x 1.6 x 0.6)
Weight of one speaker kg (lb.) 0,95 (2.09)
Woofer Magnet High density flux ferrite
Tweeter Magnet High density flux ferrite
D mm 170
Re Ohm 3,4
Fs Hz 66
Vas I 25,7
Mms g 16,5
Cms mm/N 0,35
BL T*m 3,9
Qts 1,12
Qes 1,55
Qms 4,06
Spl dB 93

DCX 690.3
A1 237 mm (9.3 in.)
A2 162 mm (6.4 in.)
B1 224 mm (8.8 in.)
B2 153 mm (6.0 in.)
C 98 mm (3.9 in.)
D 77 mm (3.0 in.)
