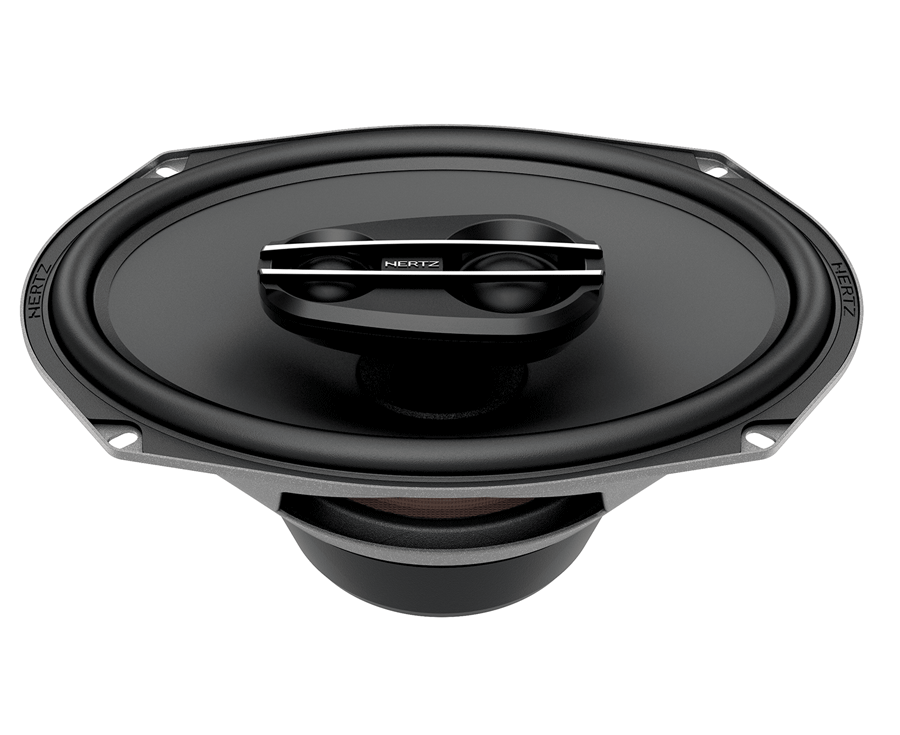

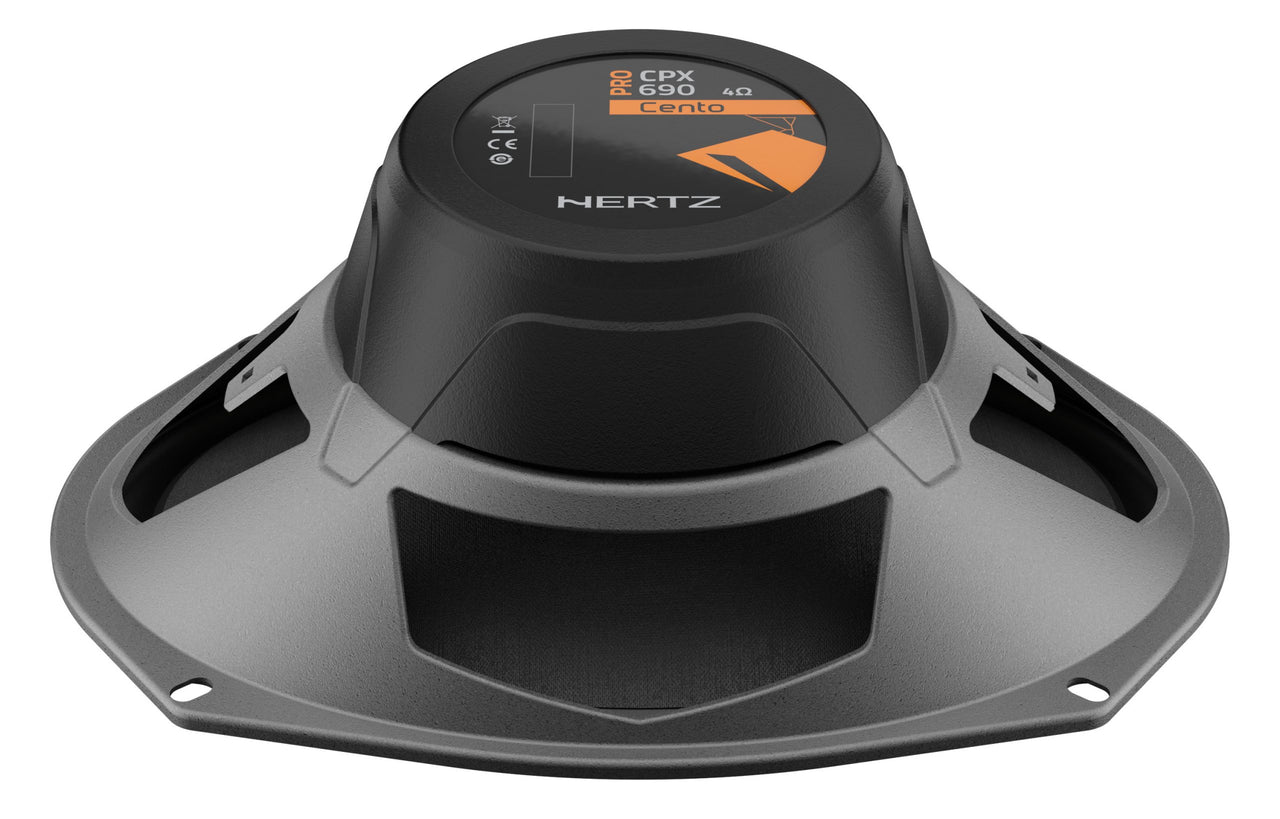

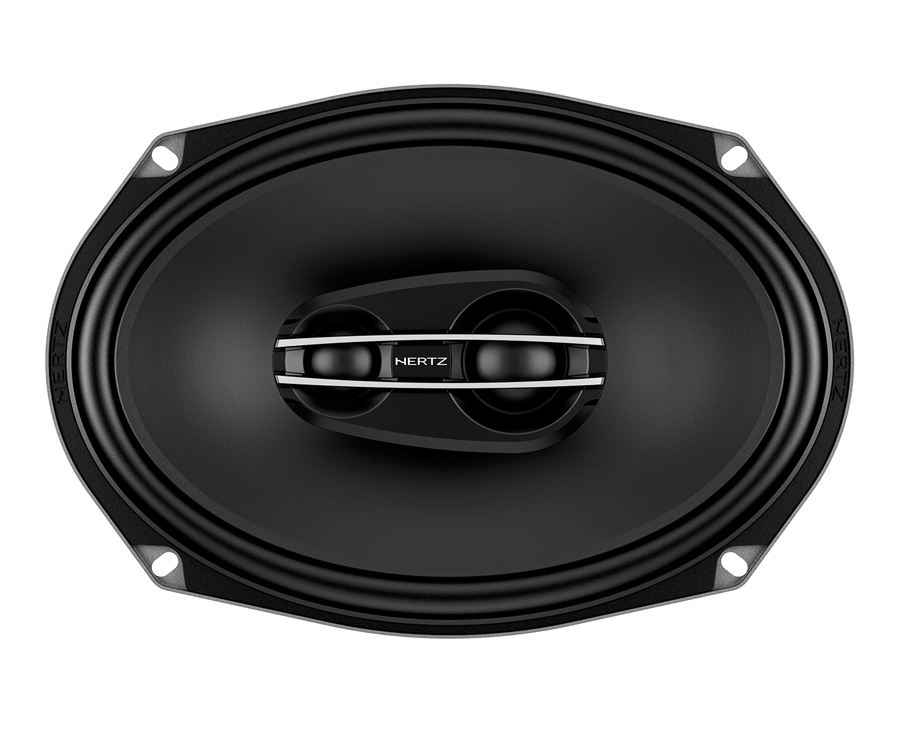

HERTZ Cento Pro 6X9" 3-Way Coaxial Speaker - Pair (Cpx 690)

HERTZ Cento Pro 6X9" 3-Way Coaxial Speaker - Pair (Cpx 690)

$479.99

HERTZ Cento Pro 6X9" 3-Way Coaxial Speaker - Pair (Cpx 690)

$479.99
0 watching this item.

HERTZ Cento Pro 6X9" 3-Way Coaxial Speaker - Pair (Cpx 690)

$479.99

SKU: CPX690

Available for enquiry only. For assistance, click Request Callback above or call us at 1300 856 888.
Product Details

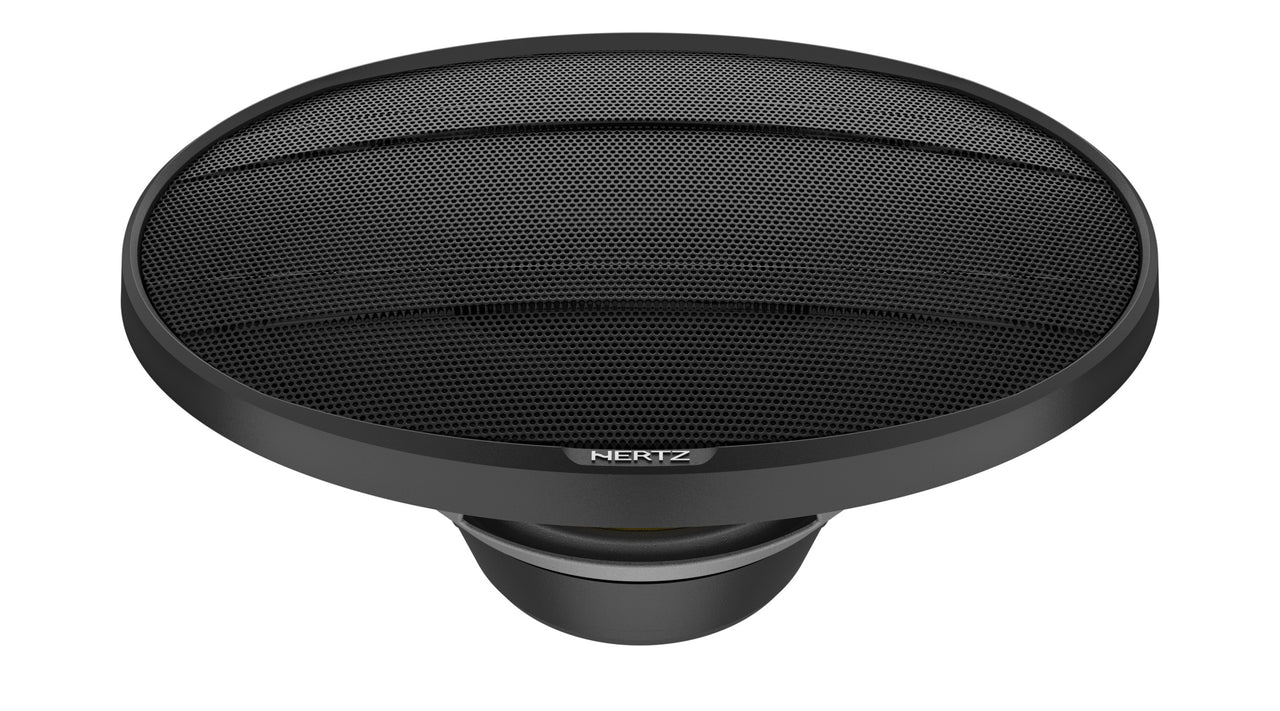

The three-way car audio coaxial CPX 690 is the best solution for enthusiasts who love highly dynamic listening with low engaging frequencies and want to make the most of the rear deck mount. Tweeter and Supertweeter both feature Neodymium magnet and Tetolon dome, 32 mm and 24 mm respectively. The stylish faceplate is designed to maximize off-axis emissions and thus optimizing horizontal installation. As for the CPX 165, the CPX 690's Tweeter and Supertweeter boasts Radial Venting System technology for outstanding cooling and acoustic performance. The robust basket with radial ventilation keeps operating temperatures low. The supplied grille is made of a high resistance ABS plastic support and metallic mesh to ensure a high level of protection with a Hi-tech design
Component Coaxials
Size mm (in.) (6 x 9)
Power Handling - Continuous W 120
Power Handling - Peak W 360
Impedance Ohm 4
Tweeter diaphragm mm (in.) 32 (1.26)
Woofer Voice Coil Ø mm (in.) 30 (1.2)
Tweeter Voice Coil Ø mm (in.) 28 (1.1)
Frequency Response Hz 35 ÷ 24k
Woofer Magnet size D x d x h mm (in.) 90 x 40 x 20 (3.54 x 1.57 x 0.79)
Tweeter Magnet size D x h mm (in.) 27,8 x 3 (1.09 x 0.12)
Weight of one speaker kg (lb.) 1,63 (3.59)
Woofer Magnet Ferrite
Tweeter Magnet Neodymium
Cone Water repellent pressed paper
Dome Tetolon
Xmech mm (in.) 7,5 (0.3)
D mm 172
Re Ohm 3,4
Fs Hz 68
Le mH 0,53
Vas I 15,8
Mms g 26,5
Cms mm/N 0,21
BL T*m 6,0
Qts 0,77
Qes 1,10
Qms 2,7
Spl dB 94

CPX 690
A 237,5 mm 9.35 in.
B 225 mm 8.86 in.
C 103 mm 4.06 in.
D 85 mm 3.35 in.
E 269 mm 10.55 in.
F 28,5 mm 1.12 in.
