Front Runner Suzuki Jimny (2018-Current) Load Bar Kit -KRSJ007

$523.00

  • Brand: Front Runner
  • Availability: In Stock
  • SKU: KRSJ007
  • Barcode:

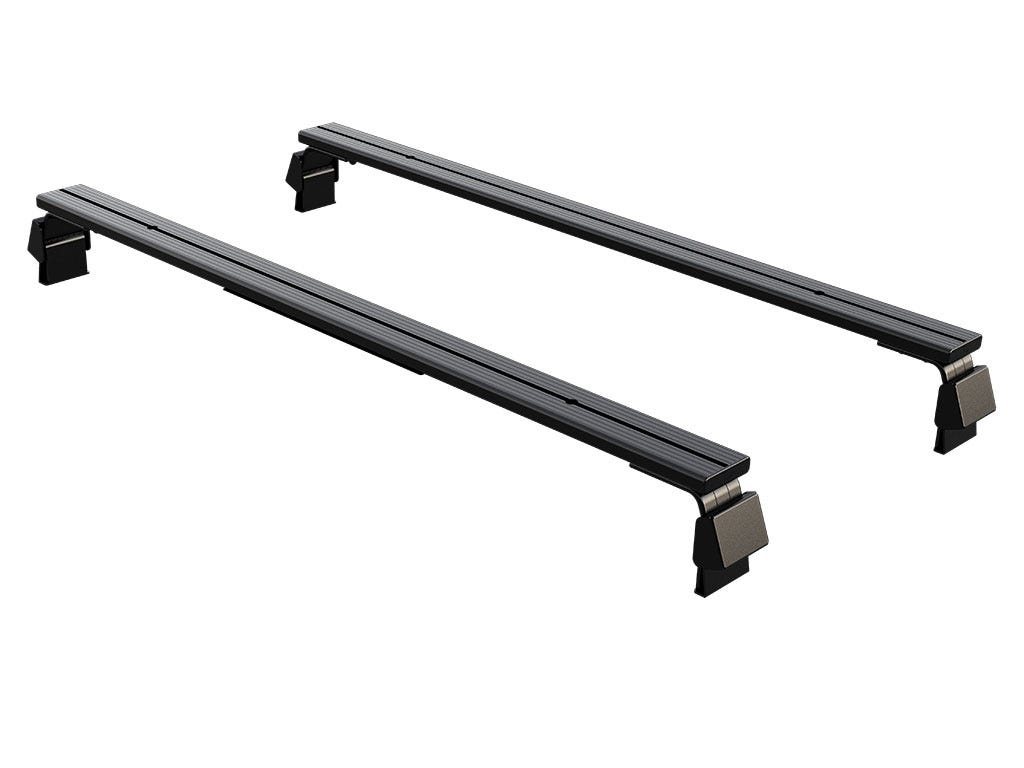

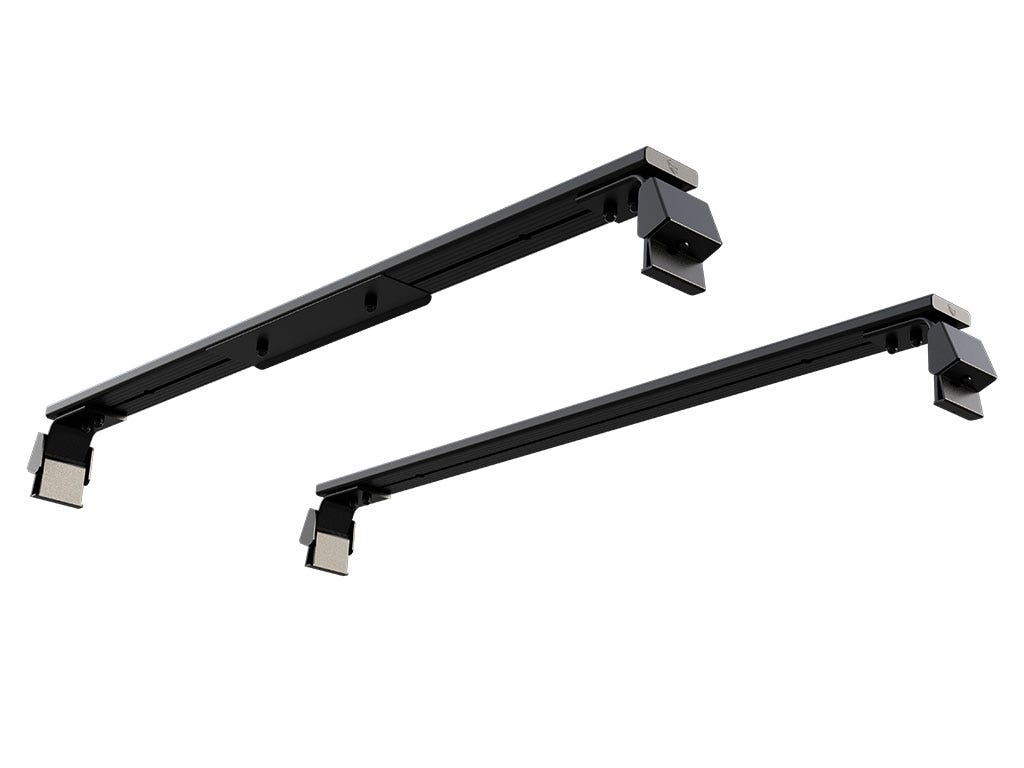

A set of Gutter Mounted Load Bars used to transport gear on the roof of your vehicle when theres no need for a full Front Runner Roof Rack. This low profile, smaller footprint solution includes 4 130mm Gutter Mount legs, 2 1345mm Load Bars, 1 10mm Roof Load Bar Wind Deflector and fitting instructions - all the components necessary to...

A set of Gutter Mounted Load Bars used to transport gear on the roof of your vehicle when theres no need for a full Front Runner Roof Rack. This low profile, smaller footprint solution includes 4 130mm Gutter Mount legs, 2 1345mm Load Bars, 1 10mm Roof Load Bar Wind Deflector and fitting instructions - all the components necessary to mount the Front Runner Load Bars to a vehicle with gutters.

  • You may not have the need for a full roof rack and find that you can get by using a set of Front Runner load bars.
  • Can be used to mount a Front Runner Roof Top Tent or other accessories where a low profile and smaller footprint is preferred.

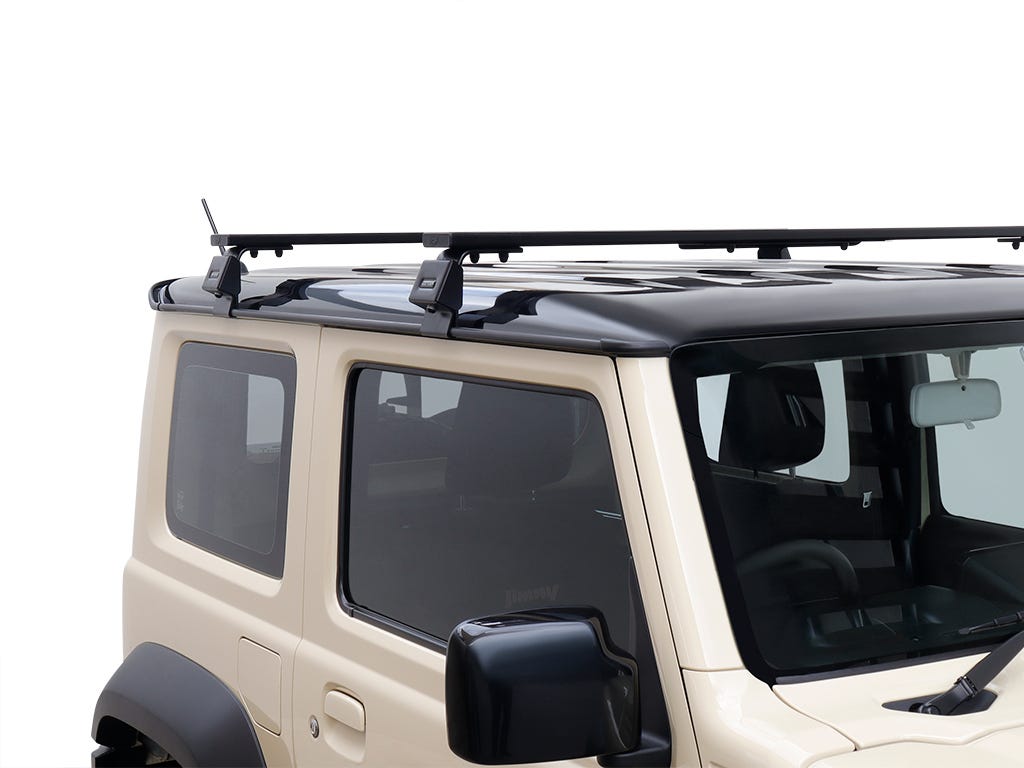

  • The Load Bars are mounted directly to the rain gutters using Gutter Mounted Legs.
  • Uses the same strong, corrosion free aluminum slats found in Front Runner Slimline II Racks.
  • The sliding nut t-slots allow for quick fitting and removal of accessories and equipment on both the top and bottom of the slats.
  • The Load Bars and Gutter Mount Legs can be used in the future as components to build a complete Front Runner Roof Rack.
  • Made from stainless steel and a durable, weather resistant black powder-coated aluminum.
  • Includes all hardware, components and the installation guide needed to fit Load Bars on a vehicle.

Note: Load carry limit and accessory compatibility is reduced with load bars, Please also check the maximum roof load capacity of your vehicle.

Features

KRSJ007 - Suzuki Jimny (2018-Current) Load Bar Kit

Consisting of:

  • 2x LASS102 - No 2 Leg 130mm (Pair)
  • 1x LASS121 - Universal Pinch Weld Strip / 6 Piece
  • 1x LBSK015 - Roof Load Bar Pair 1345mm(W)
  • 1x WDLB001 - Load Bar Wind Deflector / 10mm

Material used:

  • Black epoxy powder - coated T6 aluminium

Approximate Installed Weight: 9.72kg (21.43lbs)

  • The t-slots on the tops and bottoms of the slats accommodate standard 8mm bolts.
  • To determine the approximate height from your vehicles roof to the top of your Load Bar Kit, add the height of the Load Bar (22mm/ 7/8") to the height of the Foot, Grab-On Foot, or Strap-On Foot listed above.
  • If your Load Bar kit uses Legs, add the height of the Load Bar (22mm/ 7/8") to the height of the Legs listed above to determine the height of the rack from your vehicle's rain gutters.
  • If your Load Bar kit uses Foot Rails, add the height of the Load Bar (22mm/ 7/8") to the height of the Foot Rails listed above to determine the height of the rack from the crown (highest point) of the vehicles roof.

Shipping Dimensions:

  • Width: 205mm (8")
  • Length: 600mm (24")
  • Height: 75mm (3")

Shipping Weight:

  • Weight: 8.33kg (18lbs)
