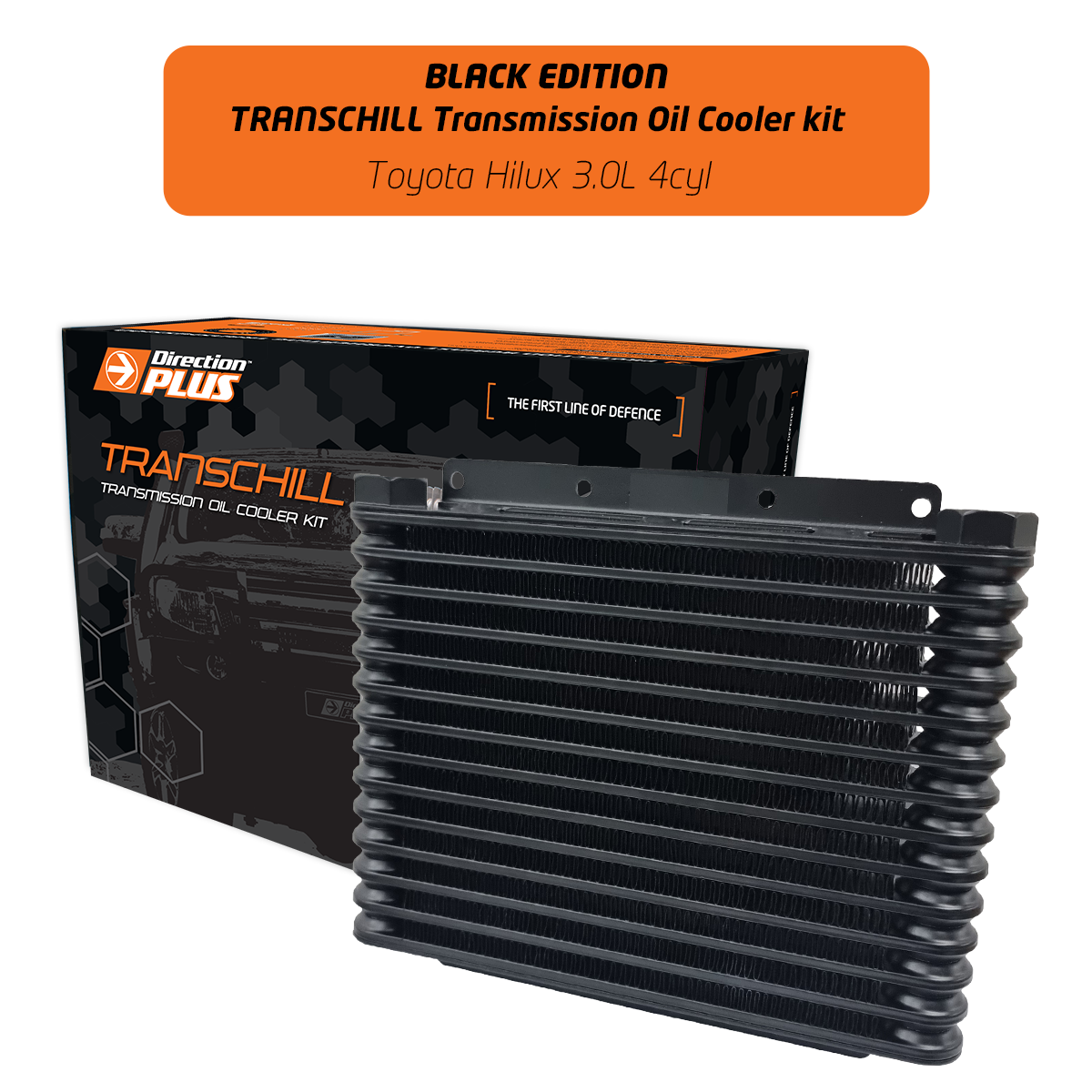

The TransChill Arctic Black Transmission cooler kit TCB612DPK fits Toyota Hilux N70 1KD-FTV (3.0L 4cyl) 2004-2015 & 1GR (4.0L 6cyl) models and is designed specifically to reduce excessive transmission heat caused by towing, carrying loads and driving in sand, snow, off-road or hot conditions.
The TransChill Arctic Black Transmission cooler is an effective & economical way to keep the transmission at its optimum operating temperature. High efficiency turbulators in each tube direct the fluid for superior heat transfer. The unique 32mm plate & fin design allows for extreme cooling whilst the compact design is perfect for our vehicle specific mounting.
- New & Improved model
- Designed and engineered in Australia
- 32mm, 14 row fin & plate design allows for extreme cooling
- Durable Black powder coat resists oxidisation
- 100% pressure tested at 150psi for quality assurance
- Internal tubulation for efficient heat transfer
- Up to 50% more efficient (*heat transfer rate – BTU/hr)
- Pre-drilled mounting plates for easy installation
- Inlet & Outlet size: M16 fittings
WHY DO YOU NEED ONE?
Due to the extreme heat generated in an automatic transmission, an auxiliary oil cooler is an economical and efficient way to help protect against costly transmission repairs.
Automatic Transmission Fluid (ATF) cools, lubricates and cleans internal transmission components. When transmission components exceed 93°C (200°F) the performance of ATF is seriously compromised.
Subsequently the life span of the ATF, seals and internal components of the transmission are significantly reduced. Higher internal temperatures also increase the wear rate of the friction and clutch plates.
HOW IT WORKS
The Direction-Plus™ Transmission Cooler Kit can reduce the temperature of the ATF by as much as 33°C and assist maintaining acceptable operating temperatures. A reduction of just 11°C that can double the life expectancy of the transmission, ATF and all internal components.

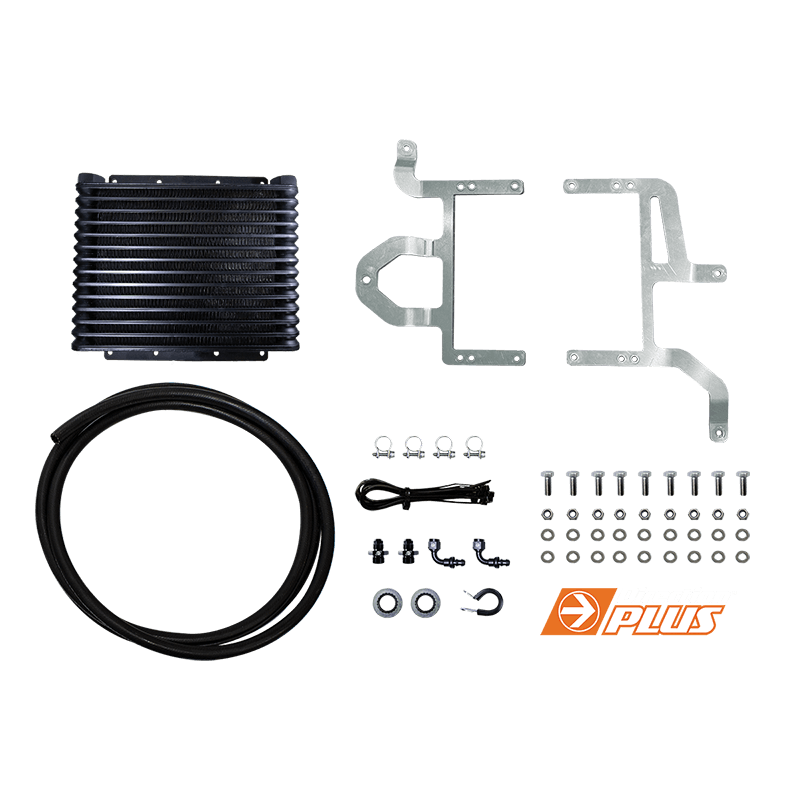

AUTOMATIC TRANSCHILL CONTENTS:
- Vehicle specific laser cut 4mm 5005-H34 aluminum mounting brackets
- All mounting hardware included
- ATF Hose (Meets or exceeds SAE J1019 requirements)
- 1x Davies Craig Black 32mm 14 row oil cooler
- 3yr Warranty *Conditions apply
