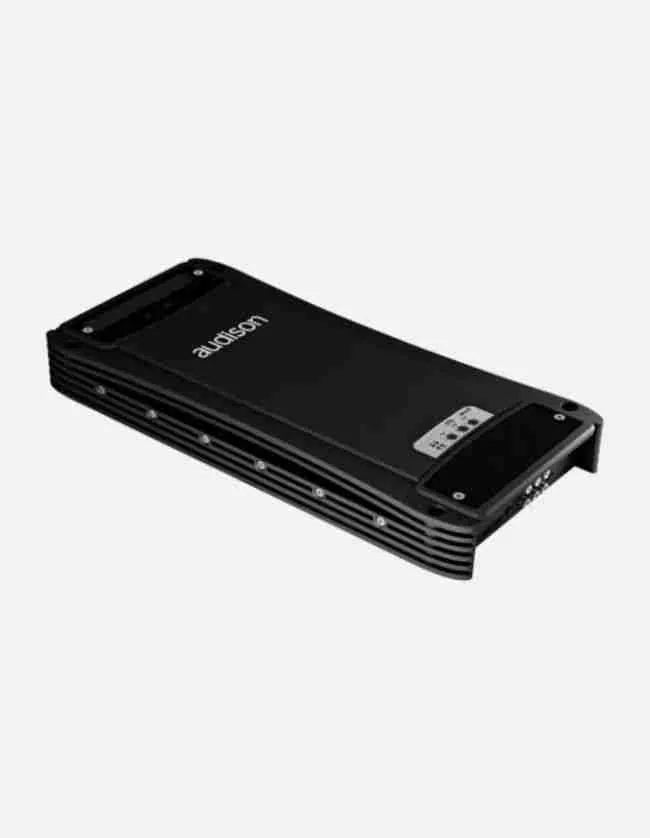

AUDISON Voce Line - 5 Channel 1650W D-Class Amplifier (Av 5.1K)

AUDISON Voce Line - 5 Channel 1650W D-Class Amplifier (Av 5.1K)

$2,204.99

AUDISON Voce Line - 5 Channel 1650W D-Class Amplifier (Av 5.1K)

$2,204.99
0 watching this item.

AUDISON Voce Line - 5 Channel 1650W D-Class Amplifier (Av 5.1K)

$2,204.99

SKU: AV5.1K

Available for enquiry only. For assistance, click Request Callback above or call us at 1300 856 888.
Product Details

5-Channel Amplifier

The Audison Voce AV 5.1K, 1650 W (RMS) max, five channels: with its hybrid design, it is the specialist amplifier for front + rear + subwoofer or multi-amplified front + subwoofer systems. Its high-quality AB Class output stage provides two channels with 250 W (RMS), combined with another pair of A class pure audio channels rated at 75 W (RMS), perfect for active two-way front speaker systems.

The D Class mono section provides 1000 W (RMS) for powerful subwoofer output.  AV 5.1k also allows you to replace the analog input board with the digital one (AV bit IN).

Features:

  • Hybrid design made up of two 75 W A Class channels, two 250 W AB Class channels, and one 1000 W D Class channel
  • Hi-Res audio certification thanks to 4 ÷ 60k Hz bandwidth

Specifications:

  • Amplifier Tech Data
    • Channels: 5
    • Class: AB-Class
    • Hi Level Input: Yes
    • Low Level Input: Yes
    • Digital Input: No
    • Power supply voltage / fuse:11 ÷ 15 VDC
    • Idling current: 3 A
    • Idling current when off: 0.02 mA
    • Consumption @ 14.4 VDC, 2Ω, Max Musical Power: 110 A
    • Remote OUT: 12 VDC – 50mA
    • Remote IN: 7 ÷ 15 VDC – 1mA
    • ART – Automatic Remote Turn on/off from OUTPUT BTL speakers (Selectable): Selectable
  • Amplifier Stage
    • Total Power RMS: 1650 W
    • Minimum load impedance: 4Ω / 2Ω / 2Ω
      Output Power (RMS) @14.4 VDC, 1% THD:
      5 Ch: 75 W x 2 (4Ω) + 140 W x 2 (4Ω) + 600 W x 1 (4Ω)
      5 Ch: 75 W x 2 (4Ω) + 140 W x 2 (4Ω) + 1000 W x 1 (2Ω)
      5 Ch: 75 W x 2 (4Ω) + 250 W x 2 (2Ω) + 1000 W x 1 (2Ω)
    • Adjustable Crossover: Yes
