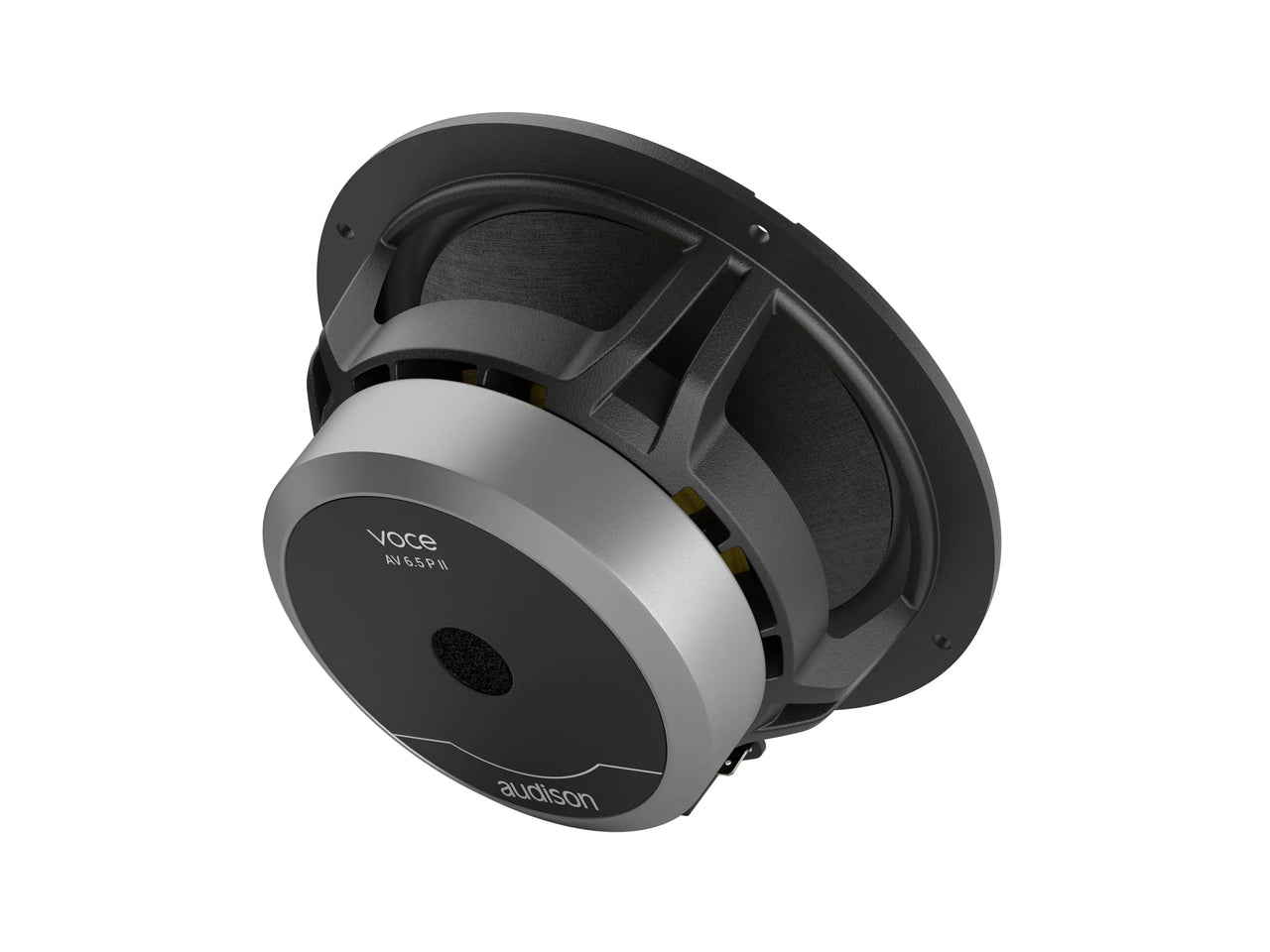

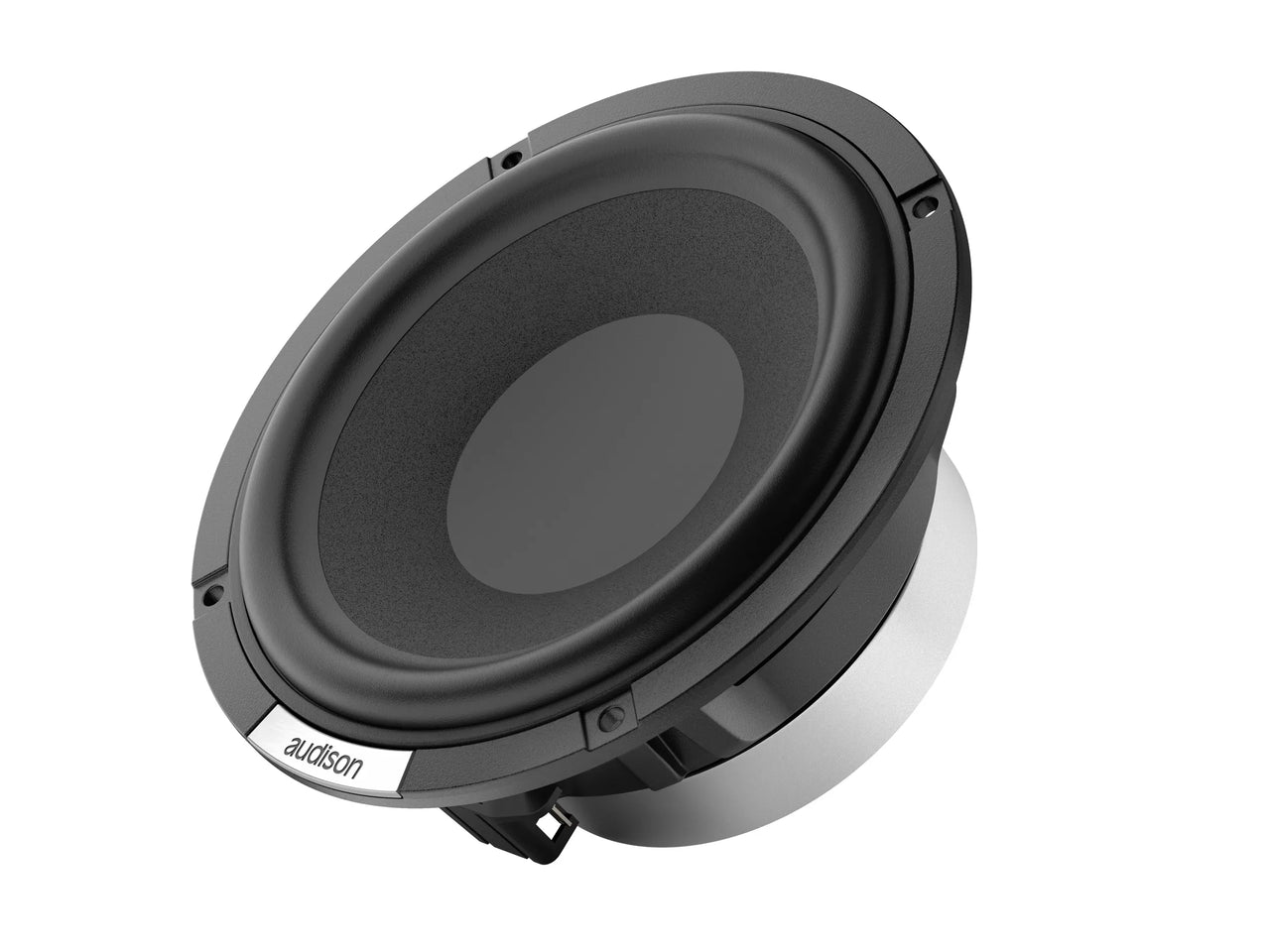

AUDISON Voce Ii - 6.5" Woofer Component Pair (Av 6.5 P Ii)

AUDISON Voce Ii - 6.5" Woofer Component Pair (Av 6.5 P Ii)

$699.99

AUDISON Voce Ii - 6.5" Woofer Component Pair (Av 6.5 P Ii)

$699.99

AUDISON Voce Ii - 6.5" Woofer Component Pair (Av 6.5 P Ii)

$699.99

SKU: AV6.5PII

$19 flat rate shipping. Delivered in 5 to 10 business days.
Please note: a $10 shipping surcharge applies to Western Australia orders.
Questions? Call 1300 856 888 to check availability or get expert help.
NEED PROFESSIONAL INSTALLATION?
  • Available at our Brookvale workshop
  • Expert 4WD technicians
Ask us for the fitting price and time
BOOK FITTING
SAFE CHECKOUT
Afterpay Google Pay Mastercard PayPal American Express Visa JCB Shop

The Audison VOCE II AV 6.5 P II woofer is engineered to deliver exceptional sound clarity and precision. It naturally rolls off at off-axis positions, eliminating the need for a low-pass filter in most door installations and reducing phase shifts common with other filters. It can employ a gentle 6 dB/Octave filter to enhance low and mid-bass tones, further enriching sound quality. The woofer’s OEM-style connector, compatible with FASTON terminals and designed for seamless integration, features a unique T-shaped pole piece with an aluminum ring to minimize distortion and enhance frequency response.

Technical Specs

Nominal diameter 165 mm (6.5 in)
Impedance 4 Ohm
Minimum Impedance 3.1 Ohm
Power Handling - Peak 300 W
Power Handling - Continuous 150 W
Sensitivity 91 dB
Frequency Response 45 - 7500 Hz
Voice Coil Ø 40 mm (1.6 in)
Chassis Material ALUMINIUM
Magnet Material HIGH DENSITY FLUX FERRITE
Magnet size D x d x h 100 x 45 x 18 (3.9 x 1.8 x 0.7) mm
Voice Coil Material CCAW
Former Material GLASS FIBER
Cone Material SEMI-PRESSED PAPER
Surround Material RUBBER
Xmax 4.95 mm (0.19 in)
Xmech 7.5 mm (0.3 in)
Voice Coil Winding Height 13 mm (0.51 in)
Gap Height 6 mm (0.24 in)


Electric-acoustic Specs

D 128.3 cm² (19.887 in²)
Re 2.9 Ohm
Fs 66 Hz
Le 0.3 mH
Vas 9.09 l (0.321 ft)
Mms 15.3 g (0.54 oz)
Cms 0.38 mm/N
BL 5.5 T•m
Qts 0.57
Qes 0.61
Qms 9.06


General

Weight 1.6 kg


Dimensions

AV 6.5 P II
Dimension A 165 mm (6.5 in)
Dimension B 140.8 mm (5.54 in)
Dimension C 74.2 mm (2.92 in)
Dimension D 69.8 mm (2.75 in)
Centre to centre distance 155 mm
Hole diameter 4.5 mm
