AUDISON Voce Ii - 6.5" 2-Way 4 Ohm Coaxial Speakers - Pair (Avx 6.5 Ii)

AUDISON Voce Ii - 6.5" 2-Way 4 Ohm Coaxial Speakers - Pair (Avx 6.5 Ii)

$799.99

AUDISON Voce Ii - 6.5" 2-Way 4 Ohm Coaxial Speakers - Pair (Avx 6.5 Ii)

$799.99
0 watching this item.

AUDISON Voce Ii - 6.5" 2-Way 4 Ohm Coaxial Speakers - Pair (Avx 6.5 Ii)

$799.99

SKU: AVX6.5II

Available for enquiry only. For assistance, click Request Callback above or call us at 1300 856 888.
Product Details

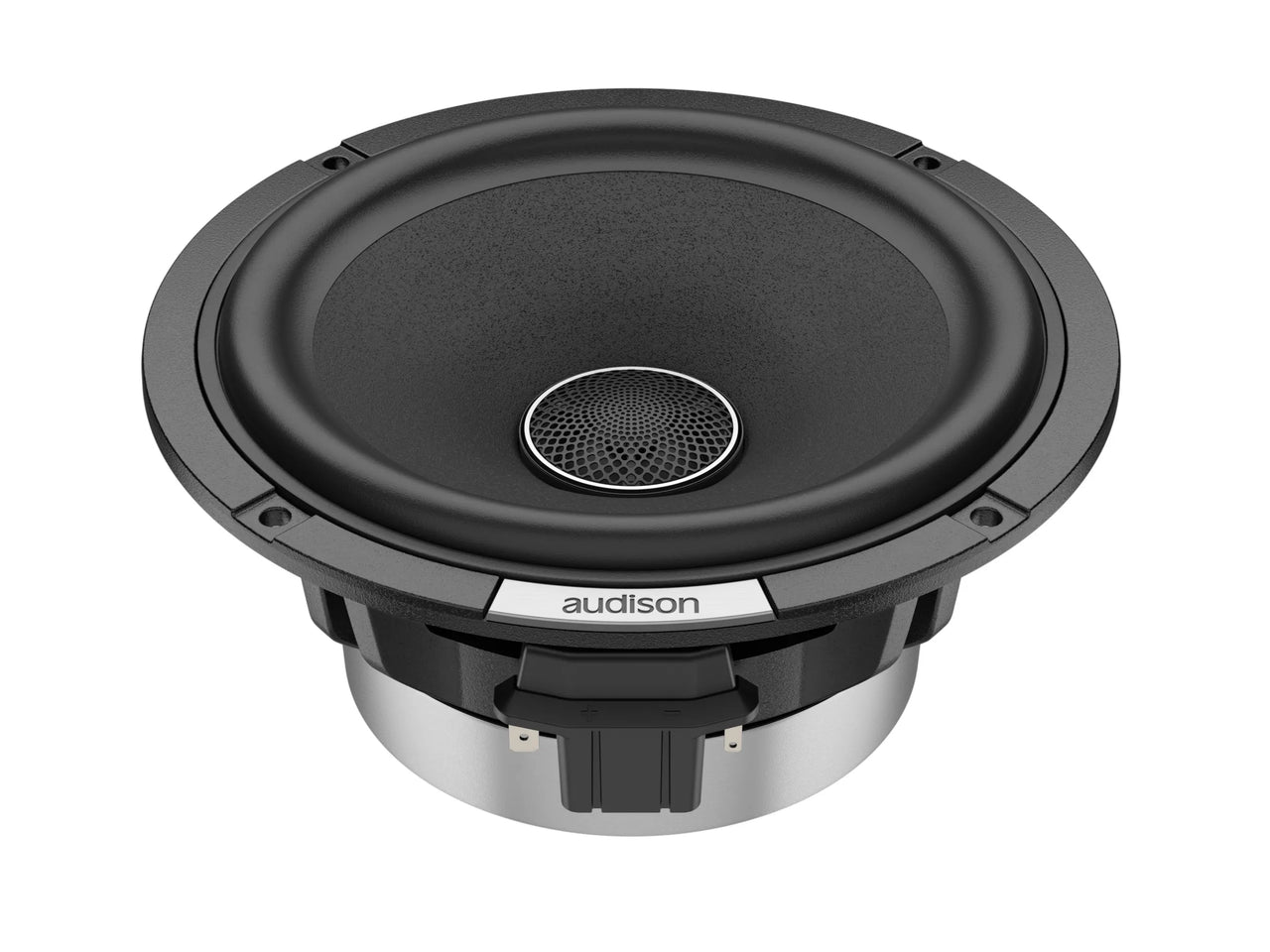

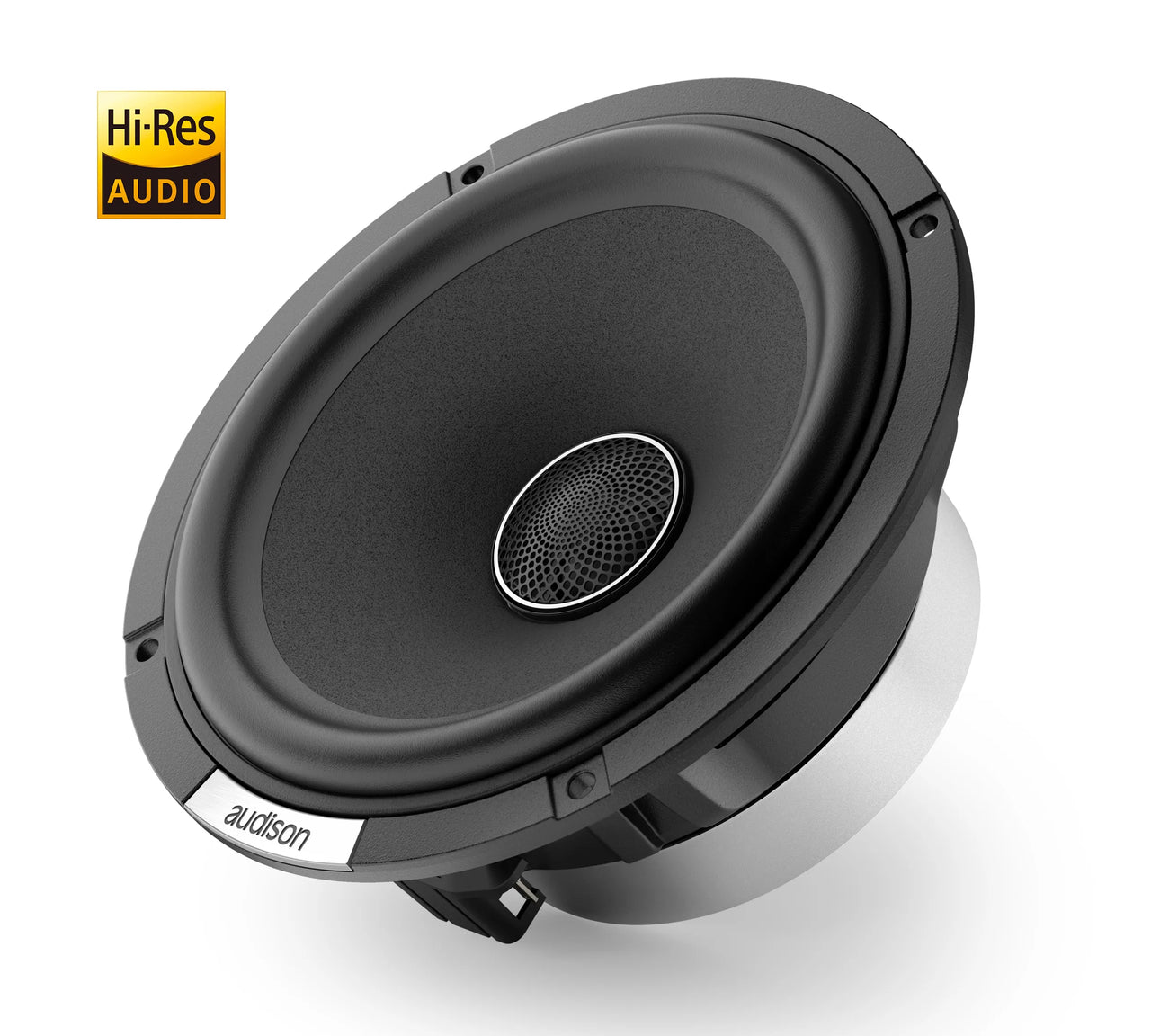

The Audison VOCE II AVX 6.5 coaxial speaker is a standout component in the VOCE II line, offering a unique combination of a 6.5-inch woofer and a 1-inch Hi-Res certified dome tweeter. Achieving Hi-Res Audio certification for a coaxial setup is particularly significant, reflecting the meticulous design of every element from the grille to the basket. Designed for bi-amplification, this speaker can be actively optimized with a DSP while maintaining the flexibility of separate passive crossovers for each driver. It also includes versatile OEM-style connectors, enhancing integration and performance in any vehicle setup.



Technical Specs LF

Woofer Size 165 mm (6.5 in)
Impedance 4 Ohm
Minimum Impedance 3.1 Ohm
Power Handling - Peak 240 W
Power Handling - Continuous 120 W
Sensitivity 91.5 dB
Frequency Response 45 ÷ 40000
Voice Coil Diameter 40 mm (1.6 in)
Chassis Material ALUMINIUM
Magnet Material HIGH DENSITY FLUX FERRITE
Magnet Size 100-45-18
Voice Coil Material CCAW
Former Material GLASS FIBER
Cone Material SEMI-PRESSED PAPER
Surround Material RUBBER
Flux Density 0.84
Xmax 4.95 mm (1.57 in)
Xmech 7.5 mm (0.3 in)
Gap Height 6 mm (0.24 in)
Voice Coil Winding Height 13 mm (0.51 in)

Technical Specs HF

Tweeter Size 25.4 mm (1 in)
Impedance 4 Ohm
Minimum Impedance 3.7 Ohm
Program Power 20 W
Aes Power Rating 10 W
Sensitivity 98 dB
Frequency Response 1500 - 40000
Voice Coil Diameter 25 mm (0.98 in)
Voice Coil Material CCAW
Former Material ALUMINIUM
Dome Material TETOLON FIBRE
Surround Material TETOLON FIBRE
Magnet Material NEODYMIUM

Electric-acoustic Specs

D 128.35 cm² (19.89 in²)
Re 2.9 Ohm
Fs 67 Hz
Mms 14.9 g (0.53 oz)
Cms 0.38
Bl 5.4
Qms 8
Qes 0.62
Qts 0.58
Vas 9.1 l (0.32 ft)
LE 0.3 mH
Reference Efficiency 90.5

General

Weight 1.6 kg

Dimensions

AVX 6.5 II
Dimension A 165 mm (6.5 in)
Dimension B 140 mm (5.51 in)
Dimension C 74.2 mm (2.92 in)
Dimension D 69.8 mm (2.75 in)

Frequency Response
