Product Details

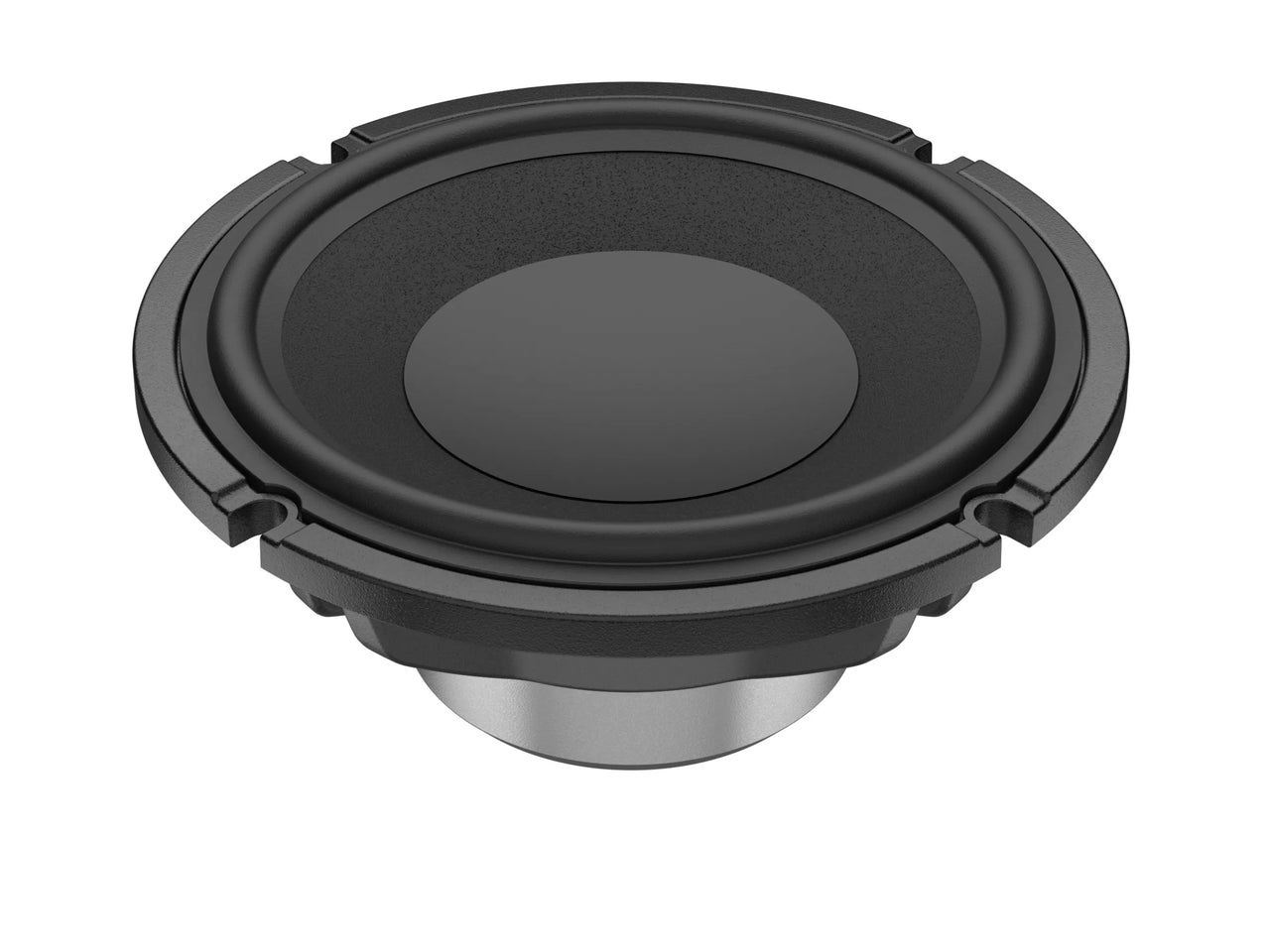

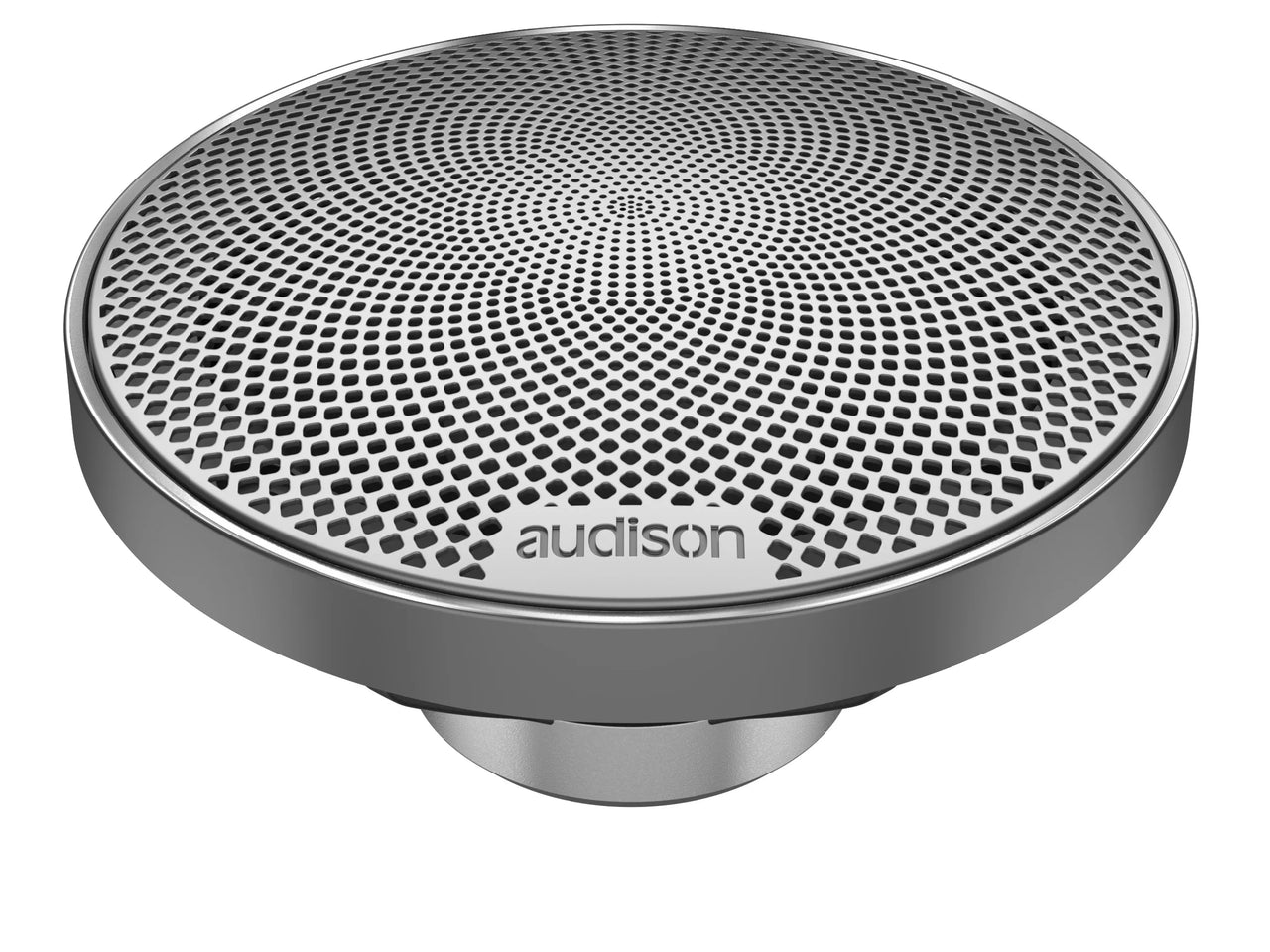

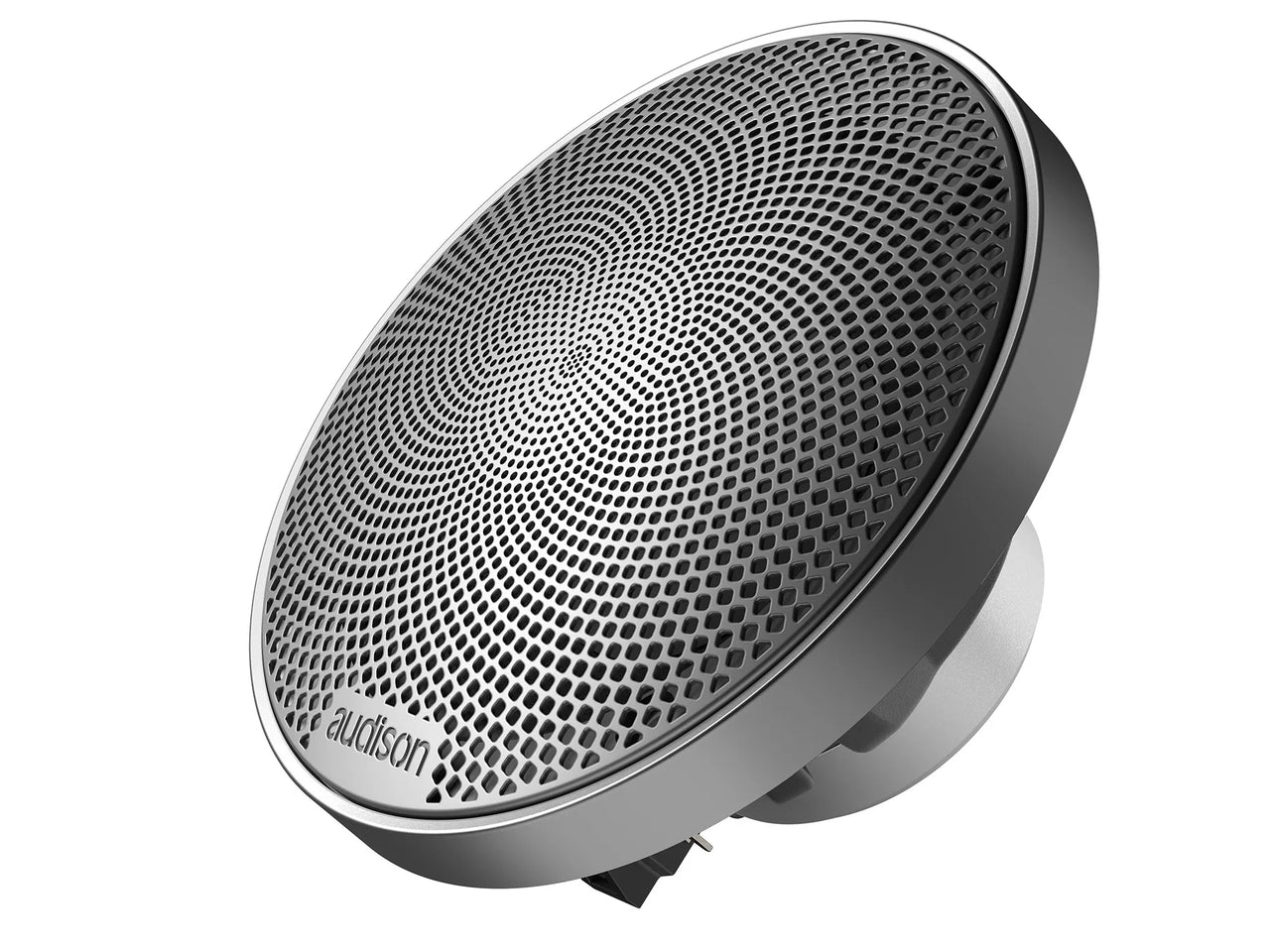

The Audison VOCE II AV 3.0 II mid-range speaker is meticulously crafted to deliver exceptional clarity and rich detail in the crucial mid-frequency range. Featuring a specialized cone made from pressed paper with cotton fibers, the AV 3.0 II offers an ideal balance of rigidity and responsiveness, enhancing sound reproduction for today’s car audio enthusiasts. This mid-range unit integrates seamlessly into any system with its compact design and is equipped with OEM-style connectors, ensuring straightforward and versatile installation options.



Technical Specs

Nominal diameter 70 mm (3 in)
Minimum Impedance 3.2 Ohm
Power Handling - Peak 100 W
Power Handling - Continuous 50 W
Sensitivity 90 dB
Frequency Response 160 ÷ 13000 Hz
Voice Coil Ø 26 mm
Chassis Material ALUMINIUM
Magnet Material NEODYMIUM
Magnet size D x d x h 24.9-6 mm
Voice Coil Material CCAW
Former Material GLASS FIBER
Cone Material SEMI-PRESSED PAPER
Surround Material RUBBER
Xmax 1.4 mm (0.06 in)
Xmech 3.2 mm (0.13 in)
Voice Coil Winding Height 5.3 mm (0.21 in)
Gap Height 4.5 mm (0.18 in)
Crossover name no

Electric-acoustic Specs

D 35.6 cm² (5.518 in²)
Re 2.9 Ohm
Fs 150 Hz
Le 0.1 mH
Vas 0.61 l (0.022 ft)
Mms 2.9 g (0.102 oz)
Cms 0.39 mm/N
BL 3.5 T•m
Qts 0.58
Qes 0.65
Qms 5.45
Flux Density 0.78

General

Weight 0.15 kg

Dimensions

AV 3.0 II
Dimension A 84 mm (3.31 in)
Dimension B 73 mm (2.87 in)
Dimension C 35 mm (1.38 in)
Dimension D 31.2 mm (1.23 in)
Hole diameter 3.5 mm

Frequency Response
