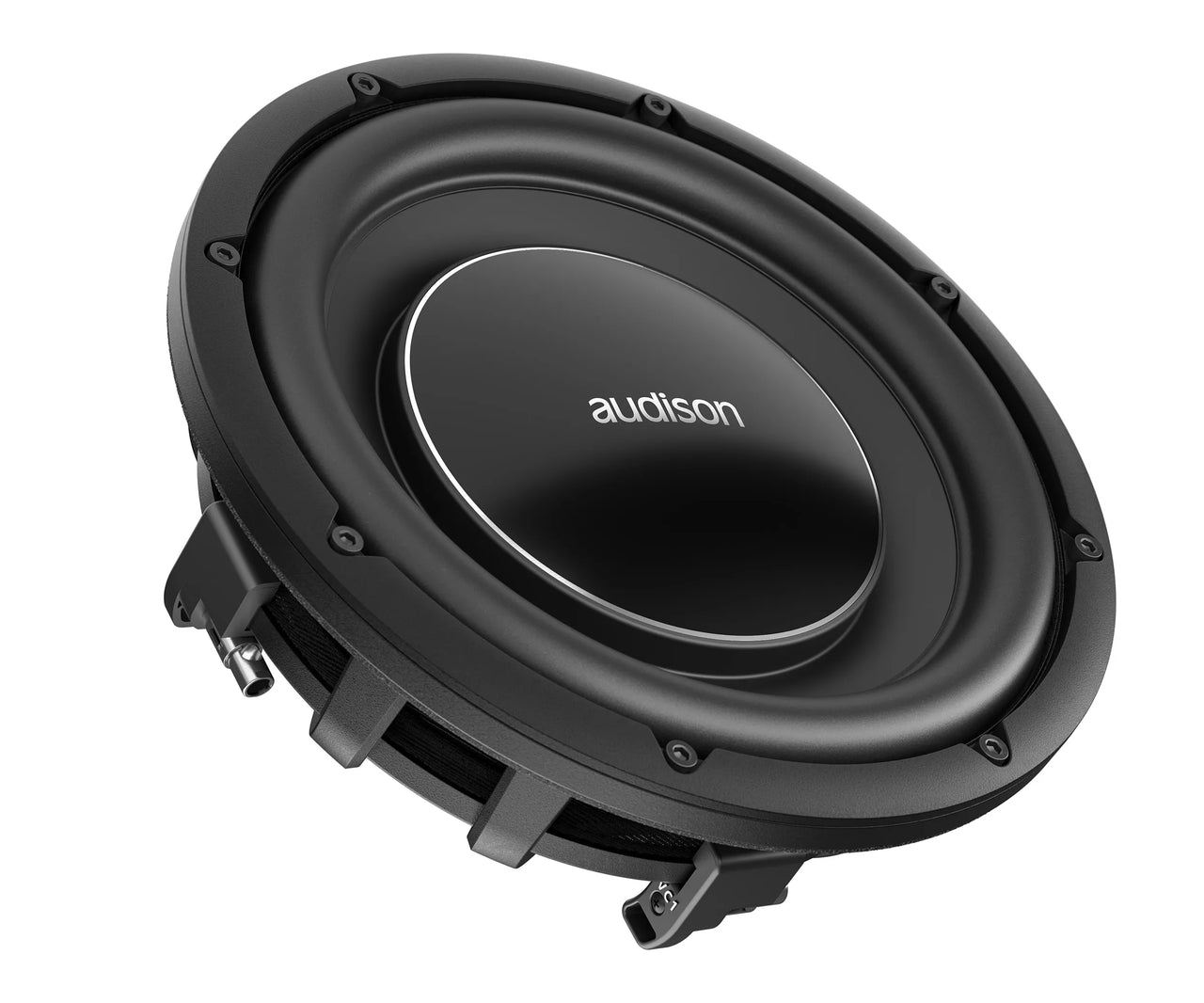

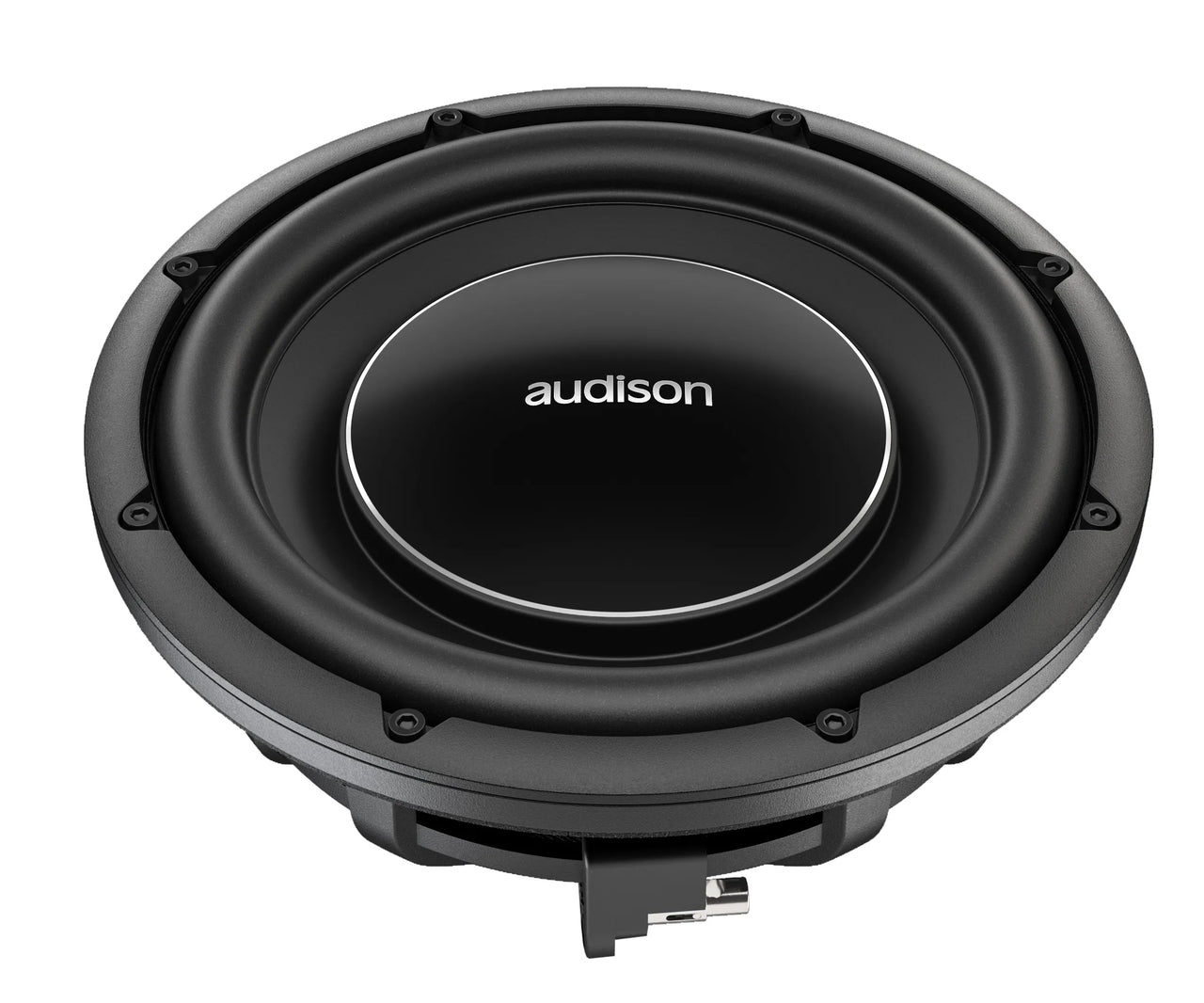

AUDISON Voce Ii - 10" 1100W 4 + 4 Ohm Subwoofer (Av 10 D4 Ii)

AUDISON Voce Ii - 10" 1100W 4 + 4 Ohm Subwoofer (Av 10 D4 Ii)

$849.99

AUDISON Voce Ii - 10" 1100W 4 + 4 Ohm Subwoofer (Av 10 D4 Ii)

$849.99
0 watching this item.

AUDISON Voce Ii - 10" 1100W 4 + 4 Ohm Subwoofer (Av 10 D4 Ii)

$849.99

SKU: AV10D4II

Available for enquiry only. For assistance, click Request Callback above or call us at 1300 856 888.
Product Details

Compact in size, uncompromising in performance. The AV 10 D4 II is the 10-inch subwoofer of the VOCE II line, designed to deliver fast, impactful and finely controlled bass within reduced enclosure volumes.

Its dual 4-ohm voice coil configuration offers maximum installation versatility, while the 1.5-inch CCAW voice coil and FEM-optimized magnetic structure ensure precise response and excellent thermal stability, even during demanding playback.

Despite its compact footprint, the AV 10 D4 II features the same advanced technologies as its 12-inch counterpart: the Radial Reinforcement Framework for superior mechanical strength, an extended-profile dust cap for enhanced damping, and the proprietary Airflow Venting Cooling system for continuous heat dissipation.

Optimized to perform at its best in compact sealed enclosures (12–14 L / 0.4–0.5 ft³), it offers deep, controlled bass response even in space-limited setups, making it an ideal choice for refined systems where detail and dynamics must coexist in perfect balance.



Every element reflects the VOCE II philosophy: precision engineering, signature low-frequency response, and unmistakable Italian design.



Technical Specs

Nominal diameter 250 mm (10 in)
Impedance 4+4 Ohm
Power Handling - Peak 1100 W
Power Handling - Continuous 550 W
Sensitivity 83.5 dB
Frequency Response 25 - 400 Hz
Voice Coil Ø 38.6 mm (1.5 in)
Chassis Material ALUMINIUM
Magnet Material HIGH DENSITY FLUX FERRITE
Magnet size D x d x h 134*55*36 mm (5,28*2,17*1.41 in)
Voice Coil Material CCAW
Former Material GLASS FIBER
Cone Material POLYPROPYLENE
Surround Material
Xmax 16.8 mm (0.66 in)
Xmech 20 mm (0.79 in)
Voice Coil Winding Height 37 mm (1.46 in)
Gap Height 7 mm (0.28 in)

Electric-acoustic Specs

D 368 cm² (57.04 in²)
Re 1.82 Ohm
Fs 36 Hz
Le 1.8 mH
Vas 14.8 l (0.523 ft)
Mms 250 g (8.819 oz)
Cms 0.08 mm/N
BL 11.2 T•m
Qts 0.72
Qes 0.823
Qms 5.62
Reference Efficiency 83.5

Dimensions

AV 10 D4 II
Dimension A 274.5 mm (10.81 in)
Dimension B 232 mm (9.13 in)
Dimension C 102.5 mm (4.04 in)
Dimension D 82.6 mm (3.25 in)
Dimension E 245 mm
Dimension F 40
Dimension C1 103 mm
Dimension C2 128.5 mm
Dimension D1 14.5 mm
