AUDISON Voce Ii - 10" 1100W 4 + 4 Ohm Passive Loaded Subwoofer Box (Avbx 10 D4 Ii)

AUDISON Voce Ii - 10" 1100W 4 + 4 Ohm Passive Loaded Subwoofer Box (Avbx 10 D4 Ii)

$999.99

AUDISON Voce Ii - 10" 1100W 4 + 4 Ohm Passive Loaded Subwoofer Box (Avbx 10 D4 Ii)

$999.99
0 watching this item.

AUDISON Voce Ii - 10" 1100W 4 + 4 Ohm Passive Loaded Subwoofer Box (Avbx 10 D4 Ii)

$999.99

SKU: AVBX10D4

Available for enquiry only. For assistance, click Request Callback above or call us at 1300 856 888.
Product Details

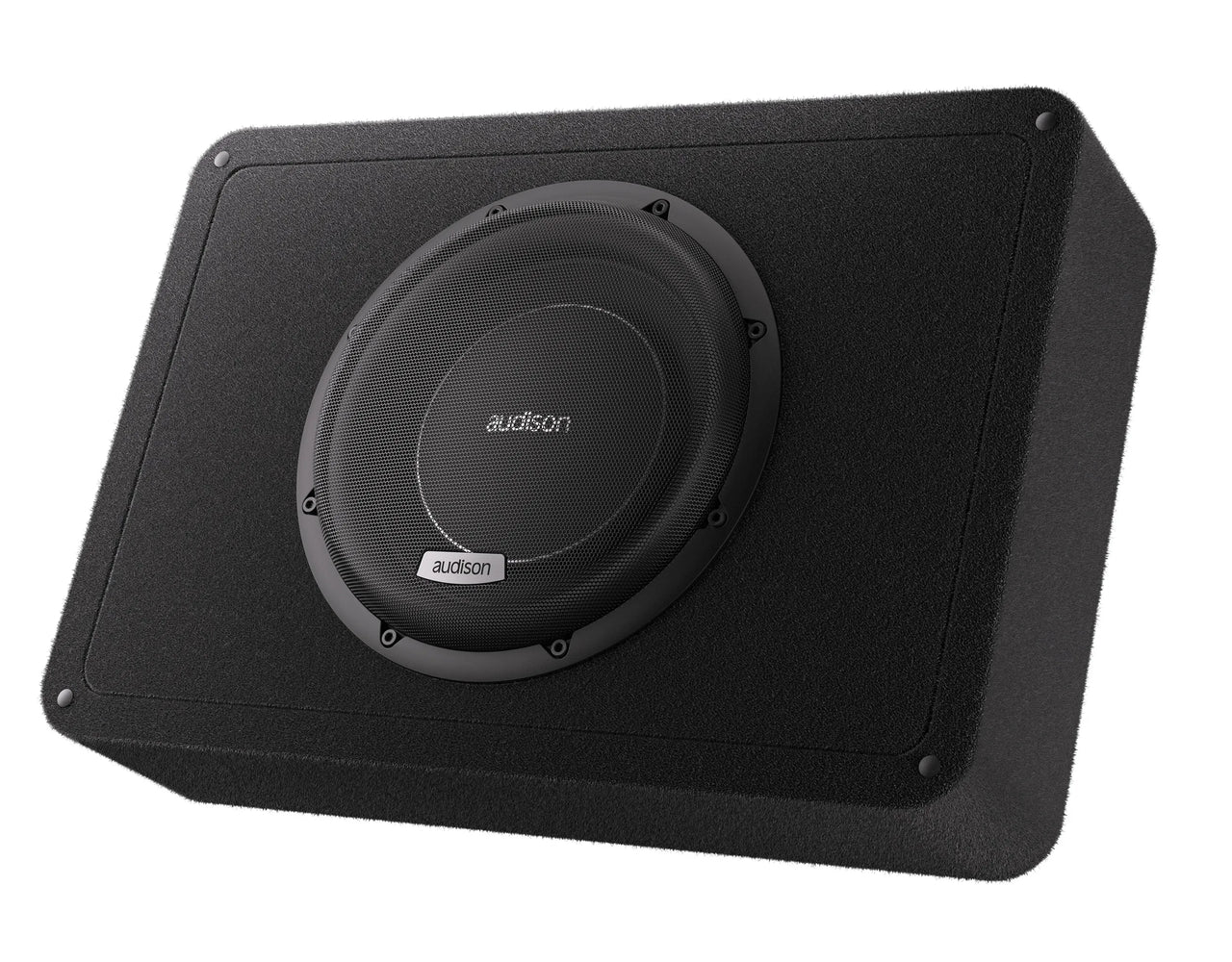

The AVBX 10 D4 II is the compact subwoofer enclosure of the VOCE II line, designed to bring high-end low-frequency performance into tight installation spaces—without compromise.

Its ultra-shallow sealed architecture is engineered to deliver tight, accurate and dynamic bass while preserving valuable in-vehicle space. Built from high-density 15 mm MDF with internal bracing, the enclosure ensures maximum rigidity and effective damping, eliminating unwanted resonances and coloration.

The internal volume and damping are acoustically matched to the AV 10 D4 II subwoofer, which features a dual 4-ohm voice coil for greater wiring flexibility in high-power system configurations. This pairing guarantees seamless integration and controlled low-end response, even in space-limited applications.

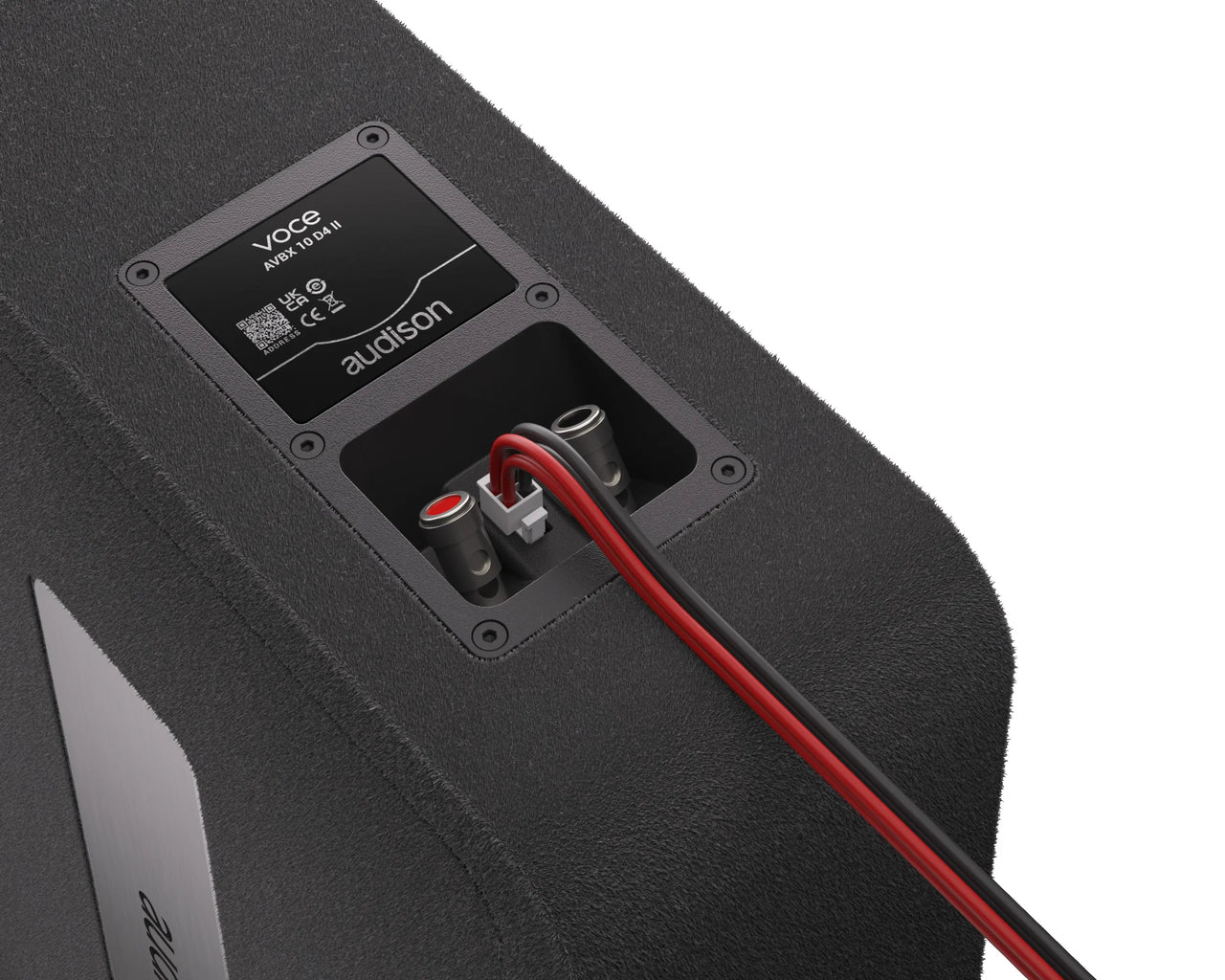

Thanks to the 2S² dual-orientation design, the enclosure can be installed in Down-Firing or Up-Firing configuration, adapting to available space and acoustic goals. The Sub Smart Plug terminal combines Plug-&-Play convenience with traditional push connectors, ensuring fast, secure and high-current-ready wiring.

The enclosure’s refined styling reflects the visual identity of the VOCE II speaker line, combining performance and elegance in a single, integrated solution.



Compact, precise and ready to perform, the AVBX 10 D4 II is the ideal solution for adding impactful, controlled bass to OEM or custom installations—where space is limited but expectations are high.

Technical Specs

Nominal diameter 250 mm
Impedance 4+4 Ohm
Power Handling - Peak 1100 W
Power Handling - Continuous 550 W
Frequency Response 25 - 400 Hz
Chassis Material ALUMINIUM
Magnet Material HIGH DENSITY FLUX FERRITE
Voice Coil Material CCAW
Former Material GLASS FIBER
Cone Material POLYPROPYLENE WITH MICA INJECTION
Surround Material RUBBER
Xmax 16.8 mm
Xmech 20 mm
Voice Coil Winding Height 37 mm
Gap Height 7 mm
Driver Displacement Volume 0.6 l

Electric-acoustic Specs

D 368 cm²
Re 1.82 Ohm
Fs 36 Hz
Le 1.8 mH
Vas 14.8 l
Mms 250 g
Cms 0.07 mm/N
BL 11.2 T•m
Qts 0.7
Qms 5.62
Reference Efficiency 83.5

Dimensions

AVBX 10 D4 II
Dimension A 531 mm
Dimension B 361 mm
Dimension C 160 mm
Dimension D 32.9 mm
Dimension C1 118 mm
