AUDISON Thesis Line - 3.0" Midrange Speakers - Pair (Th 3.0 Ii Voce)

AUDISON Thesis Line - 3.0" Midrange Speakers - Pair (Th 3.0 Ii Voce)

$1,784.99

AUDISON Thesis Line - 3.0" Midrange Speakers - Pair (Th 3.0 Ii Voce)

$1,784.99
0 watching this item.

AUDISON Thesis Line - 3.0" Midrange Speakers - Pair (Th 3.0 Ii Voce)

$1,784.99

SKU: TH3.0II

Available for enquiry only. For assistance, click Request Callback above or call us at 1300 856 888.
Product Details

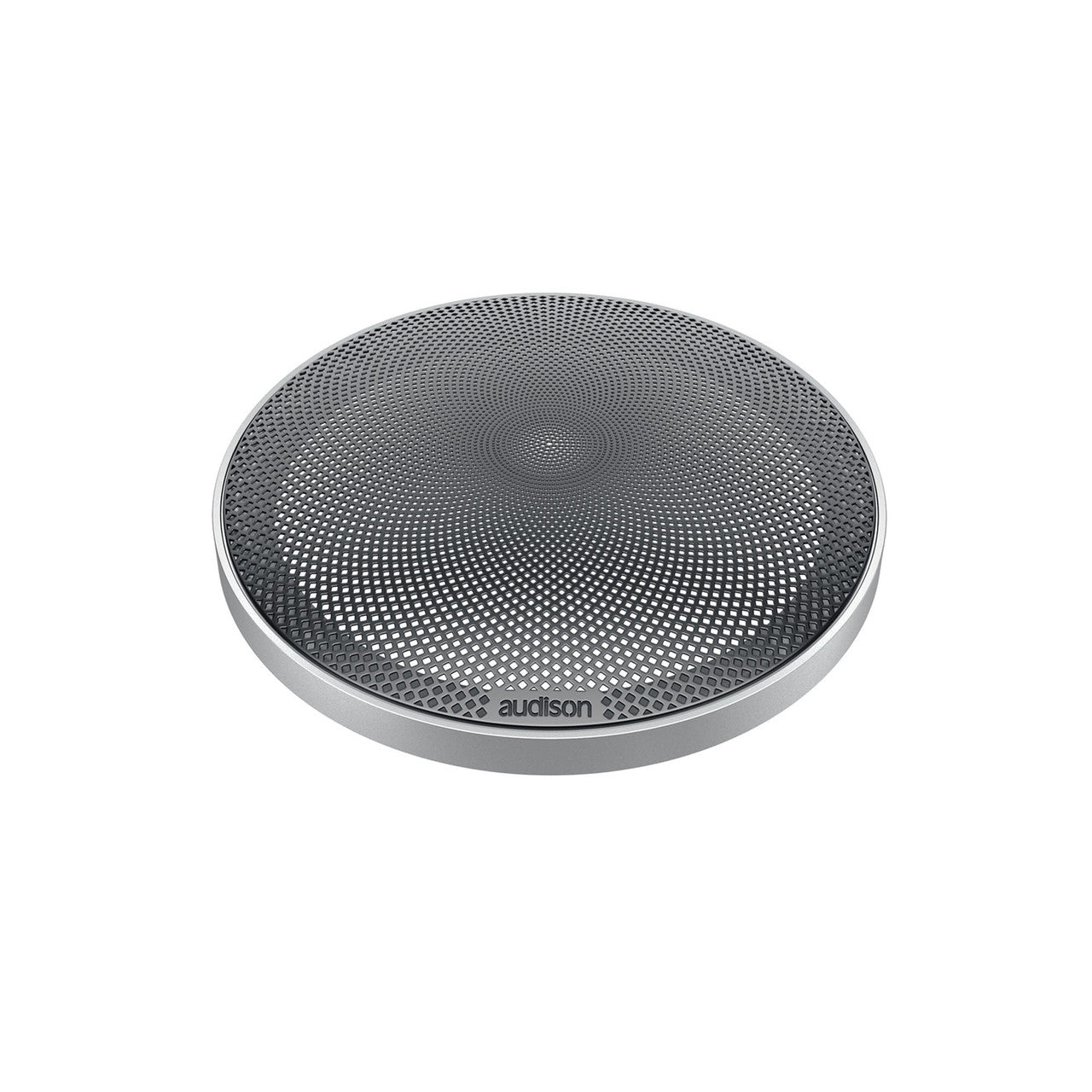

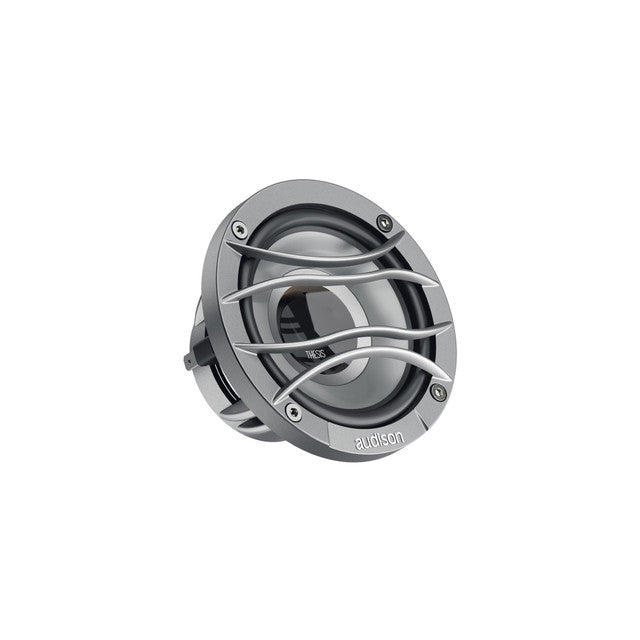

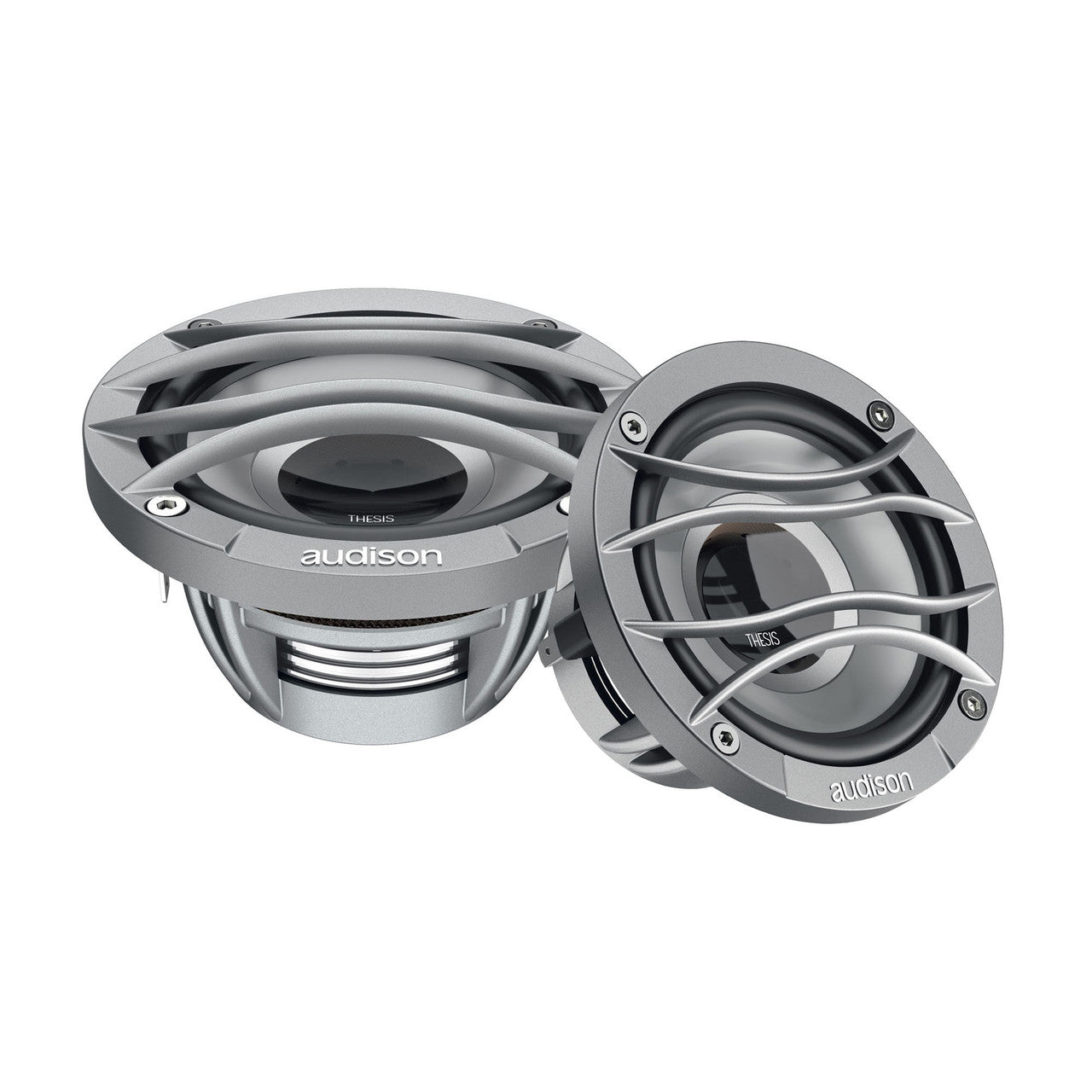

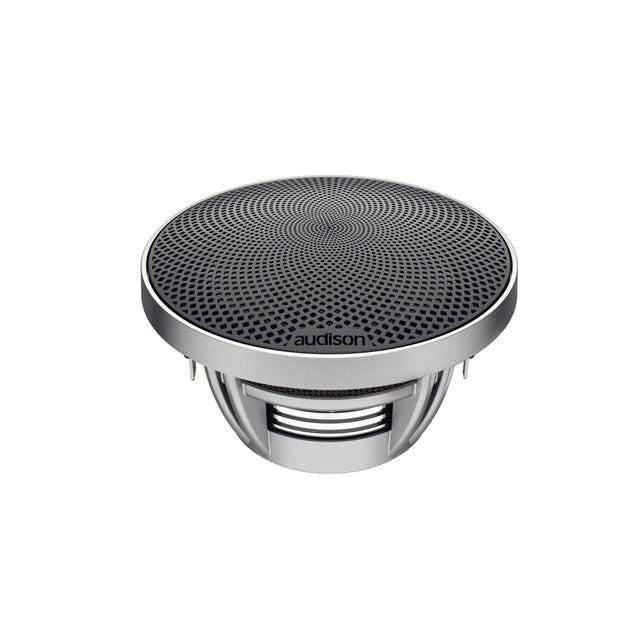

TH 3.0 II voce - SET MIDRANGE 70mm + GRILLES.

The human auditory system processes the range of medium frequencies with maximum sensitivity and selectivity because it makes the voice intelligible from the rest of the audio spectrum. The R&D team started from this simple principle to design from scratch the TH 3.0 II VOCE, dedicated to this fundamental range of frequencies, with the simple as well as ambitious target of extreme linearity, in order not to add or hide anything of the signal reproduced, enhancing in this way every nuance. The extremely powerful custom N38 “H-grade” Neodymium magnet ensures unmatched control of the mobile group and the aluminium ring nullifies the intermodulation distortion otherwise generated at peak excursions.

Features -
• 30,5 mm mobile voice coil in CCAR (Copper Clad Aluminum Ribbon) wound with flat wire to maximize the force factor and heat dissipation.
• Aluminium demodulation ring which linearizes the high excursion intermodulation distortion, canceling any sound colorations.
• N38 "H-grade neodymium magnet included in the voice coil to obtain superior control of the mobile crew and superior thermal stability.
• Motor geometry designed using finite element simulation software to optimize efficiency by concentrating the magnetic field in the gap.
• Membrane made of TPX®, a transparent material that reduces frequency response irregularities and provides a view of the inside of the speaker.

Technical Specs

Nominal diameter 70 mm (3 in)
Impedance 4 Ohm
Power Handling - Peak 110 W
Power Handling - Continuous 55 W
Sensitivity 85.6 dB
Frequency Response 110 ÷ 5700 Hz
Voice Coil Ø 30.5 mm
Magnet Material SPECIAL NEODYMIUM N38H
Magnet size D x d x h 29 x 6 x 8 mm
Voice Coil Material CCAP - COPPER CLAD ALUMINIUM RIBBON
Xmax 3.3 mm (0.13 in)

Electric-acoustic Specs

Re 3.4 Ohm
Fs 100 Hz
Le 0.18 mH
Vas 1.01 l (0.036 ft)
Mms 4.3 g (0.152 oz)
Cms 0.59 mm/N
BL 4.2 T•m
Qts 0.48
Qes 0,52
Qms 5.5

General

Weight 0.25 kg

Dimensions

TH 3.0 II voce
Dimension A 84 mm (3.31 in)
Dimension B 73.5 mm (2.89 in)
Dimension C 45 mm (1.77 in)
Dimension D 37 mm (1.46 in)
Dimension E 89 mm
Dimension F 18

Frequency Response
