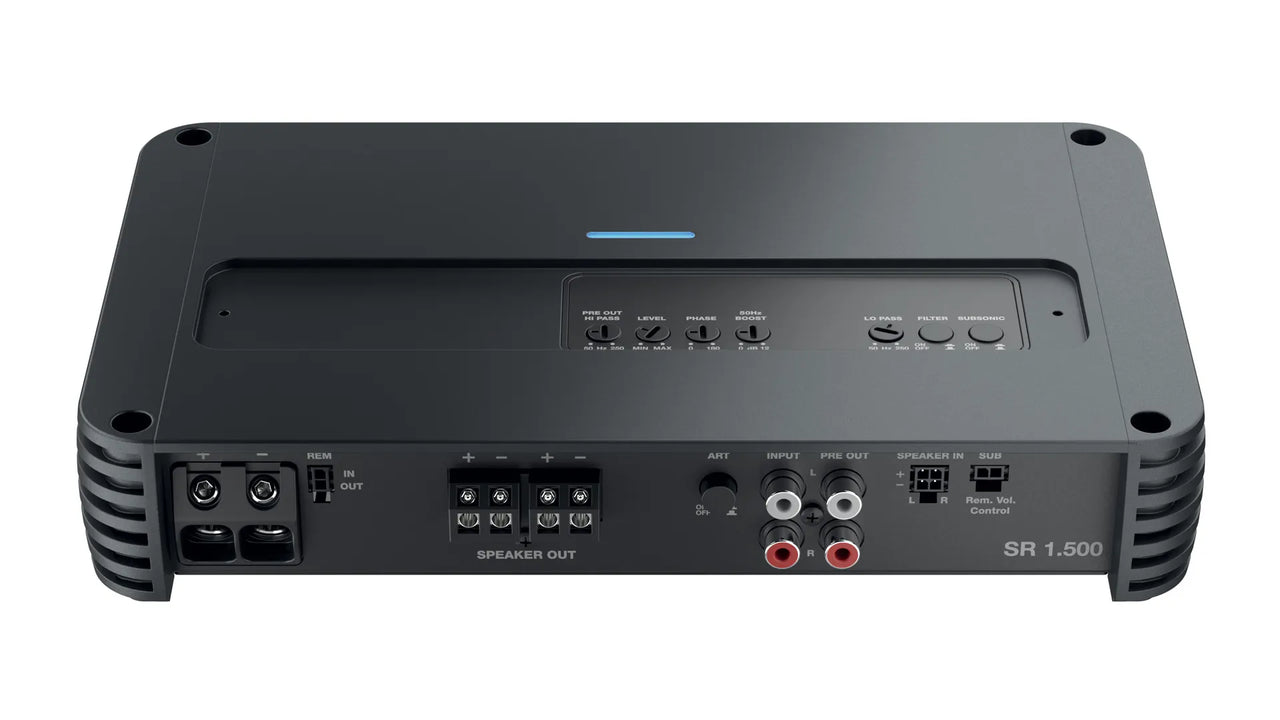

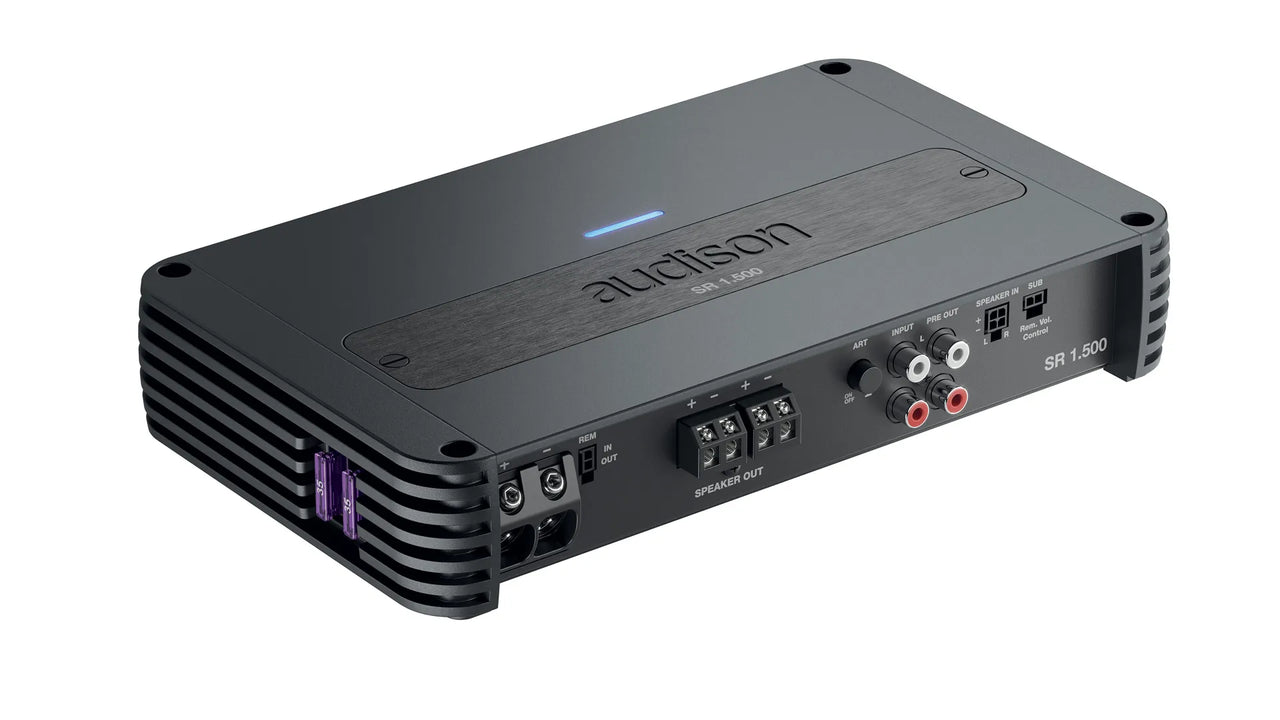

AUDISON Sr Line - 1 Channel 1000W D-Class Amplifier (Sr 1.500)

AUDISON Sr Line - 1 Channel 1000W D-Class Amplifier (Sr 1.500)

$804.99

AUDISON Sr Line - 1 Channel 1000W D-Class Amplifier (Sr 1.500)

$804.99
0 watching this item.

AUDISON Sr Line - 1 Channel 1000W D-Class Amplifier (Sr 1.500)

$804.99

SKU: SR1500

Available for enquiry only. For assistance, click Request Callback above or call us at 1300 856 888.
Product Details

The Audison SR 1.500 is a 1-ohm stable mono amplifier with a built-in crossover featuring compact dimensions and an impressive RMS power of 1000 W.

Amplifier Tech Data

Channels 1
Class D-Class
Hi Level Input Yes
Low Level Input Yes
Digital Input No
Power supply voltage / fuse 11 ÷ 15 VDC / 2 x 35A
Operating power supply voltage 6.5 ÷17 VDC
Idling current 0.8 A
Idling current when off 0.02 mA
Consumption @ 14.4 VDC, 1Ω, Max Musical Power 40 A
Remote OUT 6.5 ÷ 15 VDC (150 mA)
Remote IN 6.5 ÷ 15 VDC (1 mA)
ART - Automatic Remote Turn on/off from OUTPUT BTL speakers (Selectable) 1.5 ÷ 7 VDC

Amplifier Stage

Distortion - THD @ 100 Hz, 4Ω, 70% Rated Power 0.1 %
Bandwidth A (-3 dB, 2 VRMS, 4 Ω): 10Hz ÷ 500 Hz
S/N ratio A (A weighted @ 1 V): 100 dBA
Damping factor A > 300
Input sensitivity Pre-In 0.2 ÷ 5 VRMS
Input sensitivity Speaker-In 0.8 ÷ 20 VRMS
Total Power RMS 1000 W
Minimum load impedance
Output Power (RMS) @14.4 VDC, 1% THD 1Ch 500 W x 1 (4Ω)

1Ch 800 W x 1 (2Ω)

1Ch 1000 W x 1 (1Ω)
Adjustable Crossover No

CEA Specifications

Output power @ 4Ω, 1% THD+N, 14.4 V 500 W x 1 Ch
SN ratio (ref. 1W output) 75 dBA

Inputs

Input Type Pre-In / Speaker-In
Filters Outputs PRE OUT Hi-Pass filtered 50 ÷ 250Hz @ 12 dB/Oct.
Filter Pass A Filters: Full LP 50 ÷ 250Hz @ 24 dB/Oct.
Inputs/Outputs Phase (0 ÷ 180) deg
Inputs/Outputs Bass Boost (0 ÷12) dB
Inputs/Outputs Subsonic 25 Hz @ 24 dB/Oct.
Remote Sub Volume (-20 ÷ 6) dB

Other

Weight 2.23 kg
