Product Details

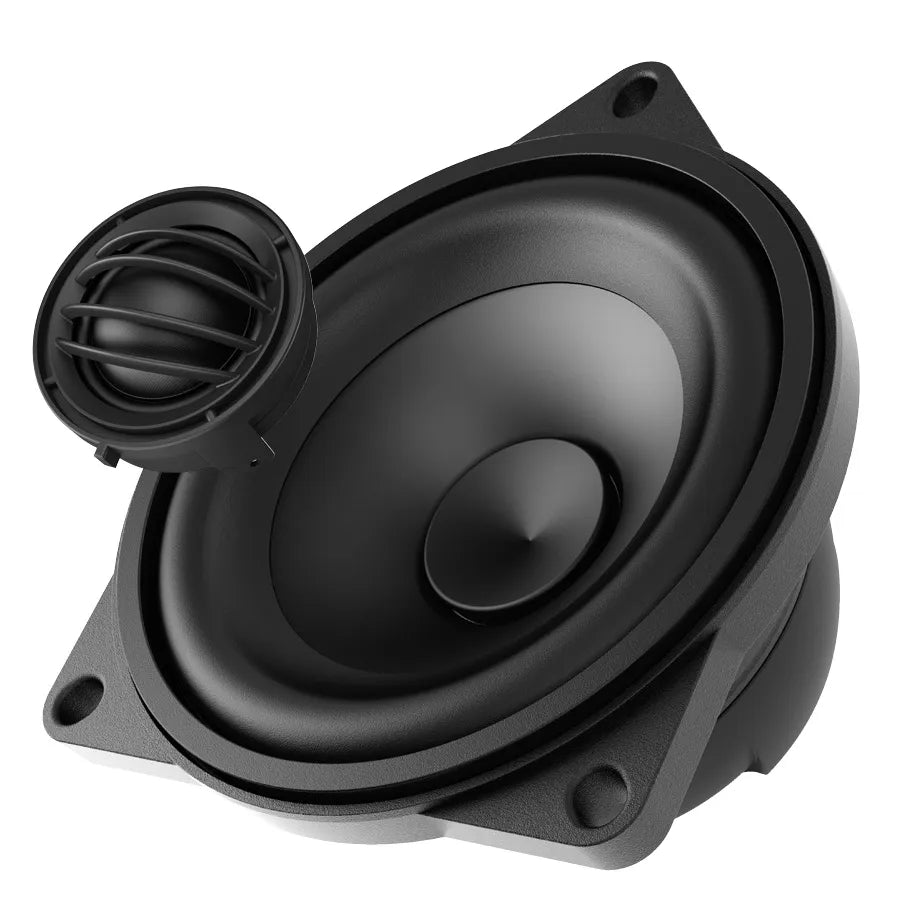

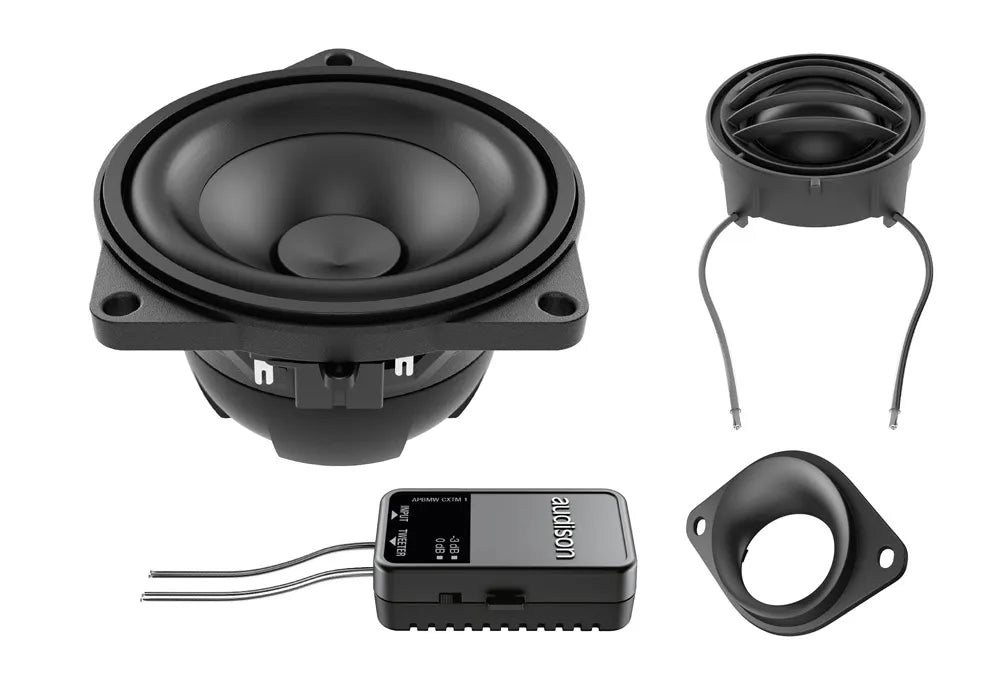

The two-way APBMW K4M kit creates a three-dimensional sound stage and give the musical message the essential timbre accuracy. The 100 mm (4 in.) midrange is provided with a water-repellent pressed-paper cone, a material providing natural sound. It features a low resonance frequency that allows hi-pass cut-off in the 150-200 Hz range for an excellent mid-low reproduction. The 25 mm coil and Tetolon dome tweeter features a great extension on both medium and high frequencies and is optimized for off-axis output, for an extended sound stage in the three dimensions, that amplifies the perception of reality in the car cabin.

Technical Specs LF

Woofer Size 100 mm (4 in)
Impedance 4 Ohm
Power Handling - Peak 100 W
Power Handling - Continuous 50 W
Voice Coil Diameter 25 mm (0.98 in)
Magnet Size 50 x 29 x 3
Crossover Type 89 Crossover Type Hi-Pass: 6 KHz @ 6dB/Oct.
Crossover Level Adjustment -3; 0

Technical Specs HF

Tweeter Size 29 mm (1.14 in)
Voice Coil Diameter 25 mm (0.98 in)

Electric-acoustic Specs LF

Re 3.3 Ohm
Fs 90 Hz
Mms 6.4 g
Cms 0.5
BL 4.8
Qms 8.9
Qts 0.48
Vas 1.8 l
Le 0.32 mH
Spl 88 dB
Xmax 0.5 mm (0.02 in)

Kit Tech Data

Cone Diameter 80 mm

General

Weight Woofer 0.426 kg
Weight Tweeter 0.06 kg
