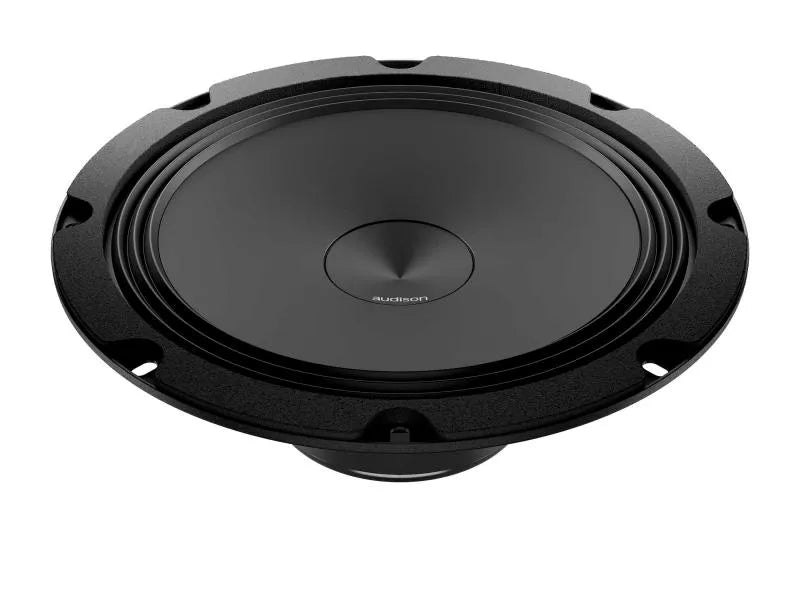

AUDISON Prima Line - 8"  4 Ohm Woofer Component - Pair (Ap 8)

AUDISON Prima Line - 8" 4 Ohm Woofer Component - Pair (Ap 8)

$325.00

AUDISON Prima Line - 8" 4 Ohm Woofer Component - Pair (Ap 8)

$325.00
0 watching this item.

AUDISON Prima Line - 8" 4 Ohm Woofer Component - Pair (Ap 8)

$325.00

SKU: ELAP8

Available for enquiry only. For assistance, click Request Callback above or call us at 1300 856 888.
Product Details
For the vehicles equipped with an 8 inch woofer as standard OEM component, the Audison Technical Department developed the AP 8 which, also thanks to the wide emission surface, provides higher energy in the low frequency range, ensuring excellent performance when the use of a subwoofer is prohibited due to space limitations.

Technical Specs

Nominal diameter 200 mm (8 in)
Impedance 4 Ohm
Power Handling - Peak 300 W
Power Handling - Continuous 100 W
Sensitivity 93.5 dB
Frequency Response 35 ÷ 3k Hz
Voice Coil Ø 25 mm
Magnet Material HIGH DENSITY FLUX FERRITE
Magnet size D x d x h 90 x 40 x 17 mm
Xmax 3.3 mm (0.13 in)

Electric-acoustic Specs

Re 3.1 Ohm
Fs 60 Hz
Le 0.3 mH
Vas 20 l (0.706 ft)
Mms 19 g (0.67 oz)
Cms 0.35 mm/N
BL 5.4 T•m
Qts 0.7
Qes 0,8
Qms 5

General

Weight 1.2 kg

Dimensions

AP 8
Dimension A 209 mm (8.23 in)
Dimension B 174 mm (6.85 in)
Dimension C 70 mm (2.76 in)
Dimension D 66 mm (2.6 in)
