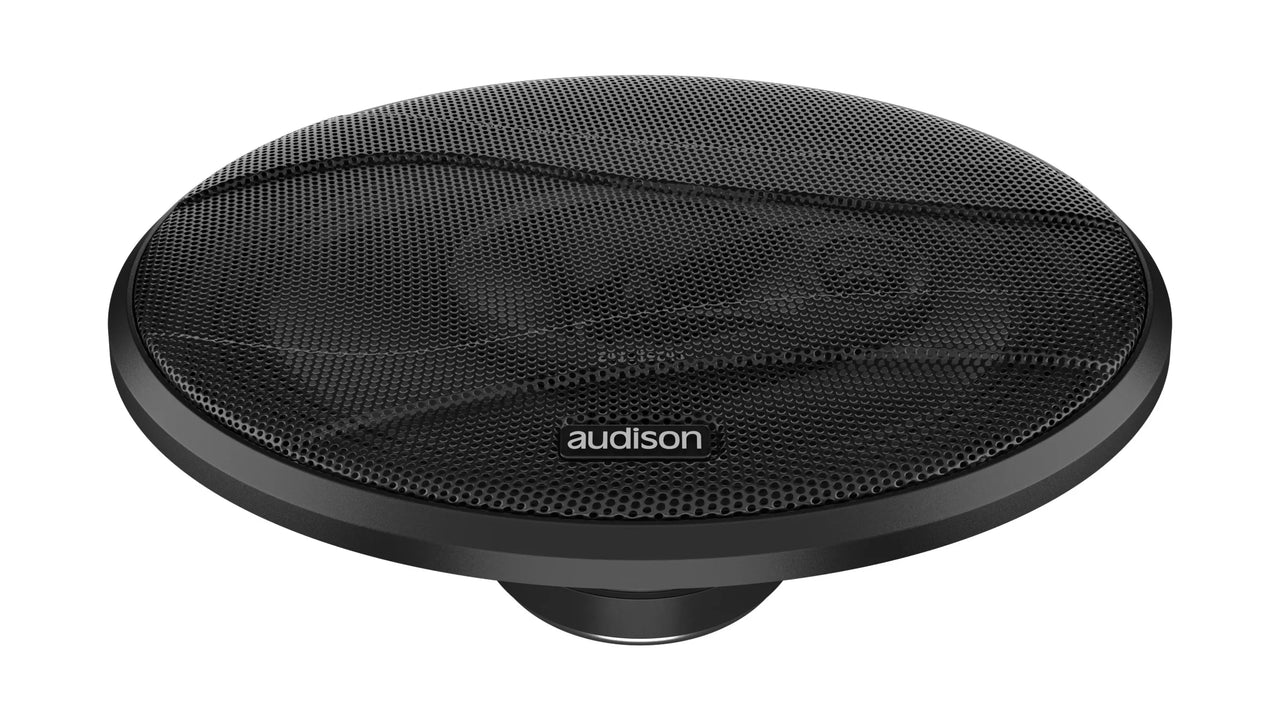

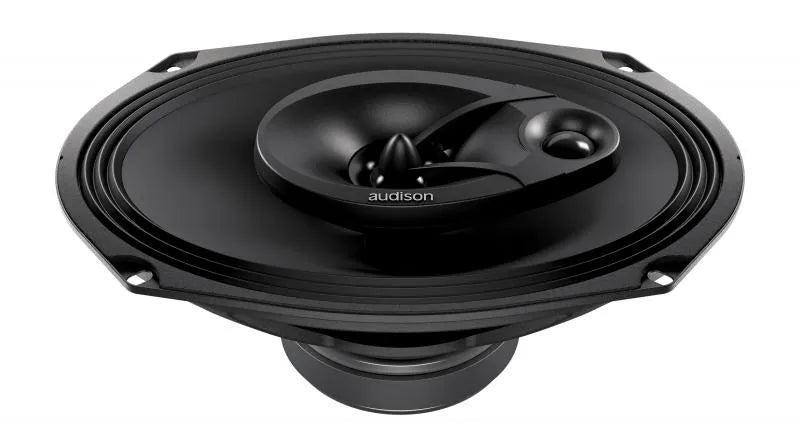

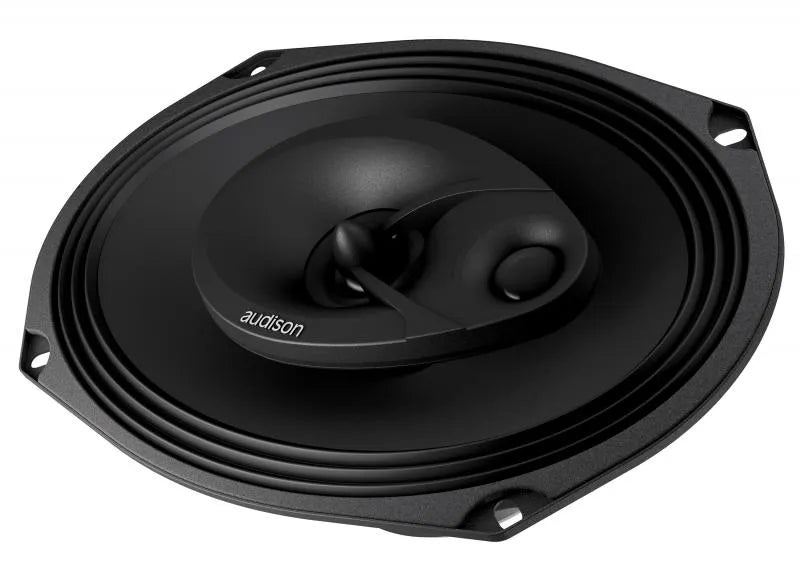

AUDISON Prima Line - 6X9" 3-Way 4 Ohm Coaxial Speakers - Pair (Apx 690)

AUDISON Prima Line - 6X9" 3-Way 4 Ohm Coaxial Speakers - Pair (Apx 690)

$259.99

AUDISON Prima Line - 6X9" 3-Way 4 Ohm Coaxial Speakers - Pair (Apx 690)

$259.99
0 watching this item.

AUDISON Prima Line - 6X9" 3-Way 4 Ohm Coaxial Speakers - Pair (Apx 690)

$259.99

SKU: APX690

Available for enquiry only. For assistance, click Request Callback above or call us at 1300 856 888.
Product Details
The APX 690 features an exclusive 40 mm horn loading dome tweeter that contributes to maximize efficiency up to 96dB SPL and an acoustics lens specifically designed and applied to the tweeter to increase dispersion in the high frequency range.To strengthen the emission of very high frequency ranges otherwise affected by off-axis positioning compared to the listening point, the APX 690 featuring a supertweeter.

Technical Specs LF

Woofer Size 690 mm
Impedance 4 Ohm
Power Handling - Peak 300 W
Power Handling - Continuous 100 W
Elliptical Size 6 x 9
Sensitivity 96 dB
Frequency Response 40 - 23k
Voice Coil Diameter 25 mm (0.79 in)
Magnet Size 90 x 32 x 15
Xmax 3.5 mm (0.98 in)

Technical Specs HF

Tweeter Size 40 mm (1.57 in)
Voice Coil Diameter 20 mm (0.79 in)
Super Tweeter Size 15

Electric-acoustic Specs

Re 3.2 Ohm
Fs 60 Hz
Mms 16.6 g (0.59 oz)
Cms 0.5
Bl 5.3
Qms 6.7
Qes 0,7
Qts 0.6
Vas 36 l (1.27 ft)
LE 0.2 mH

General

Weight 1.225 kg
Elliptical B1 222 mm
Elliptical B2 151 mm
Elliptical Dimension A1 238 mm
Elliptical Dimension A2 162 mm

Dimensions

APX 690
Dimension A1 238 mm
Dimension A2 162 mm
Dimension C 96 mm (3.78 in)
Dimension D 81 mm (3.19 in)
Dimension F 25
Dimension B1 222 mm
Dimension B2 151 mm
Dimension E1 276 mm
Dimension E2 202 mm
