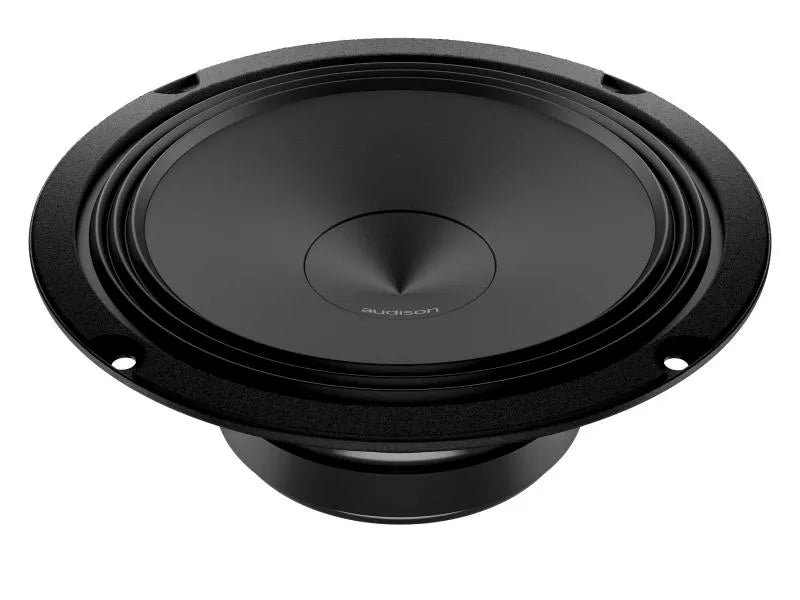

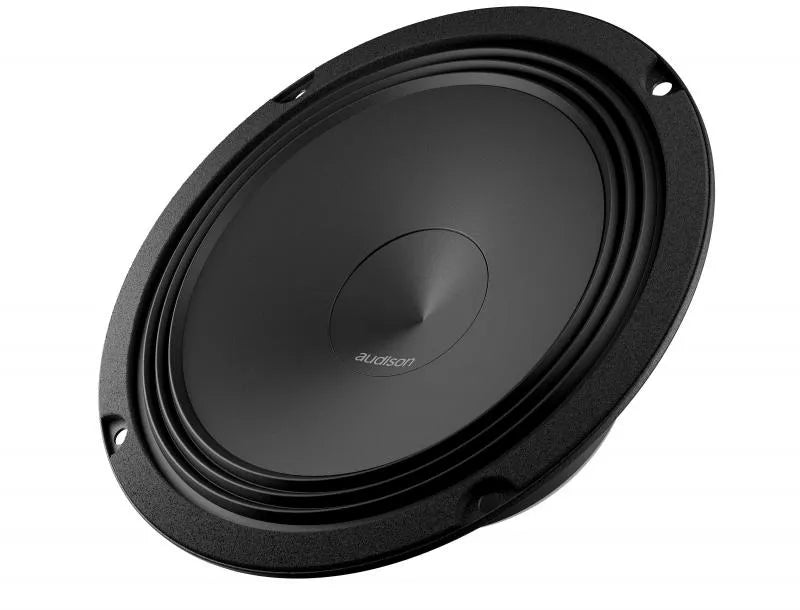

AUDISON Prima Line - 6.5" Woofer Component Pair (Ap 6.5)

AUDISON Prima Line - 6.5" Woofer Component Pair (Ap 6.5)

$189.99

AUDISON Prima Line - 6.5" Woofer Component Pair (Ap 6.5)

$189.99
0 watching this item.

AUDISON Prima Line - 6.5" Woofer Component Pair (Ap 6.5)

$189.99

SKU: AP6.5

Available for enquiry only. For assistance, click Request Callback above or call us at 1300 856 888.
Product Details

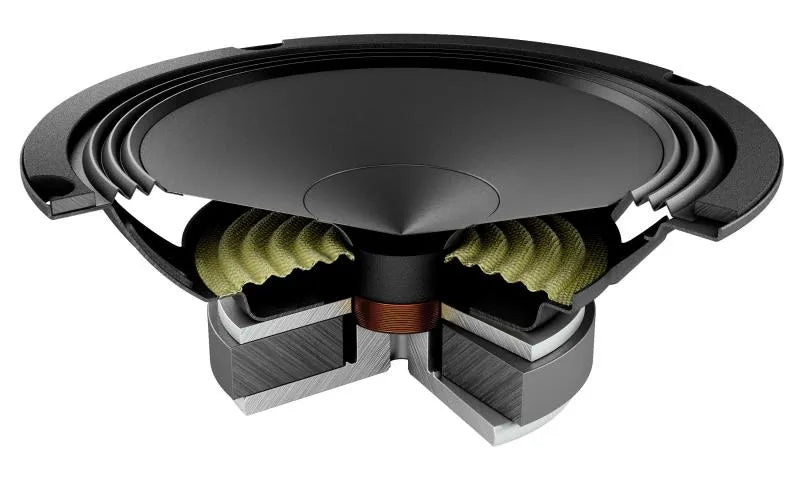

AP 6.5 feature a 32 mm pure copper voice coil, for high power handling and outstanding low frequency control. All the woofer don't employ any filter, to maximize efficiency: the dome profile has been optimised with Klippel R & amp;D Scan Vibrometer to obtain a calibrated mechanical low-pass cut-off frequency. The surround features the exclusive shallow Triple Wave profile, for maximum excursion linearity.

Technical Specs

Nominal diameter 165 mm (6.5 in)
Impedance 4 Ohm
Power Handling - Peak 210 W
Power Handling - Continuous 70 W
Sensitivity 93.5 dB
Frequency Response 60 ÷ 5k Hz
Voice Coil Ø 32 mm
Magnet size D x d x h 85 x 40 x 15 mm (3.35 x 1.57 x 0.59 in)
Xmax 2.5 mm (0.1 in)

Electric-acoustic Specs

Re 3.1 Ohm
Fs 80 Hz
Le 0.23 mH
Vas 7.6 l (0.268 ft)
Mms 12 g (0.423 oz)
Cms 0.31 mm/N
BL 4.7 T•m
Qts 0.7
Qes 0,8
Qms 4.7

General

Weight 0.78 kg

Dimensions

AP 6.5
Dimension A 165 mm (6.5 in)
Dimension B 141 mm (5.55 in)
Dimension C 60 mm (2.36 in)
Dimension D 56 mm (2.2 in)
