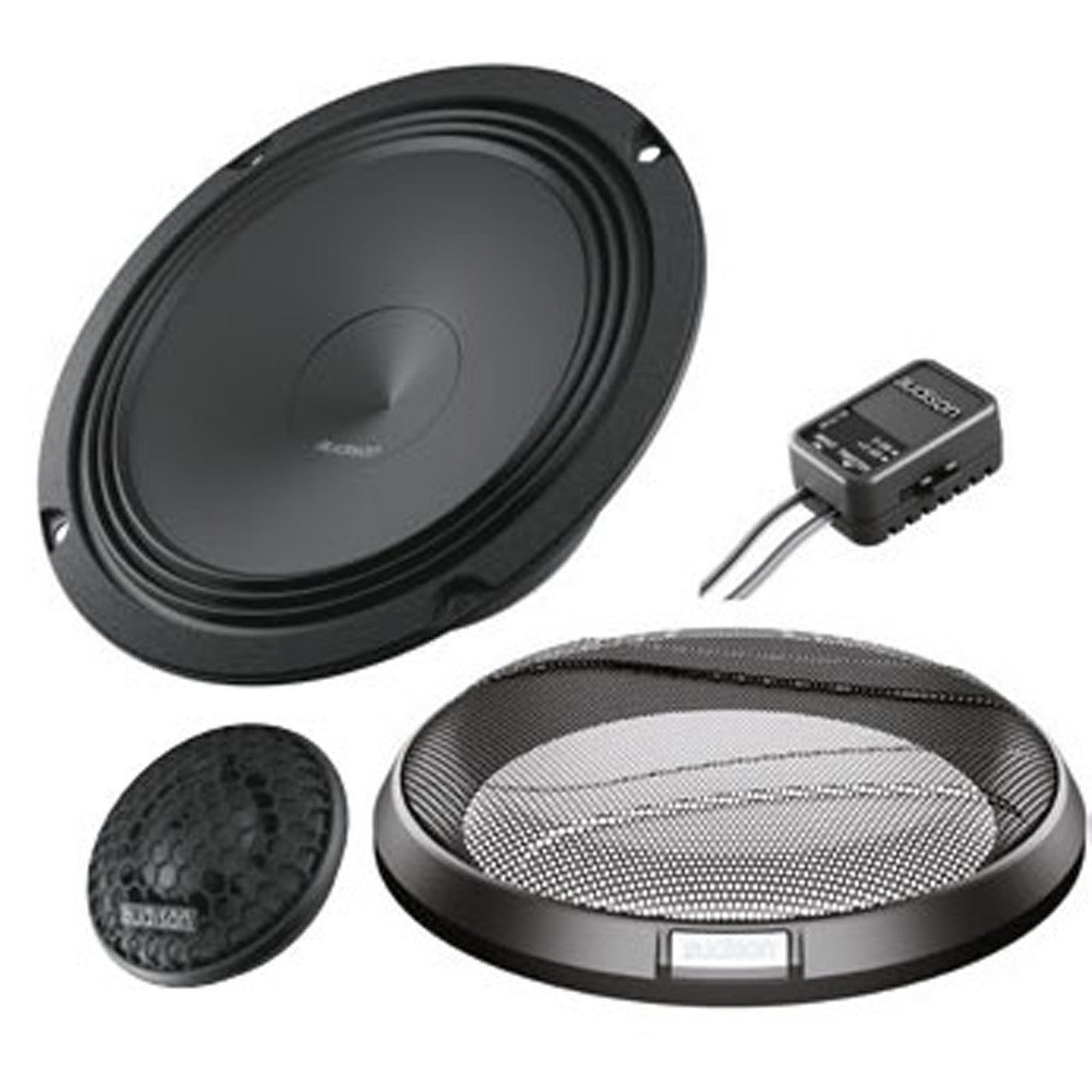

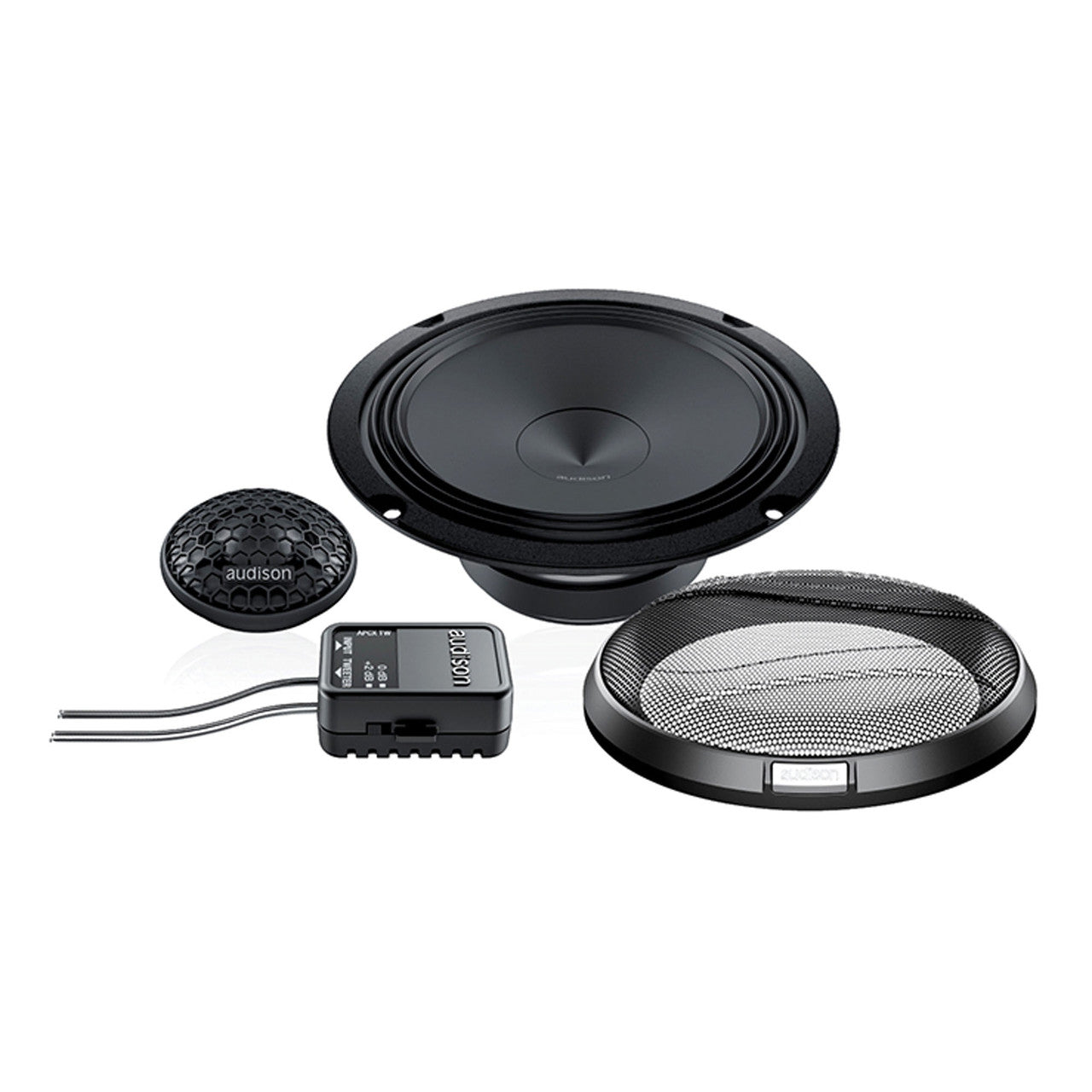

AUDISON Prima Line - 6.5" 2-Way 4 Ohm Component Speakers - Pair (Apk 165)

AUDISON Prima Line - 6.5" 2-Way 4 Ohm Component Speakers - Pair (Apk 165)

$374.99

AUDISON Prima Line - 6.5" 2-Way 4 Ohm Component Speakers - Pair (Apk 165)

$374.99
0 watching this item.

AUDISON Prima Line - 6.5" 2-Way 4 Ohm Component Speakers - Pair (Apk 165)

$374.99

SKU: APK165

Available for enquiry only. For assistance, click Request Callback above or call us at 1300 856 888.
Product Details
The two-way system features an AP 1 tweeter and AP 6.5 woofer. APCX TW crossover features a two-position level selector providing the ability to adapt its response to its two main applications: +2dB if installed behind the OEM grille, and 0dB for an A-pillar installation without additional grilles between the tweeter and the listener. To ease the installation in OEM placements the woofers are equipped with high current fast-on terminals with double contact on positive and negative poles for high flexibility and quick connection.

Technical Specs LF

Woofer Size 165 mm (6.5 in)
Impedance 4 Ohm
Power Handling - Peak 300 W
Power Handling - Continuous 100 W
Frequency Response 60 ÷ 20k
Voice Coil Diameter 32 mm (1.26 in)
Magnet Size 85 x 40 x 15
Crossover Level Adjustment +2; 0

Technical Specs HF

Tweeter Size 26 mm (1 in)
Voice Coil Diameter 20 mm (1.26 in)

Electric-acoustic Specs LF

Re 3.1 Ohm
Fs 80 Hz
Mms 12 g
Cms 0.31
BL 4.7
Qms 4.7
Qts 0.7
Vas 7.6 l
Le 0.23 mH
Spl 93.5 dB
Xmax 2.5 mm (0.1 in)

Kit Tech Data

Crossover Hi-Pass HP @ 3,5 kHz - 6 dB Oct
Cone Diameter 129 mm

General

Weight Woofer 0.78 kg
Weight Tweeter 0.04 kg
