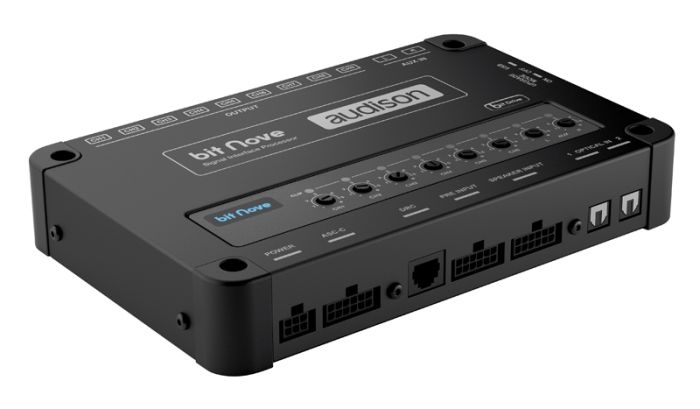

AUDISON Bit Line - 9 Channel Stand Alone Digital Signal Processor (Bit Nove Drc)

AUDISON Bit Line - 9 Channel Stand Alone Digital Signal Processor (Bit Nove Drc)

$1,260.00

AUDISON Bit Line - 9 Channel Stand Alone Digital Signal Processor (Bit Nove Drc)

$1,260.00
0 watching this item.

AUDISON Bit Line - 9 Channel Stand Alone Digital Signal Processor (Bit Nove Drc)

$1,260.00

SKU: BITNOVED

Available for enquiry only. For assistance, click Request Callback above or call us at 1300 856 888.
Product Details

Audison Bit Nove DRC Signal Interface Processor with 6 Channels In and 9 Channels Out with 2 Optical Inputs works with Maestro AR with DRC AB Remote Included

bit Nove is a powerhouse of technology fully dedicated to listening pleasure: since 2007, the year in which the bit One was first introduced, Audison has never stopped delivering innovation to the digital processors segment. The bit Nove was born from this unique know-how within the industry, the perfect tool to expand a car audio system maximizing its performance.



POWER SUPPLY

  • Voltage: 10.8 ÷ 15 VDC
  • Operating power supply voltage: 7.5 ÷ 14.4 VDC
  • Idling current: 0.53 A
  • Switched off without DRC: 1 mA
  • Switched off with DRC: 4.5 mA
  • Remote IN voltage:4 ÷ 15 VDC (1mA)
  • Remote OUT voltage: 10 ÷ 15 VDC (130 mA)
  • ART (Automatic Remote Turn ON): 2 ÷ 7 VDC

SIGNAL STAGE

  • Distortion - THD @ 1 kHz, 1 VRMS Output: 0.005%
  • Bandwidth @ -3 dB: 10 Hz ÷ 22 kHz
  • S/N ratio @ A weighted
    • Master Input: 102 dBA
    • AUX Input: 101.5 dBA
    • OPTICAL IN1 / IN2 Inputs: 110 dBA
  • Channel Separation @ 1 kHz: 85 dBA
  • Input sensitivity Pre Master: 1.2 ÷ 8 VRMS
  • Input sensitivity Speaker Master: 3 ÷ 20 VRMS
  • Input sensitivity AUX Master: 0.3 ÷ 5 VRMS
  • Input impedance Pre In / Speaker In / AUX: 15 kΩ / 12 Ω / 15 kΩ
  • Max Output Level (RMS) @ 0.1% THD: 4 V

INPUT STAGE

  • Low level (Pre): Ch1 ÷ Ch6; AUX L/R
  • High Level (Speaker In): Ch1 ÷ Ch6
  • Digital: 2 x Optical S/PDIF; Max 192 kHz / 24 bit

OUTPUT STAGE

  • Low level (Pre): Ch1 ÷ Ch9

CONNECTION

  • From / To Personal Computer: 1 x Micro USB
  • To Audison DRC AB / DRC MP: 1 x AC Link
  • Optical 2 sel: Optical In 2 wire control +12 V enable
  • Mem D sel: Memory D wire control GND enable

CROSSOVER

  • Filter type: Full / Hi pass / Low Pass / Band Pass
  • Filter mode and slope: Linkwitz @ 12/24 dB - Butterworth @ 6/12/18/24 dB
  • Crossover Frequency: 68 steps @ 20 ÷ 20k Hz
  • Phase control: 0° / 180°

EQUALIZER (20 ÷ 20K Hz)

  • Analog Input: Equalizer Automatic De-Equalization
  • Output Equalizer: N.9 Parametrics Equalizers: ±12 dB;10 pole; 20 ÷ 20k Hz

TIME ALIGNMENT

  • Distance: 0 ÷ 510 cm / 0 ÷ 200.8 inches
  • Delay: 0 ÷ 15 ms
  • Step: 0,08 ms; 2,8 cm / 1.1 inch
  • Fine: SET 0,02 ms; 0,7 cm / 0.27 inch

GENERAL REQUIREMENTS

  • PC connections: USB 1.1 / 2.0 / 3.0 Compatible
  • Software/PC requirements: Microsoft Windows (32/64 bit): Vista, Windows 7, Windows 8, Windows 10
  • Video Resolution with screen resize: min. 1024 x 600
  • Ambient operating temperature range: 0 °C to 55 °C (32 °F to 131 °F)

SIZE

  • W (Width) x H (Height) x D (Depth) mm/inch: 130 x 34.5 x 199 / 5.11” x 1.35” x 7.83”
