Americas Garage 6" Lift Kit with OK 2.5" Shocks suits Ford F-150 (21-25) by Zone Offroad ZONF90AOK

Americas Garage 6" Lift Kit with OK 2.5" Shocks suits Ford F-150 (21-25) by Zone Offroad ZONF90AOK

$8,695.00

Americas Garage 6" Lift Kit with OK 2.5" Shocks suits Ford F-150 (21-25) by Zone Offroad ZONF90AOK

$8,695.00

Americas Garage 6" Lift Kit with OK 2.5" Shocks suits Ford F-150 (21-25) by Zone Offroad ZONF90AOK

$8,695.00

SKU: ZONF90AOK

$199 Flat Rate Shipping — Fast dispatch with 5–10 business days
Questions? Call 1300 856 888 to check availability or get expert help.
NEED PROFESSIONAL INSTALLATION?
  • Available at our Brookvale workshop
  • Expert 4WD technicians
  • LEARN MORE

SAFE CHECKOUT

Afterpay Google Pay Mastercard Paypal American Express Visa JCB Shop
Product Details

Take your 21-23 F150 to new heights with this 6" lift kit from Zone Offroad. Kits include everything needed from high strength crossmembers and steering knuckles to strut spacers and rear block kit to level out the stance. Engineered to the highest standard to maintain ride quality and handling performance. Get the look, performance, and capability your truck deserves with clearance for 35-37" tires.

  • Optimizes ground clearance and off-road protection
  • Maintains drivability and handling performance
  • Redesigned steering knuckles for ESC compliance
  • Available rear lift blocks for desired stance
  • Includes Factory Protection Plus for peace of mind
  • Allows clearance for larger tires

Specifications

  • Front Lift Height: 6"
  • Material: Steel
  • Front Lift Method: Strut Spacers
  • Lift Type: Suspension

Features & Benefits

  • Kit design optimizes ground clearance and improves offroad protection
  • Maintains drivability and handling by correcting suspension, steering and driveline geometry.
  • Redesigned steering knuckles specific to the 2021-2022 F150 to maintain ESC system compliance
  • 4" or 5" replacement rear lift blocks available to achieve desired stance without the need to stack lift blocks
  • Kits includes Factory Protection Plus (ESC system compatibility, Limited lifetime warranty, 5yr-60k mile drivetrain warranty)
  • Kit allows clearance for 35" tires

Tyre & Wheel

Tyre & Wheel

  • 37 x 12.5 with 20 x 9 and 5.75 in. Backspace
  • 35 x 12.5 with 20 x 9 and 5.5 in. Backspace

Installation

Installation

Install Tools

  • 204-592 Ball Joint Separator (Recommended)
  • Tie Rod End Separator (Recommended)
  • Torque Wrench
  • Reciprocating Saw
  • Socket Wrench

Important Notes

  • Will fit models with Auto 4wd that do NOT have the 4WD actuator hub assembly
  • Some trucks with a 2 piece drive shaft may have a recall from Ford regarding the rear drive shaft. (Safety Recall 21S25) Due to the recall procedure, Zone Offroad recommends to have this performed prior to installing the lift.”
  • 18" or larger diameter wheels required. Stock 17" and 18" wheels cannot be reinstalled. Stock 20’ wheels can be used with up to a 305/60R20 tire.
  • 18" wheels with 5-5.5" backspacing should be test fit prior to mounting the tire to ensure proper clearance to the steering knuckle/tie rod. 18 - 20"wheels with 5.5-5.75" of backspacing is highly recommended for tire to frame crash bar clearance. 37" tires will require crash bar modification
  • Models with 2-piece rear driveshaft WILL require carrier bearing shim kit D5405 (not included w/ kit).
  • Block kits replace factory 1-1/4” block. Stock block will not be reinstalled.
  • Crash bars may require modification based on wheel and tire choice. It is the end users responsibility to ensure modifications are non-detrimental to vehicle safety.
  • Will not work with trucks equipped with CCD (Continuous Controlled Damping)
  • Does not fit diesel models.
  • Will not fit Tremor models.
  • Requires frame bracket modification
  • This system has not been tested on models equipped with Ford BlueCruise

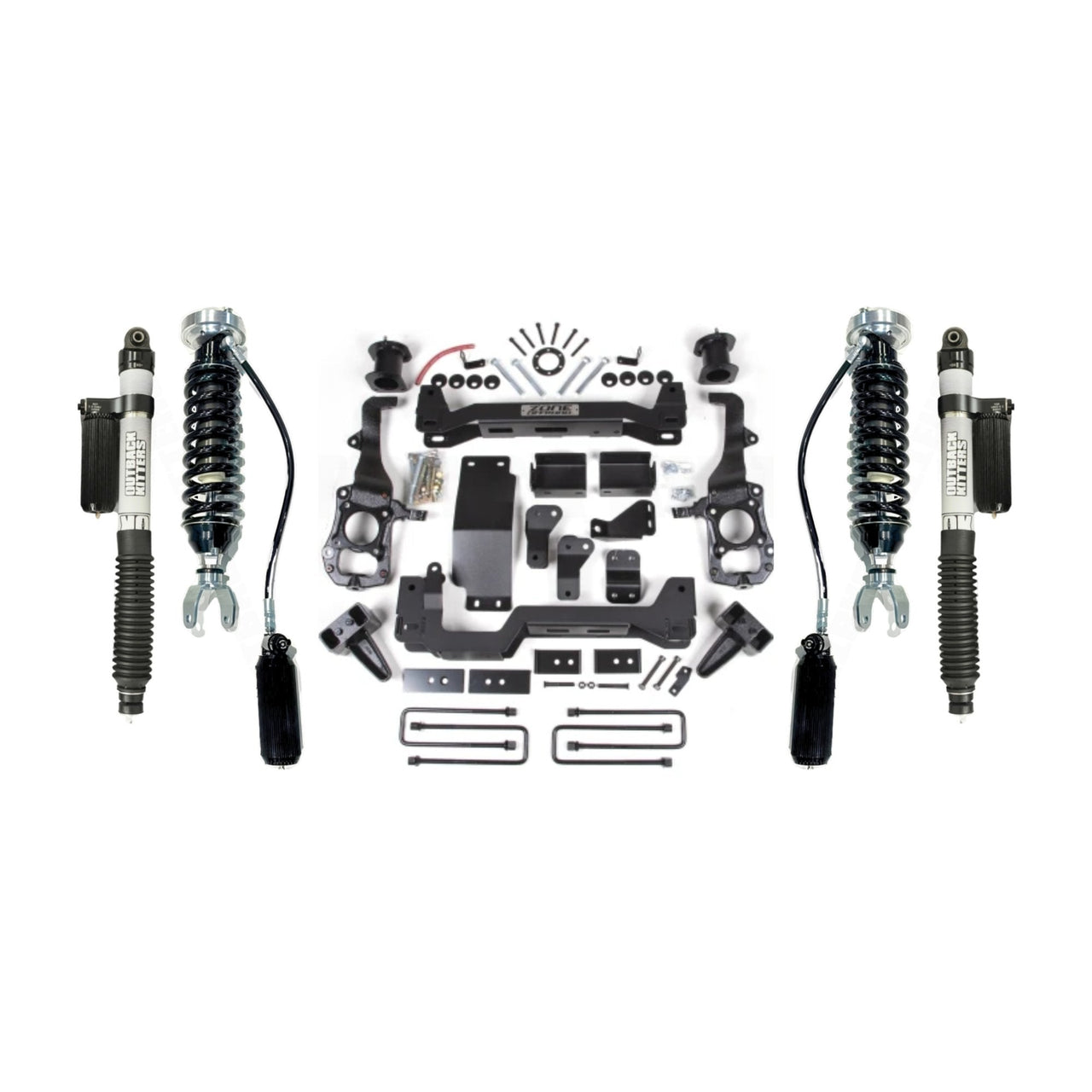

Components

Kit Components

  • ZONF2638: Zone Offroad 2021-2024 Ford F150 5" Rear Box Kit
  • ZONF2660: Zone Offroad 2021-2024 Ford F150 Knuckle Box Kit - DS
  • ZONF2661: Zone Offroad 2021-2023 Ford F150 Knuckle Box Kit - PS
  • ZONF2662: Zone 2021-2023 Ford F150 Front Box Kit
  • ZONF2663: Zone Offroad 2021-2023 Ford F150 Front Box Kit
  • OKSUFD106F: Front 2.5" Remote Reservoir Coilover Shock, Compression Adjuster, to suit 6" Lift, Single
  • OKSUFD105R: Rear 2.5" Remote Reservoir Shock, Compression Adjuster, to suit 5" Lift, Single
