Americas Garage 5" Lift Kit with OK 2.5" Shocks suits Ford F-250 Super Duty/F-350 Super Duty (20-22) by Zone Offroad ZONF60OK

Americas Garage 5" Lift Kit with OK 2.5" Shocks suits Ford F-250 Super Duty/F-350 Super Duty (20-22) by Zone Offroad ZONF60OK

$6,930.00

Americas Garage 5" Lift Kit with OK 2.5" Shocks suits Ford F-250 Super Duty/F-350 Super Duty (20-22) by Zone Offroad ZONF60OK

$6,930.00

Americas Garage 5" Lift Kit with OK 2.5" Shocks suits Ford F-250 Super Duty/F-350 Super Duty (20-22) by Zone Offroad ZONF60OK

$6,930.00

SKU: ZONF60OK

$199 Flat Rate Shipping — Fast dispatch with 5–10 business days
Questions? Call 1300 856 888 to check availability or get expert help.
NEED PROFESSIONAL INSTALLATION?
  • Available at our Brookvale workshop
  • Expert 4WD technicians
  • LEARN MORE

SAFE CHECKOUT

Afterpay Google Pay Mastercard Paypal American Express Visa JCB Shop
Product Details

Specifications

  • Adjustable: No
  • Finish: Powdercoat
  • Front Lift Height: 4"
  • Front Lift Method: Coil Springs
  • Lift Type: Lift Kit
  • Material: Metal
  • Rear Lift Height: 3"
  • Rear Lift Method: Cast Blocks
  • Requires Metal Cutting: No
  • Requires Welding: No

Features & Benefits

  • Heavy duty fabricated steel replacement radius arms that correct caster alignment while maximizing ground clearance
  • Forged pitman arm to correct steering angles
  • Heavy duty fabricated track bar relocation bracket to re-center front axle
  • Full length Diesel/ Gas specific coil springs for a smooth ride
  • Outback Kitters 2.5" Remote Reservoir Compression Adjustable Shocks

Tyre & Wheel

Tyre & Wheel

  • 37 x 12.5 with 20 x 9 and 4.5 in. Backspace
  • 37 x 12.5 with 18 x 9 and 4.5 in. Backspace

Installation

Installation

Install Tools

Wrenches: Standard

Important Notes

  • 37x12.50 tires may require minor trimming. Factory wheels fit when paired with factory / original equipment tire size. Two-piece rear drive shaft? Add a carrier bearing drop kit to reduce post-lift driveline angles and avoid / eliminate driveshaft vibration. When adding the Dual Stabilizer option you will get the dual opposing steering stabilizer in addition to the single OE Replacement. Due to taller factory ride height, Tremor models will not net full advertised lift height. Final ride height will be the same as standard models
  • Some trucks with a rear driveline vibration may have a recall from Ford regarding the rear axle. (Safety Recall 21S31) Due to the recall procedure, Zone recommends to have this performed prior to installing the lift.

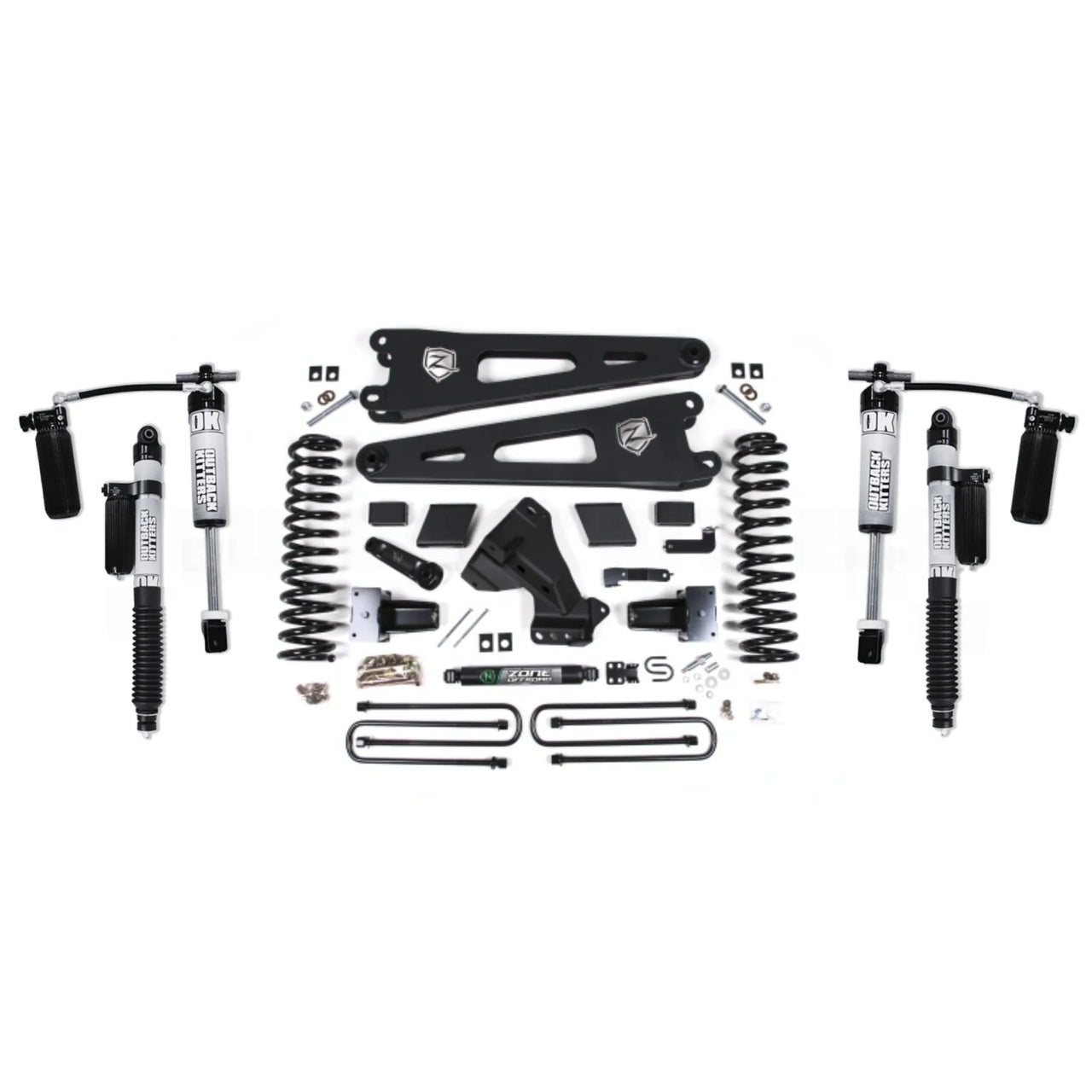

Components

Kit Components

  • ZONF1413: 4" (Diesel) Front Coil, Single
  • ZONF1450: Zone Offroad 2020-2022 F250/F350 4.5" Rear Box Kit
  • ZONF1601: Radius Arm, Single
  • ZONF1614: Zone Offroad 2017-2022 Ford F250/F350 4-6in Radius Arm Front Box Kit
  • OKSUFD205F: Front 2.5" Remote Reservoir Shock, Compression Adjuster, to suit 5" Lift, Single
  • OKSUFD203R: Rear 2.5" Remote Reservoir Shock, Compression Adjuster, to suit 3" Lift, Single
