Americas Garage 5" Lift Kit with OK 2.5" Shocks suits Chev 2500/3500 (11-19) / GMC 2500/3500 (11-19) by Zone Offroad ZONC12OK

Americas Garage 5" Lift Kit with OK 2.5" Shocks suits Chev 2500/3500 (11-19) / GMC 2500/3500 (11-19) by Zone Offroad ZONC12OK

$7,600.00

Americas Garage 5" Lift Kit with OK 2.5" Shocks suits Chev 2500/3500 (11-19) / GMC 2500/3500 (11-19) by Zone Offroad ZONC12OK

$7,600.00

Americas Garage 5" Lift Kit with OK 2.5" Shocks suits Chev 2500/3500 (11-19) / GMC 2500/3500 (11-19) by Zone Offroad ZONC12OK

$7,600.00

SKU: ZONC12OK

$199 Flat Rate Shipping — Fast dispatch with 5–10 business days
Questions? Call 1300 856 888 to check availability or get expert help.
NEED PROFESSIONAL INSTALLATION?
  • Available at our Brookvale workshop
  • Expert 4WD technicians
  • LEARN MORE

SAFE CHECKOUT

Afterpay Google Pay Mastercard Paypal American Express Visa JCB Shop
Product Details
  • Enhances off-road performance and stability
  • Durable construction for long-lasting use
  • Easy installation for a hassle-free upgrade
  • Improves ground clearance for better visibility
  • Optimized for a smooth ride on rough terrain
  • Compatible with various truck models

Specifications

  • Accommodates Factory Wheels: See Notes
  • Adjustable: No
  • Finish: Powdercoat
  • Front Lift Height: 5"
  • Front Lift Method: Torsion Bar Drop
  • Lift Type: Lift Kit
  • Material: Steel
  • Rear Lift Height: 3"
  • Rear Lift Method: Cast Blocks
  • Requires Metal Cutting: Yes
  • Requires Welding: No

Features & Benefits

  • Heavy-duty differential skid slate improves off-road protection.
  • High-strength, 1/4" steel construction crossmembers corrects lower control arm geometry.
  • High-strength, CNC machined, replacement steering knuckles improve strength while correcting steering angles.
  • No differential trimming required.
  • Rear lift block and longer U-bolts for easy installation and level stance.

Tyre & Wheel

Tyre & Wheel

  • 35 x 12.5 with 17 x 9 and 4.75 in. Backspace
  • 285 / 65 with 20 x 9 and 6 in. Backspace
  • 35 x 12.5 with 20 x 9 and 6 in. Backspace

Installation

Installation

Install Tools

Torsion Bar Unloading Tool

Important Notes

  • 2015-2018 Models Only: 20" wheels can not be reinstalled due to GM changing the wheel thickness. The ID of the 20" wheels are smaller on 2015-2018 models.
  • Fitment: WILL fit RWD models, however the front differential related parts in kit will not be used.
  • Frame bracket modifications required for installation.
  • Mod's Required: Modifications required for installation. See installation instructions for more information.
  • Optional steering stabilizer (PN# 7103) only fits vehicles that came equipped with a steering stabilizer from the factory.
  • Two-piece rear drive shaft? Add a carrier bearing drop kit to reduce post-lift driveline angles and avoid / eliminate driveshaft vibration.
  • Will fit RWD models. The front differential related parts will not be used.
  • With a 20" Wheel, 5"-6" backspacing is recommended.
  • In some cases vehicles used in 4WD on the highway regularly could potentially experience a minor front driveline vibration. If this occurs we recommend replacing the front driveshaft with a dual cardan style driveshaft.

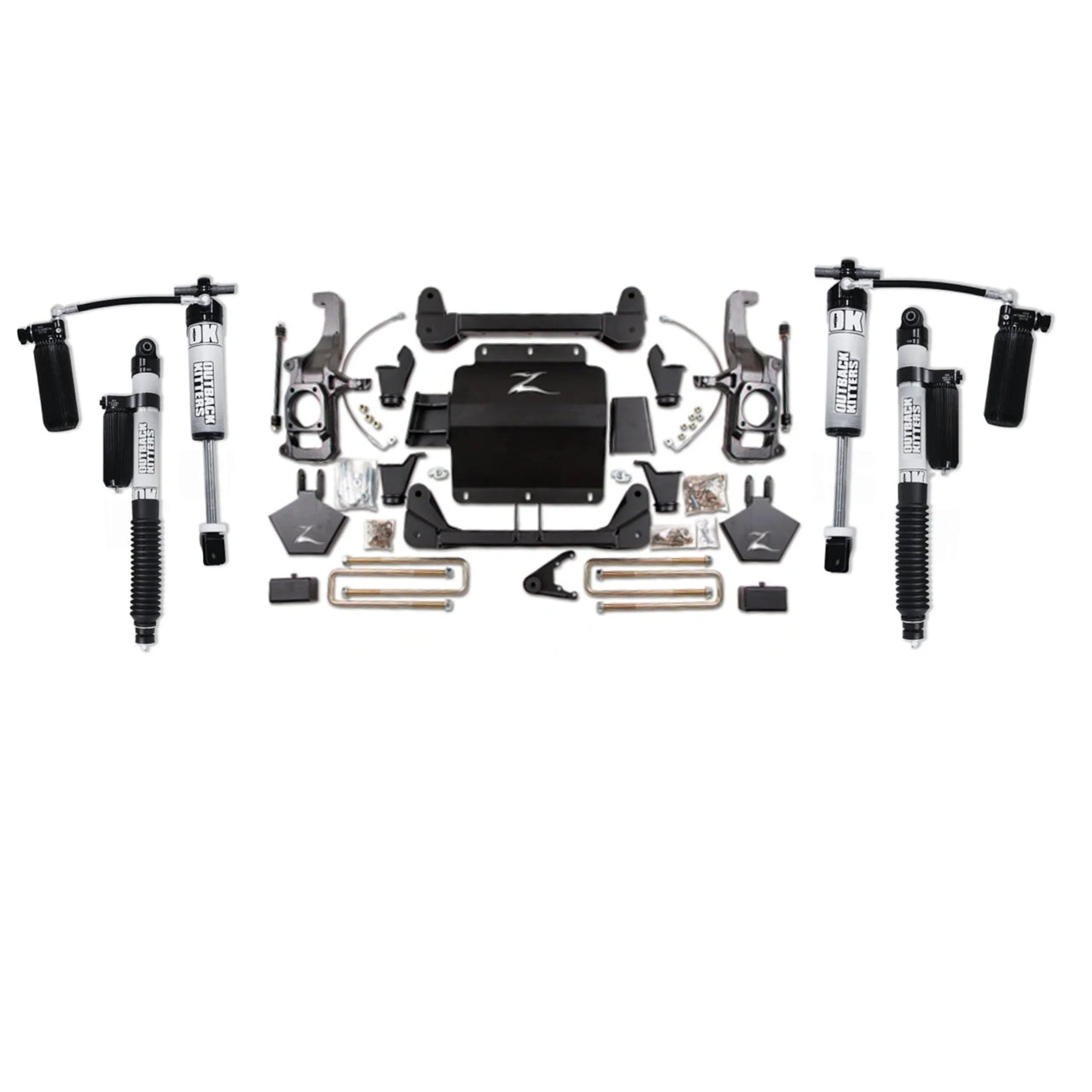

Components

Kit Components

  • ZONC2630: Zone Offroad 2011-2019 Chevy/GMC HD 5in Front Box Kit (1of5)
  • ZONC2631: Zone Offroad 2011-2019 Chevy/GMC HD 5in Front Box Kit (2of5)
  • ZONC2632: Zone Offroad 2011-2019 Chevy/GMC HD 5in Front Box Kit (3of5)
  • ZONC2633: Zone Offroad 2011-2019 Chevy/GMC HD 5in Front Box Kit (4of5)
  • ZONC2634: Zone Offroad 2011-2019 Chevy/GMC HD 5in Front Box Kit (5of5)
  • ZONC2639: Zone Offroad 2011-2019 Chevy/GMC HD 3in Rear w/o Top Overload
  • OKSUCH205F: Front 2.5" Remote Reservoir Shock, Compression Adjuster, to suit 5" Lift, Single
  • OKSUCH205R: Rear 2.5" Remote Reservoir Shock, Compression Adjuster, to suit 5" Lift, Single
