Americas Garage 5" Lift Kit with OK 2.5" Shocks by Zone Offroad ZONC43OK

Americas Garage 5" Lift Kit with OK 2.5" Shocks by Zone Offroad ZONC43OK

$8,400.00

Americas Garage 5" Lift Kit with OK 2.5" Shocks by Zone Offroad ZONC43OK

$8,400.00

Americas Garage 5" Lift Kit with OK 2.5" Shocks by Zone Offroad ZONC43OK

$8,400.00

SKU: ZONC43OK

$19 Flat Rate Shipping — Fast dispatch with 5–10 business days
Questions? Call 1300 856 888 to check availability or get expert help.
NEED PROFESSIONAL INSTALLATION?
  • Available at our Brookvale workshop
  • Expert 4WD technicians
  • LEARN MORE

SAFE CHECKOUT

Afterpay Google Pay Mastercard Paypal American Express Visa JCB Shop
Product Details
  • Enhances off-road capability and performance
  • Improves vehicle stance and appearance
  • Durable construction for long-lasting use
  • Easy installation for DIY enthusiasts
  • Compatible with various terrain types
  • Boosts ground clearance for better obstacle navigation

Specifications

  • Front Lift Height: 5"
  • Rear Lift Height: 4.5"
  • Material: 1/4" Steel
  • Front Lift Method: Knuckle & Drop Cross-Member
  • Rear Lift Method: Block Kit
  • Lift Type: Suspension

Features & Benefits

  • Maintains ride quality and handling characteristics
  • Improves ground clearance while correcting suspension-steering-driveline geometry
  • High strength 1/4" thick steel crossmembers and differential skid plates
  • CNC machined ductile iron steering knuckles to maintain ESC System compatibility
  • Zone Offroad branded front skidplate and torsion bar relocation brackets
  • Allows clearance for up to 37" tires to be installed

Tyre & Wheel

Tyre & Wheel

  • 37 x 12.5 with 20 x 9 and 5.5 in. Backspace
  • 35 x 12.5 with 20 x 10 and 5.5 in. Backspace
  • 35 x 12.5 with 17 x 9 and 4.625 in. Backspace

Installation

Installation

Important Notes

  • Compatible with gas and diesel models as well as standard and AT4 equipped models.
  • Frame bracket modifications required for installation. Stock 17-18" wheels cannot be reinstalled, stock 20" wheels can be reinstalled.
  • Two-piece rear drive shaft? Add a carrier bearing drop kit to reduce post-lift driveline angles and avoid / eliminate driveshaft vibration.
  • In some cases vehicles used in 4WD on the highway regularly could potentially experience a minor front driveline vibration. If this occurs we recommend replacing the front driveshaft with a dual cardan style driveshaft.

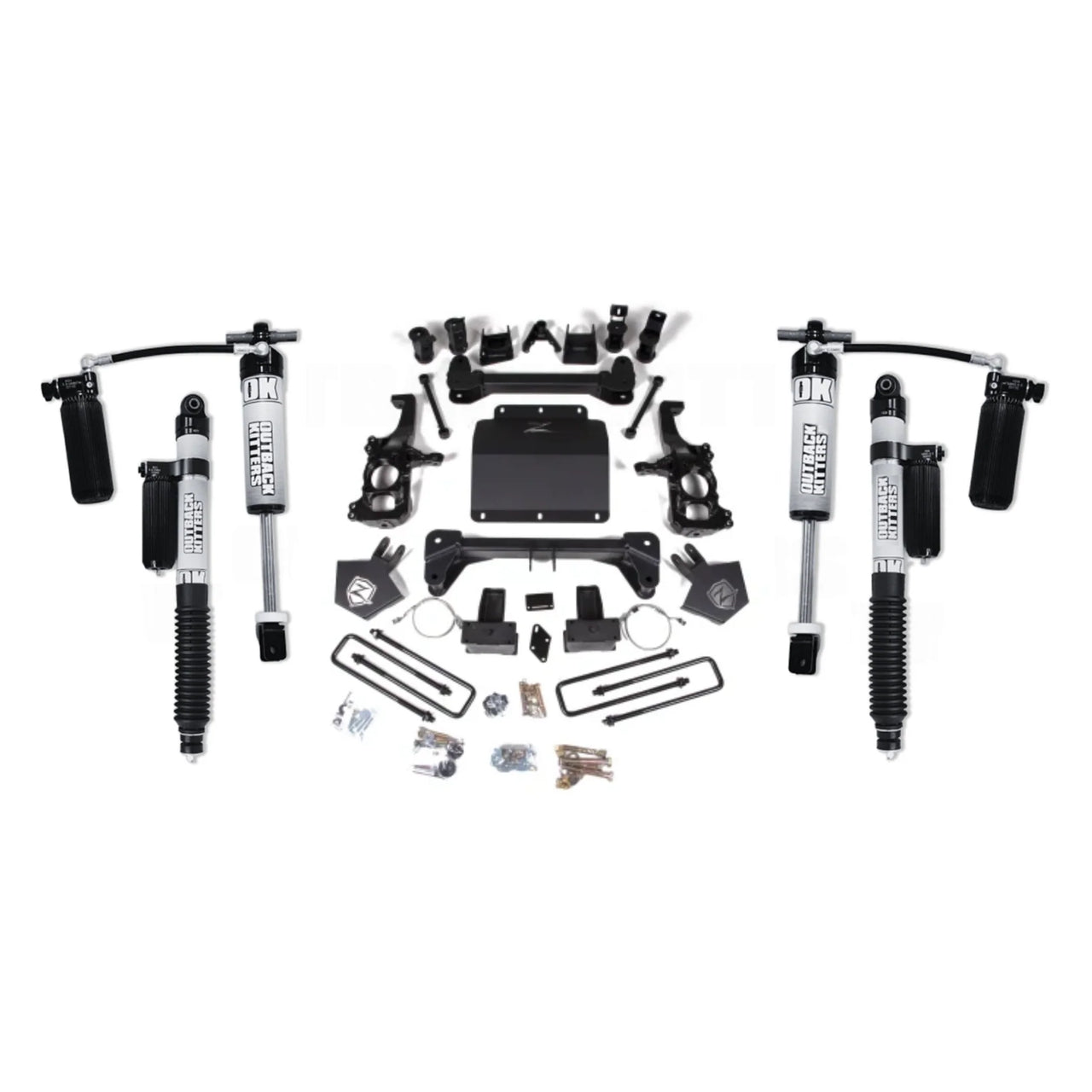

Components

Kit Components

  • ZONC2459: Zone Offroad 2020-2024 Chevrolet Silverado/GMC Sierra 2500/3500 HD 4.5" Rear Block Kit w/o Overload
  • ZONC2500: Zone Offroad 2020-2024 Chevrolet Silverado/GMC Sierra 2500/3500 HD Knuckle Box Kit - Drv
  • ZONC2501: Knuckle Box Kit (RHS)
  • ZONC2502: Zone Offroad 2020-2024 Chevrolet Silverado/GMC Sierra 2500/3500 HD Front Box Kit 1of3
  • ZONC2503: Zone Offroad 2020-2024 Chevrolet Silverado/GMC Sierra 2500/3500 HD Front Box Kit 2of3
  • ZONC2504: Zone Offroad 2020-2024 Chevrolet Silverado/GMC Sierra 2500/3500 HD Front Box Kit 3of3
  • OKSUCH205F: Front 2.5" Remote Reservoir Shock, Compression Adjuster, to suit 5" Lift, Single
  • OKSUCH205R: Rear 2.5" Remote Reservoir Shock, Compression Adjuster, to suit 5" Lift, Single
