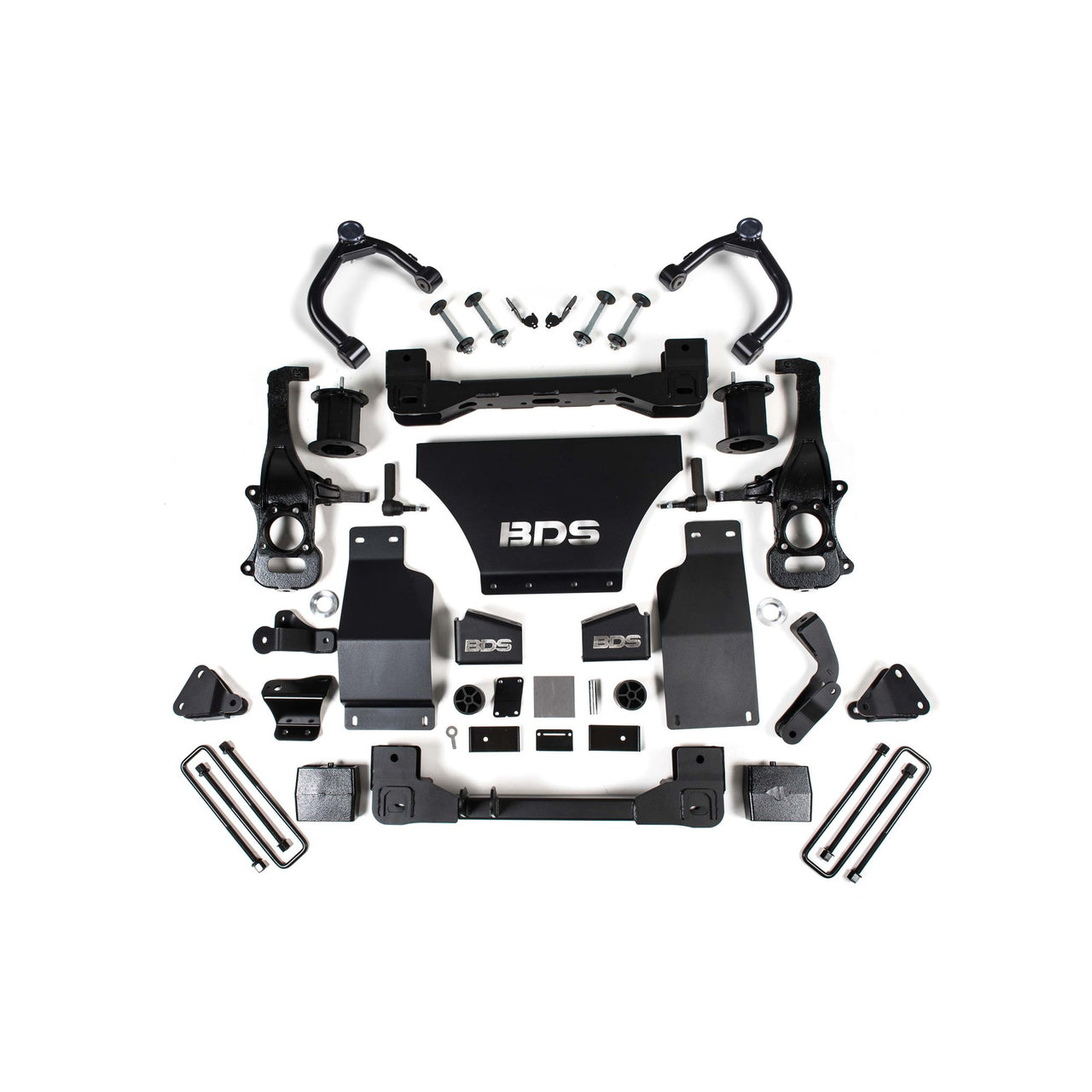

Americas Garage 4" Lift Kit for ZR2 (Factory Shocks) suits Chev 1500 ZR (2022+) by BDS Suspension BDS1835H

Americas Garage 4" Lift Kit for ZR2 (Factory Shocks) suits Chev 1500 ZR (2022+) by BDS Suspension BDS1835H

$5,400.00

Americas Garage 4" Lift Kit for ZR2 (Factory Shocks) suits Chev 1500 ZR (2022+) by BDS Suspension BDS1835H

$5,400.00

Americas Garage 4" Lift Kit for ZR2 (Factory Shocks) suits Chev 1500 ZR (2022+) by BDS Suspension BDS1835H

$5,400.00

SKU: BDS1835H

$19 Flat Rate Shipping — Fast dispatch with 5–10 business days
Questions? Call 1300 856 888 to check availability or get expert help.
NEED PROFESSIONAL INSTALLATION?
  • Available at our Brookvale workshop
  • Expert 4WD technicians
  • LEARN MORE

SAFE CHECKOUT

Afterpay Google Pay Mastercard Paypal American Express Visa JCB Shop
Product Details

Improve the look and ride of your Chevy Silverado ZR2 and GMC AT4X 1500 trucks with a 4-inch suspension lift kit by BDS Suspension. Works with trucks equipped with Multimatic shocks only. Designed to improve stance performance and capability this kit includes everything necessary to set your truck up right with clearance for up to 35-37" tires. This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance strength and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front the kit utilizes top mounted strut spacers high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection. Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles and replacement tie rod ends allowing for ESC system compatibility. These combined with the provided sway bar drops bump stop extensions brake line brackets supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it. In the rear BDS offers a heavy duty lift block to lift and level that stance. The lift block installs in place of the stock block and retains ride quality and load capacity. Also for the rear are new u-bolts and shock relocation brackets to retain the Multimatic shock system without error. High Clearance Crossmembers BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection. Heavy Duty Steering Knuckles BDS corrects steering geometry at the new taller ride height using a pair of high-strength CNC machined ductile cast iron steering knuckle design to work with replacement tie rod ends to maintain steering angles for proper function and ESC compatibility.

  • Improves stance and ride quality for Chevy Silverado ZR2 and GMC AT4X 1500
  • Includes everything for a complete lift installation
  • High-clearance design enhances ground clearance and off-road protection
  • CNC-machined steering knuckles ensure proper steering geometry
  • Heavy-duty components maintain ride quality and load capacity
  • Compatible with Multimatic shock systems for optimal performance

Specifications

  • Front Lift Method : Cross-Member
  • Rear Lift Method : Block
  • Shocks Included : No
  • Front Lift Height : 4"
  • Rear Lift Height : 3"

Features & Benefits

  • Improve the look and ride of your Chevy Silverado ZR2 and GMC AT4X 1500 trucks with a 4-inch suspension lift kit by BDS Suspension. Works with trucks equipped with Multimatic shocks only. Designed to improve stance performance and capability this kit includes everything necessary to set your truck up right with clearance for up to 35-37" tires.
  • This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance strength and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front the kit utilizes top mounted strut spacers high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection. Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles and replacement tie rod ends allowing for ESC system compatibility. These combined with the provided sway bar drops bump stop extensions brake line brackets supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it.
  • In the rear BDS offers a heavy duty lift block to lift and level that stance. The lift block installs in place of the stock block and retains ride quality and load capacity. Also for the rear are new u-bolts and shock relocation brackets to retain the Multimatic shock system without error.
  • High Clearance Crossmembers
  • BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.
  • Heavy Duty Steering Knuckles
  • BDS corrects steering geometry at the new taller ride height using a pair of high-strength CNC machined ductile cast iron steering knuckle design to work with replacement tie rod ends to maintain steering angles for proper function and ESC compatibility.

Tyre & Wheel

Tyre & Wheel

  • (GMC) 35 x 12.5 with 20 x 9 and 6.25 in. Backspace
  • (Chevy) 37 x 12.5 with 20 x 9 and 6.25 in. Backspace

Installation

Installation

Important Notes

  • Requires frame bracket modification
  • Designed to fit ZR2 or AT4X trucks only equipped with MultiMatic shocks
  • Factory 17" and 18" wheels cannot be reinstalled due to tie rode interference, stock 20" wheels can be reinstalled
  • All aftermarket wheels should be test fit prior to mounting the tire to ensure clearance to brake caliper
  • Some wheel profiles will not clear the brake caliper. This can be test fit before the vehicle is lifted while still in stock condition
  • Front skid plate will not work with 2.7L Turbo Engines
  • If equipped with a mono-leaf rear spring please use part #UBT4064.
  • 2.7L Turbo models use Diesel kit for proper skid plate fitment.
  • Will work on 19-24 and 25+ Models - U-Bolt adjustments are supplied in the kit.

Components

Kit Components

  • BDS011518: BDS Suspension 2019+ Chevy/GMC 1500 Rear Box Kit - 5"
  • BDS021664: Knuckle Box (1 of 2) with Upper Control Arm (4" and 6" Compatible)
  • BDS021665: BDS Suspension 2019+ Chevy/GMC 1500 Knuckle Box 2of2 w/UCA (4" and 6" Compatible
  • BDS021682: Chevy/GMC 4" or 6" Front Box Kit (1 of 2)
  • BDS021683: Chevy/GMC 4 or 6" Front Box Kit (2 of 2)
  • BDS121405: 2019-2024 GMC 4" Adaptive Ride Box Kit
