Americas Garage 4.5" Lift Kit with OK 2.5"  Shocks suits Ram 2500 (19-22) by Zone Offroad ZOND78OK

Americas Garage 4.5" Lift Kit with OK 2.5" Shocks suits Ram 2500 (19-22) by Zone Offroad ZOND78OK

$8,980.00

Americas Garage 4.5" Lift Kit with OK 2.5" Shocks suits Ram 2500 (19-22) by Zone Offroad ZOND78OK

$8,980.00

Americas Garage 4.5" Lift Kit with OK 2.5" Shocks suits Ram 2500 (19-22) by Zone Offroad ZOND78OK

$8,980.00

SKU: ZOND78OK

$199 Flat Rate Shipping — Fast dispatch with 5–10 business days
Questions? Call 1300 856 888 to check availability or get expert help.
NEED PROFESSIONAL INSTALLATION?
  • Available at our Brookvale workshop
  • Expert 4WD technicians
  • LEARN MORE

SAFE CHECKOUT

Afterpay Google Pay Mastercard Paypal American Express Visa JCB Shop
Product Details

Heavy duty 1/4" steel, laser cut, internally gusseted radius arms improve strength, offer more ground clearance and correct caster High strength progressive rate front coil springs for a great ride on any terrain F/R HD track bar relocation brackets to correctly position both axles under the truck Forged drop pitman arm to corect steering angles HD transmission crossmember and t-case indexing ring to correct front driveline angles Outback Kitters 2.5" Remote Reservoir shocks to improved ride and offroad performance Allows clearance for up to 37" tires

  • Heavy duty steel radius arms enhance strength and ground clearance
  • Progressive rate coil springs ensure a smooth ride on any terrain
  • Track bar relocation brackets position axles correctly
  • Forged drop pitman arm corrects steering angles
  • Transmission crossmember and indexing ring optimize driveline angles
  • Remote reservoir shocks improve off-road performance

Specifications

  • Accommodates Factory Wheels: Yes
  • Adjustable: No
  • Finish: Powdercoat
  • Front Lift Height: 4.5"
  • Front Lift Method: Strut Spacers
  • Lift Type: Lift Kit
  • Material: Steel
  • Rear Lift Height: 2.5"
  • Rear Lift Method: Coil Springs
  • Requires Metal Cutting: Yes
  • Requires Welding: No

Features & Benefits

  • Heavy duty 1/4" steel, laser cut, internally gusseted radius arms improve strength, offer more ground clearance and correct caster
  • High strength progressive rate front coil springs for a great ride on any terrain
  • F/R HD track bar relocation brackets to correctly position both axles under the truck
  • Forged drop pitman arm to corect steering angles
  • HD transmission crossmember and t-case indexing ring to correct front driveline angles
  • Outback Kitters 2.5" Remote Reservoir shocks to improved ride and offroad performance
  • Allows clearance for up to 37" tires

Tyre & Wheel

Tyre & Wheel

  • 35 x 12.5 with 20 x 9 and 4.5 in. Backspace
  • 37 x 12.5 with 20 x 9 and 5.5 in. Backspace

Installation

Installation

Install Tools

  • Pitman Arm Puller

Important Notes

  • Will NOT fit air-ride equipped models
  • Diesel models only
  • Vehicles with a Manual Shift Transfer Case require a Manual T-Case Indexing Kit. Add ZOND5409 in kit configuration.
  • Trucks equipped with a 2-piece rear driveshaft require carrier bearing shim kit D5406 (not included with kit)

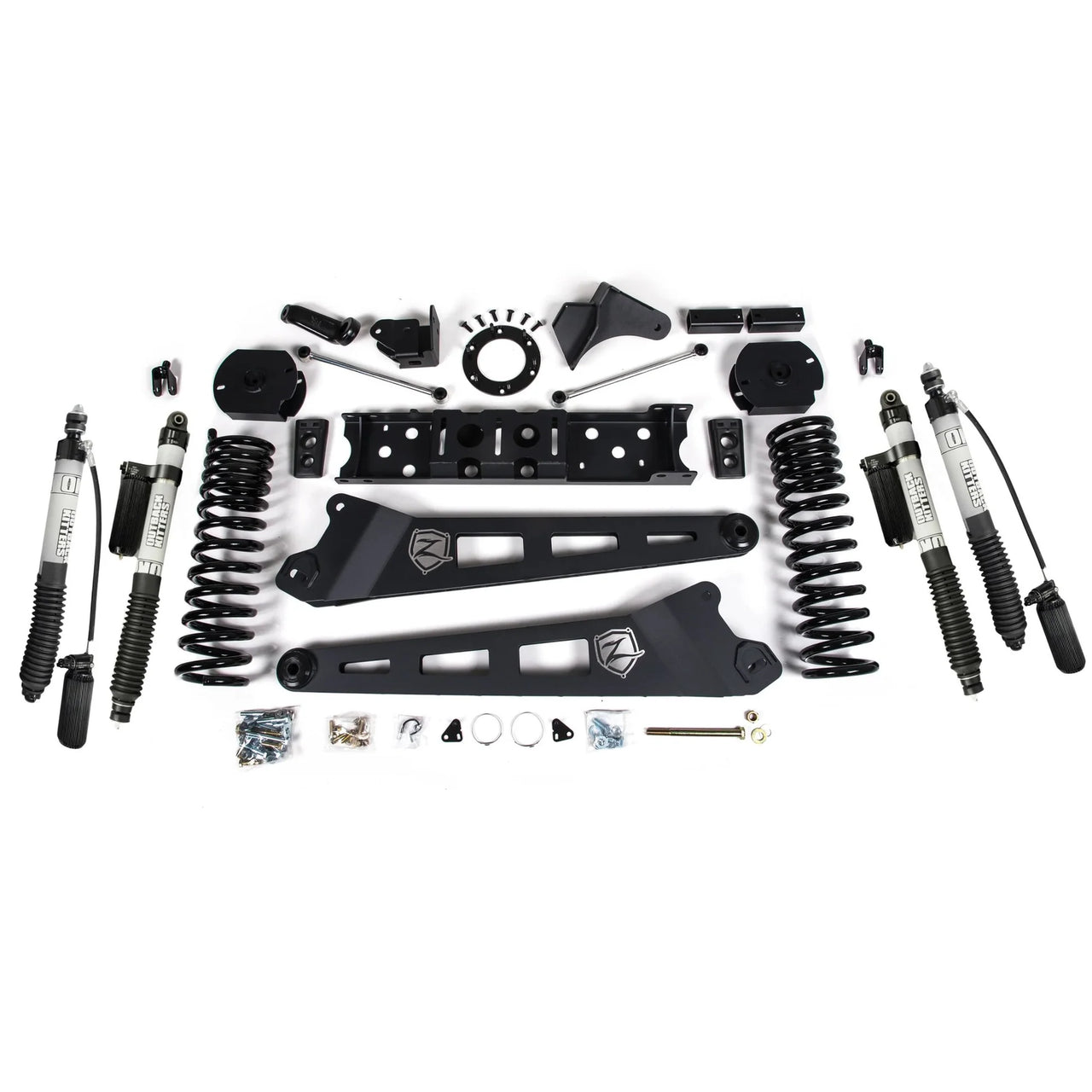

Components

Kit Components

  • ZOND1258: 2.5" Rear Spacer Box Kit
  • ZOND1403: 4.5" Replacement Radius Arm Box Kit
  • ZOND1413: Radius Arms, Single
  • ZOND3401: 4.5" (Diesel), 5.5" (Petrol) Coils
  • ZOND5612: T-Case Index - 6 Bolt - Diesel
  • OKSURA205F: Front 2.5" Remote Reservoir Shock, Compression Adjuster, Suits 5" Lift, Single
  • OKSURA205R: Rear 2.5" Remote Reservoir Shock, Compression Adjuster, Suits 5" Lift, Single
