Product Details

Take your Chevy/GMC HD to new heights with this 3" adventure series lift kit from Outback Kitters.

Kits include everything needed from high strength upper control arms and indexed torsion bar keys to differential relocation spacers and a rear lift block kit to complete the install. Get the look, performance, and capability your truck deserves with clearance for up to 35" tires.

  • Take your Chevy/GMC HD to new heights with this 3" adventure series lift kit from Outback Kitters. Kits include everything needed from high strength upper control arms and indexed torsion bar keys to differential relocation spacers and a rear lift block kit to complete the install. Get the look, performance, and capability your truck deserves with clearance for up to 35" tires.

Specifications

  • Accommodates Factory Wheels: See Notes
  • Adjustable: No
  • Finish: Powdercoat
  • Front Lift Height: 3"
  • Front Lift Method: Torsion Key
  • Lift Type: Lift Kit
  • Rear Lift Height: 2"
  • Rear Lift Method: Cast Blocks
  • Requires Metal Cutting: No
  • Requires Welding: No

Features & Benefits

  • Adventure series fully boxed HD upper control arms for improved strength and suspension travelImproved ride quality and suspension travel over standard "leveling kits".
  • Front differential drop included to correct CV shaft angles.
  • Rear 2" rear block kit will net a level to slightly tail high stanceIndexed torsion bar keys to set ride height.
  • Allows clearance for up to 35" tires

Tyre & Wheel

Tyre & Wheel

  • 34 x 11.5 with 17 x 9 and 5.5 in. Backspace
  • 35 x 12.5 with 18 x 9 and 6 in. Backspace
  • 35 x 12.5 with 20 x 9 and 6 in. Backspace

Installation

Installation

Install Tools

Torsion Bar Unloading Tool

Important Notes

  • Available for models with and without top mounted rear overload springs - be sure to select correct kit below for your application.
  • Minor trimming may be required, especially if a wheel backspace of less the specified is used.
  • Optional steering stabilizer (PN# 7103) only fits vehicles that came equipped with a steering stabilizer from the factory.
  • Requires 1/4" wheel spacer to accommodate stock 20" rims.

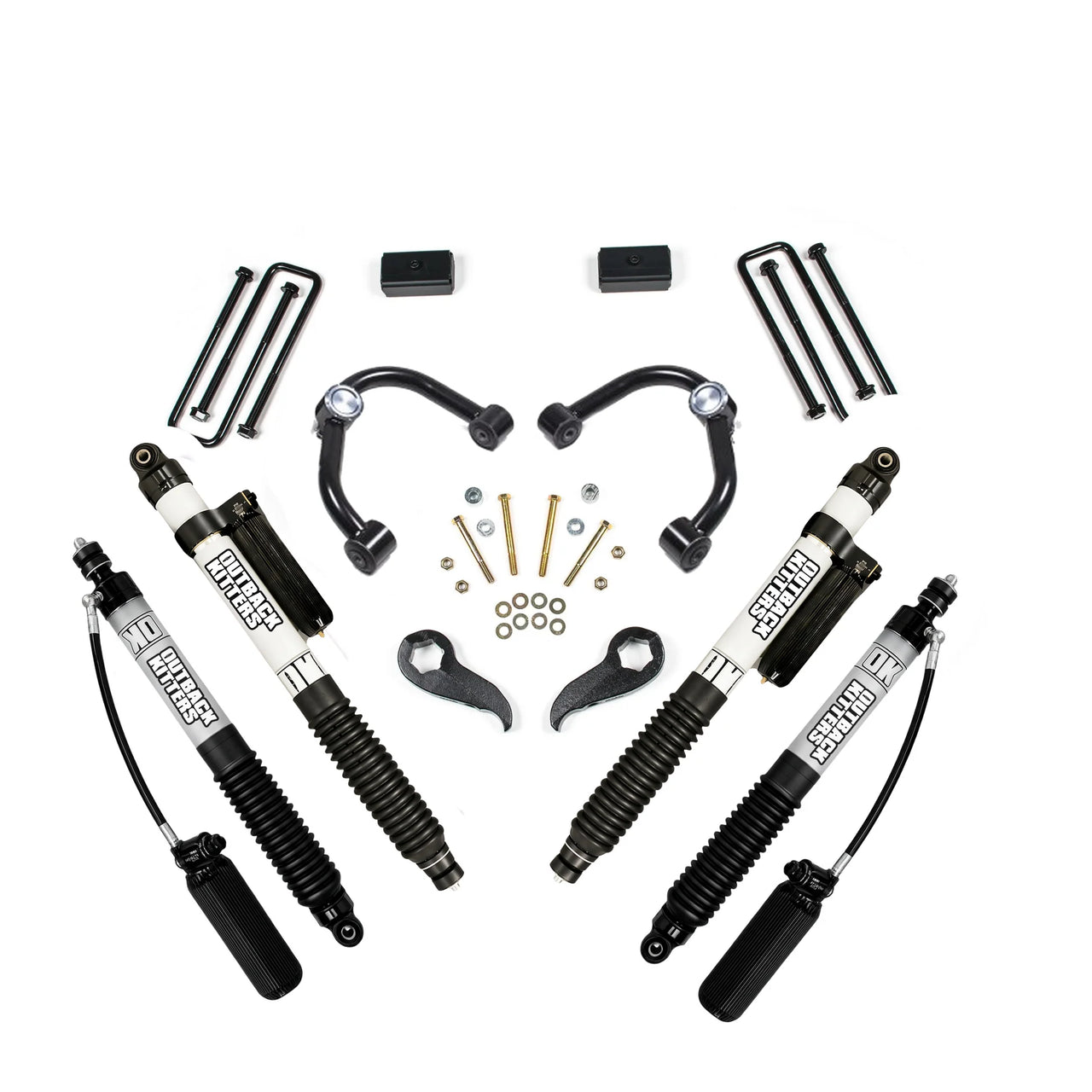

Components

Kit Components

  • ZONC1207: 2" Rear Blocks & U-Bolts without Overload
  • BDS121250: Upper Control Arms, Set of 2
  • ZONC1204: 2" Levelling Torsion Keys
  • OKSUCH203F: Front 2.5" Remote Reservoir Shock, Compression Adjuster, to suit 0-3" Lift, Single
  • OKSUCH202R: Rear 2.5" Remote Reservoir Shock, Compression Adjuster, to suit 0-2" Lift, Single
