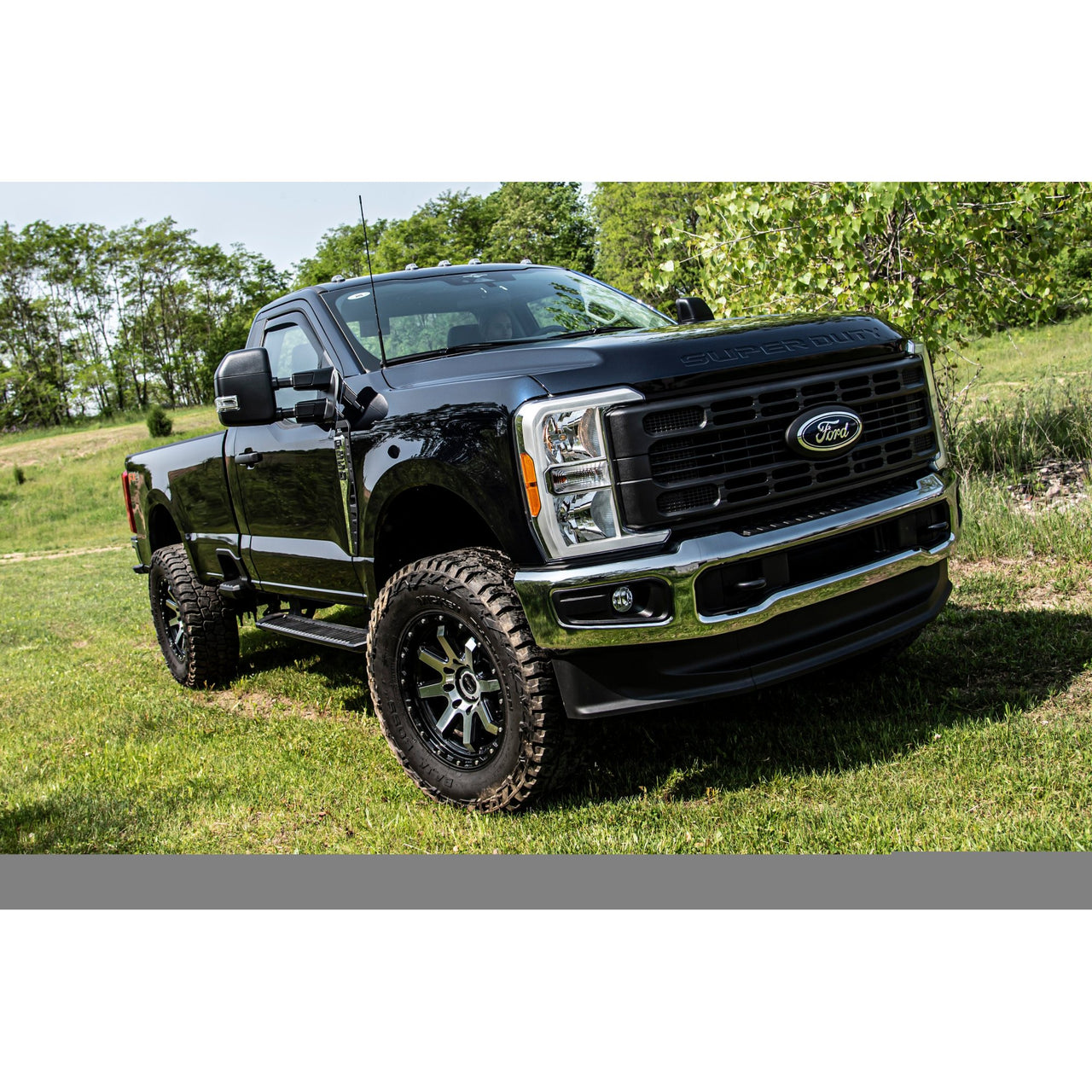

Americas Garage 3" Lift Kit with Fox 2.5" Shocks suits Ford F-250 Super Duty/F-350 Super Duty (23-25) by BDS Suspension BDS2200FPE

Americas Garage 3" Lift Kit with Fox 2.5" Shocks suits Ford F-250 Super Duty/F-350 Super Duty (23-25) by BDS Suspension BDS2200FPE

$11,700.00

Americas Garage 3" Lift Kit with Fox 2.5" Shocks suits Ford F-250 Super Duty/F-350 Super Duty (23-25) by BDS Suspension BDS2200FPE

$11,700.00

Americas Garage 3" Lift Kit with Fox 2.5" Shocks suits Ford F-250 Super Duty/F-350 Super Duty (23-25) by BDS Suspension BDS2200FPE

$11,700.00

SKU: BDS2200FPE

$19 Flat Rate Shipping — Fast dispatch with 5–10 business days
Questions? Call 1300 856 888 to check availability or get expert help.
NEED PROFESSIONAL INSTALLATION?
  • Available at our Brookvale workshop
  • Expert 4WD technicians
  • LEARN MORE

SAFE CHECKOUT

Afterpay Google Pay Mastercard Paypal American Express Visa JCB Shop
Product Details

Level out and take your 23-24 Ford Super Duty diesel powered truck with this 3-inch radius arm lift kit from BDS Suspension. Designed to improve stance performance and capability this kit includes everything necessary to set your truck up right with clearance for up to 35" tires. Up front the lift kit includes diesel-specific Pro-Ride coil springs heavy duty replacement radius arms high strength 1-3/8 inch solid steel track bar for steering correction sway bar relocation brake line brackets and precision tuned nitrogen charged shocks. In the rear this kit utilizes a high-strength fabricated lift block longer u-bolts and a matching set of FOX Performance shocks. HD Radius Arms In place of the factory stamped steel radius arms BDS supplies a pair of high-strength tubular radius arms. These arms mount into the factory location and offer caster adjustment for a wide range of lift heights along with an OE-style rubber bushing at the frame mount for smooth quiet service-free operation. Pro-Ride Coil Springs A pair of full-length diesel-specific Pro-Ride coil springs are supplied to provide the correct lift height and smooth predictable ride across various terrains. HD Adjustable Track Bar Maintain proper handling and steering geometry with the BDS high strength adjustable track bar that allows you to recenter the front axle at a variety of lift heights. Built from 1-3/8" solid steel stock the track bar comes pre-assembled with bushings and is ready to bolt into the factory mounting points.

  • Easy 100 percent bolt-on installation
  • Pro-Ride dual rate coil springs for smooth ride
  • Heavy duty tubular steel radius arms for maximum clearance
  • Adjustable solid steel track bar for proper handling
  • Fabricated steel blocks for level stance
  • FOX 2.5 Performance Elite shocks for top performance

Specifications

  • Front Lift Method : Coil Spring
  • Rear Lift Method : Block
  • Shocks Included : Yes
  • Front Lift Height : 3"
  • Rear Lift Height : 1"

Features & Benefits

  • Easy 100% Bolt-on installation
  • Pro-Ride dual rate coil springs ride smooth through any terrain
  • Heavy duty tubular steel radius arms that correct caster while maximizing ground clearance
  • Adjustable solid steel track bar designed to recenter the front axle
  • Fabricated steel blocks provide level stance from front to rear
  • FOX 2.5 Performance Elite Series shocks for maximum performance on and off-road

Tyre & Wheel

Tyre & Wheel

  • 35 x 12.5 with 17 x 9 and 5 in. Backspace
  • 35 x 12.5 with 18 x 9 and 5 in. Backspace
  • 35 x 12.5 with 20 x 9 and 5 in. Backspace

Installation

Installation

Install Tools

  • 30mm Socket
  • Pitman Arm Puller

Important Notes

  • Vehicles with radius arm mounted ride height sensors will require BDS123303.
  • Designed for use on diesel models, but can be installed on gas trucks, will achieve additional 1/2 inch front ride height.
  • Installation requires a torque wrench capable of 406 ft-lbs.
  • Due to taller factory ride height, Tremor models will not net full advertised lift height. Final ride height will be the same as standard models.
  • Larger tires on stock wheel are not recommended due to interference with brake line, radius arm and sway bar. Use recommended specs listed in wheel and tire fitment section.
  • Trucks without top mounted overload spring will require (x4) UBT4031 available to purchase separately.
  • F250/350 - Please note that all lift kits above 3" require custom parts to suit the Australian conversion. Please speak with your conversion company to confirm if you need the custom idler pulley / pitman arm / track bars.

Components

Kit Components

  • BDS013108: 1" Rear Block Kit
  • BDS013261: 2.5" Front Box Kit
  • BDS033251: 2.5" (Diesel) Coils
  • BDS123263: Radius Arm Kit, Set of 2
  • 883-26-096 (FOX88326096): Rear Fox Performance Elite Series 2.5" Shock, Suits 0-1.5" Lift, Set of 2
  • 883-26-097 (FOX88326097): Front Fox Performance Elite Series 2.5" Remote Reservoir DSC Shocks, Suits 2-3.5" Lift, Set of 2
