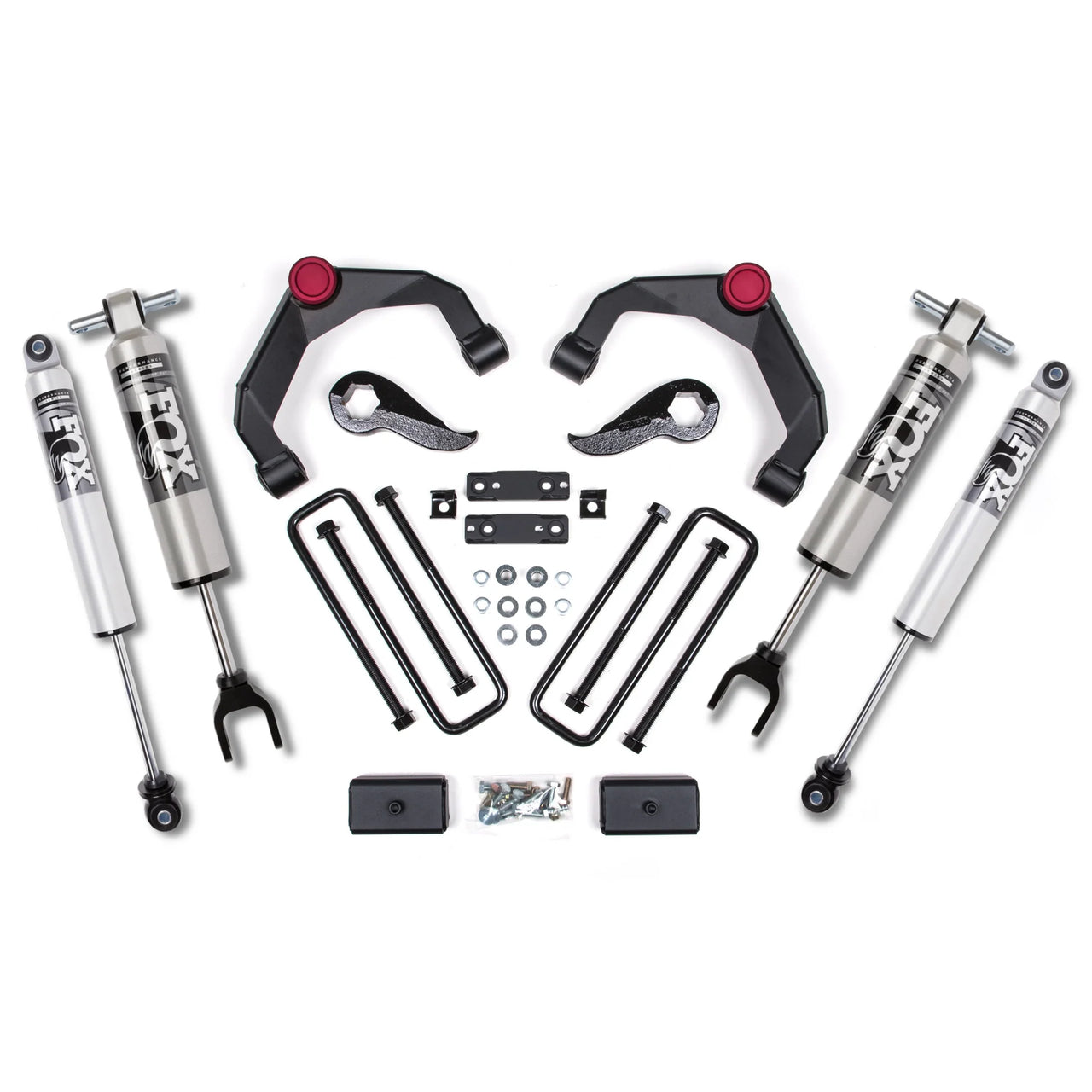

Americas Garage 3" Lift Kit with Fox 2.5" IFP HTO Shocks by Zone Offroad ZONC48HTO

Americas Garage 3" Lift Kit with Fox 2.5" IFP HTO Shocks by Zone Offroad ZONC48HTO

$4,700.00

Americas Garage 3" Lift Kit with Fox 2.5" IFP HTO Shocks by Zone Offroad ZONC48HTO

$4,700.00

Americas Garage 3" Lift Kit with Fox 2.5" IFP HTO Shocks by Zone Offroad ZONC48HTO

$4,700.00

SKU: ZONC48HTO

$19 Flat Rate Shipping — Fast dispatch with 5–10 business days
Questions? Call 1300 856 888 to check availability or get expert help.
NEED PROFESSIONAL INSTALLATION?
  • Available at our Brookvale workshop
  • Expert 4WD technicians
  • LEARN MORE

SAFE CHECKOUT

Afterpay Google Pay Mastercard Paypal American Express Visa JCB Shop
Product Details
  • Improves off-road capability and ground clearance
  • Designed for enhanced stability and control
  • Durable construction for long-lasting performance
  • Easy installation with no modifications required
  • Compatible with various terrain types
  • Optimized for a smooth ride on and off the road

Specifications

  • Accommodates Factory Wheels: See Notes
  • Adjustable: No
  • Finish: Powdercoat
  • Front Lift Height: 3"
  • Front Lift Method: Torsion Key
  • Lift Type: Lift Kit
  • Material: Steel
  • Rear Lift Height: 2"
  • Rear Lift Method: Fabricated Blocks
  • Requires Metal Cutting: No
  • Requires Welding: No

Features & Benefits

  • High strength UCAs are boxed and fully welded. They are specially designed with an indexed ball joint cup to correct ball joint operating angle for more suspension travel.
  • Cast construction indexed torsion bar keys to provide additional ride height while maximizing ground clearance.
  • Front differential relocation brackets to correct CV axle operating angle.
  • Sway bar relocation brackets to maintain clearance and proper operating angle.2" rear lift blocks and heavy duty u-bolts to level the stance.
  • Nitro series gas or FOX 2.0 adventure series IFP gas shocks to improve performance.
  • Maintains ride and handling characteristics with clearance for 35" tires.
  • Allows for improve offroad performance with more droop travel.

Tyre & Wheel

Tyre & Wheel

  • 35 x 12.5 with 20 x 9 and 5.75 in. Backspace
  • 295 / 60 with 20 x 9 and 6.18 in. Backspace
  • 285 / 65 with 20 x 9 and 6.18 in. Backspace

Installation

Installation

Install Tools

Torsion Bar Unloading Tool

Important Notes

  • Stock wheels with stock tires can be installed, however clearance are very tight to the upper control arms, we recommend using a 1/4" wheel spacer.
  • Proper torsion bar key unloading tool required, (Kent Moore #CH48809 or equivalent).
  • Will work on gas or diesel models.
  • Will work on standard and AT4 models.
  • DRW applications reqire the "With Factory Overload" Option to get the correct U-Bolts.

Components

Kit Components

  • ZONC1207: 2" Rear Blocks & U-Bolts without Overload
  • ZONC2320: 3" Lift Front UCAs and Torsion Keys
  • 987-24-010 (FOX98724010): Front Fox Performance Series 2.5" Smooth Body IFP HTO Shock, Suits 1.5-2.5" Lift, Single
  • 987-24-009 (FOX98724009): Fox 2.5" Smooth Body IFP HTO Rear Shock to suit 0-1" Lift, Performance Series, Single
