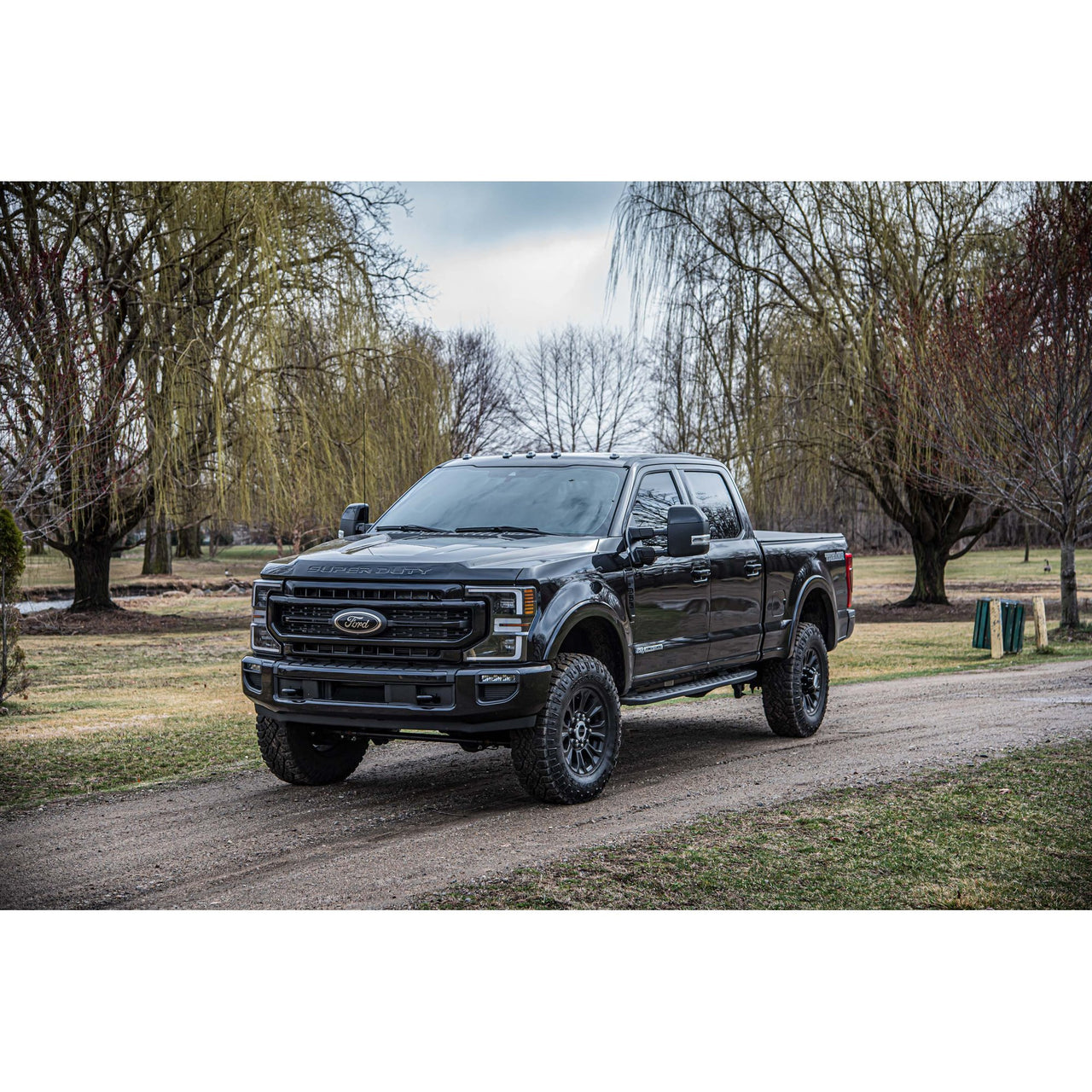

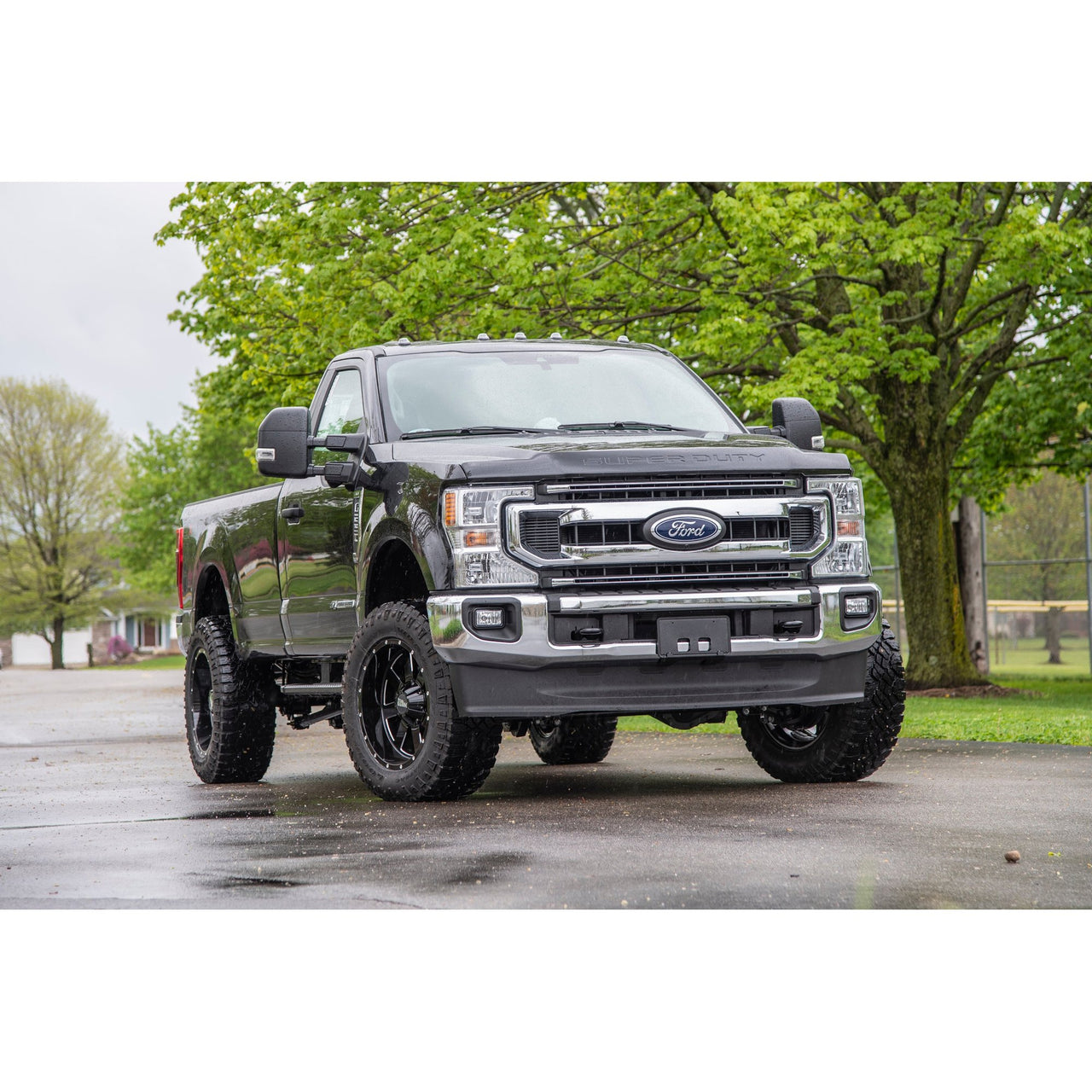

Americas Garage 2" Levelling Kit with Fox 2.5" Shocks suits Ford F-250 Super Duty/F-350 Super Duty (17-26) by BDS Suspension BDS1910AFPE

Americas Garage 2" Levelling Kit with Fox 2.5" Shocks suits Ford F-250 Super Duty/F-350 Super Duty (17-26) by BDS Suspension BDS1910AFPE

$9,100.00

Americas Garage 2" Levelling Kit with Fox 2.5" Shocks suits Ford F-250 Super Duty/F-350 Super Duty (17-26) by BDS Suspension BDS1910AFPE

$9,100.00

Americas Garage 2" Levelling Kit with Fox 2.5" Shocks suits Ford F-250 Super Duty/F-350 Super Duty (17-26) by BDS Suspension BDS1910AFPE

$9,100.00

SKU: BDS1910AFPE

$19 Flat Rate Shipping — Fast dispatch with 5–10 business days
Questions? Call 1300 856 888 to check availability or get expert help.
NEED PROFESSIONAL INSTALLATION?
  • Available at our Brookvale workshop
  • Expert 4WD technicians
  • LEARN MORE

SAFE CHECKOUT

Afterpay Google Pay Mastercard Paypal American Express Visa JCB Shop
Product Details

FOX 2.5 performance elite series shocks offer next level performance and damper capacity. Aluminum body for faster heat dispersion and DSC adjustable reservoir. Easy, 100% Bolt-on installation Pro-Ride dual rate coil springs ride smooth through any terrain Heavy duty track bar relocation bracket designed to recenter the front axle

  • Next level performance with FOX 2.5 shocks
  • Easy bolt-on installation for quick setup
  • Pro-Ride coil springs ensure smooth ride
  • Heavy duty track bar relocation for stability
  • Designed for on-road comfort and off-road capability
  • Clearance for up to 35 inch tires

Specifications

  • Front Lift Method : Coil Spring
  • Rear Lift Method : Stock
  • Shocks Included : Yes
  • Front Lift Height : 2"
  • Rear Lift Height : 0"

Features & Benefits

  • FOX 2.5 performance elite series shocks offer next level performance and damper capacity. Aluminum body for faster heat dispersion and DSC adjustabe reservoir.
  • Easy, 100% Bolt-on installation
  • Pro-Ride dual rate coil springs ride smooth through any terrain
  • Heavy duty track bar relocation bracket designed to recenter the front axle

Tyre & Wheel

Tyre & Wheel

  • 285 / 65 with 18 x 9 and 5.75 in. Backspace
  • 305 / 55 with 20 x 9 and 5 in. Backspace

Installation

Installation

Install Tools

  • 30mm Socket

Important Notes

  • 2017-2019 models net 1" of lift height; requires an additional 1" coil spring spacer to sit level.
  • 2020-2023 models net 2".
  • Kit designed for diesel models; Gas models will achieve approx. 1/2" more ride height.
  • 2024+ Ford Super Duty Only: This kit includes ball joint cams to achieve optimum performance both on and off-road. For vehicles equipped with non-selectable passenger side hub-lock on the front axle along with these ball joint cams, it is required to replace the non-selectable with a selectable hub-lock. Part number (PC3Z-3B396-A) is needed to prevent a grinding noise from the front axle for these applications. If your vehicle is not factory equipped with them, you may also need vacuum lines (3C125-A and/or 3C124). You can reference Section 307-07A of the Workshop Manual or Bulletin SSM 52423 for more information. See installation instructions for additional Information.

Components

Kit Components

  • 883-26-095 (FOX88326095): Front Fox Performance Elite Shocks 2.5" Remote Reservoir DSC Shocks, Suits 0-1.5" Lift, Set of 2
  • 883-26-096 (FOX88326096): Rear Fox Performance Elite Series 2.5" Shock, Suits 0-1.5" Lift, Set of 2
  • BDS013205: Front Box Kit (17-19 = 1" / 2020+ = 2")
  • OK412200-F20: Front 2" Lifted Coils, 20%, Set of 2
