Americas Garage 1.75" Lift Kit for ZR2 with Upper Control Arms suits Chev 1500 ZR2 / GMC AT4X by Zone Offroad ZONC1174

Americas Garage 1.75" Lift Kit for ZR2 with Upper Control Arms suits Chev 1500 ZR2 / GMC AT4X by Zone Offroad ZONC1174

$1,250.00

Americas Garage 1.75" Lift Kit for ZR2 with Upper Control Arms suits Chev 1500 ZR2 / GMC AT4X by Zone Offroad ZONC1174

$1,250.00

Americas Garage 1.75" Lift Kit for ZR2 with Upper Control Arms suits Chev 1500 ZR2 / GMC AT4X by Zone Offroad ZONC1174

$1,250.00

SKU: ZONC1174

$199 Flat Rate Shipping — Fast dispatch with 5–10 business days
Questions? Call 1300 856 888 to check availability or get expert help.
NEED PROFESSIONAL INSTALLATION?
  • Available at our Brookvale workshop
  • Expert 4WD technicians
  • LEARN MORE

SAFE CHECKOUT

Afterpay Google Pay Mastercard Paypal American Express Visa JCB Shop
Product Details

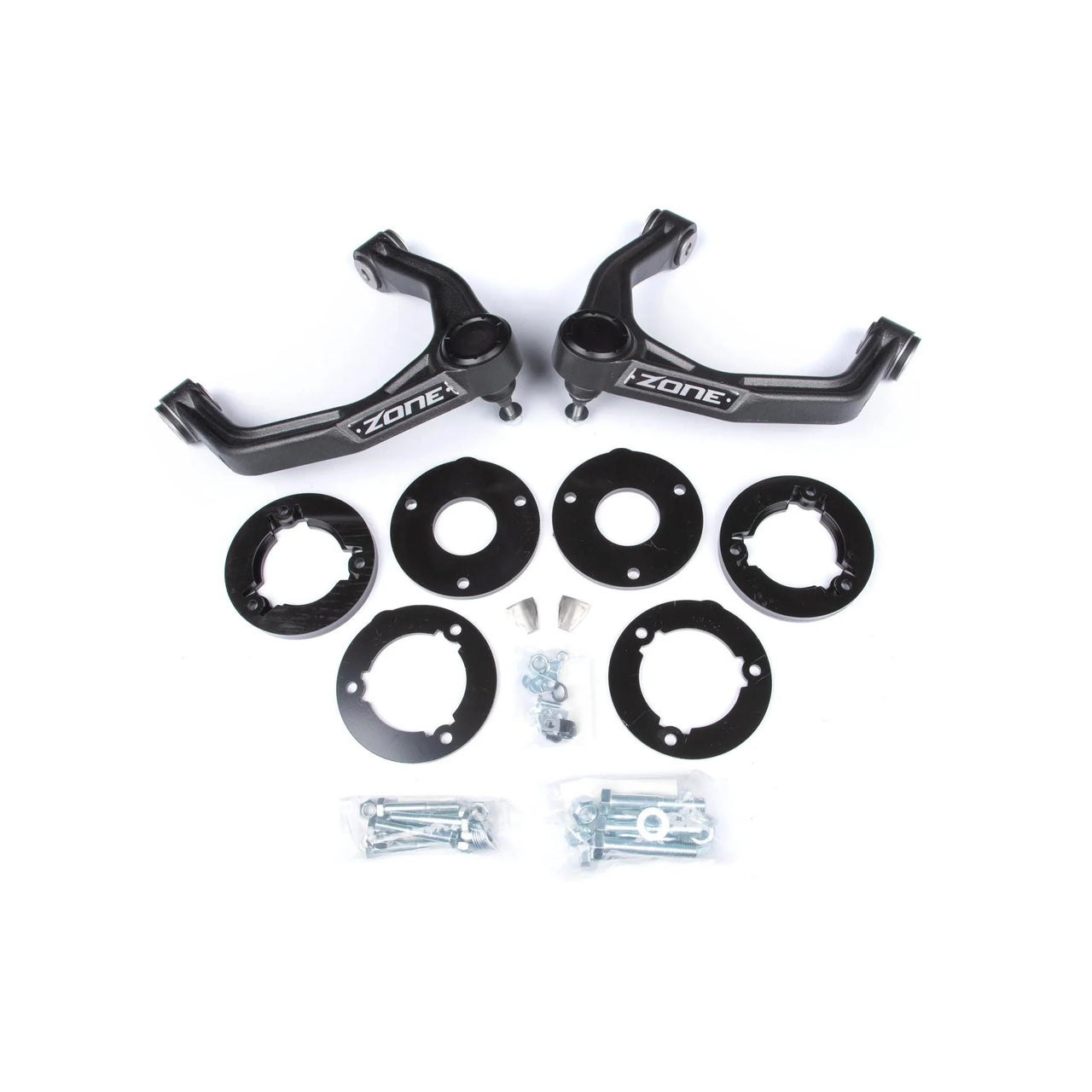

Specially designed for the Chevy ZR2 and GMC 1500 AT4X trucks, these kits are designed to a higher standard, working within the parameters of the factory suspension and steering geometry to maximize potential while allowing optimal clearance for larger tires. Kits include strut spacers, adventure series upper control arms, hardware packs and steering stop extensions.

  • Designed for 2019-2023 Chevy ZR2 and GMC 1500 AT4X trucks
  • Maximizes factory suspension and steering geometry
  • Includes strut spacers and upper control arms
  • Maintains ride quality and handling characteristics
  • Allows clearance for larger 33-34 inch tires
  • High strength construction for increased durability

Specifications

  • Front Lift Method: Strut Spacer
  • Front Lift Height: 1.5"
  • Rear Lift Method: None
  • Rear Lift Height: 0"
  • Shocks Included: No

Features & Benefits

  • 3-piece design with top mount spacer and 2 preload spacers to raise ride height without over-extending suspension during droop travel.
  • High strength adventure series upper control arms allow more travel, increase strength and correct issues caused by kits using the factory UCAs.
  • Maintains ride quality and handling characteristics.
  • Allows clearance for 33-34" tires.

Tyre & Wheel

Tyre & Wheel

  • (Chevy) 35 x 12.5 with 20 x 9 and 5.5 in. Backspace
  • (GMC) 33 x 12.5 with 20 x 9 and 5.5 in. Backspace

Installation

Installation

Install Tools

  • Cut Off Wheel or Equiv.
  • Strut Compressor
  • Welder Optional

Important Notes

  • For ZR2 with Multimatic Shocks: The top spacer centrehole needs to be manually widened to fit over the multimatic shocks.
