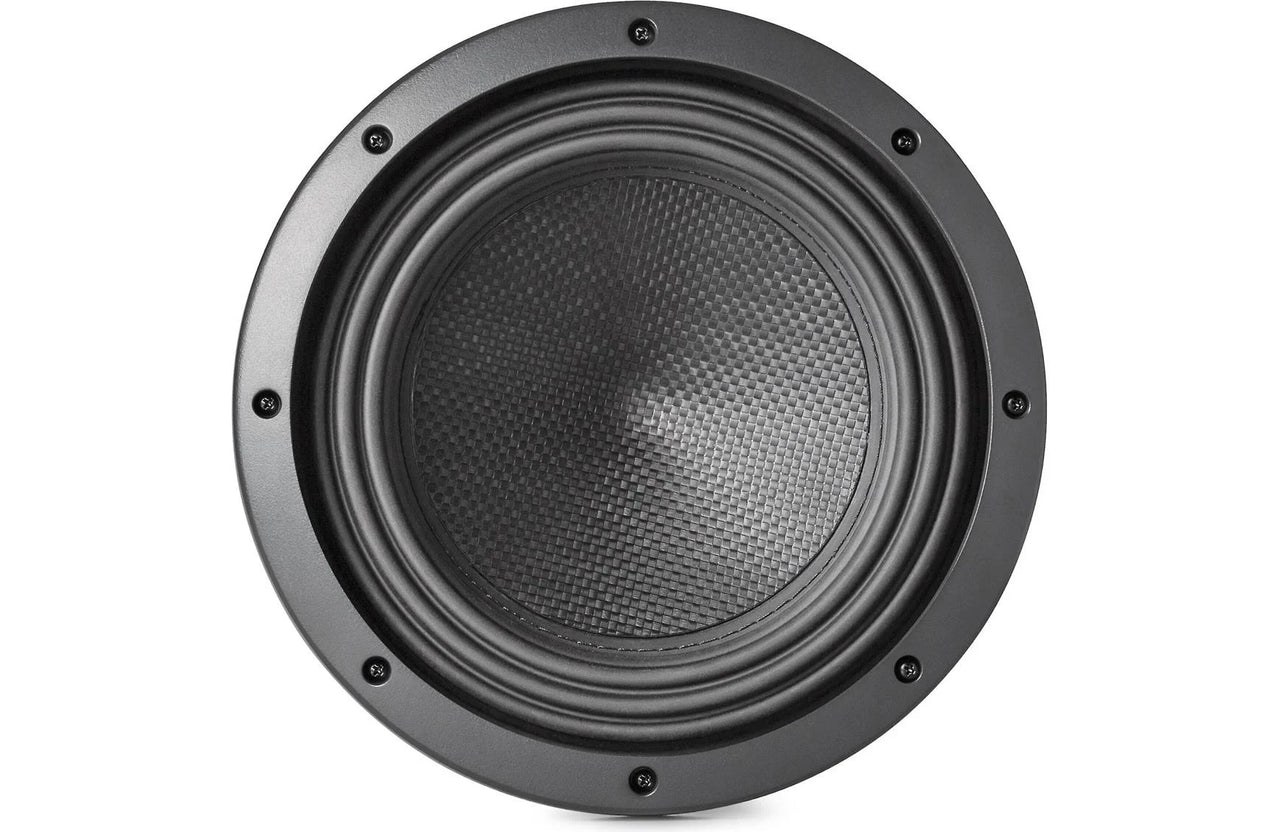

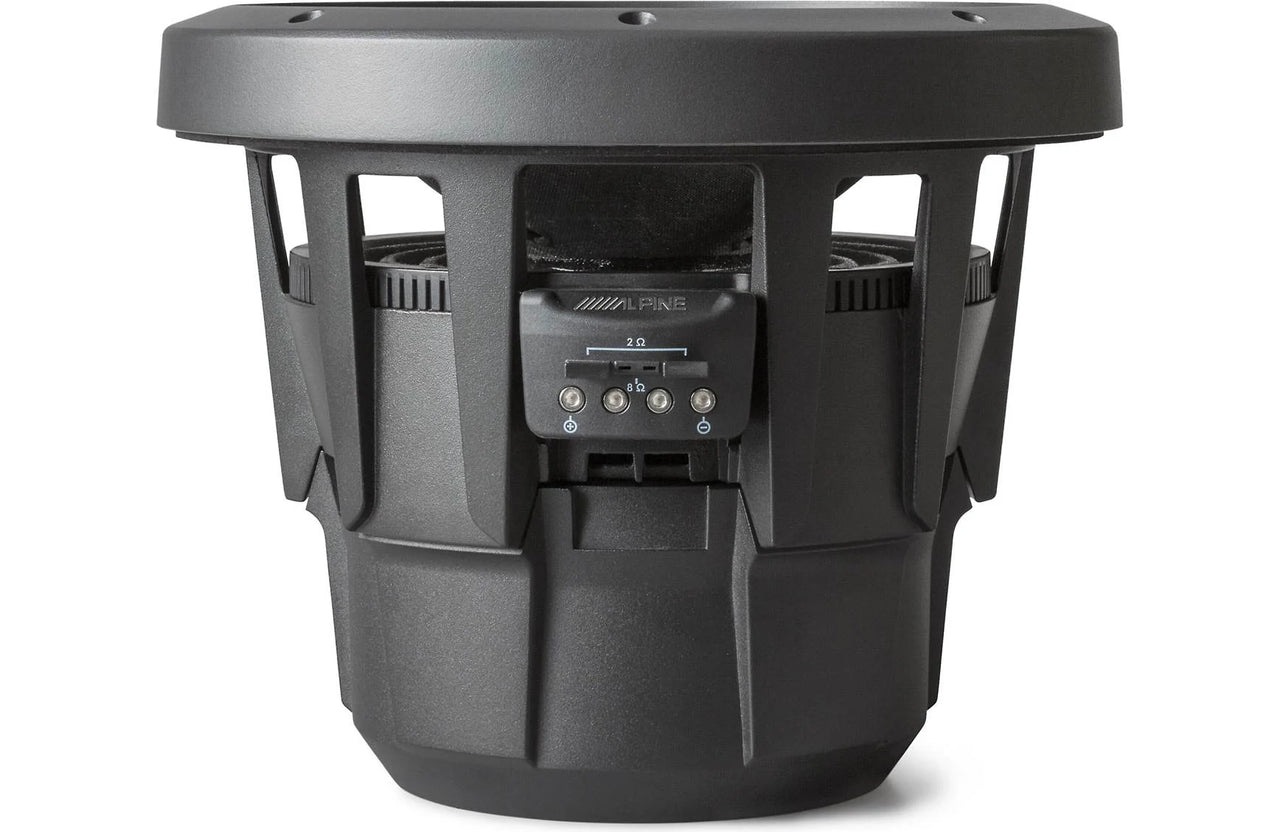

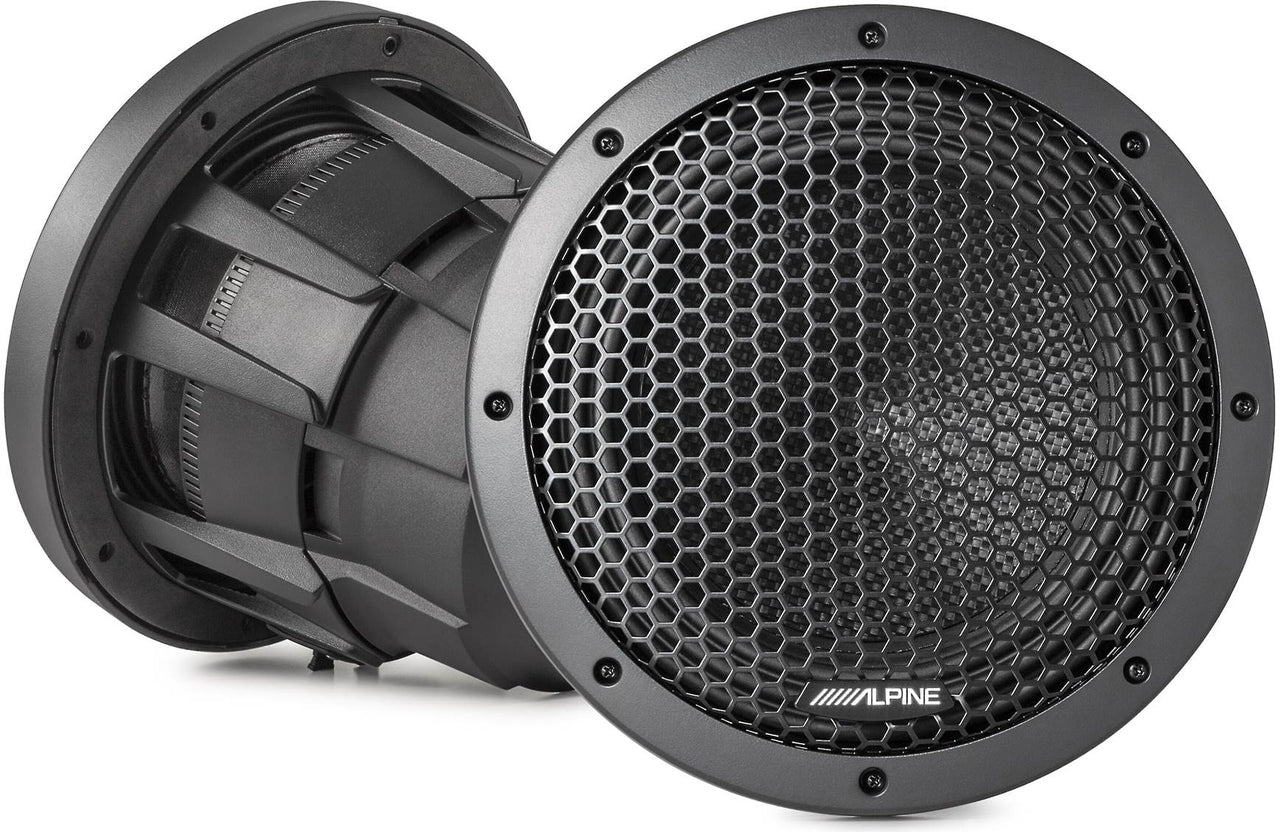

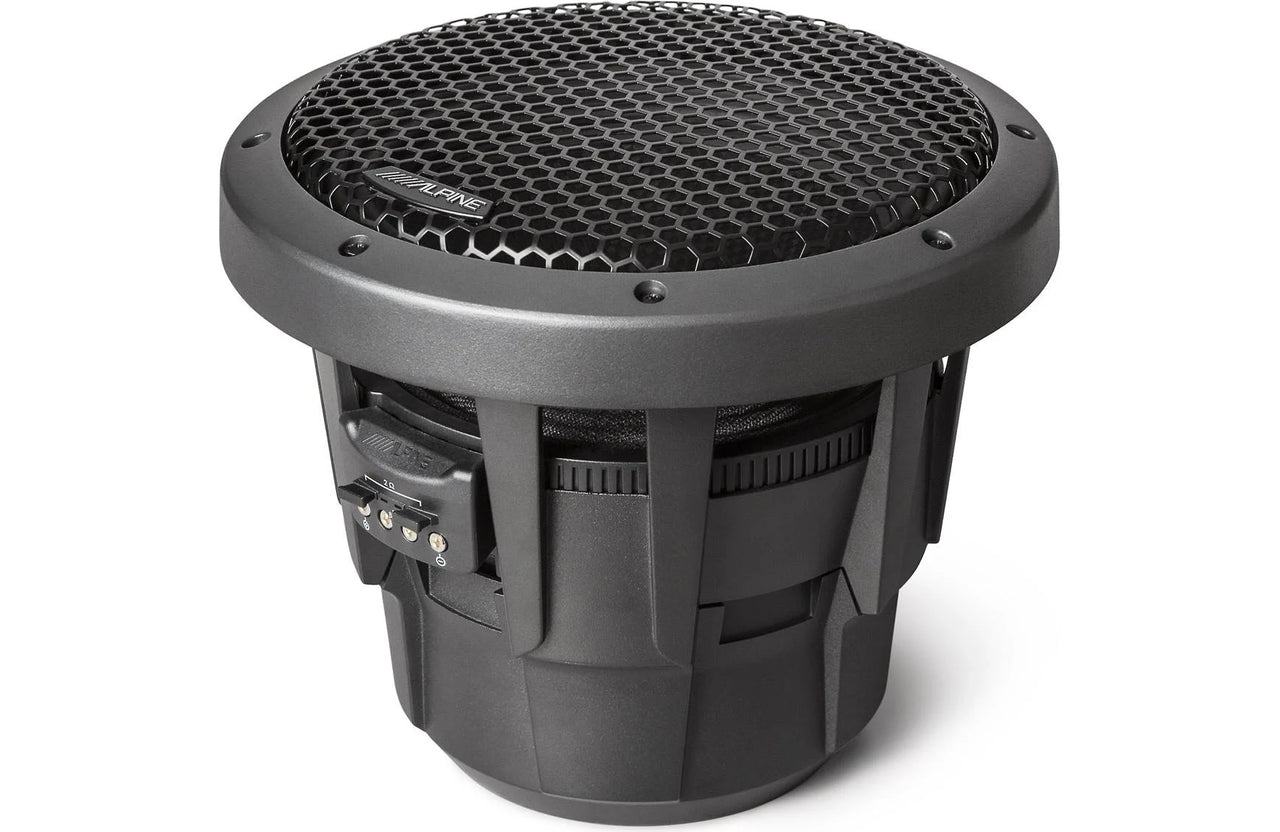

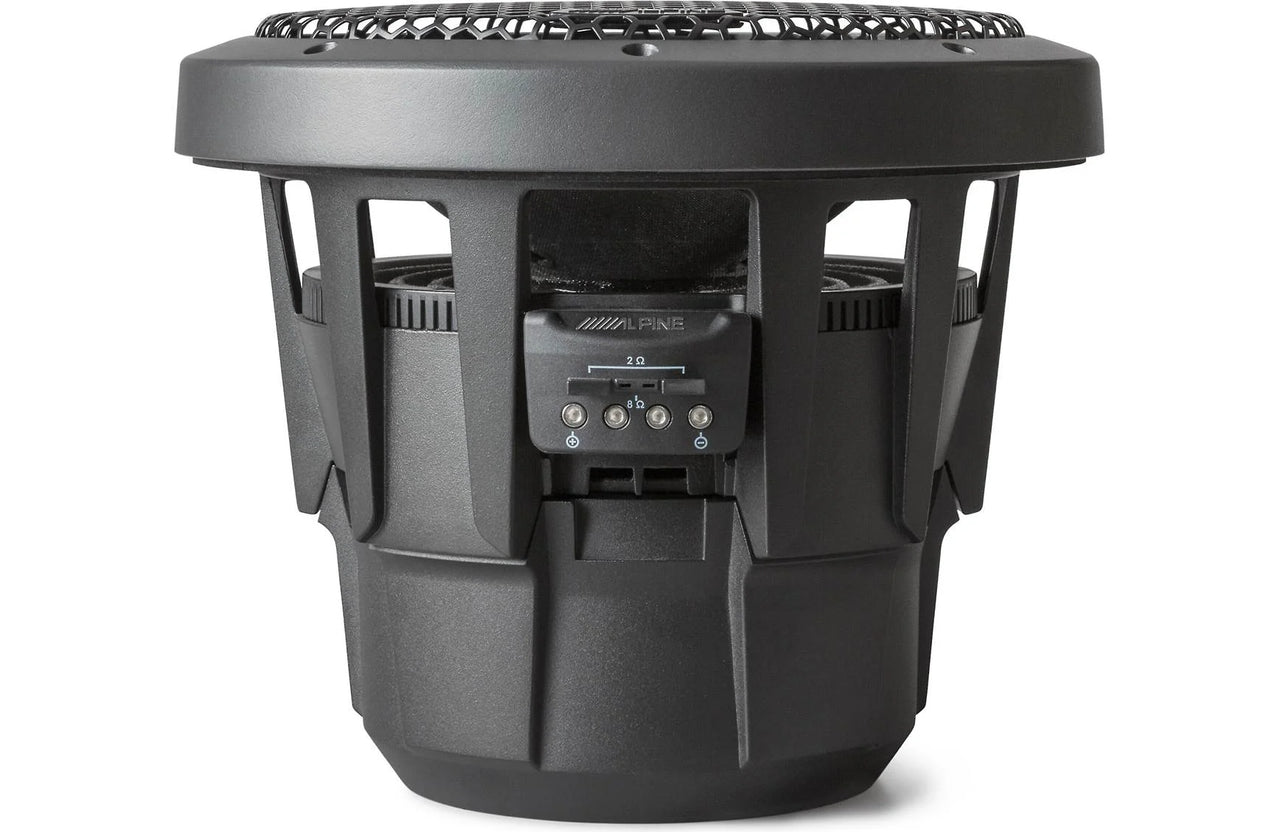

Alpine Status 10" Subwoofer – HDZ-W10

Experience powerful, precise bass with the Alpine Status HDZ-W10 10-inch subwoofer. Featuring a pulp-mica cone with a carbon-fibre dust cap, a High Amplitude Multi-Roll (HAMR) rubber surround and a cast aluminium frame, it is engineered for high-performance in-car audio systems.

The dual 4-ohm voice coils offer flexible wiring options, allowing a 2-ohm load when wired in parallel or an 8-ohm load when wired in series. With 800W RMS power handling and 2,400W peak power, this subwoofer delivers deep, controlled bass with up to 20mm of linear excursion.

Choose a sealed or ported enclosure to suit your audio setup, with recommended box volumes ranging from 0.622 to 1.622 cubic feet for sealed enclosures and 1.122 to 1.872 cubic feet for ported enclosures. The included mesh grille and aluminium trim ring provide a clean, finished installation.

Key Features

  • 10-inch Alpine Status Series subwoofer
  • Dual 4-ohm voice coils with 2-ohm or 8-ohm wiring options
  • Pulp-mica cone with carbon-fibre dust cap
  • High Amplitude Multi-Roll (HAMR) rubber surround
  • Cast aluminium frame
  • 800W RMS power handling / 2,400W peak power
  • 20mm linear excursion

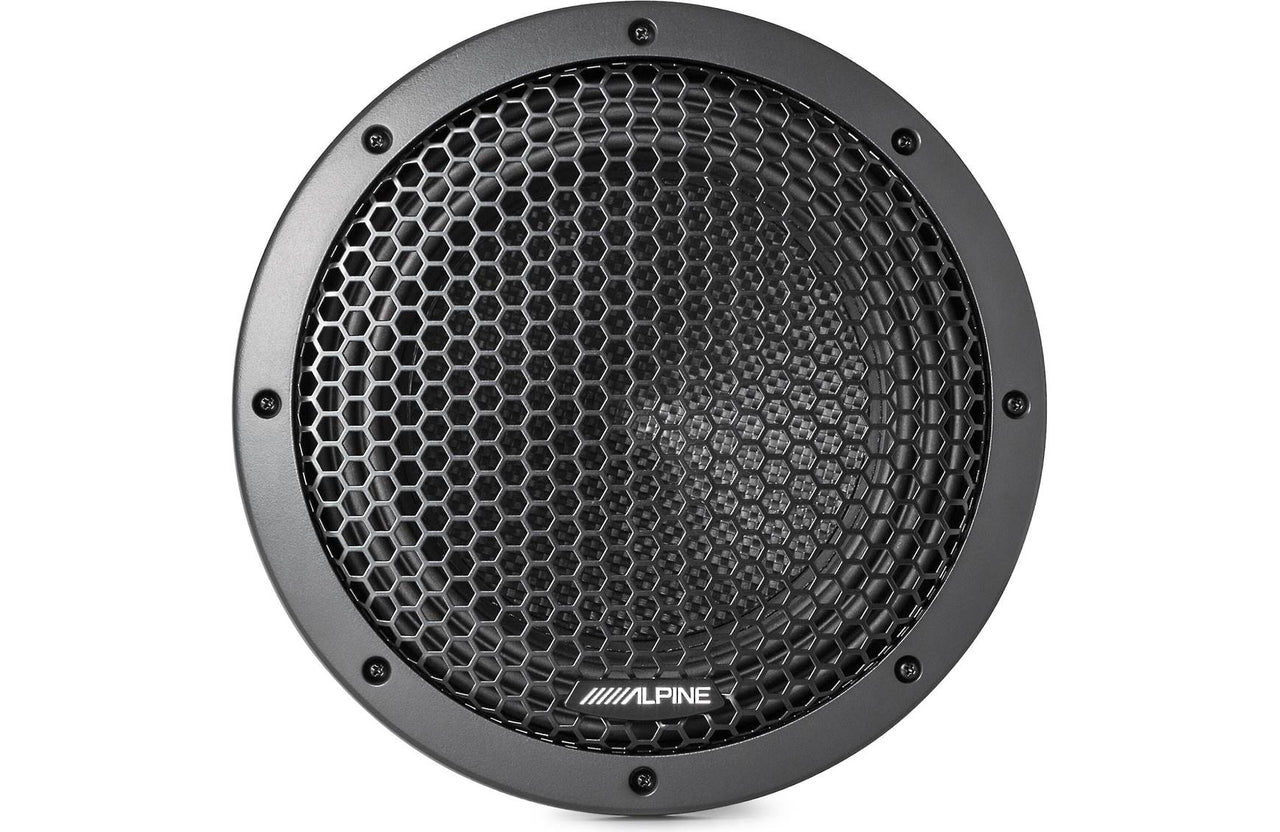

  • Black steel mesh grille and aluminium trim ring included

Technical Specifications

  • Model: HDZ-W10
  • Frequency Response: 26Hz–200Hz
  • Sensitivity: 82.2dB (1W)
  • Voice Coil Impedance: Dual 4 ohms
  • Power Handling: 800W RMS / 2,400W peak
  • Top-Mount Depth: 7.42"
  • Cutout Diameter: 9"
  • Frame Dimensions: 10.515" × 10.515"
  • Cone Material: Pulp-mica
  • Surround Material: Rubber
  • Basket Material: Aluminium
  • Linear Excursion (Xmax): 20mm

Recommended Enclosure Volumes

  • Sealed: 0.622–1.622 cu. ft. (ideal: 0.97 cu. ft.)
  • Ported: 1.122–1.872 cu. ft. (ideal: 1.76 cu. ft.)

What's in the Box

  • Alpine Status 10" subwoofer
  • Mesh grille
  • Aluminium trim ring
  • Two voice coil jumpers (pre-installed)
  • 3mm hex key
  • Application guide
  • Product registration and warranty information

Warranty: 1 year
