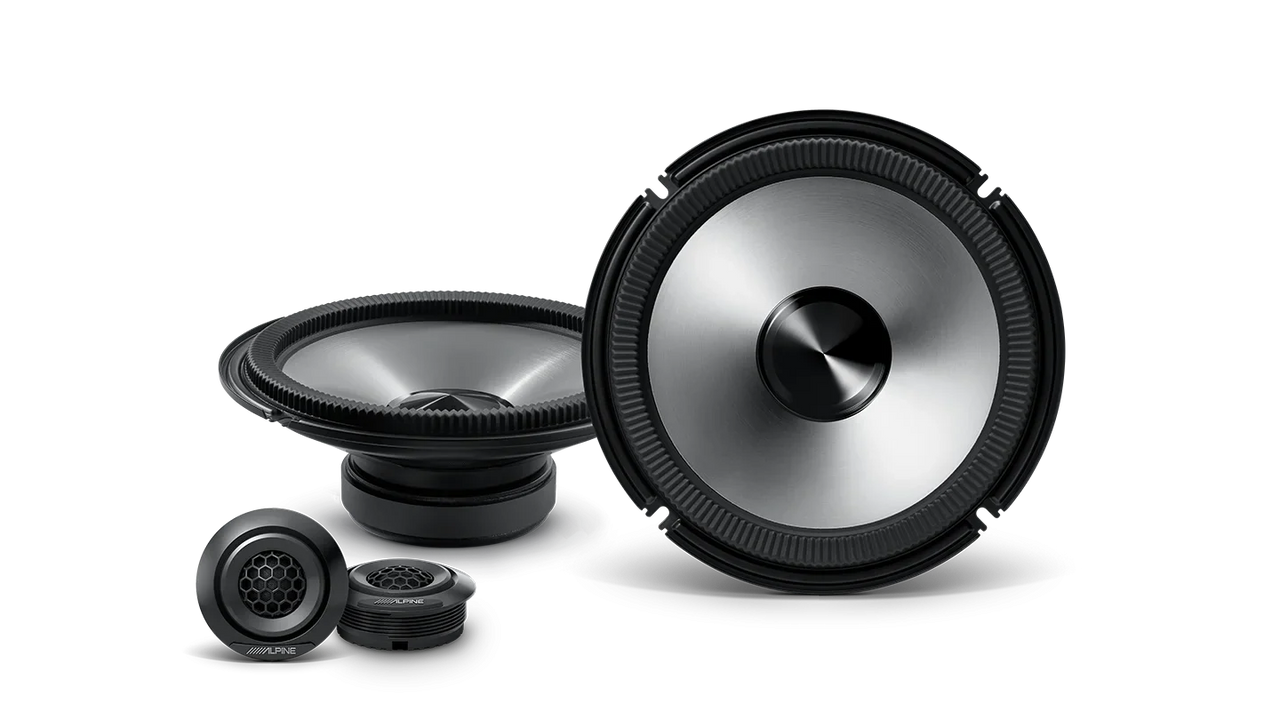

Alpine BassRev 8″ 2-Way Audio Component Speaker System BRV-S80C

Alpine BassRev 8″ 2-Way Audio Component Speaker System BRV-S80C

$349.95

Alpine BassRev 8″ 2-Way Audio Component Speaker System BRV-S80C

$349.95

Alpine BassRev 8″ 2-Way Audio Component Speaker System BRV-S80C

$349.95

SKU: BRV-S80C

Order today and get it delivered in 5–10 business days!
Questions? Call 1300 856 888 to check availability or get expert help.
NEED PROFESSIONAL INSTALLATION?
  • ✔ Available at our Brookvale workshop
  • ✔ Expert 4WD technicians
LEARN MORE

SAFE CHECKOUT

Afterpay Google Pay Mastercard Paypal American Express Visa JCB Shop
Product Details

Alpine BRV-S80C BassRev 8" 2-Way Component Speakers with HEDGE Surround Technology

Upgrade your vehicle's audio performance with the Alpine BRV-S80C BassRev 8" 2-Way Component Speaker System. Developed from Alpine’s decades of acoustic engineering expertise, the BassRev Series introduces innovative HEDGE (High Excursion Design Gathered Edge) technology, delivering powerful bass response while maintaining the exceptional clarity, detail, and precision Alpine is renowned for.

Designed as a premium factory speaker replacement, the BRV-S80C combines an 8-inch lightweight polypropylene woofer with a precision 1-inch polyester soft dome tweeter to produce deep bass, detailed midrange frequencies, and crystal-clear highs. Whether powered by a factory head unit or aftermarket amplifier, these speakers deliver immersive sound with outstanding balance and dynamic performance.

Key Features

  • 8" (200mm) 2-Way Component Speaker System engineered for superior sound quality and bass performance.
  • Exclusive HEDGE Surround Technology maximises cone excursion for deeper, more impactful bass.
  • Lightweight Polypropylene Woofer Cone provides excellent rigidity and reduced distortion.
  • 1" Polyester Soft Dome Tweeters deliver smooth, detailed high-frequency reproduction.
  • Large Strontium Ferrite Magnets increase driver force and efficiency.
  • High-Quality Audio-Grade Tweeter Crossovers ensure seamless frequency integration.
  • Neodymium Tweeter Magnets offer precise and articulate high-frequency response.
  • Flush Mount & OEM-Friendly Tweeter Design for easy installation in factory locations.
  • Compatible with Alpine OPTIM™8 DSP for advanced OPTIM™Sync bass optimisation.
  • Ideal Factory Speaker Upgrade for a wide range of vehicles.

All-New HEDGE Surround Technology

At the heart of the BRV-S80C is Alpine’s revolutionary HEDGE (High Excursion Design Gathered Edge) surround technology. Specifically engineered to maximise low-frequency output, HEDGE dramatically increases cone travel while maintaining control and accuracy.

The result is powerful bass response within the critical 35Hz–80Hz frequency range, delivering impressive low-end impact and a maximum linear excursion peak of 28mm. You'll experience bass that is not only heard but felt, without sacrificing clarity or balance.

Lightweight Polypropylene Woofer Cone

The BRV-S80C utilises a specially engineered polypropylene woofer cone that combines lightweight construction with exceptional rigidity. This advanced material minimises unwanted resonance and distortion while maintaining structural integrity under demanding listening conditions.

Even at high volume levels and large cone excursions, the woofer reproduces music with smooth, accurate, and balanced performance across the entire frequency spectrum.

Large Magnet Structure for Greater Output

Featuring oversized 100mm Strontium Ferrite magnets and large 35mm voice coils, the BRV-S80C is built to deliver increased cone control and higher sound pressure levels. Combined with Alpine’s HEDGE surround technology, this powerful motor structure enables louder output, improved efficiency, and deeper bass performance.

Premium Soft Dome Tweeters

The included 1-inch polyester soft dome tweeters provide exceptional high-frequency detail and smooth tonal balance. Designed with lightweight polyester diaphragms and powerful Neodymium magnets, these tweeters accurately reproduce subtle musical details, transients, and harmonics for an expansive and immersive listening experience.

The result is precise imaging, excellent sound staging, and crystal-clear highs without harshness or listening fatigue.

OEM-Friendly Installation Design

The BRV-S80C tweeters feature a collapsible housing and removable trim ring, allowing installation into many factory tweeter locations including:

  • A-Pillar Mounts
  • Mirror Sail Panels
  • Factory Tweeter Pods
  • Door Trim Locations

This flexible design enables a clean, factory-style installation while preserving the vehicle's original interior appearance.

OPTIM™Sync Compatible Performance

The BRV-S80C is fully compatible with Alpine’s OPTIM™Sync technology when paired with the Alpine OPTIM™8 DSP Amplifier. This advanced processing platform intelligently applies dynamic bass enhancement and custom equalisation profiles specifically tuned for BassRev speakers, unlocking deeper bass, improved tonal balance, and enhanced overall performance.

Technical Specifications

Model Alpine BRV-S80C
Speaker Type 2-Way Component Speaker System
Woofer Size 8" (200mm)
Woofer Cone Material Polypropylene (PP)
Surround Technology HEDGE (High Excursion Design Gathered Edge)
Woofer Voice Coil 35mm
Woofer Magnet Material Strontium Ferrite
Woofer Magnet Size 100mm
Tweeter Size 1" Polyester Soft Dome
Tweeter Voice Coil 20mm
Tweeter Magnet Material Neodymium
Crossover Network High-Quality Audio-Grade Tweeter Crossover
Peak Power Handling 150 Watts
RMS Power Handling 50 Watts RMS (CTA-2031 Compliant)
Frequency Response 35Hz – 20kHz
Impedance 4 Ohms
Sensitivity 87dB/W
Recommended Amplification Up to 50W RMS per Channel

Woofer Dimensions

Frame Diameter 20.96 cm
Cut-Out Diameter 19.7 cm
Mounting Depth 8.55 cm
Mounting Height 1.09 cm
Magnet Diameter 10.0 cm

Tweeter Dimensions

Frame Diameter 5.8 cm
Mounting Diameter 5.1 cm
Mounting Depth 1.76 cm
Height 2.54 cm

What's Included

  • 2 x Alpine BRV-S80C 8" BassRev Woofers
  • 2 x 1" Polyester Soft Dome Tweeters
  • 2 x Audio-Grade Tweeter Crossovers
  • Tweeter Flush Mount Hardware
  • OEM-Compatible Tweeter Mounting Components
  • Protective Speaker Grilles
  • Installation Hardware
  • User Documentation

Why Choose the Alpine BRV-S80C?

  • Advanced HEDGE surround technology for deeper bass response
  • Premium polypropylene woofer for clean, distortion-free sound
  • Powerful Strontium Ferrite magnet motor structure
  • Detailed and smooth polyester soft dome tweeters
  • OEM-friendly installation design
  • OPTIM™Sync compatibility for enhanced bass performance
  • Perfect upgrade from factory vehicle speakers
  • Legendary Alpine engineering and sound quality

The Alpine BRV-S80C BassRev 8" Component Speaker System delivers the ideal balance of powerful bass, detailed highs, and exceptional clarity, making it the perfect audio upgrade for drivers seeking premium sound performance in any vehicle.
